My Single Cab Ranger System

2 Memphis 10's and 1200 watt amp in custom box

Name:  shanessystem.jpg
Views: 47
Size:  48.8 KB

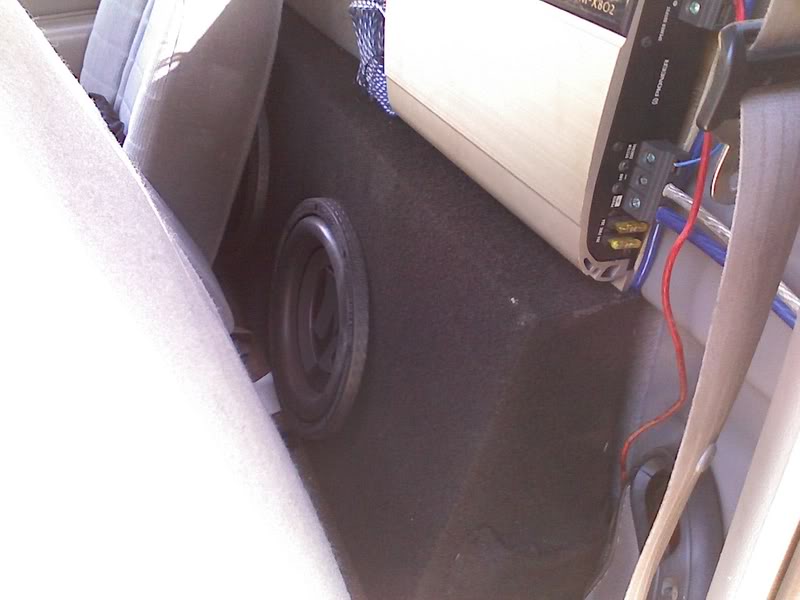

Name:  shanessystem2.jpg
Views: 12
Size:  47.5 KB
Reply With Quote
  #2
Old 06-28-2008
EM3's Avatar
EM3 EM3 is offline
Member

Join Date: Jun 2008
Location: Logan, WV
Posts: 70
Looks good I wondered how you put subs in a single cab. Are the rear speaker still there?
Reply With Quote
  #3
Old 06-28-2008
Clay Kann's Avatar
Member

Join Date: Sep 2007
Location: Hill Country, Tx
Posts: 208
Did you make the box? If so what are your measurements, cause i would sure like to get my 10s in my cab.
Reply With Quote
  #4
Old 06-29-2008
DangerRanger119's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: elberton, Ga
Posts: 21
yes the rear speakers are still there

My box is 8" wide on the bottom and 3" wide on the top
Its 13" tall and 36" long
Reply With Quote
  #5
Old 06-29-2008
EM3's Avatar
EM3 EM3 is offline
Member

Join Date: Jun 2008
Location: Logan, WV
Posts: 70
Did you use MDF for the box and if so how thick?

Thanks
Reply With Quote
  #6
Old 06-29-2008
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Do you have alot of leg room left?
Reply With Quote
  #7
Old 07-02-2008
Pless215's Avatar
Member

Join Date: Mar 2008
Location: Dewy Rose, GA
Posts: 473
he still has plenty of leg room left...i am 6'3" and i have comfortably drove his truck since he got these in
Reply With Quote
  #8
Old 07-02-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
I built a very similar box for my single cab. The only real difference is that I went a little taller, and modified the back panel to fit it. I use 3/4mdf to build mine, and have the woofers separated. I lost 3" of leg room from stock with the box, and I am 6'1" and am comfortable in it. My box hold a 12" and a 10".


My question is, is your amp visible through the back window? That's asking someone to steal it for sure!
Reply With Quote
  #9
Old 07-03-2008
DangerRanger119's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: elberton, Ga
Posts: 21
I use 3/4mdf and I lost about 3 inchs of leg room
But my amp does stick up about an inch into the window but my tool box and tint hides it real well plus i have a lot of stickers on my back glass which also hides it so you cant see it from the out side
Reply With Quote
  #10
Old 07-03-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Sooooooo how does it sound?
Reply With Quote
  #11
Old 07-04-2008
DangerRanger119's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: elberton, Ga
Posts: 21
It sounds really good considering the space I used
those subs would sound a 100 X's better if i had a bigger box and more room tho
Reply With Quote
  #12
Old 07-04-2008
EM3's Avatar
EM3 EM3 is offline
Member

Join Date: Jun 2008
Location: Logan, WV
Posts: 70
Change the seats out and big a sub box between the seats. One sub firing up from the floor and a second facing the windshield. There is a photo of a truck on here with a center console that houses 2 subs but I have no idea where the photo is.

Glad it worked out good for you.
Reply With Quote
  #13
Old 07-04-2008
DangerRanger119's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: elberton, Ga
Posts: 21
thanks Ill try to find it
Reply With Quote
  #14
Old 07-04-2008
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Looks good.
Reply With Quote
  #15
Old 07-05-2008
EM3's Avatar
EM3 EM3 is offline
Member

Join Date: Jun 2008
Location: Logan, WV
Posts: 70
It's in this thread 2nd page. It looks wicked.

https://www.ranger-forums.com/forum2...t=67304&page=2
Reply With Quote
  #16
Old 07-07-2008
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252

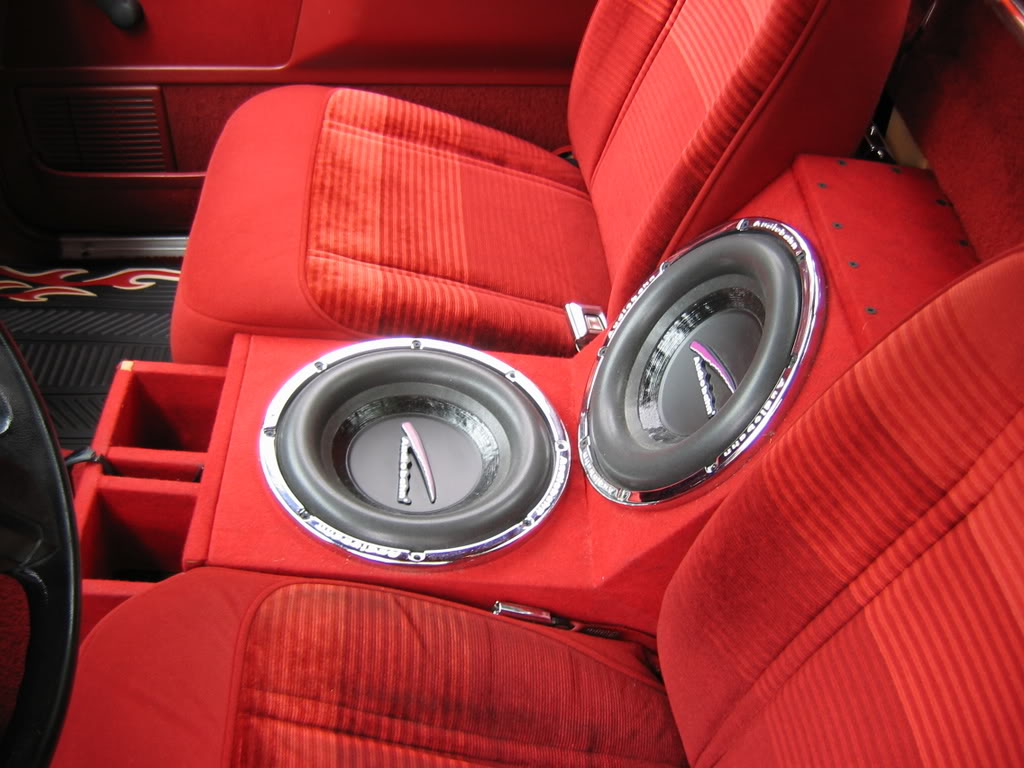

Name:  IMG_1611.jpg
Views: 128
Size:  114.7 KB
This is the one EM3 is talking about. Its out of my old truck. I had one other setup in that truck with 2 12" behind the seats but that didn't work well for me because i'm 6'7" and even losing 2" of space made it impossible to drive the truck. I think I have a couple more pics on my home computer if anyone wants to see them...
Reply With Quote
  #17
Old 07-07-2008
EM3's Avatar
EM3 EM3 is offline
Member

Join Date: Jun 2008
Location: Logan, WV
Posts: 70
Post them! We like pics.
Reply With Quote
  #18
Old 07-12-2008
MEC454's Avatar
Member

Join Date: Mar 2008
Location: honolulu hawaii
Posts: 61
Quote:
Originally Posted by EM3 View Post
Post them! We like pics.
x2
