Need pics of extended cab boxes?

Anyone have any pics of custom sub boxes for a extendedcab? I also want to be able to utilize 1 seat.


I was thinking of subs facing down at the floor but I also need to be able to have some leg room.

thanks

BTW I have 2 audioban 12inch subs
Reply With Quote
  #2
Old 07-23-2007
seminaryranger's Avatar
Member

Join Date: Apr 2006
Location: Ganado, TX
Posts: 356
I don't know if you're looking for a multiple sub setup, but here is my single sub setup. The passenger seat is functional and one person can ride back there about as comfortable as can be expected in the back seat of a Ranger.

I can't remember the internal volume of the sub box, but I think it's ~1.5 cubes. Pretty basic but it works well and the seat can go all the way back and recline way beyone usable/driveable.








whoops, I see you have two subs! Oh well. Good luck
Reply With Quote
  #3
Old 07-23-2007
JoshK's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Thanks! Yes I have 2. Not sure how much volume of air I need. It can very somewhat.

I was thinking of making a box to sit underneath the rear seats. But then I do not think I would have enough volume.

I may make a long box that is easy to take out when I need to haul someone. I only use my rear seat for longer trips to quad races. When I do need to haul a extra its ussually only a short distance and then they could just deal with a box lol
Reply With Quote
  #4
Old 07-24-2007
Member

Join Date: Mar 2007
Location: metamora, Il
Posts: 20
Thats tough with 2 subs but I think at least 1 guy did it in here.

https://www.ranger-forums.com/forum2...ad.php?t=34226

There should be some ideas at least
Reply With Quote
  #5
Old 07-24-2007
JoshK's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Quote:
Originally Posted by zcradic
Thats tough with 2 subs but I think at least 1 guy did it in here.

https://www.ranger-forums.com/forum2...ad.php?t=34226

There should be some ideas at least

Thanks for the link. Deffently some ideas hmmmm
Reply With Quote
  #6
Old 07-24-2007
M50B06's Avatar
Member

Join Date: May 2007
Location: Ravenna ohio
Posts: 315
my box has 4 subs so i cant help on design, but heads up, ive heard that downfiring the subs makes the truck vibrate alot more, causing more noise, the subs dont sound as good as facing front and that facing the subs down may cause strain on subs, depending on the brand of sub, causing the sub to prematurly fail
Reply With Quote
  #7
Old 07-24-2007
JoshK's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Quote:
Originally Posted by M50B06
my box has 4 subs so i cant help on design, but heads up, ive heard that downfiring the subs makes the truck vibrate alot more, causing more noise, the subs dont sound as good as facing front and that facing the subs down may cause strain on subs, depending on the brand of sub, causing the sub to prematurly fail

thanks for the heads up. I will deffently look into that.
Reply With Quote
  #8
Old 07-24-2007
nbro3232's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: Nokomis, FL / Tallahassee
Posts: 784

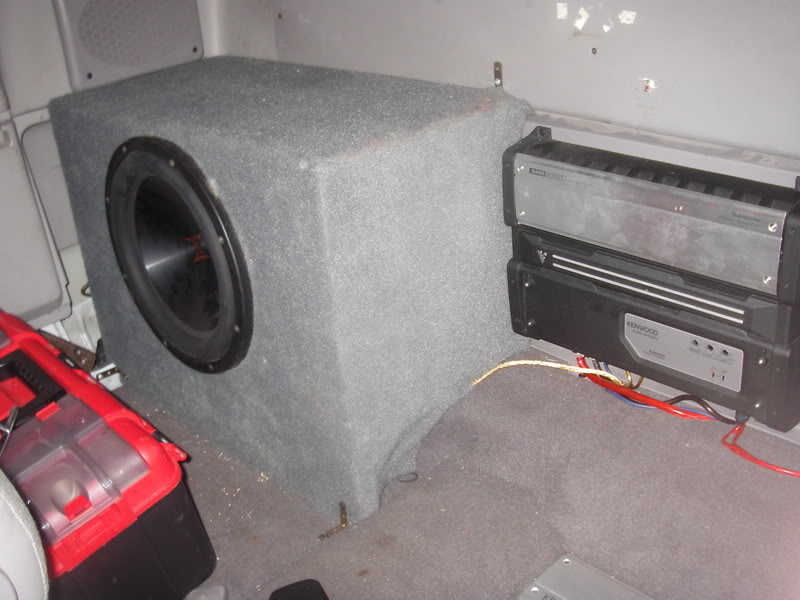

Name:  IMGP1000.jpg
Views: 1
Size:  70.7 KB
It is 1.3 cuft sealed. Originally built for an Image Dynamics IDMax 12 but that was damaged in shipping so I ended up with a Sound Splinter RLP. Still can sit one back there without much room loss. I designed it to sit below the rear speaker, the passenger seat can slide all the way back and tilt almost all the way down.
Reply With Quote
  #9
Old 07-24-2007
JoshK's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Good deal thanks
Reply With Quote
  #10
Old 07-25-2007
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486

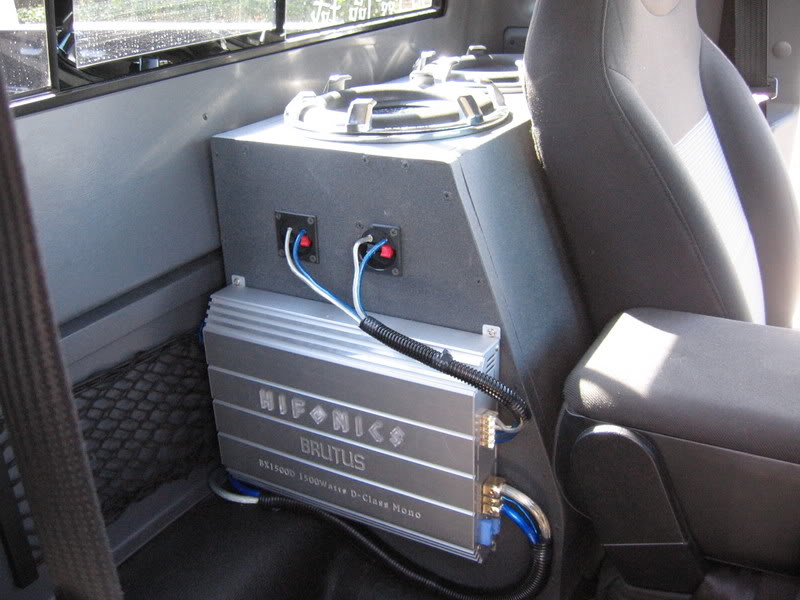

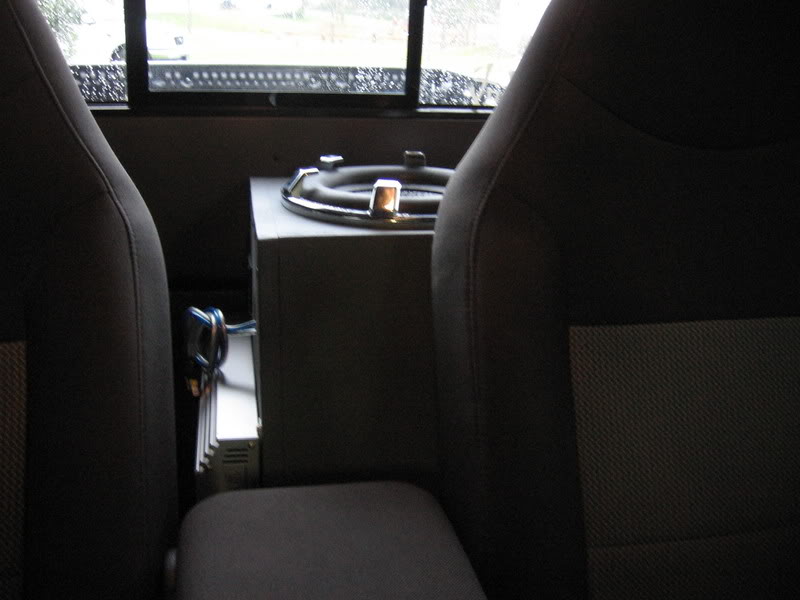

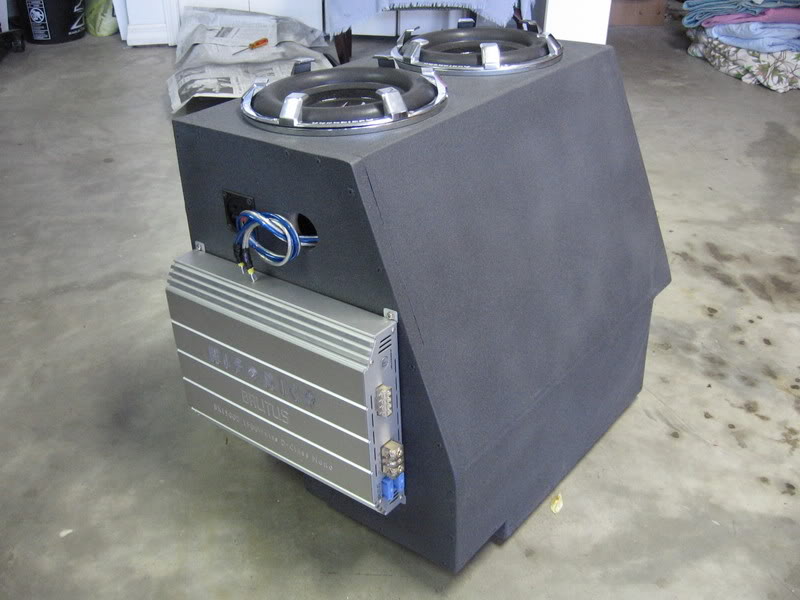

heres my first one
Name:  misc081.jpg
Views: 1
Size:  67.2 KB
Name:  misc090.jpg
Views: 1
Size:  78.4 KB
Name:  misc084.jpg
Views: 1
Size:  50.8 KB

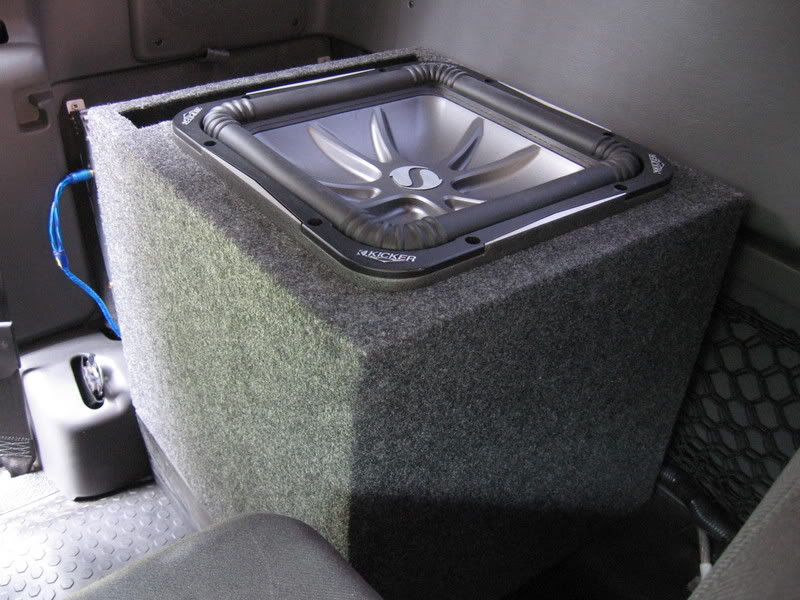

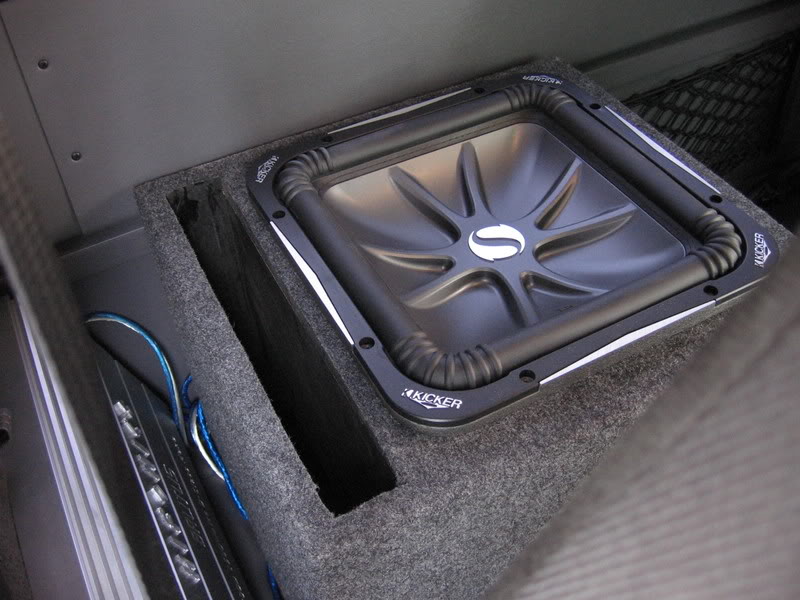

and my current one, just for a little thump i guess...

Name:  L7_system001.jpg
Views: 2
Size:  85.0 KB
Name:  L7_system002.jpg
Views: 1
Size:  94.8 KB

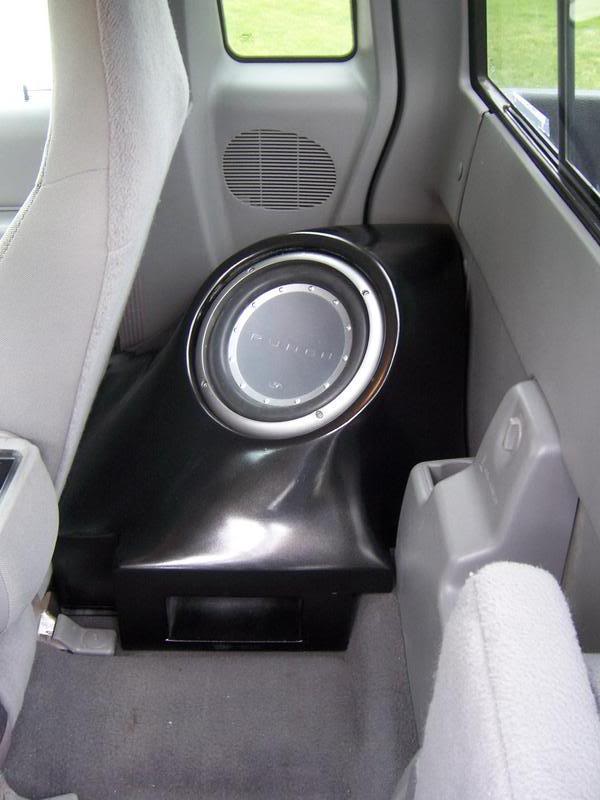

and some that iv seen other places


Name:  Picture296.jpg
Views: 1
Size:  54.5 KB

iv got a bunch more i would have to upload if you wanted to see em cuz awhile back i was lookin for some ideas. kinda hard when im not to talented with fiberglass, hahaha
Reply With Quote
  #11
Old 07-25-2007
JoshK's Avatar
Member
Thread Starter

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
I will let you know. i only se white dots. I will have to wait till I get home to see th pics
