sub boxes idea? pics? little help?

i need some help. my friend and not very active member on RF just got 2 12" subs. he wants me to help him make boxes for them.

he has an 04 Ranger FX4 level 2

these boxes are going to have to be huge arent they? anyone got pics?

im thinking down fireing, but im no pro. help me out.
Reply With Quote
  #2
Old 04-28-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
I was going to make a downfiring box but decided not to, i recently took out my 2 back seats and made the boxes so the subs face the back, i will run and take a picture real quick, but its a hell of alot louder since it bounces off the back of the cab....

Rocky
Reply With Quote
  #3
Old 04-28-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Well, first we need to know what make/model subs they are, that would help alot. As well as what kind of performance he's looking for. Does he listen to Rap/pop or Rock/country most of the time.
Reply With Quote
  #4
Old 04-28-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
OK.....Took some pics real quick....when you take the seats out, there are 3 flat surface bolts....i cut some 3/4 inch plywood, drilled out the holes, and bolted the wood down....then put the boxes on the wood and screwed them down....

The 12" boxes are from walmart called "build a box" and they are very nice, go together in like 5 min max....and are carpeted but if you want something custom you can make one....they leave just enough room for your spare tire jack and stuff to stay in the middle....




You have your space under the boxes to put whatever under it In my case, my amp, and soon to be for the other side a small container for a tow strap and some tools....

Rocky
Reply With Quote
  #5
Old 04-28-2006
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
thanks rocky.

and channing he listens to all kinds of music, so i need to find a mix between all of them.

i think he said they were audiobahn or something i dont remember and i dont have a part number right now.
Reply With Quote
  #6
Old 04-28-2006
Member

Join Date: May 2004
Location: McKinney, TX
Posts: 2,123
Go sealed. Very forgiving design (ported are hard first time boxes, too many thing to screw up). Better power handling vs ported. Smaller airspace requirements. However some subs are better in vented and vice versa. Have any model numbers?

Downfiring is good. Helps simplify design and usually eliminates need for a grill. Stil gotta watch higher wattage systems as they need to be bolted down and secured well or they can vibrate easier. Definitely keep the airspace different, and put a near 45 degree wall to help bounce the sound waves around (instead of right back to the cone).

Really the best place to start is some simple measurements, then start sketching.
Reply With Quote
  #7
Old 04-28-2006
TheManInBlack's Avatar
Member

Join Date: Mar 2005
Location: Lillington, NC
Posts: 304
so theorectically if i have a square or rectangular box if i put a 45 degree "diffuser" (basically a piece of wood inside the sealed area at an angle other than 90 Degrees or 0 degrees from the cone) inside the box will that help my sound just wondering
Reply With Quote
  #8
Old 04-28-2006
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
sealed i hate sealed...i found ****ty sound...heres a pic of my huge box...ask jr to put on of his up too...
Reply With Quote
  #9
Old 04-28-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
TCAB for teh win

2 12" type r's in an extremely large ported box with an 8" port











Reply With Quote
  #10
Old 04-28-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
[QUOTE=Blurple]sealed i hate sealed...i found ****ty sound...heres a pic of my huge box...ask jr to put on of his up too...QUOTE]

ha, you posted right before me!
Reply With Quote
  #11
Old 04-28-2006
Member

Join Date: May 2004
Location: McKinney, TX
Posts: 2,123
Here's the basic idea behind the box I have. Best part is you still retain room in the rear.
It's the bottom left design measurements were 1st mockups, you can adjust them to fit your space and volume needs. Very functional, allows you to recline fully (depending on final design)



Box needs to be covered, but look, doesn't cover up rear speakers, and anybody who can see in your truck won't know you got a sysytem.



So Dave, I wouldn't just put in a diffuser in the middle of your box, just work it into your exterior wall design. Simplier the better, but make the sound bounce around the box instead of right back to the source (and possible noise cancellations).

Sealed = Tighter bass, not as loud. Perfect for Rock. Better power handling, smaller volume requirements.
Ported = Trickier design. Louder. Larger volume boxes. Great for Rap/R&B.
Reply With Quote
  #12
Old 04-28-2006
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
thanks for the ideas guys. ill see what we come up with tomorrow.
Reply With Quote
  #13
Old 04-28-2006
TXranger4x4's Avatar
Member
iTrader: (1)

Join Date: Dec 2005
Location: McAllen, TEXAS
Posts: 287
i plan on make a box i might go thro alot of wood but its ok i get free lumber.....i am going to make it where the jumper seat behide me is gone and a sub book in its place not to sure on the shape but i am going to mess around on autocad or something.
Reply With Quote
  #14
Old 04-28-2006
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
LOL jr..we both have rediculously big boxes....the sound is amazing and makes me head hurt but thats the way i like it lol...hopefully them are some good ideas zach...OH theres a box that bassworxs makes ..it looks like mine but smaller...way smaller and fits perfectly in the back of an ext cab..i had one in before....sounded awsome..
Reply With Quote
  #15
Old 04-28-2006
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Hey zach you know what mine looks like, but its not downfiring. I like the idea that mnemonic posted about. I will probably build a bigger box for my truck this summer, yay! MO BASS!!!

lol
Reply With Quote
  #16
Old 04-28-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Quote:
Originally Posted by Blurple
LOL jr..we both have rediculously big boxes....the sound is amazing and makes me head hurt but thats the way i like it lol...hopefully them are some good ideas zach...OH theres a box that bassworxs makes ..it looks like mine but smaller...way smaller and fits perfectly in the back of an ext cab..i had one in before....sounded awsome..
i don't know anyone who hasn't said "wow" or "holy crap my brain was shaking"

but i still need a 2500d, my subs BARELY move. and it still hurts! muhahaha
Reply With Quote
  #17
Old 04-29-2006
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
yea next on my list is a 2500.1 mono block Kicker amp..should destroy enough..JR can you send me specs for your box..i might miake a second to see how loud yours is
Reply With Quote
  #18
Old 04-29-2006
rideac1's Avatar
Member
iTrader: (1)

Join Date: May 2005
Location: New Kensington, PA
Posts: 1,087
Here's my box, 2 x MBQuart 12's ran from a SoundStream 800rms amp (true power, not cheap shi*), sealed, not ridiculous loud, bet nobody else's subs can hit 18htz like mine. Awesome sound quality, loud enough to move the back window an inch at the bottom.
Someone said ported is better for rap...it all depends. If you want to hit low frequencies, don't count on it with ported. If you want to get every frequency for every type of music go with a good sealed box.

My box fits real well in my cab, doesn't cover the rear speakers at all. My seats can sit the whole way back, I ride with them the whole way back, i'm 6'2". There's space under my box too, I have my recovery gear and jack and electrical fix-up items under there.
The box/amp rack is all 1 piece, and bolted to the floor.

Reply With Quote
  #19
Old 04-29-2006
1 loud truck's Avatar
Member

Join Date: Nov 2005
Location: MASS
Posts: 157
simple 12" but you don't take up alot of space and pretty loud
Reply With Quote
  #20
Old 04-29-2006
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
I'm sketching up the design for my box now Zach, i'll put it up when I'm done with it.
Reply With Quote
  #21
Old 04-29-2006
Member

Join Date: Mar 2005
Location: Wichita, KS
Posts: 1,301
If he wants to do 2 10's downfiring, I have a sealed box that he can have. You lose the jump seats and the jack but it still sounds nice.



Reply With Quote
  #22
Old 04-29-2006
zabeard's Avatar
who?
Thread Starter
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice guys. thanks for the ideas. we just went ot walmart for now and bought the build a box kit.

next weekend we plan on building some sweet boxes. might be like Mnemonic just because i like that design.
Reply With Quote
  #23
Old 04-29-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376

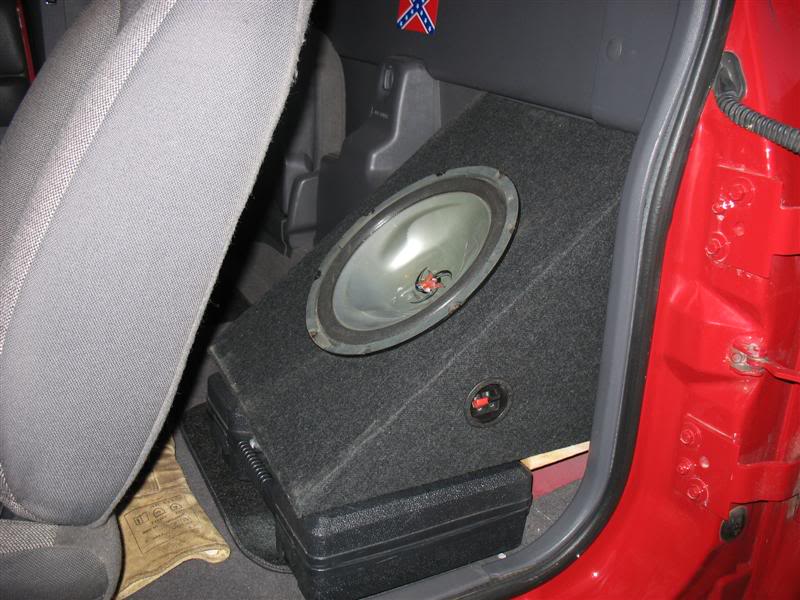

here is the box i just finished making...well almost done with it.
Its only for one tho but figured i'd post it anyway.
Name:  22ad9a2b.jpg
Views: 1
Size:  73.8 KB
Reply With Quote
  #24
Old 04-29-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
o, and did you get everything wired in alrght today?
Reply With Quote
  #25
Old 04-29-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Quote:
Originally Posted by Blurple
yea next on my list is a 2500.1 mono block Kicker amp..should destroy enough..JR can you send me specs for your box..i might miake a second to see how loud yours is

well, mine isn't just a "regular box" though. It's got an 8" port. You can buy the port and I can give you the specs to my box and it will be pretty close...(not to sound like an ***....but mine is made from particle board that is coated in epoxy (i'm pretty sure) and it's sealed with tar/silicon all around) It's a TCAB box. It's not made out of regular MDF, theres a LOT of work involved. The box costs about 300 dollars, and I'd pay 600 for the sound it puts out. I had a box for the same subs and same exact amp and it did nothing compared to this. I tried SO hard to get the same sound, I just can't do it.

If i were you, I would use slot ports. Buy a few of them...I will give you the PN for a website (they are 4" aero ports) and build yourself a box. I can get you some good specs to it. It seems like the kickers love the aero ports as much as the type r's do. I've done some experimenting.

Just come to the south florida meet...it's not that far

Really though, if you want to do some experimenting, I'll try and get some blueprints to a few boxes for ya, I know people that compete, and they can build some dang good boxes. I'll PM em if youd like! IIRC, they charge 5 dollars for box plans.

Or you can contact Mark Potts and get an 8" port and build my box (except with MDF) and see the outcome. He sells em for like 50 dollars
Reply With Quote
