28spline V. 31spline

So guys, tell me the difference between th 28spline 8.8 axle and the 31spline 8.8 axle. I'm a lowered street truck, so I'd really like to stay away from the wider 31spline 8.8 axle. But please tell me teh advantage to the 31spline axle. Being mostly street, I'd assume a L/S is really all I'd need and I know i can get those for the 28sspline easily. If i ever do an engine swap, i know a 28spline axle can handle more than 300rwHP so i'm fine there.

Really, i just want to know when i swap axles I'll be doing it only once.
Reply With Quote
  #2
Old 04-18-2009
2wdranger's Avatar
Member

Join Date: Mar 2008
Location: Omaha, NE
Posts: 123
The only difference there is between the two is the strength. You really don't need a 31 spline unless you put in a huge V8 with like 400+ HP. The 28 can handle fine, but imo i would put in the bigger of the two, just in case. S**t happens, so you might as well go big or go home.

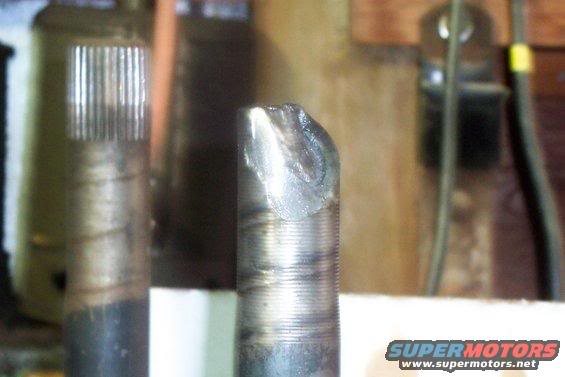

Here is some good carnage of a 28 spline!
Name:  BrokenAxle.jpg
Views: 1
Size:  26.1 KB

Last edited by 2wdranger; 04-18-2009 at 01:36 AM.
Reply With Quote
  #3
Old 04-18-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by 2wdranger View Post
The only difference there is between the two is the strength. You really don't need a 31 spline unless you put in a huge V8 with like 400+ HP. The 28 can handle fine, but imo i would put in the bigger of the two, just in case. S**t happens, so you might as well go big or go home.
i would LOVE to see a 28 spline 8.8 take that much power.. maybe 400hp if you play around once in a great while, but i wouldn't trust it for someone who drives like me.


a 31 spline has bigger diameter shafts, as well as the more splines you have, the shallower the 'spline' there for leaving more material on the shaft for strength.

both are C-clip obviously and i just have a thing against c-clip axles.. soooo you should get a 9"

full float
40 spline
nascar that **** up!! bwahaha
Reply With Quote
  #4
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Alright guys, i've determined that I can either

1. Be Explorer: stronger axles, but wider (possible problem being lowered) and have to weld on shock mounts (nbd, i can weld).

2. Be Ranger: stock width, but be weaker. Easier swap.

I want to get limited slip, and can probably get it stock with 3.73 gears in an expo. but would probably have to pay for it in a ranger.

Dam these catch 22s or whatever on upgrading my rearend.
Reply With Quote
  #5
Old 04-18-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Grant, go expo. Spring under with relocated shock tabs and disc brakes with 3.73's and a LS.

Best bang for the buck.
Reply With Quote
  #6
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Well, im giong to do cobra rear brakes in the back so it won't matter which axle i go with, only spline count and width is my concern.
Reply With Quote
  #7
Old 04-18-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Do you really think your going to need that extra strength with the 4 cyl? If you swapping disc anyway I would just go with whatever one you can get cheaper.
Reply With Quote
  #8
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
duh i don't need teh strength with 2.5l of fury. I want to be set with the rear end indefinitely. when i do an engine swap, i want the strength already there. im thinking which ever one i can get with limited in it already i'll go with. Will be hitting up the junkyard for sometime...
Reply With Quote
  #9
Old 04-18-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
I'd stick with the 28 if your mildly concerned with width. Despite what some here think, a 28 spline will take a beating on the street, even with sticky meats. Keep the lower track width and just upgrade to a stiffened up OEM Trac-Loc or aftermarket unit and then the brakes. I'm not sure on the size of the weight difference but a 31-spline will weigh more than a 28.

That's just my $0.02, and what I'm most likely doing to clear 285s and Cobra rears..
Reply With Quote
  #10
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Yeah, i think i am going to stick with the ranger 8.8. Shane has one already with 3.73 gears i just need to add a limited slip and probably change out the bearings and seals while i'm in there. Where do you go to get a stiffened up trac-loc (is trac-loc same as limited slip?)
Reply With Quote
  #11
Old 04-18-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Shane has a trac-loc waiting in the shop too!
Reply With Quote
  #12
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
o rly? I thought it was for a 31spline or something?

idk, it might show up missing here one of these days...
Reply With Quote
  #13
Old 04-18-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Nope the Torsen he has is for our 31 spline... The Trac-Loc is for a 28 spline. Austy was thinking about buying it for his truck. Better beat him to it lol
Reply With Quote
  #14
Old 04-18-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Grant>Austy. so no worries. Is it new? think i should rebuild it? what exactly is a track loc anywyays? i don't get it.
Reply With Quote
  #15
Old 04-18-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
I just bought an expo rear. With the mustang offset wheels, I'll have no problem fitting the extra width, and the width will actually let me get rid of the wheel spacers. Plus, for 200 bucks, already equipped with LSD, rear sway bar and disks, best bang for your buck. Also, I've heard that if you get 2 driver side spring plates from the expo, you won't need to weld on shock mounts. I'll let you know how that works out when I get mine in.
Reply With Quote
  #16
Old 04-18-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Quote:
Originally Posted by Dangerranger01 View Post
Yeah, i think i am going to stick with the ranger 8.8. Shane has one already with 3.73 gears i just need to add a limited slip and probably change out the bearings and seals while i'm in there. Where do you go to get a stiffened up trac-loc (is trac-loc same as limited slip?)
Just a rebuild kit, add a few extra clutch pack discs, F150 S-clip and reduce the amount of Limited Slip Additive you add to the fluid will make it lock up nice. I had a site with detail on all the options I'll dig up later tonight.

If you're running 8/9" NON-deep dish, I don't think you will have a tire-to-fender problem with the Expo axle. If you're running a less offset wheel (deep dish, 10-11"+), the OEM axle puts you just barely within the fender, a 3/4" wider on each side addition would cause some serious fender clearance unless you rolled your fenders.

I got a link on that too later tonight.
Reply With Quote
  #17
Old 04-18-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by Dangerranger01 View Post
Alright guys, i've determined that I can either

1. Be Explorer: stronger axles, but wider (possible problem being lowered) and have to weld on shock mounts (nbd, i can weld).

2. Be Ranger: stock width, but be weaker. Easier swap.

I want to get limited slip, and can probably get it stock with 3.73 gears in an expo. but would probably have to pay for it in a ranger.

Dam these catch 22s or whatever on upgrading my rearend.
damn if you were closer i could get you an exploder axle with 3.73s and ls and breaks for around 100 and around 50 with out the breaks
Reply With Quote
  #18
Old 04-19-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
custom 9" never be concerned again.
Reply With Quote
  #19
Old 04-19-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Quote:
Originally Posted by Downey View Post
damn if you were closer i could get you an exploder axle with 3.73s and ls and breaks for around 100 and around 50 with out the breaks
Quote:
Damn, if you were closer I could get you an exploder axle with 3.73s, l/s and brakes for around 100. And about 50 without the brakes
Fixed it for ya.


OP:
Nice thing about the explorer axel, is that it is already spring under. That will equate into less axel hop, and already net a 5 inch drop in the rear. If you can IMO I would.
Reply With Quote
  #20
Old 04-19-2009
Member

Join Date: Jul 2007
Location: alberta
Posts: 457
the torsen diff is a gear based limited slip.

the trac-lok is a clutch based limited slip. ford offers a carbon fibre clutch kit for the 8.8 that is factory equipment in the higher end solid axle mustangs.
Reply With Quote
  #21
Old 04-19-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
I never got why they did that. Why not just throw a locker in?
Reply With Quote
  #22
Old 04-19-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
spooled 35 spline FF 9"
dont question it.
Reply With Quote
  #23
Old 04-19-2009
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
The width is only 3/4" on each side. Will that really make that much difference for you? Plus you get the drop, strength, discs, and LS. I'm not seeing a down side for you yet...

All you'd need is new u-bolts, a brake line, and some work. (Depending on condition of axle and what you get with it)
Reply With Quote
  #24
Old 04-19-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I'll measure when i go home next...just eye balling it my wheels are pretty close to teh fender lip for my liking.

I can get complete axles at the junkyard for 100 any day. There are a few guys parting out explorers on CL, but most of them think they're sitting on a pot of gold and want lots of money, but we'll see what i do there.

Oh, i already have the flip kit for my truck installed so its no worries there. I guess i could sell that part if i go with the expo to recoup some money....
Reply With Quote
  #25
Old 04-19-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
The 28 spline will be plenty fine for you.
But there is nothing wrong with the Explorer axle either. The discs are nice to have in the back, not for better braking, but they are just easier to deal with, and you don't have to worry about the rear brakes locking up with moisture. The extra width is probably not an issue, it's only 3/4" each side. And it's only .3" or so wider than the front track width iirc.
Reply With Quote
