front driveshaft disconnect

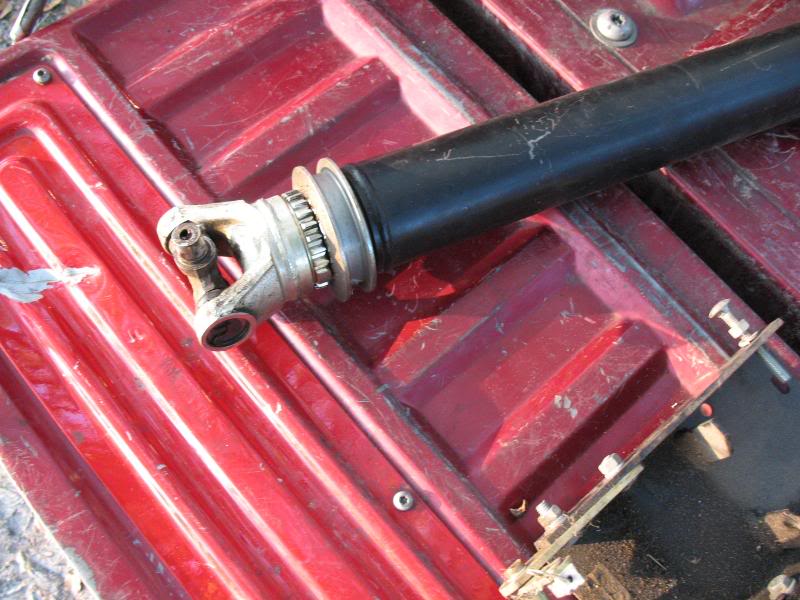

In the past 8,000 miles i have been through 2 driveshafts (stupid CV joint). since i don't really want to keep replacing them and i also don't want to buy the $400 superlift d-shaft, i am going to build my own. i haven't decided if it is going to be a double cardan style or just a single u joint on each side of the shaft. i will also be attempting to fab a drive shaft disconnect into the shaft instead of trying to put in manual hubs. the disconnect will probably be closer to the front of the d-shaft so that the shaft wont move when unlocked. i have all of the parts needed for the disconnect and two stock shafts laying around. it might be a slow process but it is going to happen. here are some pics:
Name:  IMG_1186.jpg
Views: 36
Size:  89.1 KB
Name:  IMG_1187.jpg
Views: 34
Size:  81.4 KB
Name:  IMG_1188.jpg
Views: 37
Size:  92.9 KB
Name:  IMG_1189.jpg
Views: 87
Size:  86.3 KB
Name:  IMG_1190.jpg
Views: 154
Size:  88.7 KB
Name:  IMG_1191.jpg
Views: 40
Size:  81.2 KB
i will try to keep taking pics throughout.
Reply With Quote
  #2
Old 03-12-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Pretty sweet plan you got there. I would definitely go for a double cardon on the transfer case end of the shaft.
Reply With Quote
  #3
Old 03-12-2008
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
yeah, my dad's idea. you really think i'll need the double cardan, even though it will only turn if i have the shaft locked in?
Reply With Quote
  #4
Old 03-12-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Yes, because generally the u-joint angles AREN'T equal on the front the way the are in the rear. Without a double-cardan you'll have different velocities trying to happen at each end during the rotation and that'll be a strain on something -- it's not just the "vibration" issue.

When the angles of the two joints aren't the same that's when you need a double-cardan.
Reply With Quote
  #5
Old 03-12-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Yup thats right. If you take a close look at the t-case you'll notice it actually points up a little bit. The angle will be too steep if you don't use the double cardan. If you're gonna make a custom shaft anyways don't risk not using the double cardan.
Reply With Quote
  #6
Old 03-12-2008
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by n3elz View Post
Yes, because generally the u-joint angles AREN'T equal on the front the way the are in the rear. Without a double-cardan you'll have different velocities trying to happen at each end during the rotation and that'll be a strain on something -- it's not just the "vibration" issue.

When the angles of the two joints aren't the same that's when you need a double-cardan.
ok, thanks for the info.
Reply With Quote
