Installed my explorer IRS cover...pic

Well bought my IRS cover from Dustin (TrndAssassin) great shipping and prompt. Took it to Mid5 and had them powder coated it Silver Hammer tone and installed it today.. I think it turned out good have a look...

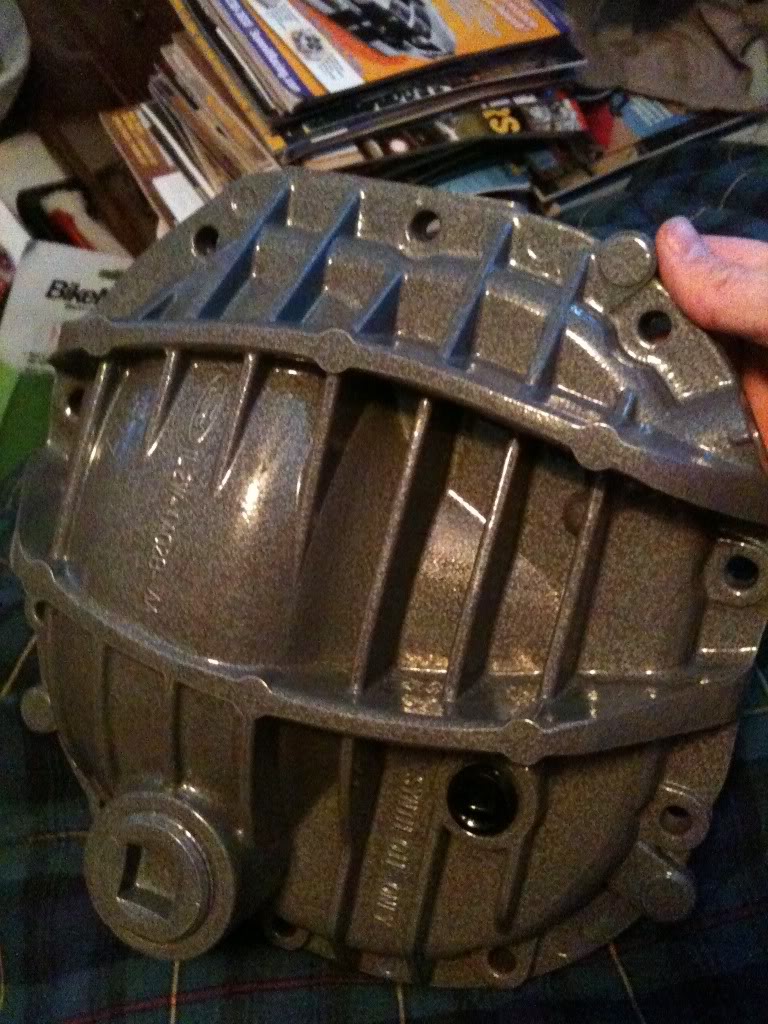

Name:  e1cbeabd.jpg
Views: 4
Size:  165.4 KB

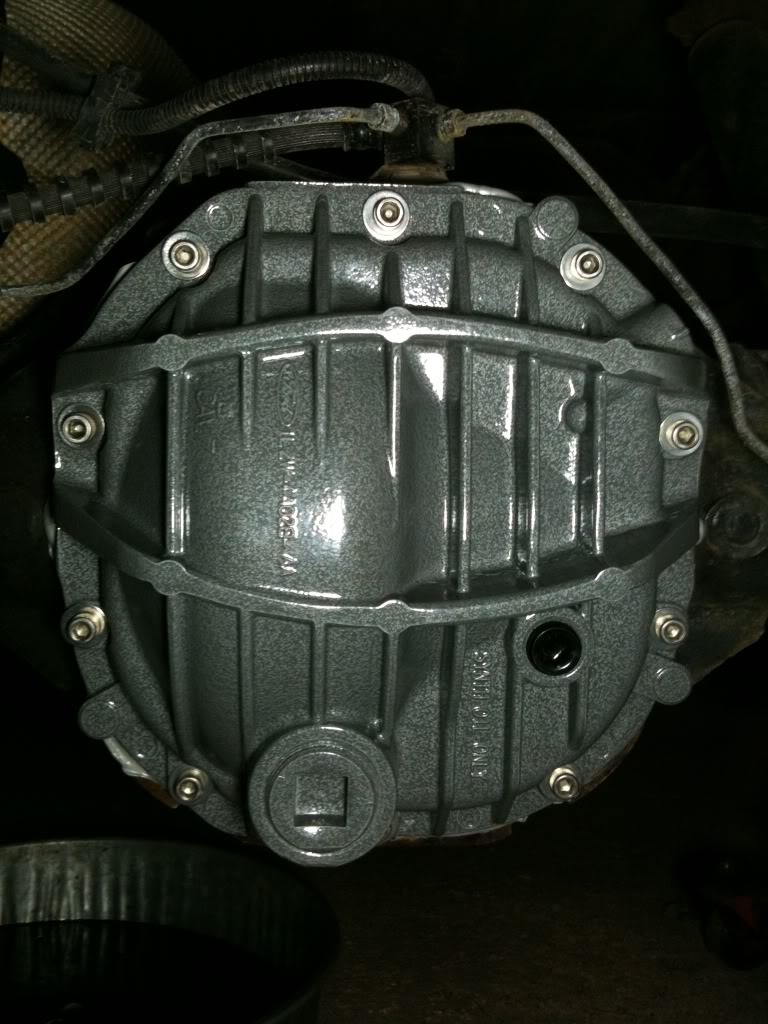

Name:  e580940b.jpg
Views: 3
Size:  126.6 KB

Last edited by Redneckstone; 03-16-2010 at 10:14 PM.
Reply With Quote
  #2
Old 03-16-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Cool, I should have bought it off him but didnt know when I was at his place
Reply With Quote
  #3
Old 03-16-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks great! Whats the little bolt in the middle for? Can't remember
Reply With Quote
  #4
Old 03-16-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^ the black one is the fill hole if thats the one you are talking about.


i need one of these
Reply With Quote
  #5
Old 03-16-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Dang that seems way low for a fill hole
Reply With Quote
  #6
Old 03-16-2010
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Looks good stone
Reply With Quote
  #7
Old 03-16-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
if you dont mind me asking how much did you pay stone?
Reply With Quote
  #8
Old 03-16-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by 04blackedge View Post
Dang that seems way low for a fill hole
Its the Fill hole for the IRS explorers remember there just a diff on those trucks and CV's so doesnt need a whole heck of alot of fluid... DO NOT EVER recommend using it as the ranger full plug still use the front one in the axle... the only reason that plug is painted black is the guy doing the powder coating didnt want to heat it up because it is a magnet on the back so its the only thing not powder coated



Quote:
Originally Posted by Downey View Post
if you dont mind me asking how much did you pay stone?
i think it was 50 shipped from him i cant remember to be honest. and it was $25 for having it powder coated
Reply With Quote
  #9
Old 03-16-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ah that makes sense, I would have still thought it would have taken more fluid, thats surprising. Looks great!
Reply With Quote
  #10
Old 03-17-2010
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
I have been looking for one of those for like 2 months and can't find one. Looks great Zach!
Reply With Quote
  #11
Old 03-17-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
is there any benefit with this upgrade? i see fins, do they cool?
Reply With Quote
  #12
Old 03-17-2010
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
Quote:
Originally Posted by morris View Post
is there any benefit with this upgrade? i see fins, do they cool?
i cant really think of one other than the cool factor...lol
Reply With Quote
  #13
Old 03-17-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by morris View Post
is there any benefit with this upgrade? i see fins, do they cool?
it prob does cool it a little the benefit is the drain plug on the cover so i dont have to keep opening the cover to swap fluid. thats all... and I like them and my stock steel one was crap and dented so it had to go...
Reply With Quote
  #14
Old 03-17-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Cool. What kind of gasket is on it?

I'm thinking of getting a mag hytec diff cover for the rear of my F150 (9.75"), but I'm not sure what to run up front (8.8"). I would like something with a magnetic drain plug and fill hole (higher than that one) on the cover.
Reply With Quote
  #15
Old 03-17-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
looks good stone, Ive been wanting one forever
Reply With Quote
  #16
Old 03-17-2010
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
if i remember correctly this cover also allows more fluid


looks nice stone, i still have one sitting in my garage, waiting to be installed for over 2 years now
Reply With Quote
  #17
Old 03-17-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by brianjwilson View Post
Cool. What kind of gasket is on it?

I'm thinking of getting a mag hytec diff cover for the rear of my F150 (9.75"), but I'm not sure what to run up front (8.8"). I would like something with a magnetic drain plug and fill hole (higher than that one) on the cover.
Gray RTV it's what Ford tech says to use never had an issue unlike black RTV LOL
Reply With Quote
  #18
Old 03-17-2010
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Redneckstone View Post
Gray RTV it's what Ford tech says to use never had an issue unlike black RTV LOL
what issues with black? Thats all we ever use in the shop
Reply With Quote
  #19
Old 03-17-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Ahh hell I used orange on the sport trac because it's what I had in the garage! lol
I asked because the mag hytec comes with a rubber o-ring gasket. I just realized they made one for the 8.8" anyway.
Reply With Quote
  #20
Old 03-17-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by ScottG View Post
what issues with black? Thats all we ever use in the shop
every diff cover i have ever used black on with in like a couple months the god damn thing is leaking... never had that issue with gray
Reply With Quote
  #21
Old 03-17-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by brianjwilson View Post
Ahh hell I used orange on the sport trac because it's what I had in the garage! lol
I asked because the mag hytec comes with a rubber o-ring gasket. I just realized they made one for the 8.8" anyway.
this cover uses an o ring if you so like to order the damn thing. no place anywhere around here stocks damn 8.8 gaskets thus why i never care to even check anymore
Reply With Quote
