Rear end went out!!! - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


Drivetrain Tech General discussion of drivetrain for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 11-30-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
yea i just read that part. It sux. Ill just see what i can find and how much its gonna set me back.
Reply With Quote
  #27
Old 11-30-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
I just stubbled across this site. car-part.com. it seems like a good site. u put in your year make and model and the part you are looking for and it gives you a list of used parts from different auto salvage places in your area and what kind of condition the part is in and how many miles it has on it.
Reply With Quote
  #28
Old 11-30-2008
Pless215's Avatar
Member

Join Date: Mar 2008
Location: Dewy Rose, GA
Posts: 473
Quote:
Originally Posted by Step Over the Edge View Post

I have a brand new 28 spline trac loc and ford racing master gear install kit I'll sell cheap if you end up with a 28 spline rear.

Good luck!
how cheap? if you dont mind
Reply With Quote
  #29
Old 12-01-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

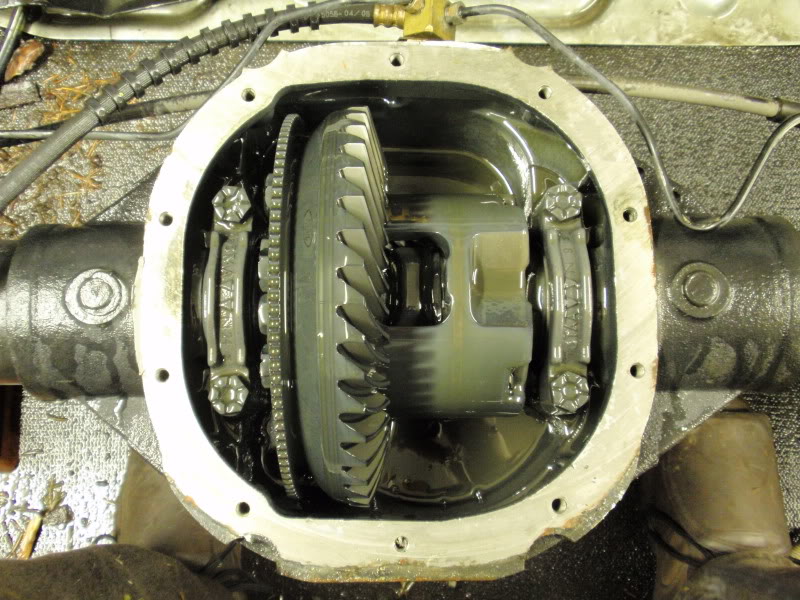

Any update? Did you pop that cover off yet??




Should look just like this(unfortunately, it wont in your current situation)
Name:  PB060178.jpg
Views: 0
Size:  125.9 KB
Reply With Quote
  #30
Old 12-01-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695

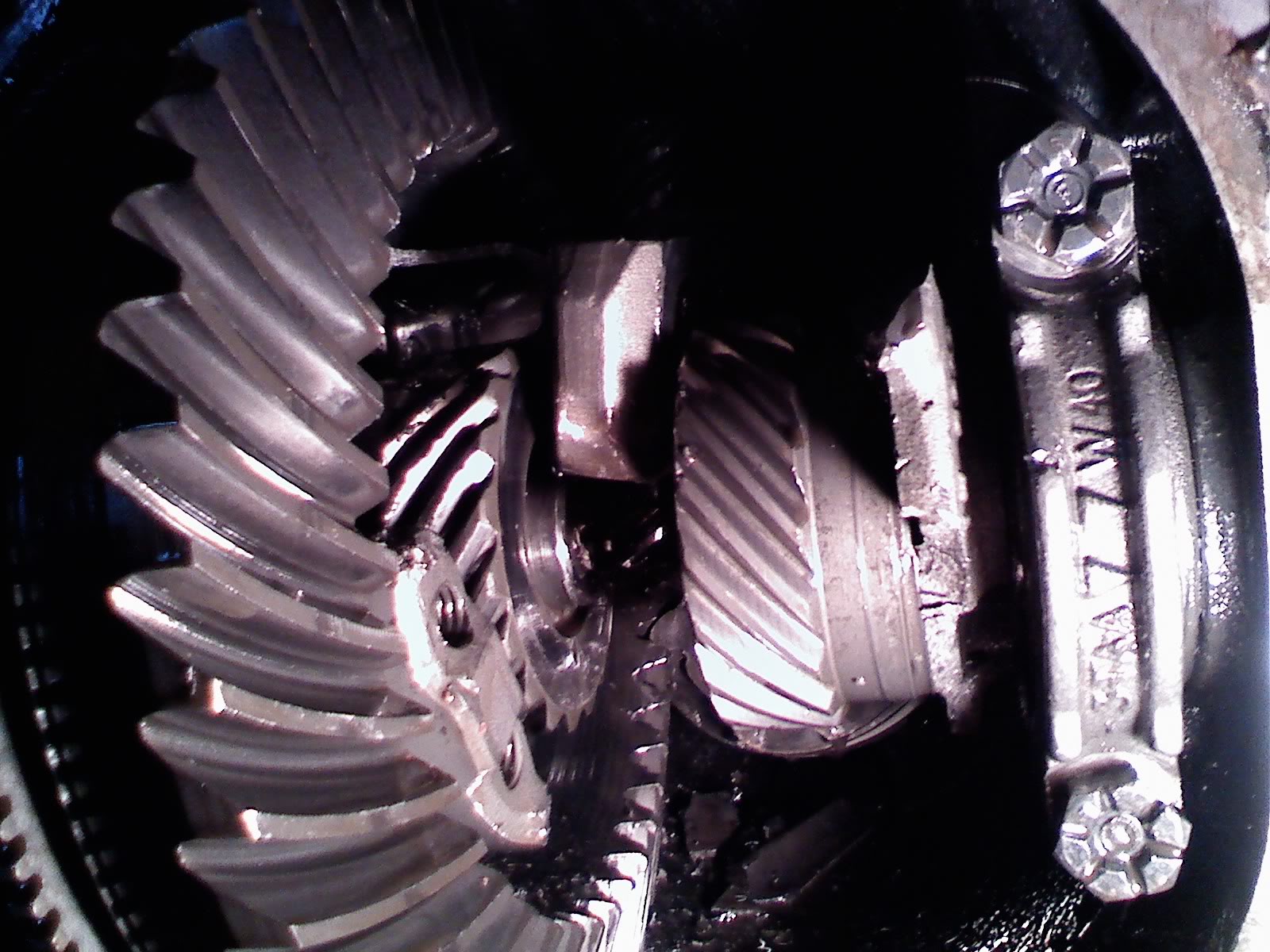

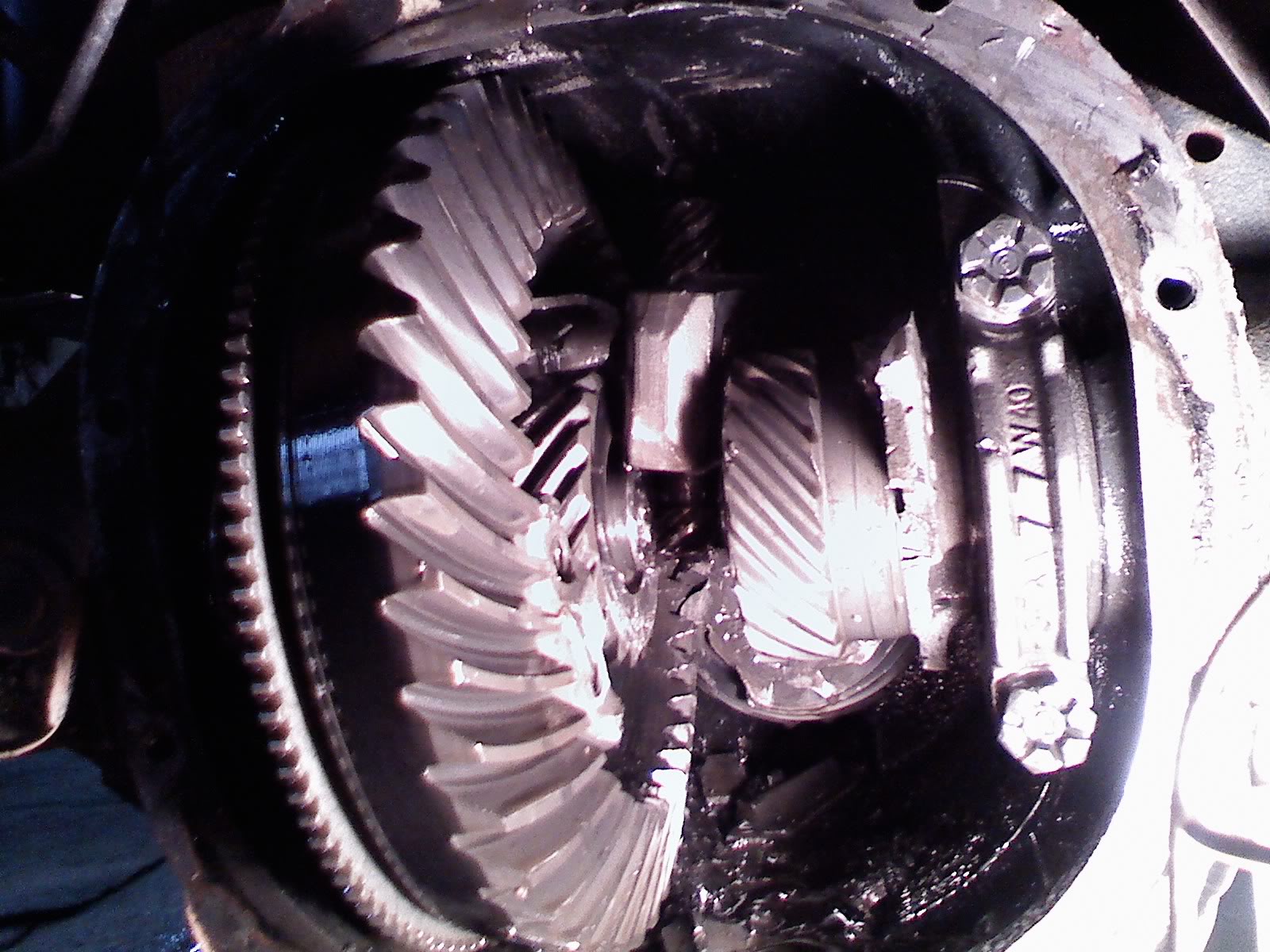

yea, unfortunately it looks like this.

Name:  rearendcarnage.jpg
Views: 0
Size:  269.9 KB

Name:  rearendcarnage2.jpg
Views: 0
Size:  259.0 KB

anyone have a 31 spline 8.8 with the limited slip they want to sell?
Reply With Quote
  #31
Old 12-01-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
That's not pretty.
Reply With Quote
  #32
Old 12-01-2008
thesoundmaster's Avatar
Member

Join Date: Mar 2007
Location: Centennial CO
Posts: 5
Damn dude, you got lucky! Mine was all f'd up.

Here's what I'd do. I have a feeling you and I may be up for a class action lawsuit in the next year or so if they continue to blow. Keep EVERYTHING you pull out of it incase.

Then, screw the torsen. It's garbage. End of story. People will chime in here and say it's my opinion, but right here, you and I both have had em fail, so they're worthless.

Get yourself a Trac Loc. $265ish brand new from Summit Racing.

Next, order Yukon 4.11 gears with the install kit, replace your diff cover, and hope your axle splines weren't damaged.

I spent roughly $850-900 on my rear end rebuilding it, not including labor. But don't get another torsen... they're crap.
Reply With Quote
  #33
Old 12-01-2008
thesoundmaster's Avatar
Member

Join Date: Mar 2007
Location: Centennial CO
Posts: 5
Quote:
Originally Posted by wolfman00 View Post
call up ford. there was a recall on the 02 torsen axle. they were replacing them free of charge.
Quote:
Originally Posted by mudranger96 View Post
I would check with ford i think they did a recall on 02 FX4 model rear ends

Here is a link(http://www.ford-trucks.com/recalls/r.../y-2002/t-4302). I have been debating on taking mine in to see if they will do mine before it goes out and leaves me stranded


Quote:
Originally Posted by 99ranger4x4 View Post
only on manuals, that's the issue Chuck has when his blew up.
Nope, Ford won't honor it. They say it was a TSB and not a recall. Least thats what they told me and it wasn't covered. In fact, they even denied the fact the manual's were recalled and tried to tell me that "even if they were hit with a shock load, the auto's and manuals are both completely different."
Reply With Quote
  #34
Old 12-01-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
I think your rear end went out! Just to let you know.
Reply With Quote
  #35
Old 12-01-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
pics of the diff cover?
Reply With Quote
  #36
Old 12-01-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
By the looks of it, you might be golden.....no need to replace that r&p. but....given the pics i have to work with...no clue how that pinion looks.
Reply With Quote
  #37
Old 12-01-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
sry about the bad pics. yea i plan on replacing the r&p. the pinion is shot and the ring is chipped some. Im thinking about a trac loc. how hard are they to install? what all will i need?
Reply With Quote
  #38
Old 12-01-2008
davidw's Avatar
Member

Join Date: Aug 2008
Location: Bow,WA
Posts: 207
Quote:
Originally Posted by wolfman00 View Post
call up ford. there was a recall on the 02 torsen axle. they were replacing them free of charge.


oh *****, that wold suck if you can't get it fixed for free anymore, that happened to me on a recall for my speed control module.lol
Reply With Quote
  #39
Old 12-01-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Ring and pinion install is something you should have somebody else do if you havn't the tools or knowledge. I tried to do mine but was lacking $400 in tools....so i had somebody else do the install.

no matter how you look at it...if there's a carrier change, there's also a new r&p setup charge to get the correct lash and correct pattern together.
Reply With Quote
  #40
Old 12-01-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
what are yalls opinion on the trac loc vs. the torsen vs. the true trac. I for one had very good experience with the torsen. It hooked up great and showed no sign of wear until it just went. I found a good deal on a trac loc ,but how does is stack up compared to the torsen. I know the torsen is designed with the helixical gears and no clutches to wear out, but mine did. Just wondering which is better in the long run. I drive on the street alot but loved the 2 tire hookup from the torsen when wheeling.
Reply With Quote
  #41
Old 12-01-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
true track is most like a locker compaired to all three choices given. i've seen them with one wheel in the air, and still putting a good amount of power to the wheel that's still on the ground.

Torsen uses Helical gears. TracLoc uses clutches. traclocs like to wear out about 50-75k.....then turn into an open pile of junk.
Reply With Quote
  #42
Old 12-01-2008
Sea-Bass's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Georgia
Posts: 1,059
There's this Russian guy over in West Georgia who has a ton of Ranger stuff, I have his card at work, I think its called Ranger Sales...not sure though. He has all kinds of Rangers. I havnt talked to him in over a year, so I dont know if he is still in business, he sold parts(engines, complete axles, etc) as well as complete used trucks.
Reply With Quote
  #43
Old 12-02-2008
thesoundmaster's Avatar
Member

Join Date: Mar 2007
Location: Centennial CO
Posts: 5
Jake, I personally love my trac loc. The difference between it and the torsen is the difference between night and day. My truck is a lot more responsive, and to be honest, my trac loc, with about 12K on it, is still as tight as the day it was put in. After the torsen gave out, the idea of another carrier with helical gears freaked me out, so I'm perfectly fine with my clutch's in my trac loc.
Reply With Quote
  #44
Old 12-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
remember.....nothing against chuck...but chuck...how many miles did you get out of that torsen? 150k? Can't really compare a used up torsen to a brand spanking new and tight trac loc....

on the contrary..there are tracloc rebuilt kits that include new clutches and springs and such...so a rebuilt is a no biggie and it'll be just like new.
Reply With Quote
  #45
Old 12-02-2008
Sea-Bass's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Georgia
Posts: 1,059
I cant find that guys card, I will look when I get home, I know I didnt throw it away...its around somewhere..lol
Reply With Quote
  #46
Old 12-02-2008
john93rangerstx's Avatar
Member

Join Date: Mar 2008
Location: WARWICK RI
Posts: 895
that sucks good luck
Reply With Quote
  #47
Old 12-02-2008
JakeH05's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Elberton, GA
Posts: 695
My dad ended up finding a 8.8 31 spline 4.10's with limited slip in commerce, ga from a guy that specializes in rangers. Its out of a 04 and it has 19k miles on it. I believe he paid $400 or $500 bucks for it. A steal and it has brakes, drums, lines, and all. Just need to bolt it in, bleed the brakes, and change the fluid. The bolts on the case have never been removed from it. Its basically new. I plan on trying to sell my old 8.8 diff. housing, axles, and brakes and all for $200 bucks or so. That would set us back about $300 bucks. Not bad for a completely destroyed l/s and r&p.
Reply With Quote
