Ring gear mesurments

How do you measure a ring gear, as in 7.5 or 8.8 inches? Is the measurement the base diameter of the gear or is it the outter diameter of the teeth?
Reply With Quote
  #2
Old 11-14-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
i think it is the outer diameter
Reply With Quote
  #3
Old 11-14-2009
leadfoot's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: MA
Posts: 894

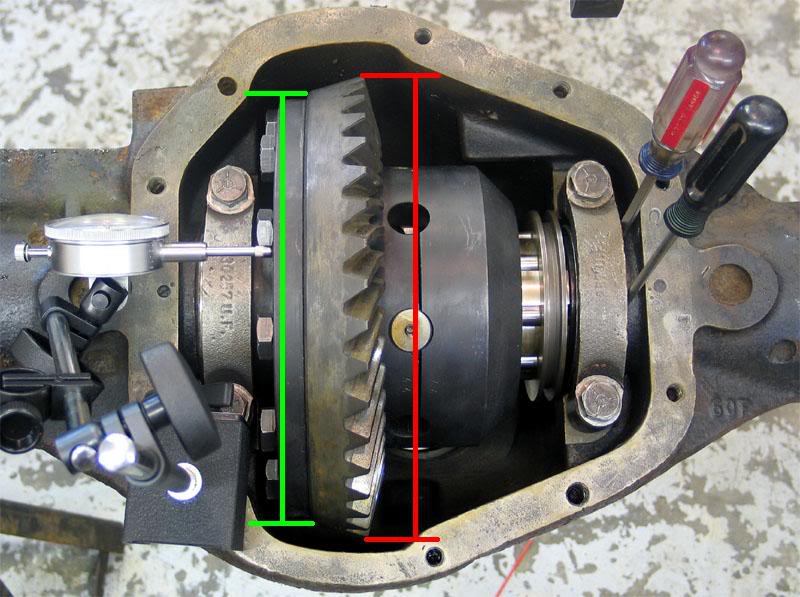

So it would be the red measurement?
Name:  Figure_13.jpg
Views: 14
Size:  84.9 KB
Reply With Quote
  #4
Old 11-14-2009
leadfoot's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: MA
Posts: 894
If it is the red mesurement that means I have an 8.8 inch rear end. How ever I just replaced my outter axle bearings and ordered some from rock auto. The 8.8" wheel bearings from rock auto were too big to fit, so thinking that roch auto screwed up, I went to get some at auto zone. Auto zone had 8.8" wheel bearings but they were the same size as the rock auto ones. Instead, the 7.5" wheel bearing from auto zone was the right size. So apparently I have a 7.5" axle with an 8.5" ring gear. What is wrong here?
Reply With Quote
  #5
Old 11-14-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
you have an 8.8. im pretty sure 28 spl 8.8s and 28spl 7.5s have the same bearings. im not sure though. they probably gave you 31 spl bearings the first time

not certain on this. either a 31spl 8.8 or a 7.5 use the larger bearings. the 28 spl 8.8 i know uses the smaller bearings
Reply With Quote
  #6
Old 11-14-2009
leadfoot's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: MA
Posts: 894
Quote:
Originally Posted by Toreador4x4 View Post
you have an 8.8. im pretty sure 28 spl 8.8s and 28spl 7.5s have the same bearings. im not sure though. they probably gave you 31 spl bearings the first time

not certain on this. either a 31spl 8.8 or a 7.5 use the larger bearings. the 28 spl 8.8 i know uses the smaller bearings
That's what I thought. I just found it odd to get the wrong size bearing from two sources even though I gave them the correct information, 1998 4x4 4.0 ect.
Reply With Quote
  #7
Old 11-14-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
post a pic up of your rear axle with the cover on, i can tell you what it is. the 7/5 is "flatter" on the topand bottom of the case
Reply With Quote
  #8
Old 11-14-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
You mean the axle shaft bearings? If so, 28 spline 8.8 and 7.5s share the same bearing....even the shafts are the same between the two. 31 spline 8.8s have the larger shaft bearings.
Reply With Quote
  #9
Old 11-14-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
yes the 28spl shafts are the same but i think the O.D. of the bearing is different
Reply With Quote
  #10
Old 11-15-2009
leadfoot's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: MA
Posts: 894
Quote:
Originally Posted by Toreador4x4 View Post
post a pic up of your rear axle with the cover on, i can tell you what it is. the 7/5 is "flatter" on the topand bottom of the case
I checked out the comparason pictures and it definitely is an 8.8" as the axle tag confirms...
So RockAuto and AutoZone's catalog thing is screwed up. It was the bearings closest to the drums that I replaced, the wrong ones seemed to have the right inner diameter but the outter diameter was was at leat a 1/4 inch too big.
Reply With Quote
