Towing Tips

Hey guys!
I thought it might be a good idea to start up a thread with some tips on towing! I'm young driver to begin with and my family just got a tandem axle trailer for our 21ft Mastercraft X-10... I'll be towing it a ton in the future so why not start expanding my knowledge base of "how to tow properly"!!!

Spence

Trailer Specs: Eagle Tandem Axle w/ Leaf Springs and Disc Brakes

I currently work at a marina as my summer job and the technicians whip those trailers around in the lot with out a problem! Granted they have some very nice Kabota tractors with the hydraulic lift hitch and what not!
Reply With Quote
  #2
Old 07-20-2012
FordTough2007's Avatar
Member

Join Date: Dec 2008
Location: Auburn,ME/Selinsgrove,PA
Posts: 1,062
hate to break it to you man. but your not going to be towing that with your ranger. and if you do. your gonna be struggling. thats gotta be a heavy boat. at 21 feet. also. your going to need a trailer break controller and a 7 pin trailer harness before you can even tow that. if you are seriously going to be towing it a "ton" as you say. it would be honestly be safer to tow it with a bigger truck. my buddies parents have a 21 foot boat, and they have an expedition and hate towing that boat with it. just my two cents. i would seriously suggest at least a half ton for a 21 foot boat.
Reply With Quote
  #3
Old 07-21-2012
WillInThe04Ranger's Avatar
Member

Join Date: Oct 2009
Location: Rocky Mount, NC
Posts: 666
He is right ......... that is too long and I am sure too heavy to be pulling with our little trucks. Not trying to down you man but I pulled my dads 15ft tandem axle trailer about 250ft with my ranger crying the whole way. With that being said I probably wouldnt pull anything over 12 feet. I am currently looking for a 10 foot trailer for me to haul my lawn mower on.
Reply With Quote
  #4
Old 07-21-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
I'd be more worried about the ramps where you launch it. **** can get ugly fast in a little truck.
Reply With Quote
  #5
Old 07-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by PSIJOE View Post
I'd be more worried about the ramps where you launch it. **** can get ugly fast in a little truck.
x2! I wouldn't tow it with your truck for a long distance. A parking lot would probably be fine but with the boat loaded don't I can't see your truck making it back up that ramp easily.
Reply With Quote
  #6
Old 07-21-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
hmmm, well my family has no other towing capabile vehicles other than my moms 2001 toyota landcrusier. They boat weighs rougly 4,000lbs so i thought my truck would be able to handle it being rated to tow 4,500lbs with the 4.0L i have... Maybe i read the max incorrectly or something... as for distance, the boat will be towed about 150miles twice a year (lake house to city home) then 10 miles on the weekends (garage to water)... Would you guys call me crazy if i went for it anyways??
Reply With Quote
  #7
Old 07-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
If your within the towing capacity go for it. If you blow the trans or rear or get in an accident insurance will cover it but if its outside the capacity thats where the problems start.
Reply With Quote
  #8
Old 07-21-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
okay, correction from earlier, apperently the towing capacity is 5600lbs, so it seems fine to me!
Reply With Quote
  #9
Old 07-21-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
It'd be close to being over though. Trailer has to be between 800-1000lbs. Boat dry could be 4000lbs, plus with whatever you have in it such; as fuel, food, personal items, etc. might be easier to rent a larger truck for the week or see about buying an f150.

Stopping will take a runway and I wouldn't drive with the o/d on.
Reply With Quote
  #10
Old 07-21-2012
2006crfrider's Avatar
Member

Join Date: Apr 2011
Location: Spokane,WA
Posts: 424
I would defiantly look into a trailer brake controller.
Reply With Quote
  #11
Old 07-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
What gears do you have? That affects towing capacity.
Reply With Quote
  #12
Old 07-21-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
the land cruiser has a V8 just use that if you're worried.
Reply With Quote
  #13
Old 07-21-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
idk about the gears, i havent done and changes to them so there still stock... as for a brake controller, i know that the trailer has brakes, but i think the adapter that comes with the trailer should hook right up to the trucks breaking but i havent looked into that with detail... what trailer brake controller do you reccomend???
Reply With Quote
  #14
Old 07-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by Romaswake View Post
idk about the gears, i havent done and changes to them so there still stock... as for a brake controller, i know that the trailer has brakes, but i think the adapter that comes with the trailer should hook right up to the trucks breaking but i havent looked into that with detail... what trailer brake controller do you reccomend???
Find out on the gears. Look on the axle tag or the door. I am willing to bet its 3.73's but they could be something else. Stock doesn't really mean anything.
Reply With Quote
  #15
Old 07-21-2012
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by 98liftedranger View Post
Find out on the gears. Look on the axle tag or the door. I am willing to bet its 3.73's but they could be something else. Stock doesn't really mean anything.
He has a 4x4 4.0 he's probably 4.10 gearing.


Man, just try it out around the block, see how it feels. Also, I don't know much about wiring the brakes in but honestly that's the biggest part of the battle so if you can wire that in you are much better off.

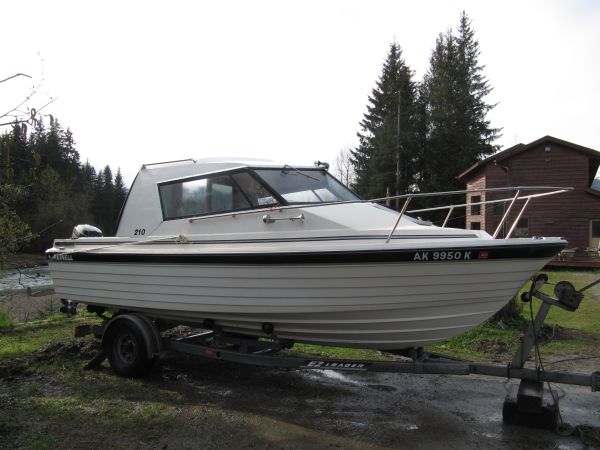

Lol that reminds me, my buddy is buying this and planning on towing it with his 96 toyota 4banger and I'm just like "wtf man"

Attached Thumbnails
Towing Tips-5ke5hf5j93nf3k63fac7hb119d6c69f1b1849.jpg
Reply With Quote
  #16
Old 07-21-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Quote:
Originally Posted by 99offroadrngr View Post
the land cruiser has a V8 just use that if you're worried.
x2 on the Landcrusier. Bigger, sturdier, and more power and tq. Much better off.
Reply With Quote
  #17
Old 07-21-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Im gonna go for it, and if in doubt ill resort to the landcrusier! thanks for the input guys! ill update you when i come down to towing it!
Reply With Quote
  #18
Old 07-22-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Crossing fingers for you.
Reply With Quote
  #19
Old 07-22-2012
Ranger Smith's Avatar
Member
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
A ski boat is not too much for a ranger, I have done it many times. You should get a brake controller though. If the trailer has brakes you should use them, and braking is the rangers weak point anyway.
Reply With Quote
  #20
Old 07-22-2012
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980

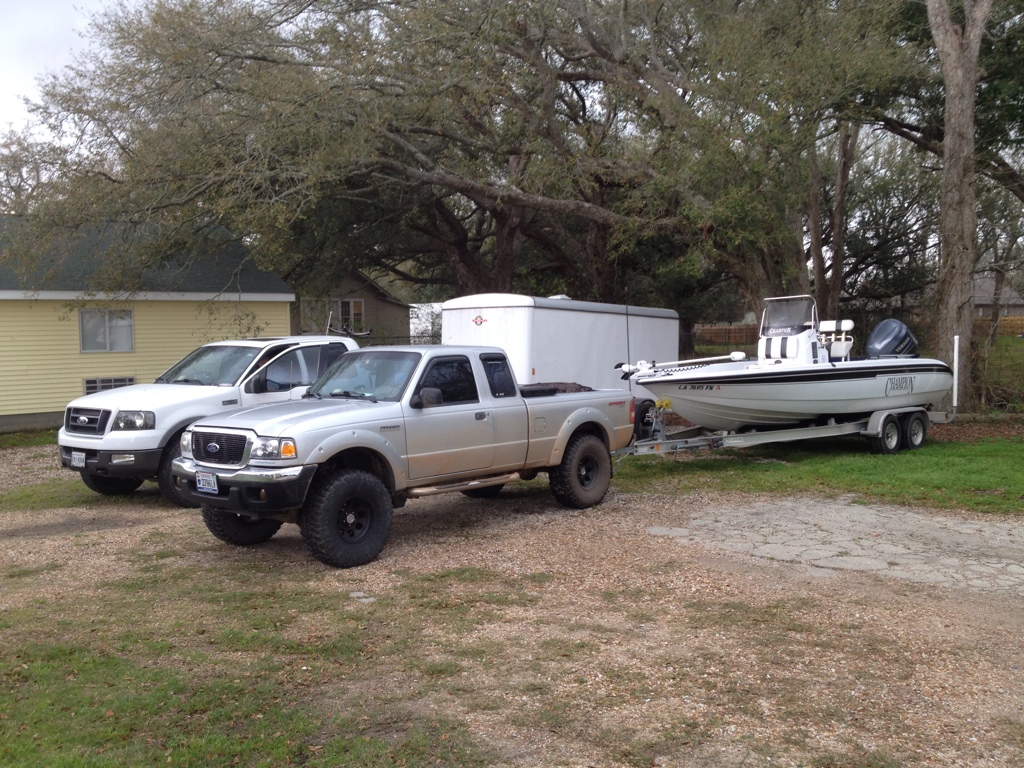

I towed this boat 1200 miles from Belle Chase, La to Virginia Beach, Va

The boat weighs in at around 4,500lbs and it had stuff loaded in it and the bed of my truck.

It handled it like a champ. Just make sure overdrive is off and install a trans temp guage since its gonna be hot out and keep in eye out on its temperature. It gets warm in stop and go traffic though.


Name:  5aeb2403.jpg
Views: 62
Size:  439.7 KB
Reply With Quote
  #21
Old 07-22-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
How do i turn off the overdrive? :0 noooooob
Reply With Quote
  #22
Old 07-22-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
You'll be fine. Just anticipate stopping. If you're not familiar with backing up a trailer find a parking lot and have fun. The slower you go, the easier it is to keep in line. Also remember that its back there.
Reply With Quote
  #23
Old 07-22-2012
cdawall's Avatar
Member

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by Romaswake View Post
How do i turn off the overdrive? :0 noooooob
For mine there is a button on the end of the gear shift that says overdrive on it or you could have it on the gear select itself one D with a box around it is overdrive the D by itself is drive so OD off.

For the neigh sayers you are well within your towing rating with a brake controller you should be fine. Do not tow without a brake controller on the truck. The extra 5K you are towing will likely push the truck around like nothing. As for boat ramps 4 low and move on problem solved. If you feel the transmission start to shift funny STOP. Pull off the road and let it cool down that is going to be one of the major weak points on your truck. If you are going to be towing it a lot get a bigger tranny cooler.

http://www.autozone.com/autozone/acc...er=238921_0_0_

Something like that would greatly benefit you.

Last edited by cdawall; 07-22-2012 at 07:40 PM.
Reply With Quote
  #24
Old 07-31-2012
tractorman's Avatar
Member

Join Date: Nov 2009
Location: Wisconsin
Posts: 190
Does the trailer have surge style brakes, or are they electric over hydraulic?
Reply With Quote
  #25
Old 07-31-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Quote:
Originally Posted by tractorman View Post
Does the trailer have surge style brakes, or are they electric over hydraulic?
Surge i belive, this is what the specs say in the email i got about my order...

-Bolt-on Hydraulic "Surge" Brake Actuator
Reply With Quote
