How-To: Change Power Steering Pump

How-To author: robert99ranger

Original thread: https://www.ranger-forums.com/f59/ho...ng-pump-99564/


Let the modding Begin!!

_________________________





***NOTE - This was done on a 1999 2.5L Ranger. It may vary some on different motors and vehicles. This is just a general guide as to how to do it. Also, I replaced my pump because the old one was whining. The new pump did NOT fix this. It made it worse.

Tools Needed:
  • Assorted Wrenches
  • Power Steering Pulley Puller Kit
  • Heater (If garage is cold)
  • ATF (Automatic Transmission Fluid)
  • Channel Lock
  • 3/8" Breaker Bar or Ratchet

You need to go out and rent a power steering puller kit if you dont have one. It will look like this:
Name:  100_0037.jpg
Views: 1480
Size:  69.4 KB

The first thing you need to do is get the belt off of the pulleys. Put a 3/8" Breaker bar or a 3/8" ratchet in the slot on the idler pulley to releave the tension off the belt. Make note of the routing of the belt.
Name:  100_0029-1.jpg
Views: 1736
Size:  66.2 KB


Take the belt off the Power Steering Pulley. You do not need to remove the whole belt from the truck. You can if you want to though.

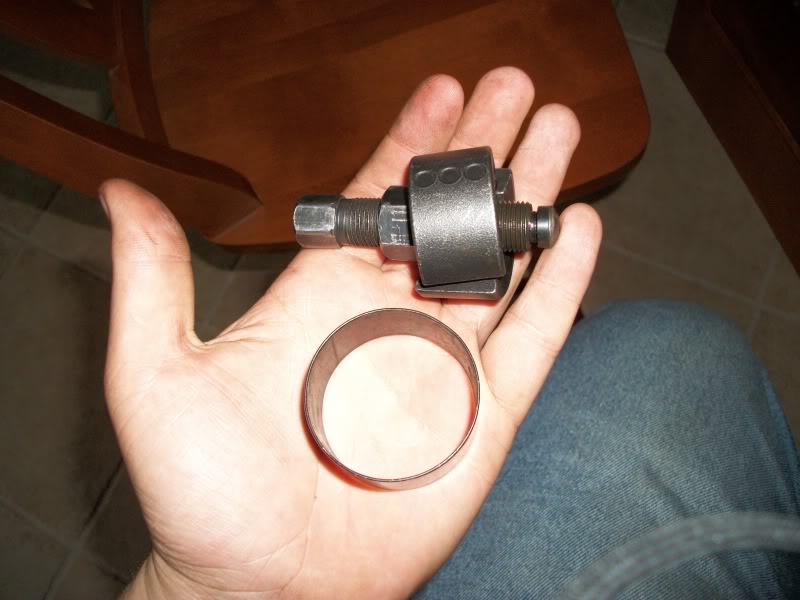

The next thing to do is pull the pulley off of the power steering pump while it is still mounted to the motor. You cant get the bolts out to take the pump off anyway without taking the pulley off. This is the setup you will need to get the pulley off:
Name:  100_0044.jpg
Views: 1388
Size:  78.1 KB

You will turn the nut counter clockwise on the bolt




Next thing to do is get the high pressure side line off. This is the one that is threaded and has a head on it. For me this took a 18mm open ended wrench to get it off. I suggest putting a rag under it when taking it out since there is some fluid in the pump.

Name:  100_0031-1.jpg
Views: 1785
Size:  59.3 KB


Next I took the three bolts out of the front of the pump to remove the pump from the bracket. I believe this was a 17mm socket but dont hold me to it.


After the pump was free. I removed the clamp that is holding on the return line on the back of the pump. I used a pair of channel locks to get it off.


Once everything is off the pump, pull it out.

Name:  100_0033.jpg
Views: 1661
Size:  121.9 KB


Now put your new pump in. Put your return line back on and then put the bolts in. Tighten them up snug. Then put you high pressure side line back on.


You will need this tool setup from the kit to put the pulley back on.

Name:  100_0039.jpg
Views: 1396
Size:  67.9 KB


The inside of the pump shaft it threaded. Tighten the bolt into it. You now start tightening the nut on the threaded bolt until the pulley is back on. You can eye ball the pulley to see if it is inline with the other pullies on the motor.

Name:  100_0036.jpg
Views: 1388
Size:  84.0 KB




Now that you have your pulley back on, put the belt back on. Make sure it is in the correct order. You can look at the sticker on the truck infront of the motor to tell you how to put it on.

Now fill the reservoir back up with fluid. Mine takes ATF. Consult your owner's manual for the correct fluid.

Yay, your done. Now start your truck up and see if it works.

Last edited by 98liftedranger; 11-28-2011 at 12:17 AM.
Reply With Quote
  #2
Old 05-24-2017
Member

Join Date: May 2017
Location: Kingston, ON
Posts: 1
How did you fix it?

You said your engine was whining but this didn't fix it, it made it worse. Did you ever fix it?
Reply With Quote
  #3
Old 08-13-2017
MaDMaXX's Avatar
Member

Join Date: Jul 2017
Location: Oregon
Posts: 744
The whining/moaning etc is caused by a bad pump, OR air in the line, it seems Ford systems have terrible air lock areas.

Obviously with a new pump, it's not the pump any longer, but i've had a vacuum pump on mine several times, gets a little better each time, then once the steering wheel shudder is down to a minimum or gone, short drives will help get rid of more air.

Top up the fluid when it's cold, vacuum more if you want/need and go for another 5-10 minute drive, top up fluid when cold again - it should be getting quieter.
Reply With Quote
  #4
Old 2 Weeks Ago
Member

Join Date: Nov 2017
Location: Waco tx
Posts: 1
Jay b

Quote:
Originally Posted by Redneckstone View Post
How-To author: robert99ranger

Original thread: https://www.ranger-forums.com/f59/ho...ng-pump-99564/


Let the modding Begin!!

_________________________





***NOTE - This was done on a 1999 2.5L Ranger. It may vary some on different motors and vehicles. This is just a general guide as to how to do it. Also, I replaced my pump because the old one was whining. The new pump did NOT fix this. It made it worse.

Tools Needed:
  • Assorted Wrenches
  • Power Steering Pulley Puller Kit
  • Heater (If garage is cold)
  • ATF (Automatic Transmission Fluid)
  • Channel Lock
  • 3/8" Breaker Bar or Ratchet

You need to go out and rent a power steering puller kit if you dont have one. It will look like this:
Attachment 115478

The first thing you need to do is get the belt off of the pulleys. Put a 3/8" Breaker bar or a 3/8" ratchet in the slot on the idler pulley to releave the tension off the belt. Make note of the routing of the belt.
Attachment 115479


Take the belt off the Power Steering Pulley. You do not need to remove the whole belt from the truck. You can if you want to though.

The next thing to do is pull the pulley off of the power steering pump while it is still mounted to the motor. You cant get the bolts out to take the pump off anyway without taking the pulley off. This is the setup you will need to get the pulley off:
Attachment 115480

You will turn the nut counter clockwise on the bolt




Next thing to do is get the high pressure side line off. This is the one that is threaded and has a head on it. For me this took a 18mm open ended wrench to get it off. I suggest putting a rag under it when taking it out since there is some fluid in the pump.

Attachment 115481


Next I took the three bolts out of the front of the pump to remove the pump from the bracket. I believe this was a 17mm socket but dont hold me to it.


After the pump was free. I removed the clamp that is holding on the return line on the back of the pump. I used a pair of channel locks to get it off.


Once everything is off the pump, pull it out.

Attachment 115482


Now put your new pump in. Put your return line back on and then put the bolts in. Tighten them up snug. Then put you high pressure side line back on.


You will need this tool setup from the kit to put the pulley back on.

Attachment 115483


The inside of the pump shaft it threaded. Tighten the bolt into it. You now start tightening the nut on the threaded bolt until the pulley is back on. You can eye ball the pulley to see if it is inline with the other pullies on the motor.

Attachment 115484




Now that you have your pulley back on, put the belt back on. Make sure it is in the correct order. You can look at the sticker on the truck infront of the motor to tell you how to put it on.

Now fill the reservoir back up with fluid. Mine takes ATF. Consult your owner's manual for the correct fluid.

Yay, your done. Now start your truck up and see if it works.
