How To: Install EBC Brakes And Pads

Here is the install of EBC USR rotors and EBC Yellowstuff pads onto my 2002 2wd Ranger Edge.

Tools needed:
A jack
Jackstands
An impact gun
Sockets for the impact
A hand ratchet
Assorted sockets for the ratchet
A flathead screwdriver
Wheel bearing grease
A torque wrench
A bottle of Loctite


Name:  1.jpg
Views: 47
Size:  50.5 KB

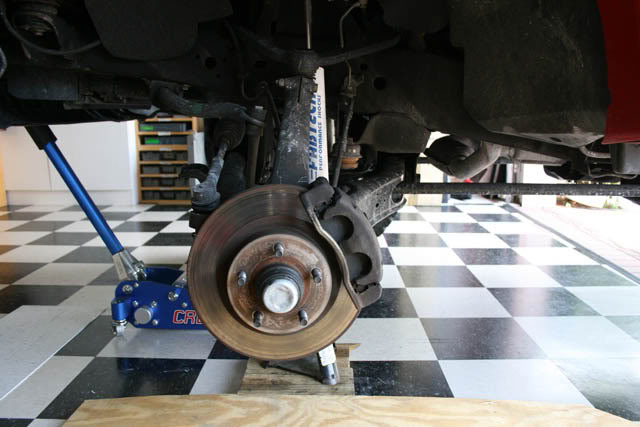

First jack the truck up and place it on a jackstand. Then remove the wheel.

Name:  2.jpg
Views: 42
Size:  49.6 KB

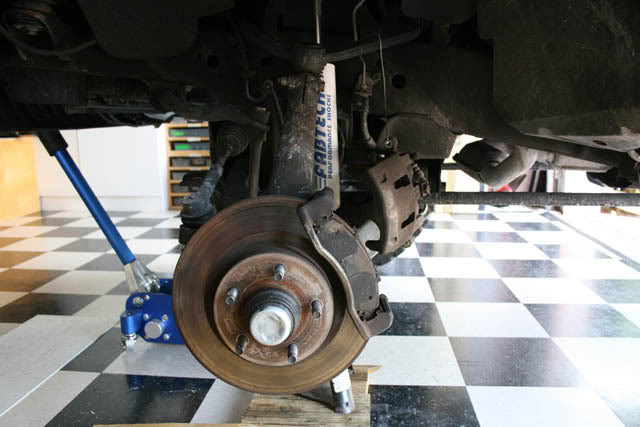

Next go ahead and unbolt the caliper from the bracket, then make a little hanger to hold it out of the way. Do not let it dangle by the brake line.

Name:  3.jpg
Views: 45
Size:  42.5 KB

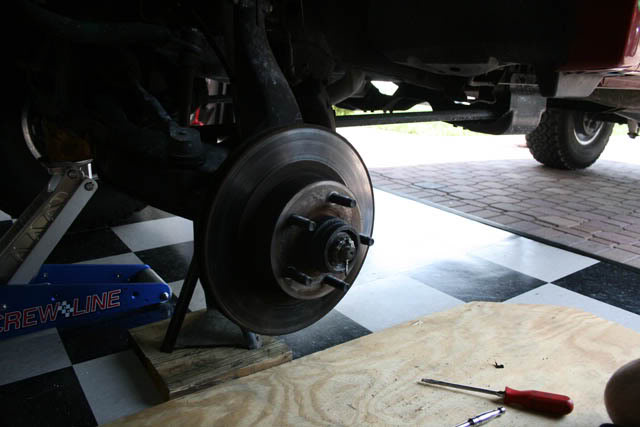

Unbolt the caliper bracket and place it out of the way.

Name:  4.jpg
Views: 42
Size:  39.5 KB

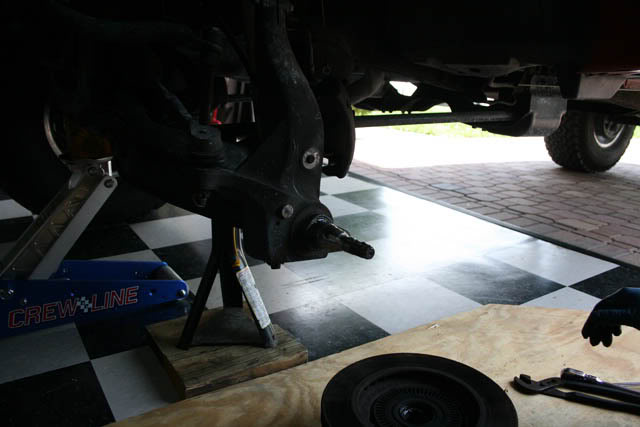

Remove the dust cap, cotter pin, and retaining bolt. Now pull the disk off of the spindle. Wipe all the old grease off of the spindle also.

Name:  17.jpg
Views: 42
Size:  30.3 KB

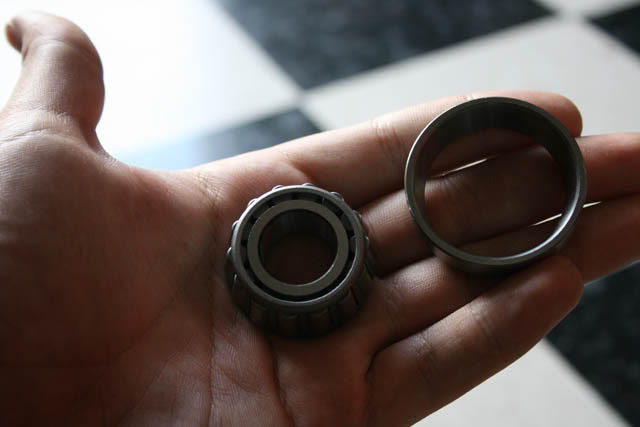

The new bearings come with new races also, these disks already have races in them so you can discard the races that came with the bearings.

Name:  5.jpg
Views: 44
Size:  47.4 KB

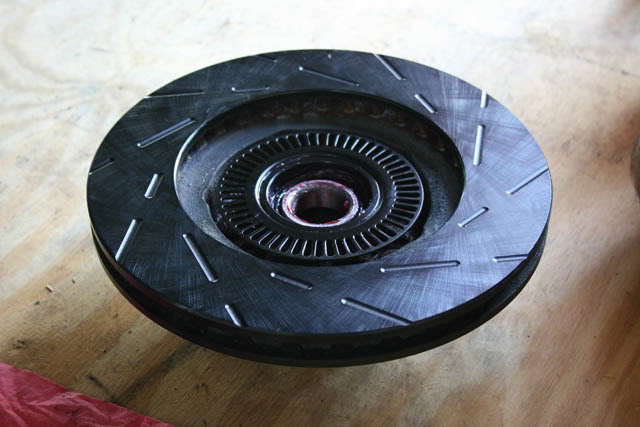

Pack your new inner bearing with wheel bearing grease, there are several ways to do this but by far the easiest is to use a grease gun and buy a cheap bearing packer attachment which will run you ~$10. Also put some grease inbetween the bearing race and the bearing itself.

Name:  6.jpg
Views: 42
Size:  48.1 KB

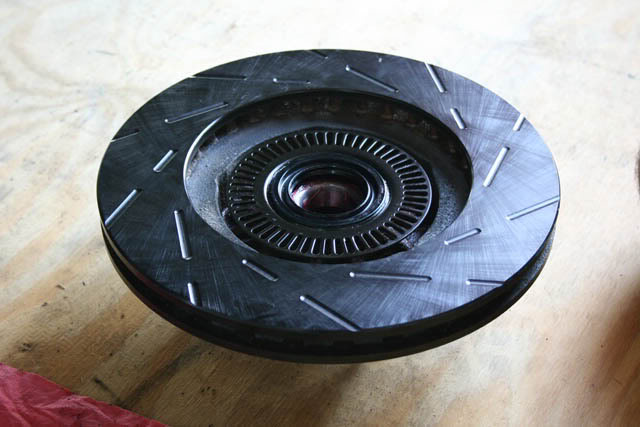

Install your new seal over them.

Name:  7.jpg
Views: 42
Size:  29.7 KB

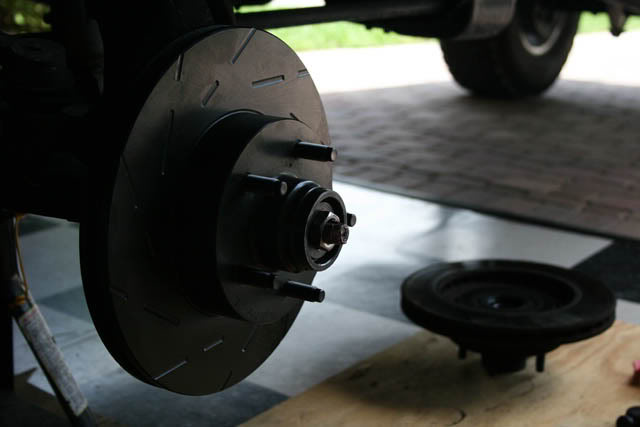

Pack and install your new outer bearing just like the inner. Apply a decent amount of grease to the spindle and slide the new rotor on. Now put the old washer back on and thread the retaining bolt on by hand.

Name:  8.jpg
Views: 42
Size:  44.1 KB

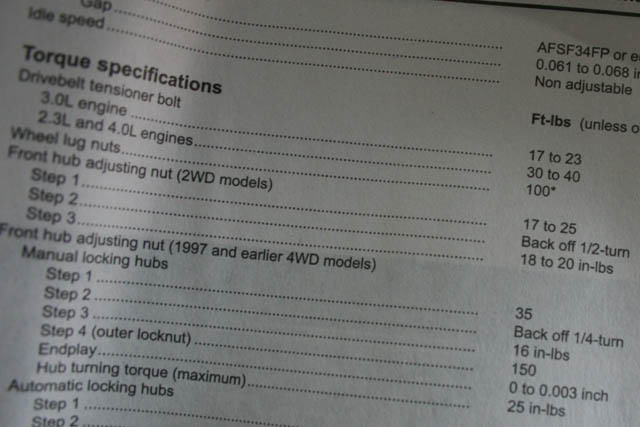

Here is the procedure for tightening the retaining nut.

Name:  9.jpg
Views: 42
Size:  31.1 KB

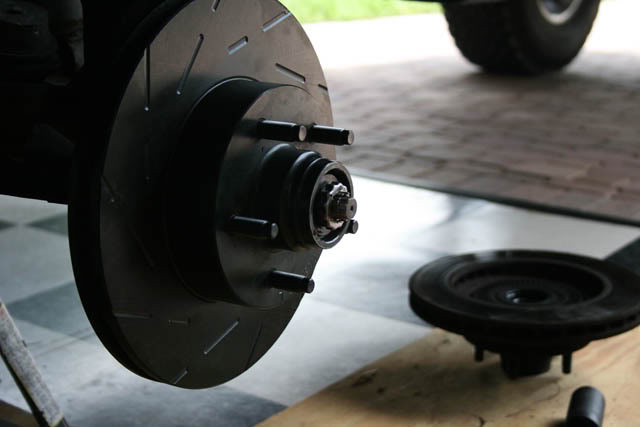

With it tightened install the little piece that keeps it from coming out.

Name:  10.jpg
Views: 41
Size:  37.1 KB

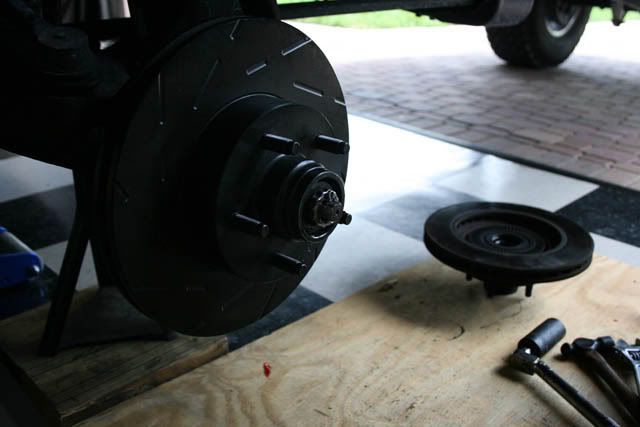

Install a new cotter pin.

Name:  11.jpg
Views: 41
Size:  42.1 KB

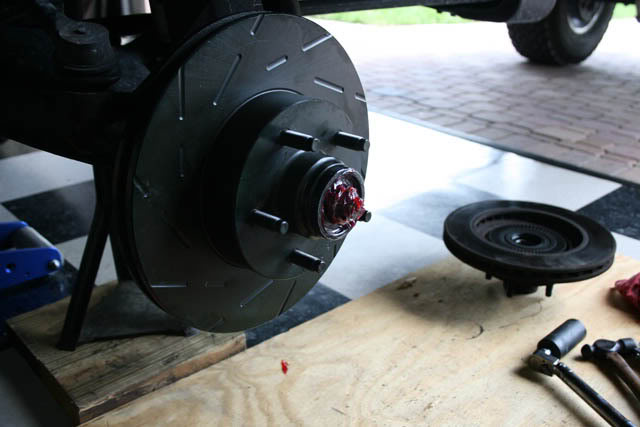

Now put a nice amount of grease onto all of it.

Name:  12.jpg
Views: 43
Size:  39.9 KB

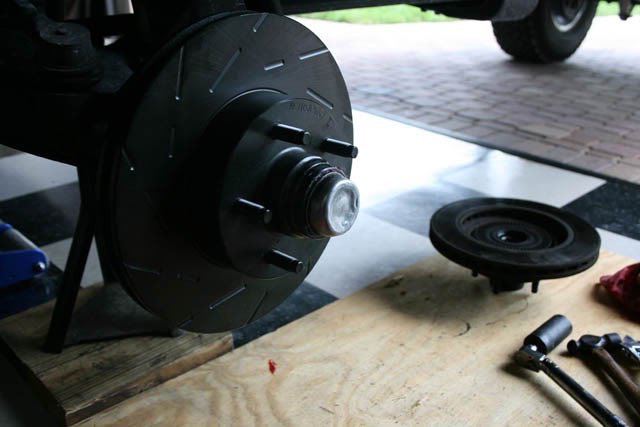

Reinstall your dust cap.

Name:  13.jpg
Views: 42
Size:  35.8 KB

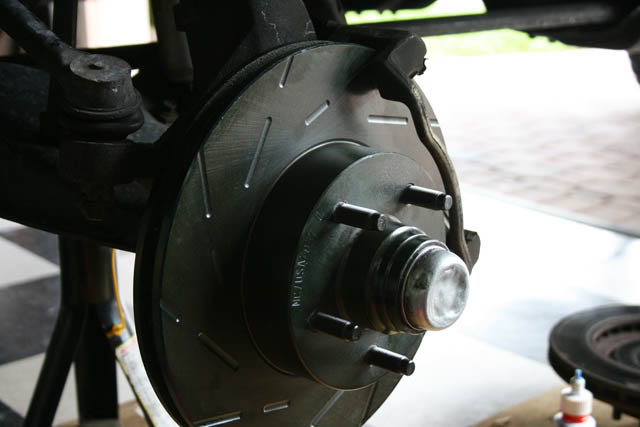

Reinstall the caliper bracket, I used a little bit of blue Loctite on the bolts since they were pretty loose when I took them off.

Name:  14.jpg
Views: 46
Size:  36.0 KB

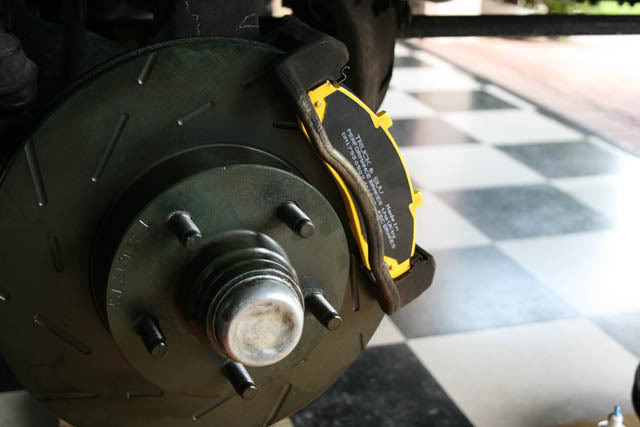

Put the new pads in place.

Name:  15.jpg
Views: 42
Size:  57.0 KB

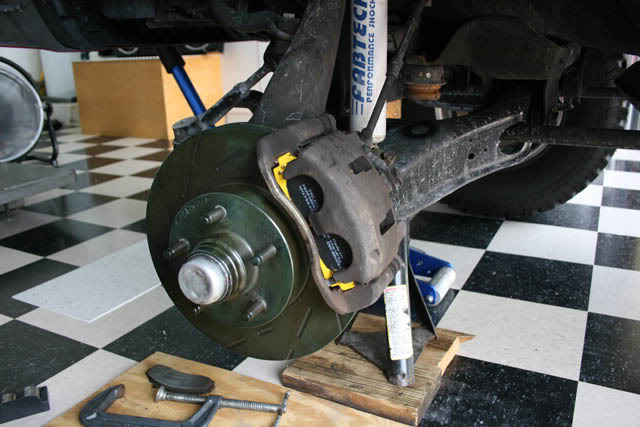

Put the caliper back on and bolt it back down. You will have to most likely push the pistons back in to get it to fit. This can be done by placing an old pad over them and then using a C clamp to push them back in. Be careful, brake fluid may come out of the reservoir when you do this.

Now reinstall the wheel and repeat on the other side. Now is a good time to replace your brake fluid also, but the rain stopped us from being able to do that today.

The proper way to bed these in according to EBC is to go from 40mph to a complete stop five times with one minute intervals inbetween and apply more brake pressure after every one. Be sure to do this on a closed road or a road with no traffic.




Here is a comparison video between the two. And no, it was no comparing them to pads that were shot. They had plenty of life still left in them. The difference between the two is night and day. I haven't had any squeeking yet either and they bite GREAT cold and hot.


Last edited by korey89; 03-18-2009 at 10:01 PM.
Reply With Quote
  #2
Old 08-15-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
nicewrite up man.


*This how-to covers all 2wd models. 4x4 models are even easier.
