06+ Power mirrors do not have the same ...

Hey guys,

I just learned the hard way that 06+ Power mirrors do not have the same electrical connectors! I guess somebody on here was BSing me when they told me they did.
I could see where this swap would be a breeze for the manual mirrors, but it was a nightmare with the power mirrors.
I had to cut the connectors off of my 2004 mirrors and wire them onto the 2006 mirrors.
And if that wasn't bad enough, the wires were different colors too ...
Ford just loves to change things from year to year.
I really like the finished product, but it sure was a pain in the a**!
Here's some pics of the electrical connectors.

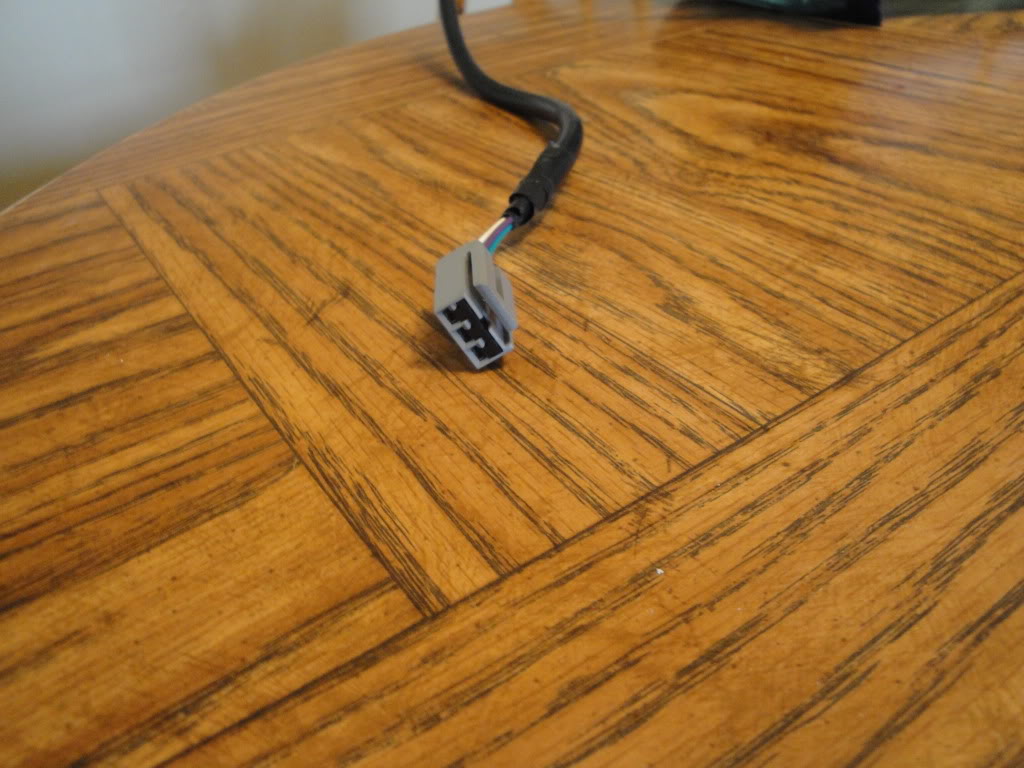

2004 connection
Name:  001.jpg
Views: 168
Size:  123.8 KB
2006 + connection
Name:  002-1.jpg
Views: 169
Size:  124.1 KB
Finished product
Name:  006-1.jpg
Views: 167
Size:  48.7 KB
Reply With Quote
  #2
Old 08-26-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
owned.

way to get it done any way
Reply With Quote
  #3
Old 08-26-2010
Member

Join Date: Jun 2010
Location: Johnson City,TN
Posts: 12
Thanks for the heads up, when i get around to this mod for my 05 power mirrors that is!
Reply With Quote
  #4
Old 08-26-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good.
Reply With Quote
  #5
Old 08-26-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Who told you they were the same? I haven't seen that they are on here before
Reply With Quote
  #6
Old 08-26-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
The color codes of the door harness that affect the power mirror are the same in 2006 as on several years prior but the connector between the 2006 door harness and mirror is different from earlier years. Starting in 2007, the door harness color codes also changed compared to 2006-back. What color codes are used on the actual mirror wiring are anybody's guess since they are no doubt sourced by Ford from an outside supplier.
Reply With Quote
  #7
Old 08-26-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by KLC View Post
Looks good.
Thanks
Reply With Quote
  #8
Old 08-26-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Quote:
Originally Posted by 04blackedge View Post
Who told you they were the same? I haven't seen that they are on here before
I don't know who it was, I'll have to go back and look at my old post but when I find out, I'll let ya know.
Reply With Quote
  #9
Old 08-27-2010
BlackRanger04's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Here's a better picture of the mirrors installed. Now I need to order those 06+ fender badges and find some clear corners. (Does anyone have a set of corners?)

Name:  003-1.jpg
Views: 165
Size:  210.6 KB
Reply With Quote
  #10
Old 03-25-2013
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
I don't care if I'm bringing this back from the dead. Do you have any pointers about which wire goes to what. I'm having a hellll of a time trying to get this done. Nowhere on the site (that I can find) have a write up for wiring the 05 down mirrors to the 06+ Help me!!!!! lol

If anyone can help let me know. Thanks.
Reply With Quote
  #11
Old 03-26-2013
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by PSIJOE View Post
I don't care if I'm bringing this back from the dead. Do you have any pointers about which wire goes to what. I'm having a hellll of a time trying to get this done. Nowhere on the site (that I can find) have a write up for wiring the 05 down mirrors to the 06+ Help me!!!!! lol

If anyone can help let me know. Thanks.
Here is where I put 06 on an 04. It'll show you the wire colors and everything.

https://www.ranger-forums.com/vehicl...l-04-a-112201/
Reply With Quote
