2006 XL Fog Light mounts?

I'm trying to figure out how the factory fog lights actually mount. I've found all kinds of threads on how to wire them, but nothing shows the actual mounting. Any hep would be greatly appreciated!

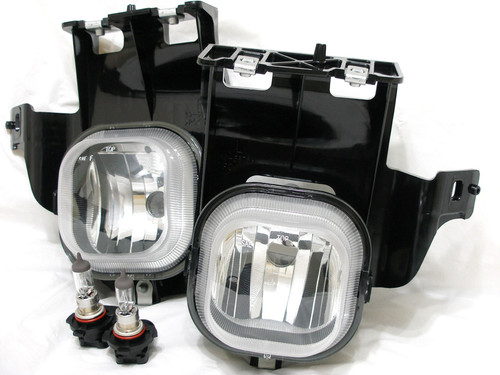

These are the lights i think i need....

but i cant for the life of me figure out how they mount, nor can i find any info on another bracket that's needed.
Attached Thumbnails
2006 XL Fog Light mounts?-t2ec16hhjhee9ny2tlubqnu.jpg
Reply With Quote
  #2
Old 03-27-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15
Would any of you guys, with these lights be able to take a pic from behind the bumper?
Reply With Quote
  #3
Old 03-27-2013
ZWilson07's Avatar
Member
iTrader: (1)

Join Date: Apr 2010
Location: Louisville, Kentucky
Posts: 870
They should mount right up.

I know they did on my 06 xl. The holes and mounting pieces were in mine; I just had to buy the setup you posted as well as the bolts/screws.

Let me see what I can find still saved as mine is long gone.
Reply With Quote
  #4
Old 03-27-2013
ZWilson07's Avatar
Member
iTrader: (1)

Join Date: Apr 2010
Location: Louisville, Kentucky
Posts: 870
As far as what you need, this is what ive found so far as it will just help what you already posted.

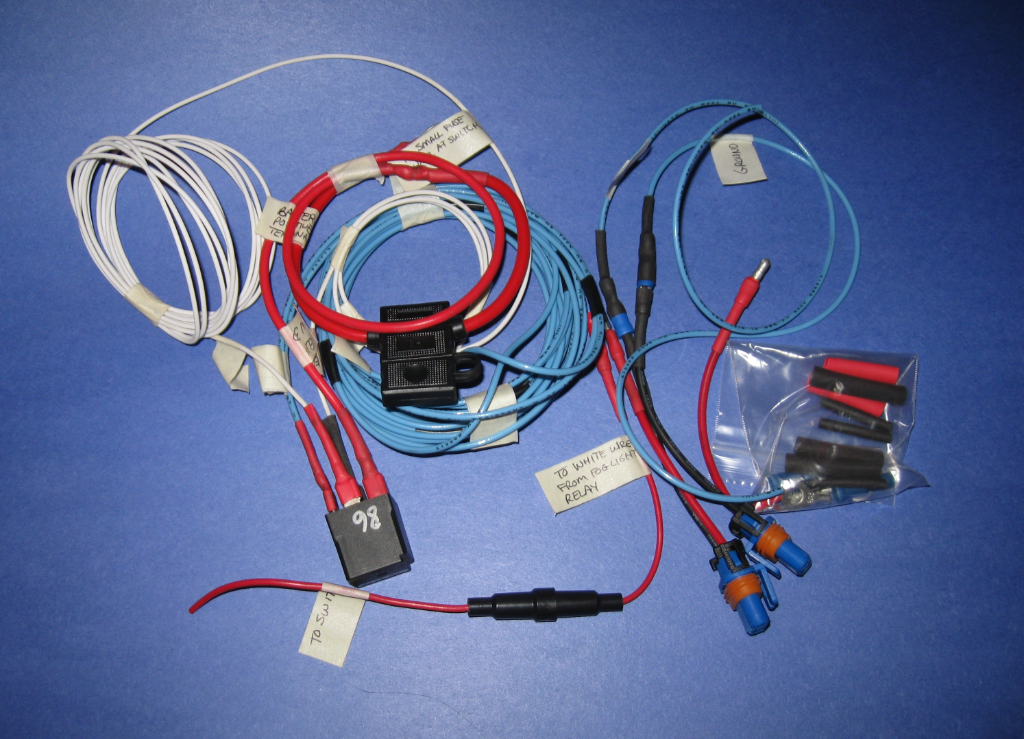

But my lights with wiring. I had Buggman make this setup for me as I wanted a very nice factory still setup that I could turn off and on with a button in the truck; or run it like factory and be on with the lights.

Id greatly recommend if your truck isn't pre-wired (as most xl's aren't) to contact him and have him make you the same thing. It was cheap, completly plug and play, and I couldn't have had one better made then what he did himself.






Still working on finding my stuff about mounting.


EDIT: as far as mounting bolts, they are M6 x 1.0 which you should be able to get anywhere locally.

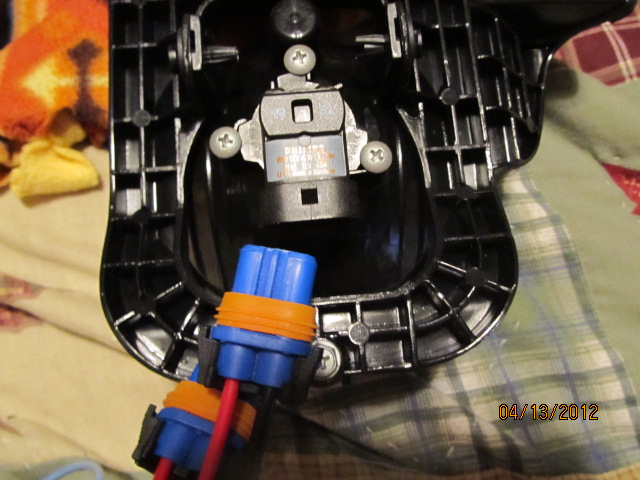

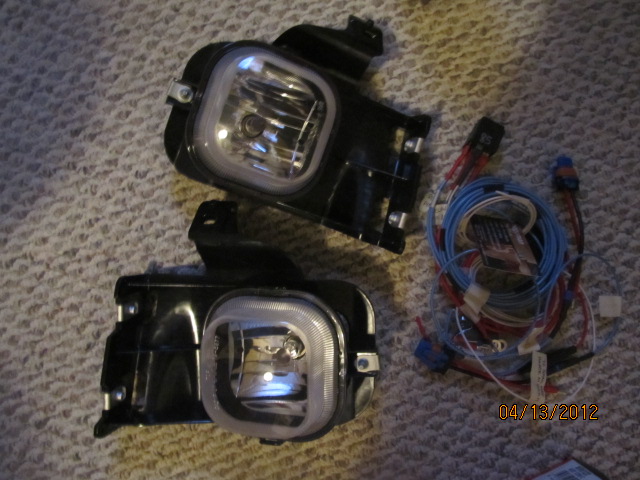

Attached Thumbnails
2006 XL Fog Light mounts?-rangerparts018.jpg   2006 XL Fog Light mounts?-rangerparts023.jpg   2006 XL Fog Light mounts?-untitled-1.png

Last edited by ZWilson07; 03-27-2013 at 09:25 PM.
Reply With Quote
  #5
Old 03-27-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15
No, mine isn't prewired. What do the lights bolt to? There isn't anything behind my valence that even looks remotely close to bolt hole that line up with the clips on the lights.


Thanks for the help!
Reply With Quote
  #6
Old 03-29-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
you need an XLT valence with fog light openings.
Reply With Quote
  #7
Old 03-29-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15
My valance has the openings for the square ones, I just do t see anything o the backside to mount the lights too. I'll try and snap a pic this evening of what I've got
Reply With Quote
  #8
Old 03-29-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by ixer View Post
My valance has the openings for the square ones, I just do t see anything o the backside to mount the lights too. I'll try and snap a pic this evening of what I've got

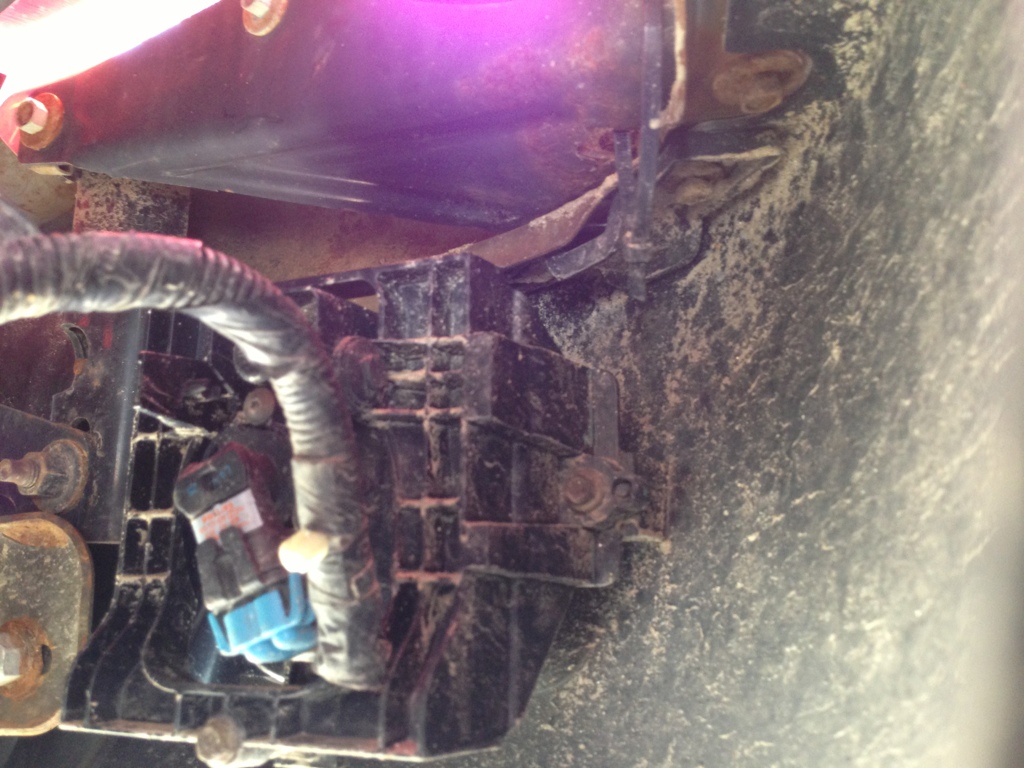

so they're cutout? If they're not cut out and have actual holes for the fog lights, it wont have mounts for them. yes our roads up here in MA are still covered in salt lol
Attached Thumbnails
2006 XL Fog Light mounts?-2606f212-c3eb-426e-aa9a-68760991ae6e-14139-000004a62cd6277b_zps3ef51a29.jpg

Last edited by 99offroadrngr; 03-29-2013 at 11:09 AM.
Reply With Quote
  #9
Old 03-29-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15
Yes they are cutout and have the 'block off plate' snapped in.
Reply With Quote
  #10
Old 03-29-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15
Is that a pic of the xlt lights? Mine has the square cut out...
Reply With Quote
  #11
Old 03-29-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
yeah they're square
Reply With Quote
  #12
Old 03-29-2013
Member
Thread Starter

Join Date: Mar 2013
Location: Jeffersonville, In
Posts: 15

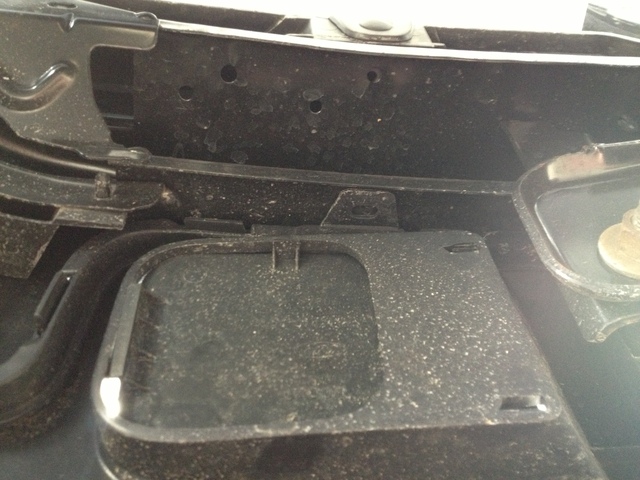

Here's the back side of the fog light hole in my XL bumper

Attached Thumbnails
2006 XL Fog Light mounts?-image1jsx.jpg
Reply With Quote
  #13
Old 03-29-2013
ZWilson07's Avatar
Member
iTrader: (1)

Join Date: Apr 2010
Location: Louisville, Kentucky
Posts: 870
Take the openings out and try and put it up and see.

I know when I took mine out on my 06 xl it had places to bolt it up, so I dont know why yours wouldn't be the same.
Reply With Quote
