b4000 too ranger swap

i bough my b4000 new in 08 because it was 11000 cheaper than a new ranger it was december of 08 and for only had 09s. so i saved my self some money today its paid off in full. now i would like too switch the front end too a ranger. so far i have noticed that the hood, grill, headlighs and fog lights are diffrent. dose any one know what other body parts need too be changed too make my truck more ranger like. also i belive the front right and left fender are the same but im not sure.

if you guys could give me some good websites as too where i can get some ranger body parts what would be great.
Reply With Quote
  #2
Old 01-10-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
the box is different, front bumper is different, fender flares are different, i'm 90% sure the front fenders are different, tail lights are different,

and to top it off, all of those front end parts, chances are they all fit together like pieces of a puzzle, so if the fenders ARE different, the ranger headlights/corners won't fit up next to them...

you are looking at a lot more than 1100 dollars in labour alone, to make your truck into a ranger... so much for your savings from the dealer...
Reply With Quote
  #3
Old 01-10-2010
fraser19's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: calgary alberta
Posts: 275
i was not planing on changeing anything after the front fenders. i like the box and rear tail lights. i figured it would all bolt up because ford builds the truck/ it is the exact same with a few diffrent body parts. dose any one know for sure if the bolts will match up or not?
Reply With Quote
  #4
Old 01-10-2010
Seb_L's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
Keep the bad and tails, fab up a front bumper, aftermarket heads and grille and it wont look like a mazda lol
Reply With Quote
  #5
Old 01-10-2010
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
It will bolt up.

You need:

Header Panel
Grill
Lights
Bumper
Valance
Fenders
Hood

It'll all be a direct fit.
Reply With Quote
  #6
Old 01-10-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
i stand corrected, i do like the b-series box, it's different, although i think they could have made the body line line up a little better... it completely changes after the cab, but it's in the same place... no transition
Reply With Quote
  #7
Old 01-11-2010
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
It's rather easy and takes maybe 4 hours to do, it all just bolts right back in place. I did it on my old 2001 Mazda B4000. The Ranger bed mounts in the same spot, but on mine I had a 3 bulb tail light and most of the Rangers have a 2 bulb. But the 98-00 Rangers ( I think ) had a 3 bulb which is what I just ended up doing. Also Rangers have a 2 bulbs in the headlight and 1 for the corner light, so you'll have to buy another connector for the turning signal in the headlight and splice it into your existing turning signal bulb.

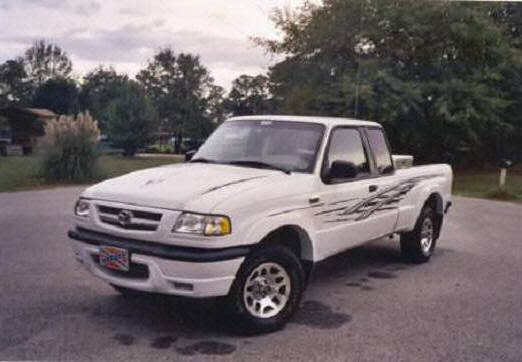

My old '01 B4000

Name:  4.jpg
Views: 259
Size:  25.5 KB

Transformation

Name:  14.jpg
Views: 244
Size:  67.6 KB

Name:  14.jpg
Views: 244
Size:  67.6 KB

Name:  17.jpg
Views: 317
Size:  50.3 KB

Name:  23.jpg
Views: 254
Size:  37.9 KB

Then right before I got rid of it... :((

Name:  DSC01080.jpg
Views: 380
Size:  134.6 KB

Brenton
Attached Images
File Type: jpg 14.jpg (67.6 KB, 20 views)
Reply With Quote
  #8
Old 01-11-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
he is alive!!!!

go for it..it will be worth it..
Reply With Quote
  #9
Old 01-11-2010
jlstang351's Avatar
Member

Join Date: May 2009
Location: Covington,GA
Posts: 578
Wont do you any good but there a complete front end off a 02 EDGE on craigslist for $400. Its even black :) Oh and it comes with a powerdome hood as well. Helluva deal fro someone like you, too bad your so far away.
Reply With Quote
  #10
Old 01-11-2010
fraser19's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: calgary alberta
Posts: 275
Quote:
Originally Posted by jlstang351 View Post
Wont do you any good but there a complete front end off a 02 EDGE on craigslist for $400. Its even black :) Oh and it comes with a powerdome hood as well. Helluva deal fro someone like you, too bad your so far away.
i consider my self 1000 miles from anything useful at all times

edge wanabe
what year is that front end its damn sexy basicly what i was wanting except i probably wont change the bed unless it looks real ****ed up.
also would this cause problems when getting pulled over by the police as it wont match my regestation very well?
Reply With Quote
  #11
Old 01-11-2010
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306

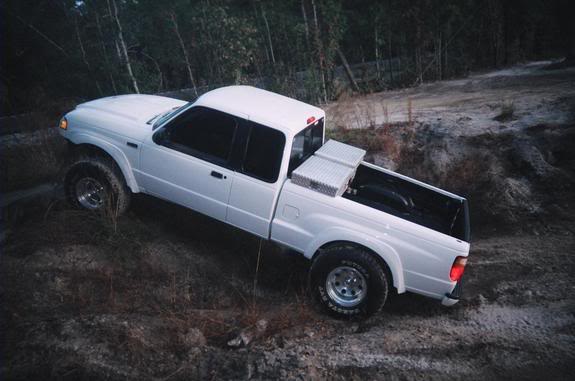

It's the 01-03 front clip. I pieced it all together, but the front fenders are fiberglass fenders, factory Ranger fenders will look better than what was on my truck right when I did the conversion.

But the Mazda front end still looks good!

Name:  6.jpg
Views: 706
Size:  34.1 KB

Name:  10.jpg
Views: 249
Size:  41.9 KB

Name:  5.jpg
Views: 264
Size:  90.1 KB

Name:  7.jpg
Views: 273
Size:  32.2 KB

Name:  11.jpg
Views: 321
Size:  68.7 KB

Brenton
Reply With Quote
  #12
Old 01-11-2010
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
Quote:
Originally Posted by jlstang351 View Post
Wont do you any good but there a complete front end off a 02 EDGE on craigslist for $400. Its even black :) Oh and it comes with a powerdome hood as well. Helluva deal fro someone like you, too bad your so far away.
You have a link? Theres the same thing for sale here near Philly....I'm thinking about it.
Reply With Quote
  #13
Old 01-11-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
as for your registration, just tell them they are after market parts, and if they don't believe you, that the vin is right infront of you, just be polite about it, it will be fine...

most cops don't know the difference between different models of vehicles, and those that do, know the different vehicles that use the same platforms
Reply With Quote
  #14
Old 01-12-2010
jlstang351's Avatar
Member

Join Date: May 2009
Location: Covington,GA
Posts: 578
Quote:
Originally Posted by 99MazdaB4000 View Post
You have a link? Theres the same thing for sale here near Philly....I'm thinking about it.
2002 Ford Ranger Hood Fenders Bumper Grille

I tried getting the hood but he will not split
Reply With Quote
