Black Corners

I got my clear corners a few weeks ago and I was wishing that they where black to match my head lights. So I decided to paint them.

At first I was pretty worried to be putting my new corners in the oven but I decided the results would be worth it. I put my old ones in first and they came out great. So I primered and painted them before I stuck my new ones in the oven.

Overall the job wasnt to hard. The oven temp really differs from oven to oven. I had mine at 225 for 40 minutes. Finally I just had to pry them apart.

On to the pics.

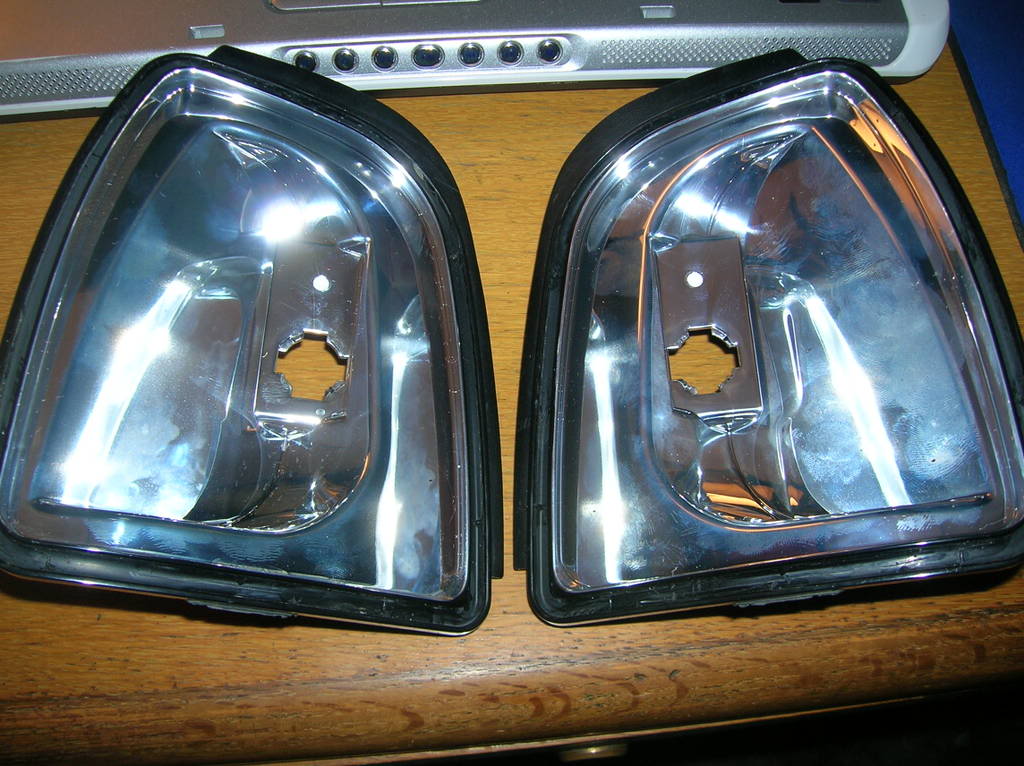

Here are my stock corners waitng to be preped.

Name:  DSCN3386.jpg
Views: 1
Size:  133.4 KB

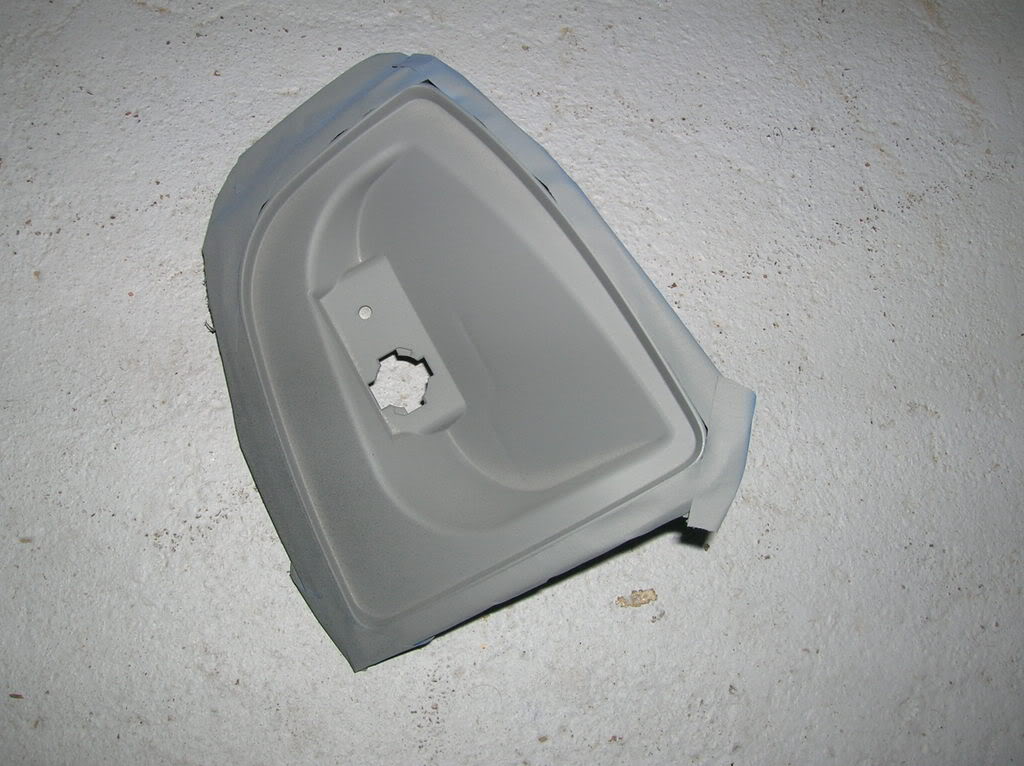

I did two coats of primer on them. I am sure one would have worked fine but I missed a few spots the first time around.

Name:  DSCN3391.jpg
Views: 1
Size:  104.7 KB

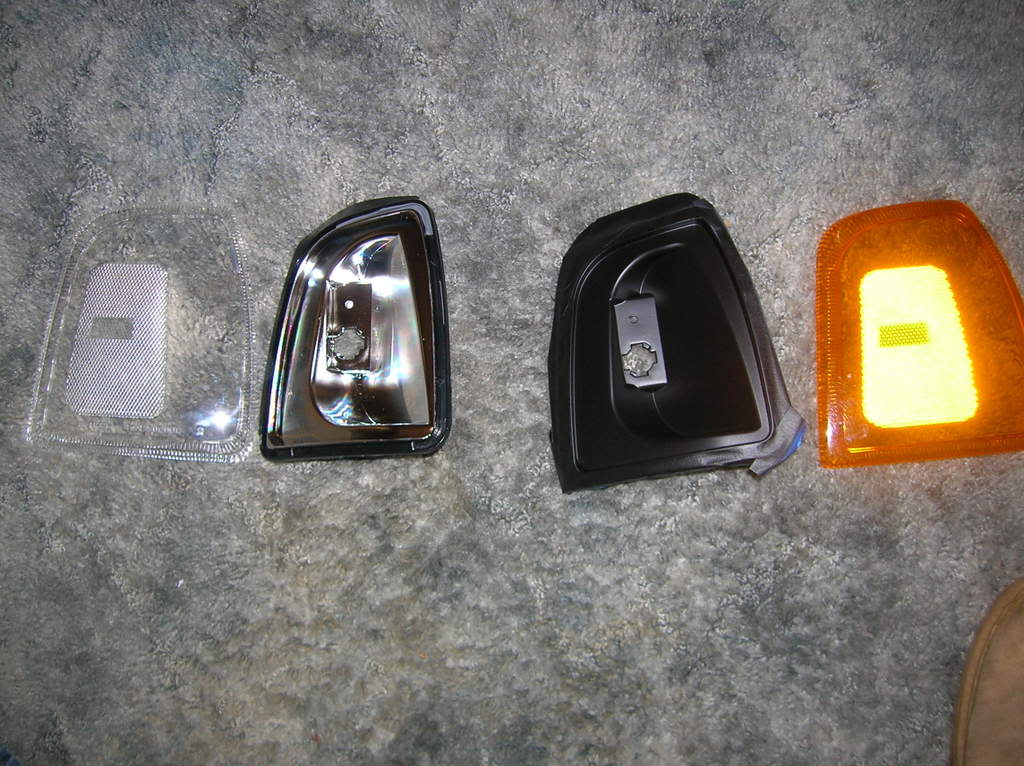

This kinda gives you an idea of what things look like. The black one is taped and painted. The taping was REALLY easy on these guys. I did three coats of paint just to make sure it was a good thick coat.

Name:  DSCN3392.jpg
Views: 2
Size:  127.8 KB

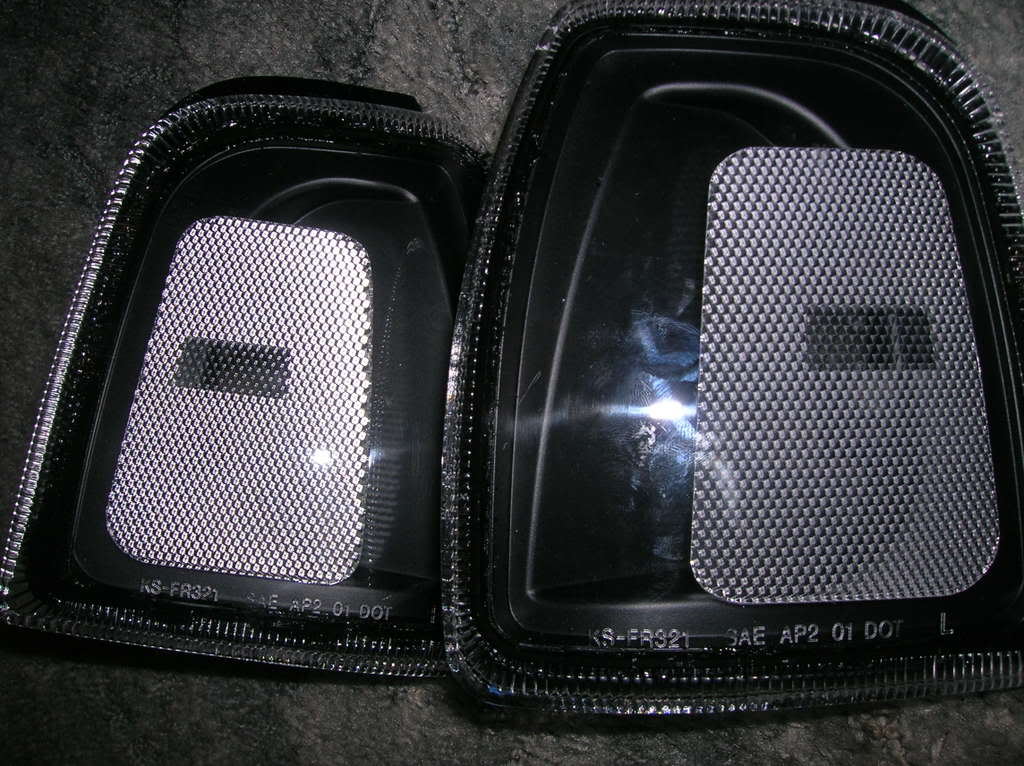

Here are them put together. I like the results. The only thing I had a hard time with was the silicone but that was because the tubes back end exlpoded on me and I had to do it with my figer.

Name:  DSCN3397.jpg
Views: 2
Size:  131.4 KB

Here they are on my truck. They look alot better then the CLEAR corners.

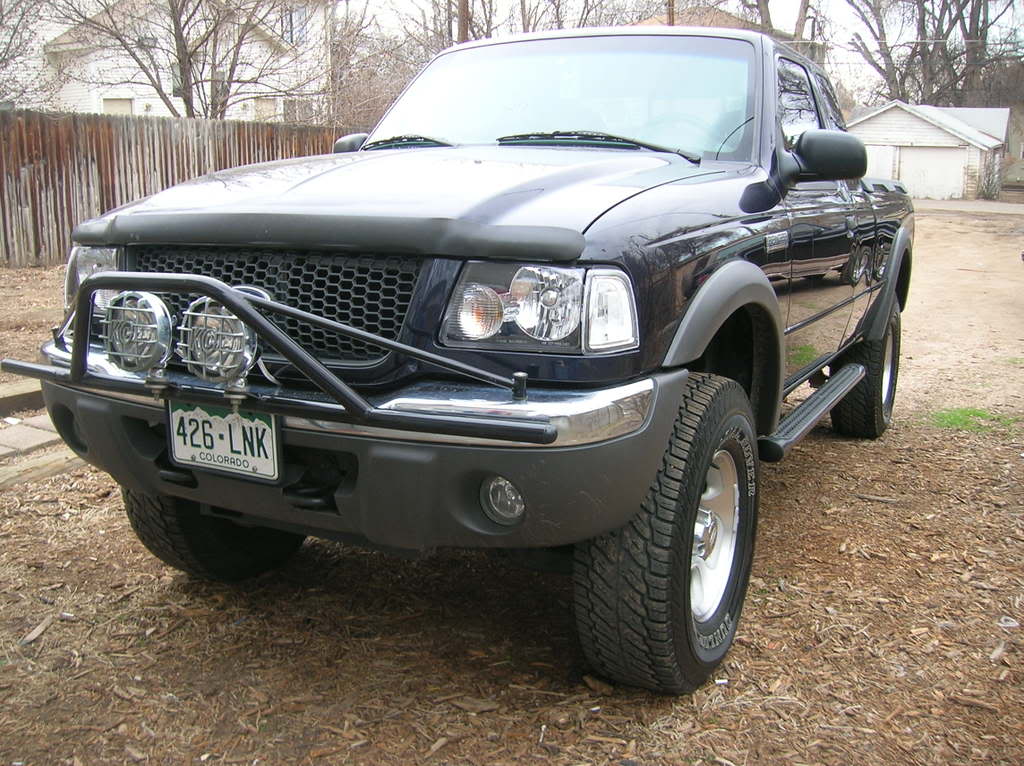

Before:

Name:  DSCN3380.jpg
Views: 2
Size:  139.9 KB

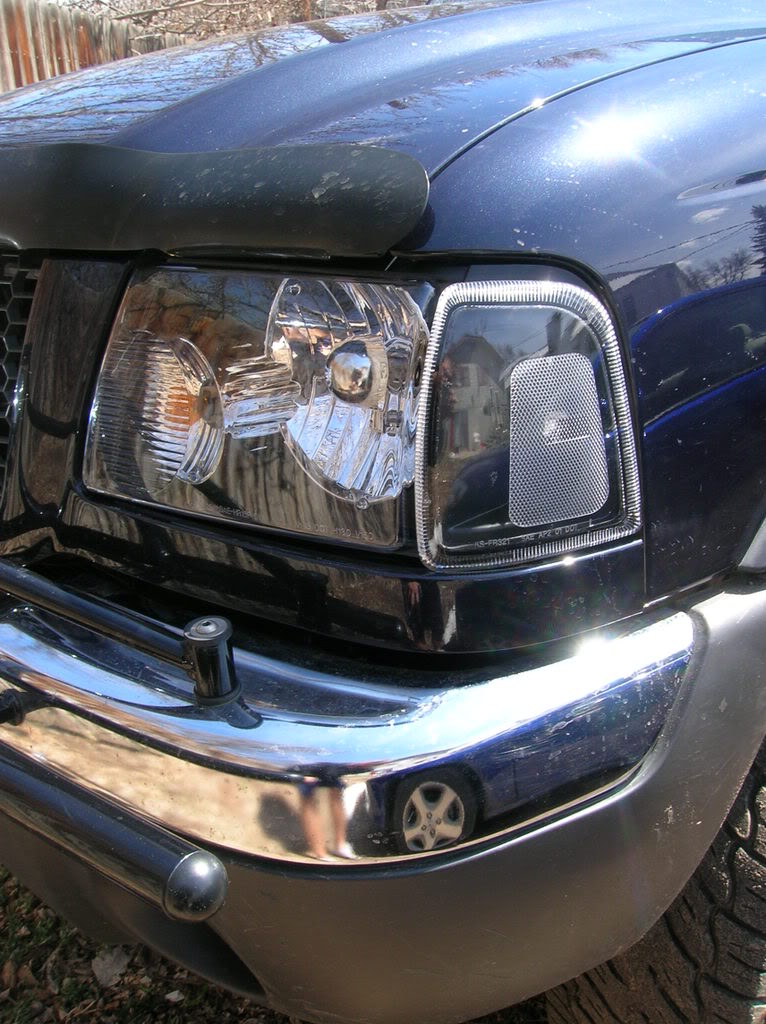

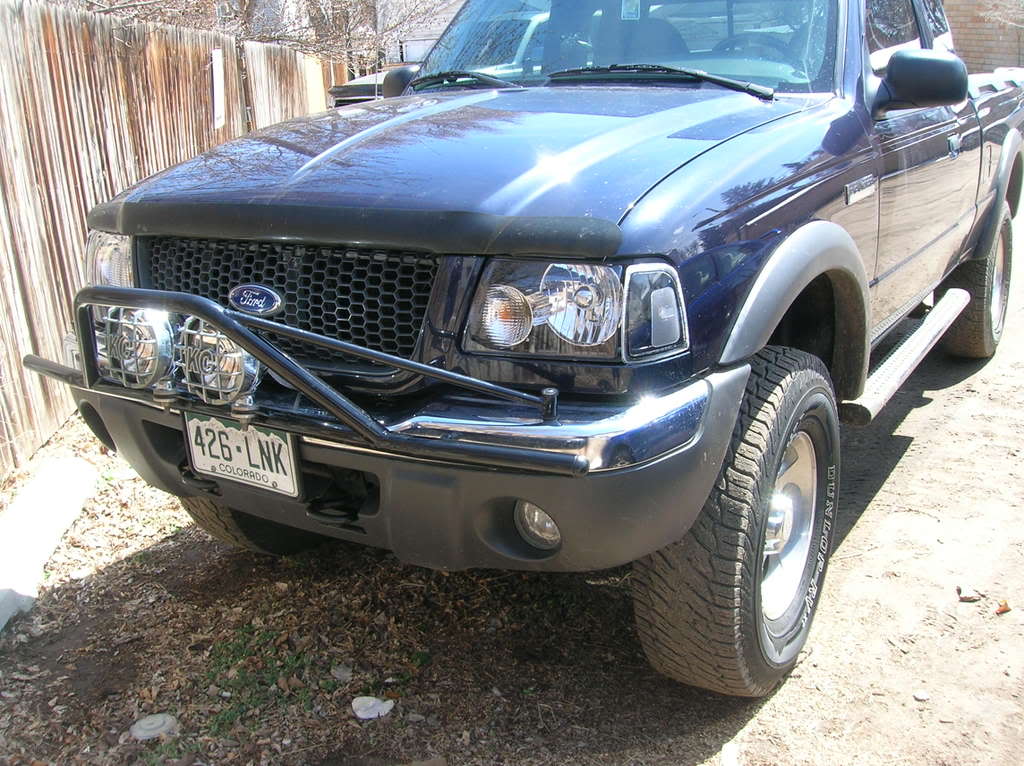

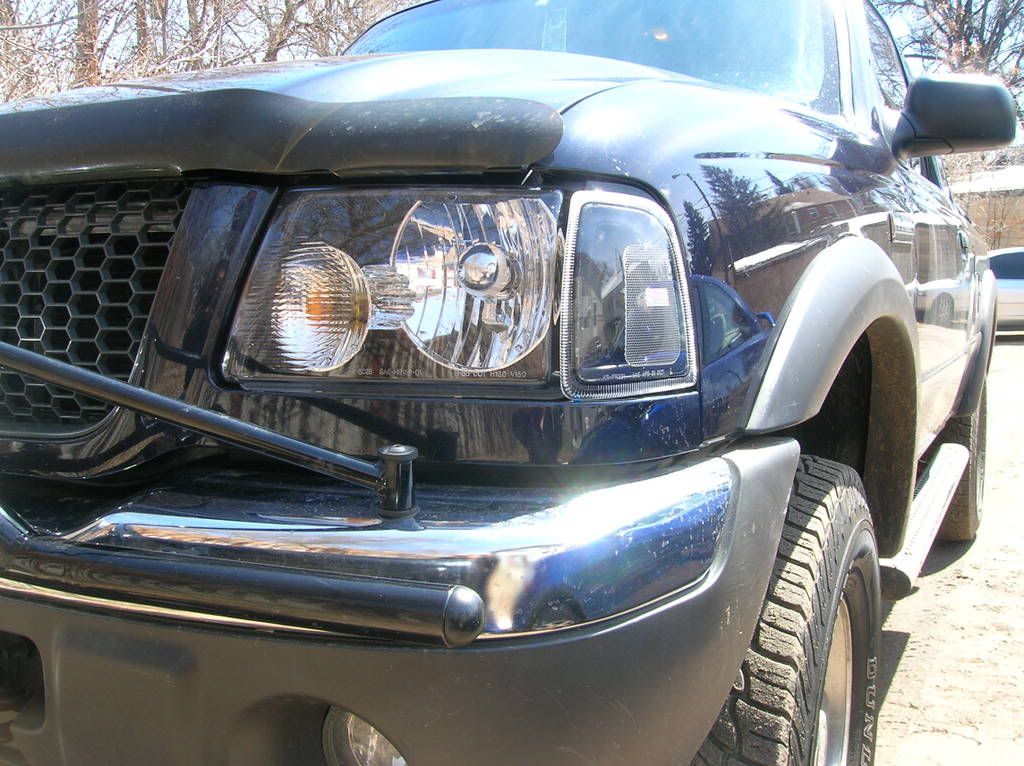

After:

Name:  DSCN3400.jpg
Views: 2
Size:  134.0 KB
Name:  DSCN3401.jpg
Views: 2
Size:  149.9 KB
Name:  DSCN3399.jpg
Views: 2
Size:  136.8 KB
Reply With Quote
  #2
Old 04-18-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Sweet man. I'll be doing this afternoon when my 06 corners get in. Can't wait!
Reply With Quote
  #3
Old 04-18-2008
RCL816's Avatar
Member

Join Date: Jan 2008
Location: Platte City, Missouri
Posts: 176
looks good....matches a lot better than the clears
Reply With Quote
  #4
Old 04-18-2008
Fx4BlackRanger's Avatar
Member

Join Date: Feb 2008
Location: Malibu, California
Posts: 495
looks cool, for some reason i like the clears better though.
Reply With Quote
  #5
Old 04-19-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
NICE! I still really need to do this to my old set of clears, or my 06+ corners. I want to have the "reflector" stay chrome. Basicially do exactly what Bob aka Rwenzing did to his 06+ corners. Can't stand my all black corners.
Reply With Quote
  #6
Old 04-19-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Looks great! I need to do this!
Reply With Quote
  #7
Old 04-19-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Fx4wannabe01 View Post
NICE! I still really need to do this to my old set of clears, or my 06+ corners. I want to have the "reflector" stay chrome. Basicially do exactly what Bob aka Rwenzing did to his 06+ corners. Can't stand my all black corners.
Thats what I'm going to be doinggggg nice weekend! And Bob didn't leave the reflector chrome.
Reply With Quote
  #8
Old 04-19-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 04blackedge View Post
And Bob didn't leave the reflector chrome.
Ahem..........excuse me?.....

DANGIT!! I was wrong. lol. I even looked it up. Who is the guy with the niteshaded amber reflector w/ black painted inside/chrome inside reflector?? I know it's a white edge, also with modded headlamps. I seemed to not save the pics!
Reply With Quote
  #9
Old 04-19-2008
Member
iTrader: (2)

Join Date: Aug 2004
Location: Grayson, Kentucky
Posts: 617
Very nice...Kudos to you for such an awesome job!
Reply With Quote
  #10
Old 04-19-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Quote:
Originally Posted by 04blackedge View Post
Bob didn't leave the reflector chrome.
I originally wanted to leave the reflectors chrome and black out the rest like the headlight mod. As you can see in the photo below, the reflector is larger top to bottom than the amber part. I wasn't sure if it would look OK that way or not so I just blacked out the whole reflector. It still works OK at night.

Stock 2006~2008


Painted Reflector and lens rim:






Reply With Quote
  #11
Old 04-19-2008
ManEHawke's Avatar
Member

Join Date: Dec 2007
Location: Riverside, CA
Posts: 327
Bob, the lens rim. Is that painted inside or outside?
I ask because the little fins it appears to usually have are not visible on yours.
Reply With Quote
  #12
Old 04-19-2008
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,834
Quote:
Originally Posted by ManEHawke View Post
Bob, the lens rim. Is that painted inside or outside?
I ask because the little fins it appears to usually have are not visible on yours.
It is painted on the inside and the ridges are also on the inside. The black paint makes the ridges much less apparent, eliminating the whitish halo effect around the perimeter of the corner.
Reply With Quote
  #13
Old 04-19-2008
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
the black corners look great
Reply With Quote
  #14
Old 04-20-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

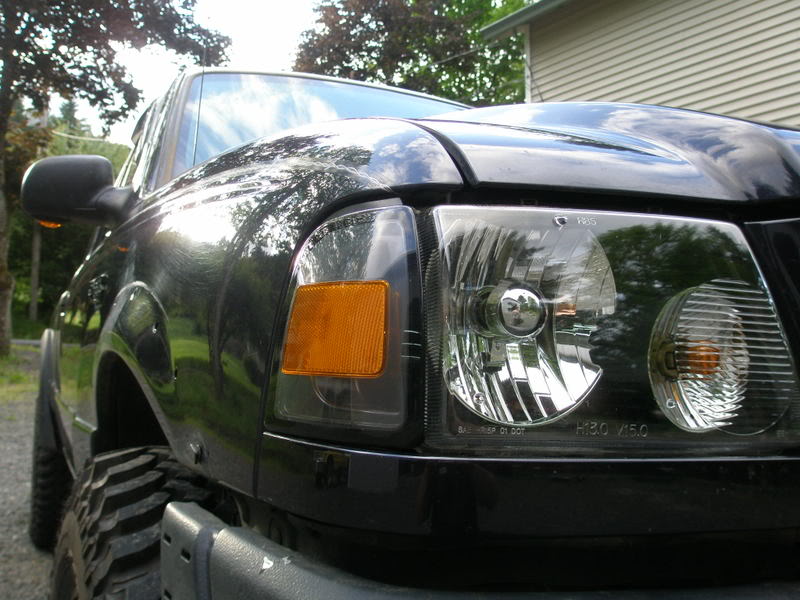

Here's my blackout headlites and 06 corners that I bought from an old member. I don't know if he modded the corners, or if he found them like that.....but it's basically just like Bob's....

Name:  P5270032a.jpg
Views: 1
Size:  91.6 KB
Reply With Quote
  #15
Old 04-20-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ah I can't wait until I can do mine, its gonna look awesome
Reply With Quote
  #16
Old 04-22-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
That looks so much better! Good Job!
Reply With Quote
