  #26
Old 09-29-2012
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648

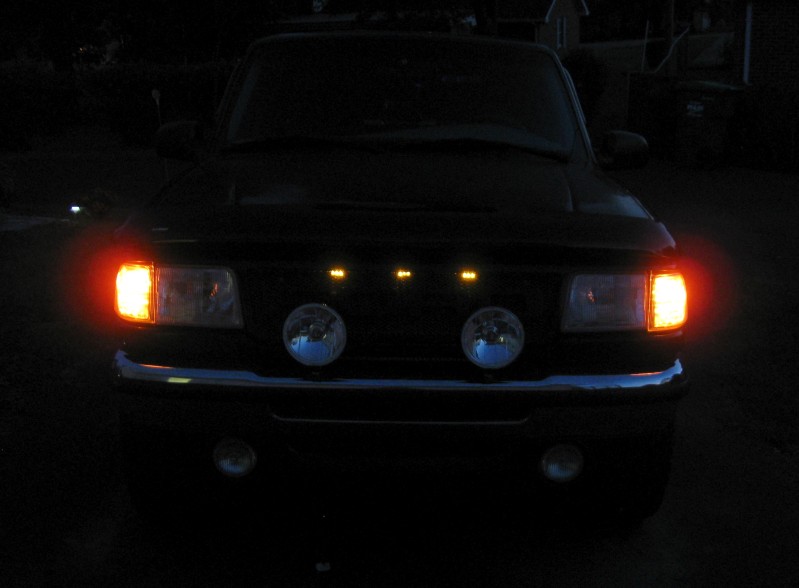

LED's finally installed & lit up!!

The color is off in the pics, but in person they're almost identical to my turn signals


Attached Thumbnails
buggman's Raptor Ranger Grille Project-img_2724.jpg
Reply With Quote
  #27
Old 09-30-2012
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648

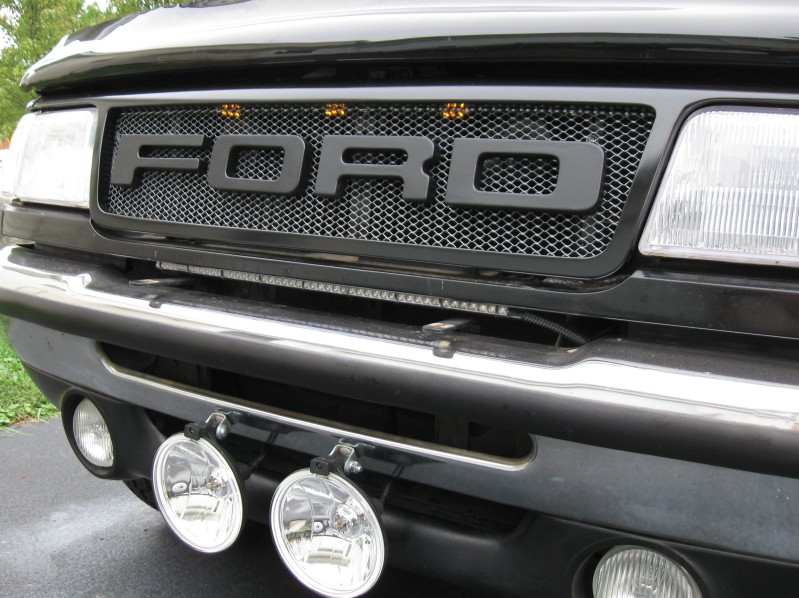

MORe pICS!!

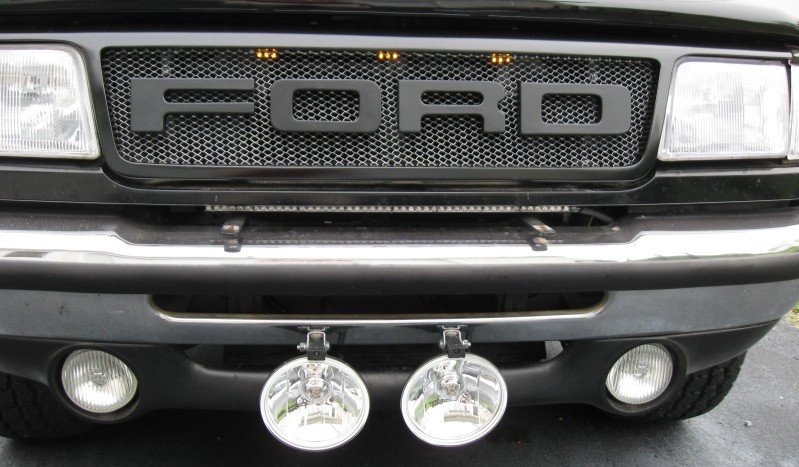

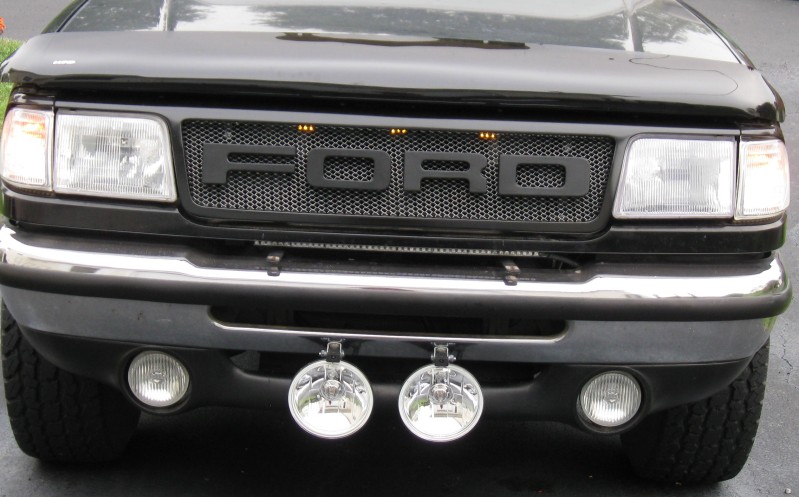

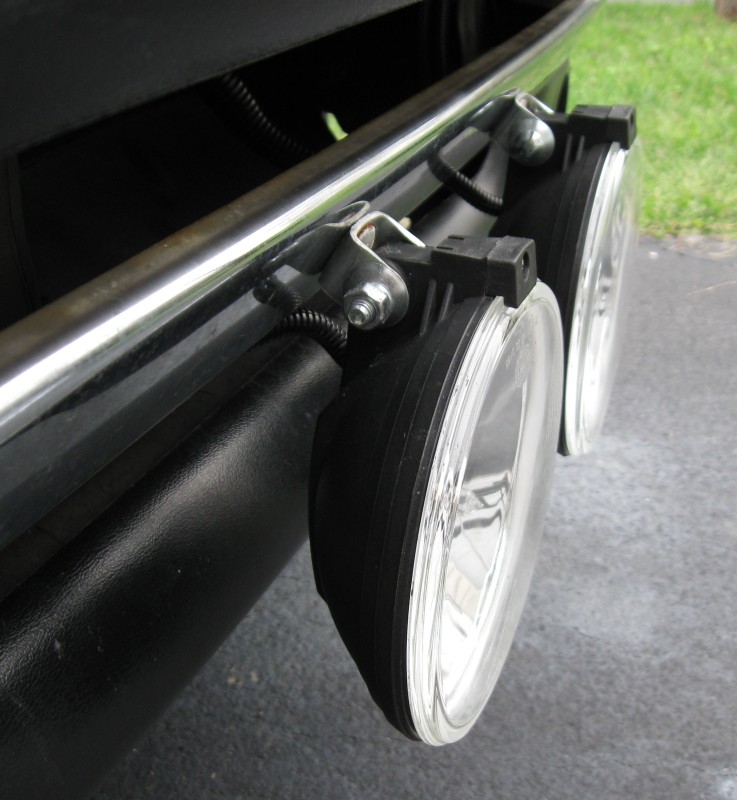

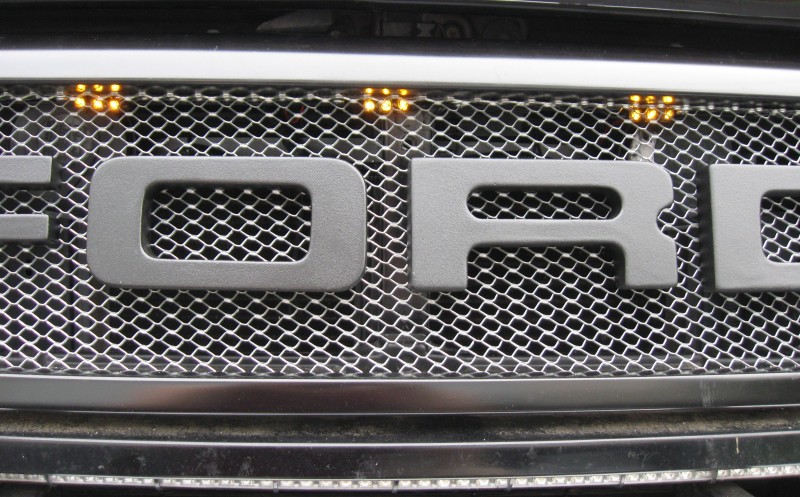

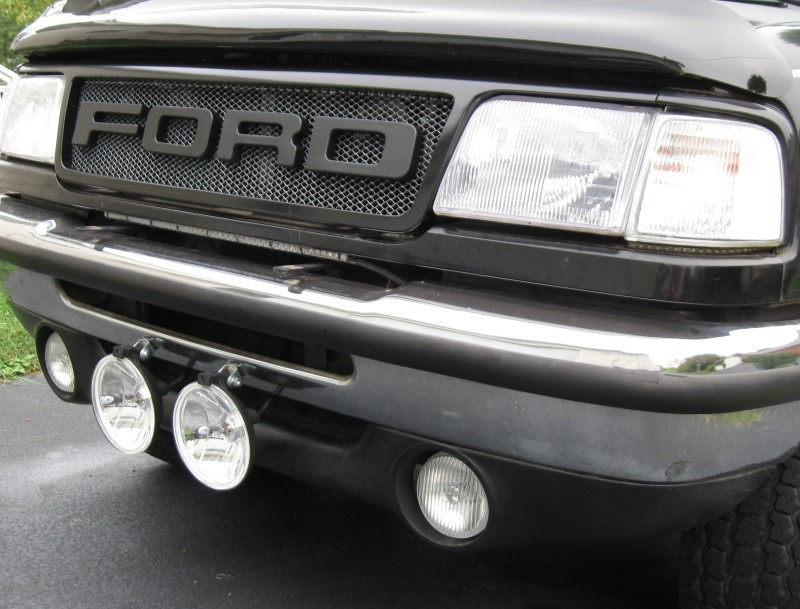

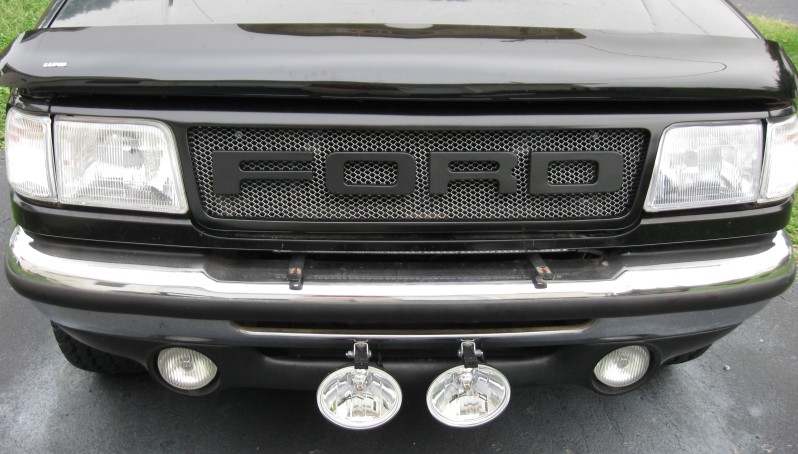

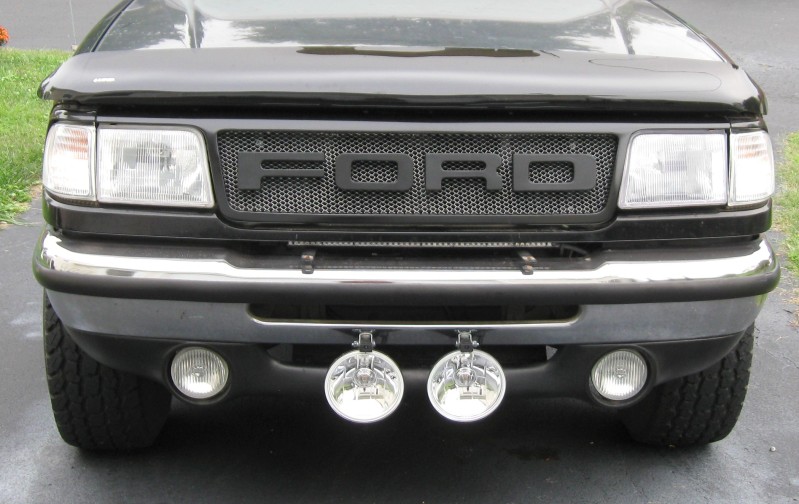

Had a nice day today & moved my Hella's down onto the bumper. Not sure how I'm going to like them, but at least my grille is more visible.















Attached Thumbnails
buggman's Raptor Ranger Grille Project-img_2738.jpg   buggman's Raptor Ranger Grille Project-img_2737.jpg   buggman's Raptor Ranger Grille Project-img_2733.jpg   buggman's Raptor Ranger Grille Project-img_2731.jpg   buggman's Raptor Ranger Grille Project-img_2732.jpg

buggman's Raptor Ranger Grille Project-img_2734.jpg   buggman's Raptor Ranger Grille Project-img_2735.jpg   buggman's Raptor Ranger Grille Project-img_2743.jpg
Reply With Quote
  #28
Old 10-01-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
That's pretty clean looking terry! I'll get you those measurements today!
Reply With Quote
  #30
Old 10-02-2012
Member

Join Date: Aug 2012
Location: Houston TX
Posts: 24
that 1 piece thing is fugly...........
Reply With Quote
  #31
Old 10-02-2012
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by fenderpicks View Post
that 1 piece thing is fugly...........

Not to mention the $900+ price tag

If anyone wants to give me $600 for mine, it is for sale!! That's a $300 savings, what a bargain!~!~!

Free Shipping in the USA too!

I'll even throw in my marker LED's.
Reply With Quote
  #32
Old 10-02-2012
zack93ranger's Avatar
Member

Join Date: Mar 2011
Location: covington
Posts: 5
Quote:
Originally Posted by fenderpicks View Post
that 1 piece thing is fugly...........
i think it looks better then just ford in the grill but thats just me and i would pay an extra $300 for it cause you get a hole front en new hood fenders and a grill and you get to use raptor head lights

Last edited by zack93ranger; 10-02-2012 at 05:04 PM.
Reply With Quote
  #33
Old 10-02-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322

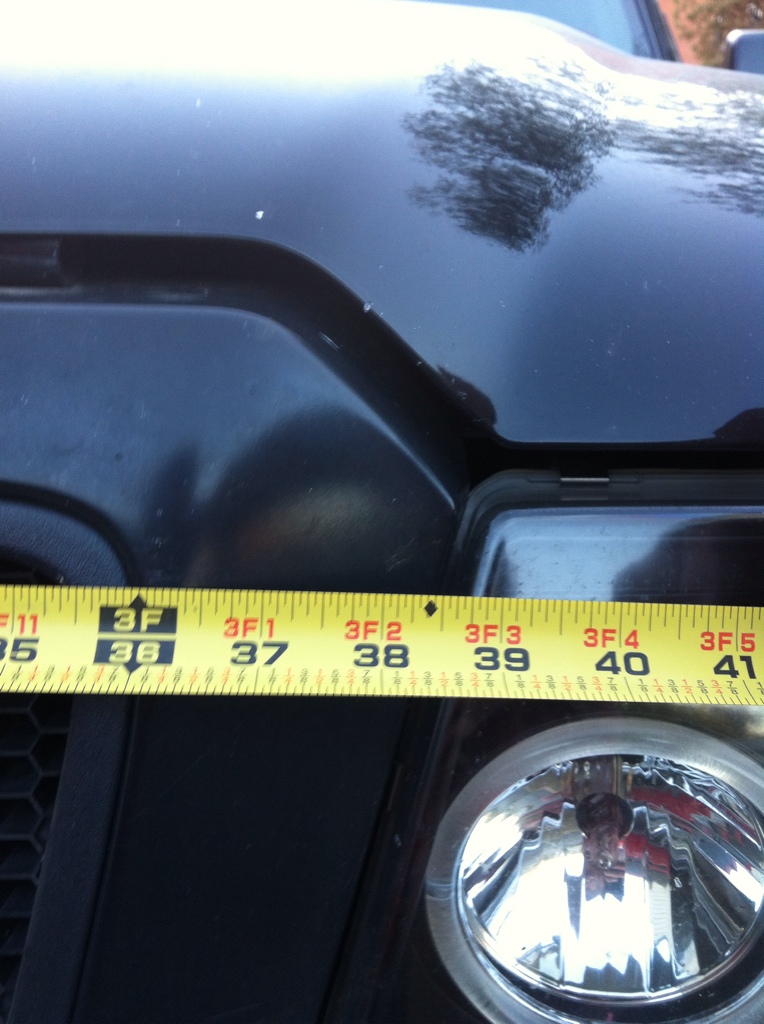

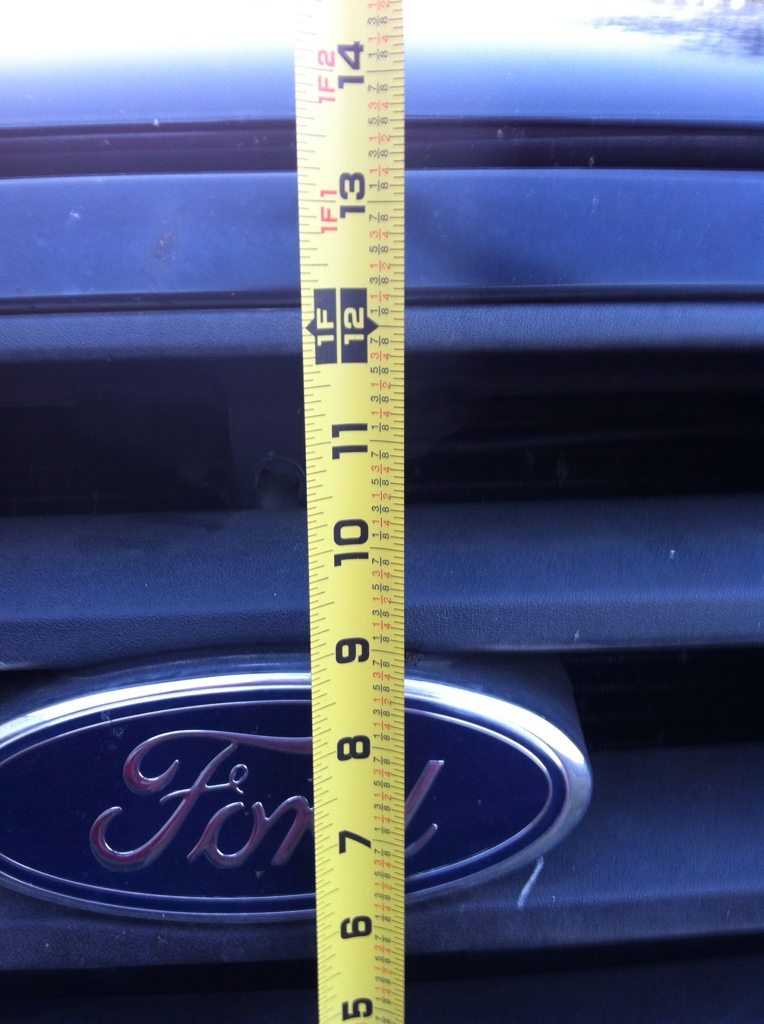

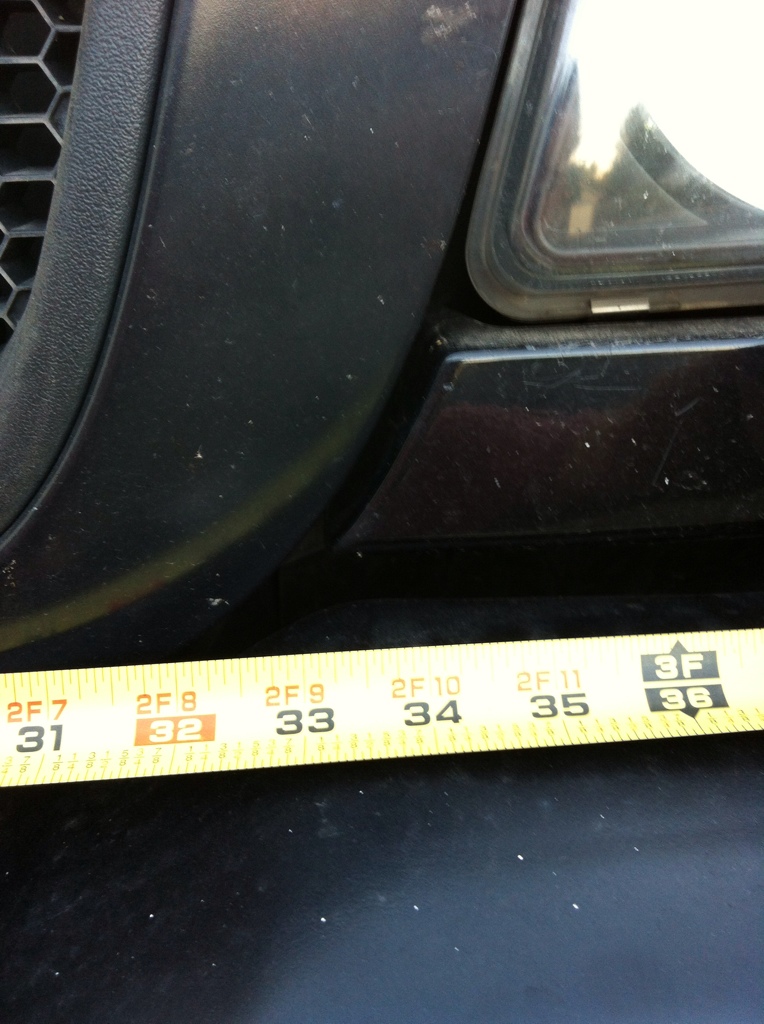

Here's those measurements of the 04+ grills.


Attached Thumbnails
buggman's Raptor Ranger Grille Project-56977da3-d985-443b-a95d-a8f6d6f4a3d8-15907-00000fa9efecef66.jpg   buggman's Raptor Ranger Grille Project-a4aa979f-cfaa-4b5c-a051-ad3cc1b08b30-15907-00000fa9f77885a5.jpg   buggman's Raptor Ranger Grille Project-8361fdd3-d63a-4537-a3dc-10a940a883ae-15907-00000fa9f4833a9e.jpg
Reply With Quote
  #34
Old 12-07-2012
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by fibermike View Post
Scrambler. I think you missed the point. I was just commending Buggman on all his hard work and bringing attention to the fact that tooling is a lot of work. And im not trying to get anything from anybody.

$70 an hour is cheap in So Cal.
Ya, I did, shoot from the hip, ask questions later, sorry.


Quote:
Originally Posted by buggman View Post
LED's finally installed & lit up!!

The color is off in the pics, but in person they're almost identical to my turn signals

Buggman, pictures of the LEDs.
Are these lights similar to the OEM Raptor but smaller ?
I looked no line for the Raptor Lights but no luck.
How much for the set of three ?
Reply With Quote
  #35
Old 05-17-2013
Jake9488's Avatar
Member

Join Date: Jan 2012
Location: California
Posts: 116
Icon5

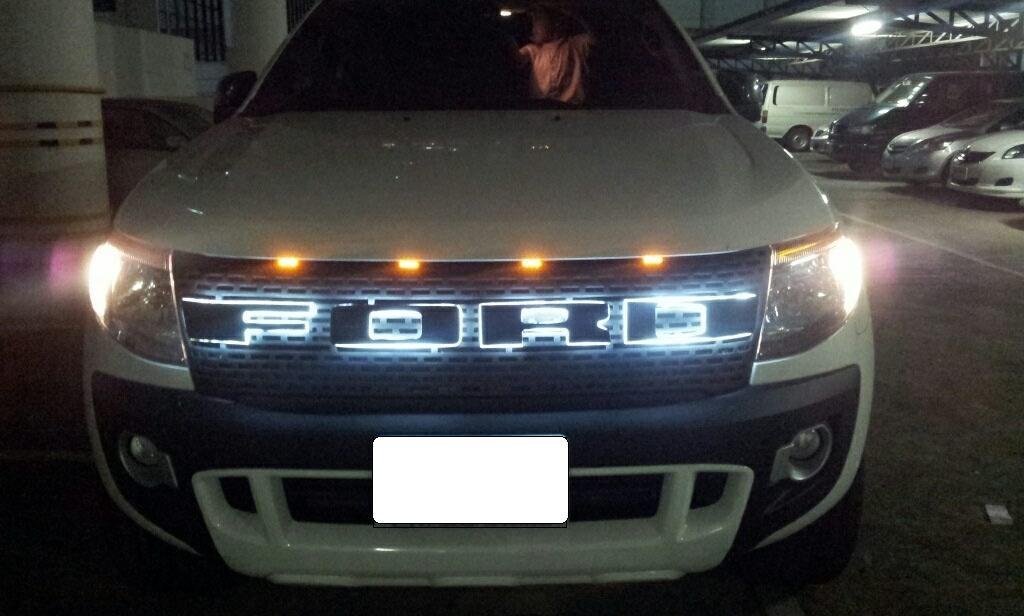

Hey Buggman, Sorry for bumping the ol' thread but I absolutely love your truck. Since you are the lord of the LED mods I was curious if you have seen something like this, It is a new global ranger in Thailand retrofitted with a Raptor grille mod like yours that i found on facebook. Would you consider doing something like this?
I just wanted your opinion, I love it.

Attached Thumbnails
buggman's Raptor Ranger Grille Project-664630_264377783682616_436630800_o.jpg
Reply With Quote
  #36
Old 05-19-2013
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I like the concept.
Been thinking about something similar for a while now, just haven't had time to develop any prototypes yet.
Stay tuned....
Reply With Quote
  #37
Old 05-29-2013
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Cool mod Buggman. I always enjoy seeing what you come up with next.
Reply With Quote
  #38
Old 05-29-2013
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773


You need two more lights under the headlights or in the bumper... Lol, more LEDs !
Reply With Quote
  #39
Old 05-30-2013
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
HA!

I actually have some yellow led strips under the headlights that are connected to the turn signals
Reply With Quote
  #40
Old 02-22-2014
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Quote:
Originally Posted by fibermike View Post
Scrambler. I think you missed the point. I was just commending Buggman on all his hard work and bringing attention to the fact that tooling is a lot of work. And im not trying to get anything from anybody.

$70 an hour is cheap in So Cal.
No matter where you are 70 an hour is a lot of money to make in my opinion... thats 140k a year at 40hrs .. I wouldnt be driving a ranger if i made that much ! haha
Reply With Quote
  #41
Old 02-22-2014
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
Quote:
Originally Posted by Jake9488 View Post
Hey Buggman, Sorry for bumping the ol' thread but I absolutely love your truck. Since you are the lord of the LED mods I was curious if you have seen something like this, It is a new global ranger in Thailand retrofitted with a Raptor grille mod like yours that i found on facebook. Would you consider doing something like this?
I just wanted your opinion, I love it.


I Like this i would buy one
Reply With Quote
  #42
Old 02-22-2014
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Raptor Fiberglass

scroll half way down they make a grille for 04+ now....

Reply With Quote
  #43
Old 04-26-2014
Member

Join Date: Apr 2013
Location: Bettendorf, IA
Posts: 4
@buggman - Love that grille mod! Have wanted to do that to my 2003 for a while now. Did you ever get the process refined and set up for other years? Even if I didn't do the whole change, can you tell me what you used for the amder LEDs in the top of the grille? Thanks again for sharing this here, it really looks good!
Reply With Quote
  #44
Old 04-26-2014
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
$300 for grill?!?!? Holy dog ****
Reply With Quote
  #45
Old 04-27-2014
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by k_teven View Post
@buggman - Love that grille mod! Have wanted to do that to my 2003 for a while now. Did you ever get the process refined and set up for other years? Even if I didn't do the whole change, can you tell me what you used for the amder LEDs in the top of the grille? Thanks again for sharing this here, it really looks good!

I do have templates for the letters, I've done a couple sets out of 1/4" thick material. Seems to work pretty well too. They're light enough that good foam mounting tape will hold them to the mesh, honeycomb or most other grilles.

They come clear but you can paint them pretty much any color you want using krylon fusion or any good plastic specific paint for best adhesion.
They're pretty forgiving for use with other years too, you can vary the spacing between the letters to best fit your grille.

The led's are some led strips I modded & wired together that come on with the parking lights. I should still have some of those yellow/amber led strips I could mod too.
Reply With Quote
  #46
Old 04-27-2014
Member

Join Date: Apr 2013
Location: Bettendorf, IA
Posts: 4
Are the letter templates something that you can scan and send? What kind of 1/4" material are we talking here? Plastic? I wonder how they would look in red to match the color of the truck?

Can you post a couple photos of the LED strips and how you modded them as well? Thanks.
Reply With Quote
  #47
Old 04-28-2014
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I don't have any digital format for the templates, they're patterns I designed so I really don't want to let them go.

I use polycarbonate (lexan) material, not the inexpensive plexiglass that will break... these are darn near bullet proof.

Here's a LINK to more of my raptor pics/videos

You could paint them any color you like... if you don't like it, it's easy enough to spray another color anytime in the future.
Reply With Quote
  #48
Old 04-28-2014
ianyboy's Avatar
Member

Join Date: Mar 2013
Location: Quebec City, QC, Canada
Posts: 302
Quote:
Originally Posted by Casper98 View Post
Raptor Fiberglass

scroll half way down they make a grille for 04+ now....

I find them stupid that they Ranger grill, and the f-250 grill (which is 2 times bigger) are set at the same price :O
Reply With Quote
  #49
Old 05-09-2014
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
ooooo I like that.
Reply With Quote
  #50
Old 09-26-2014
lane29's Avatar
Member

Join Date: Sep 2014
Location: talladegga alabama
Posts: 16
you could make masters from wood build a diy vacume former and then use the vacume mold to cast the letters.

Kitchen Floor Vacuum Former | MAKE
