cb antenna placement

ok i got a 93 ext cab i need some ideas/pics of where to mount my CB antenna
This is the antenna im ordering
Amazon.com: BROWNING BR-28 High-Performance Broad Band 63- Inch CB Antenna: Electronics
Reply With Quote
  #2
Old 11-22-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Toolbox:
Name:  CopyofPicture644.jpg
Views: 12
Size:  119.7 KB
Name:  CopyofPicture639.jpg
Views: 45
Size:  98.5 KB

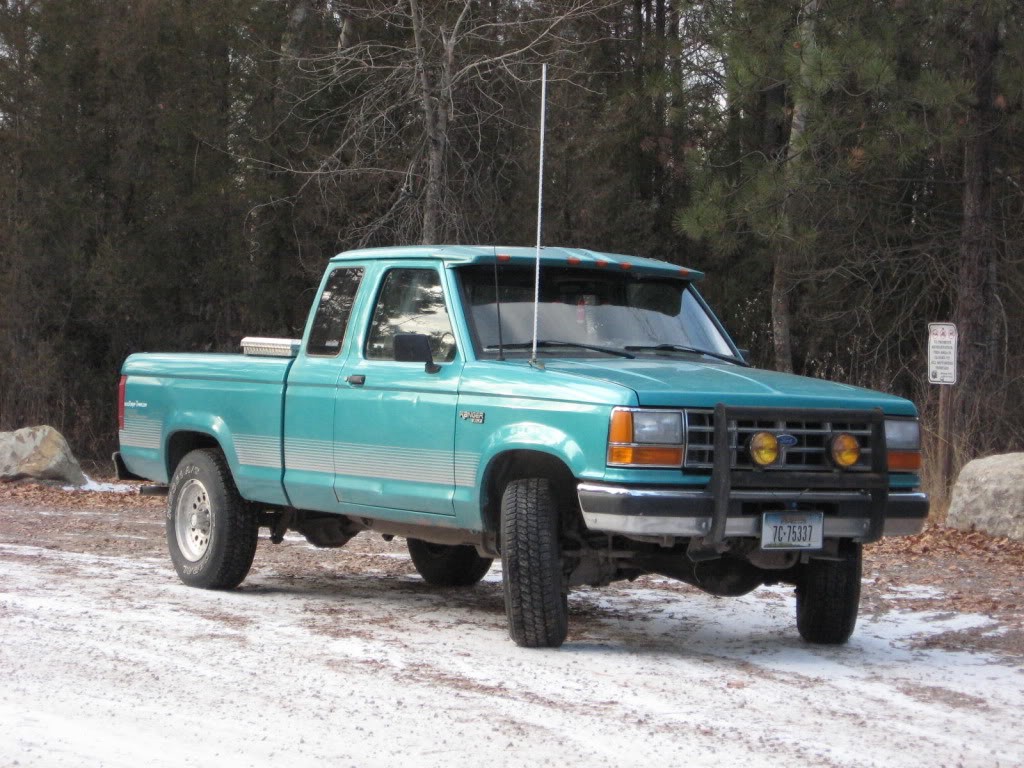

Hood:
Name:  Picture758.jpg
Views: 16
Size:  176.4 KB
Reply With Quote
  #3
Old 11-23-2009
93-danger-ranger's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: valdosta ga
Posts: 127
im thinking toolbox any ideas of how much coax cable i should order
Reply With Quote
  #4
Old 12-02-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Centered on the vehicle is best.
Coax should be as short as possible.
Buy good quality coax, Belden 58U or RG8X.
Make sure the mounted is grounded to the frame.
Get the antenna tuned.

Where is the CB Mounted ?
Reply With Quote
  #5
Old 12-05-2009
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
I found this link, but I'm not sure how grounded this would be....Scrambler, have any thoughts? Sounds like you're pretty versed in the CB world lol.

I'm using one of Alon's mounts for my antenna and it works quite well.

CB ANTENNA MOUNT & CABLE [no antenna] - GREAT FOR CHEVY, DODGE,FORD PICKUP TRUCKS 94 & NEWER.
Reply With Quote
  #6
Old 12-05-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
The mount looks good but I am not a fan of the Fire-Ring Attachment but if it work then who am I to say otherwise.

The mount attaches well but there is no positive connection to ground and if you have been reading the latest posts on this site you will have noticed grounding problems were the culprit in all of the electrical problems.

First, what is your SWR, the most important thing when installing an antenna and especially on a CB setup is tuning the antenna.

IMHO… this is what I would do:
Drill a hole in the top part of the mount between the antenna mount and the bed rail mounting parts.
Attach a braided 3/8” strap using a ring lug, an external tooth lock washer and a nut to this location. (Don’t over-tighten)
Run the braided strap from that point to the frame.
Make sure to get to bare metal at all connecting points, used the hardware mentioned above and use some “No-Ox” anti-oxidation paste on and in between the hardware.

Luck,
Reply With Quote
  #7
Old 12-05-2009
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Quote:
Originally Posted by Scrambler82 View Post
First, what is your SWR, the most important thing when installing an antenna and especially on a CB setup is tuning the antenna.
Agreed. SWR and your ground will ruin the whole setup if not properly done.
Reply With Quote
  #8
Old 12-05-2009
93-danger-ranger's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: valdosta ga
Posts: 127
alright thanks guys ill post how i set it up when i get all my stuff together right now my trucks in the shop and problly wont be back untill tomarrow or monday and i am also still waiting on my antenna to arive hopefully the truck will be done tomarrow and the ups truck will make it out to my neck of the woods tonight .;..... I hate havein to pump in sunshine out here
Reply With Quote
  #9
Old 12-05-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
here is where i have mine, it's just a cheap magnetic antenna for now, i'm looking at a new firestick, and will be putting that to the hole that the wire is coming out of, right now...

Name:  IMG_0407.jpg
Views: 47
Size:  92.8 KB
Reply With Quote
