Fitment of Hidden Hitch Front-Mount Receiver

Can anyone verify that the front-mount receiver made by Hidden Hitch fits through the opening in the bumper between the factory tow hooks? The reason I ask is because I saw a post which stated the Hidden Hitch front-mount receiverís now exit under the valance, not between the factory tow hooks.

Thanks for any help!
Reply With Quote
  #2
Old 02-02-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
Thread Starter
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
I found these instructions: http://www.hiddenhitch.com/fitguides/pdf/N65024.pdf

Do you think by the pictures the hitch exits completely under the front bumper or through the bumper opening between the factory tow hooks?
Reply With Quote
  #3
Old 02-02-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i dont see why it wont work
Reply With Quote
  #4
Old 02-02-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

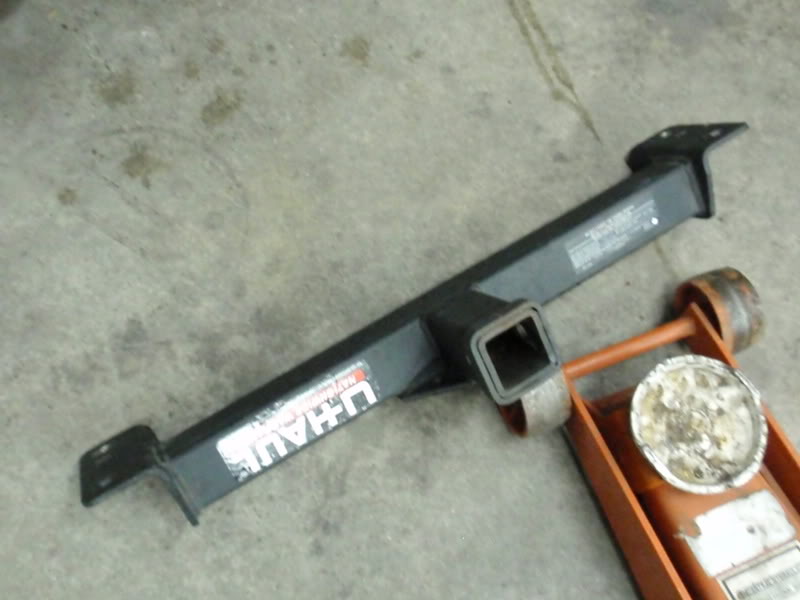

hidden front recievers are now supposedly discontinued. They mount on the underside ofthe frame and peek out through the existing hole in the valence. Here's one before being bolted on:

Name:  PA050138.jpg
Views: 23
Size:  56.3 KB

I can't find pics of it bolted to an unbodylifted truck though. I believe the Reece front hitches have the insert below the bumper.
Reply With Quote
  #5
Old 02-02-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
Thread Starter
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Thanks for the help! By the way, the Hidden Hitch front-mount receiver's are supposedly in stock at JC Whitney.
Reply With Quote
  #6
Old 02-02-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
i think that part number i posted is 5144? i dont remember right now.
Reply With Quote
  #7
Old 02-02-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
All the new ones out there are stupid and hang below the valance. They dont make one that goes between the tow hooks anymore. Any competent welder can make you one for cheap though. Go to a junkyard and ger any hitch reciever, then have a welder cut it off and build one to your specs
Reply With Quote
  #8
Old 02-03-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
can i get one for a 94?
Reply With Quote
  #9
Old 02-03-2009
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by KLC View Post
Thanks for the help! By the way, the Hidden Hitch front-mount receiver's are supposedly in stock at JC Whitney.
I see the "Curt" brand. I dont know if thats the same thing or not.

http://www.jcwhitney.com/CURT-FRONT-...2324_10101.jcw



If this is the right picture im not sure where it would come out at.
Reply With Quote
  #10
Old 02-03-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Blhde View Post
I see the "Curt" brand. I dont know if thats the same thing or not.

http://www.jcwhitney.com/CURT-FRONT-...2324_10101.jcw



If this is the right picture im not sure where it would come out at.
that one would be below the bumper.
Reply With Quote
  #11
Old 02-03-2009
Crunchy's Avatar
Member

Join Date: Oct 2007
Location: Hull, Quebec
Posts: 486
Quote:
Originally Posted by 08XLT4x4 View Post
All the new ones out there are stupid and hang below the valance. They dont make one that goes between the tow hooks anymore. Any competent welder can make you one for cheap though. Go to a junkyard and ger any hitch reciever, then have a welder cut it off and build one to your specs


I looked into this, everything currently in production that you can buy "new" hangs below the valance.

$30 from craigslist = class 3 hitch from a van
$60 for a welder to chop/weld it up to my specs
$10 for a can of rustoleum

=$100 for a front hitch.

And I can call it 100% custom baby! Not store bought!

Spacing between the front frame rails is 26.5 inches, and if you mount it directly between the frame rails, it will poke out your valance hole. If you have a 3" body lift, you mount it ontop your frame rails.

I measured mine so it will still fit if/when I body lift, so I just relocate to the top of the frame.
Reply With Quote
  #12
Old 02-03-2009
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Heres the build thread for mine.
https://www.ranger-forums.com/forum2...ad.php?t=75066

It came off of a Jeep, I cut it down, changed the brackets and flipped them and then had Andy (Interc3ptor) weld it up. Total cost $25 for the hitch, $10 for paint, and $10 for hardware.

I need to update that thread. I still havnt mounted it becasue its too fricken cold to work on the truck right now.
Reply With Quote
  #13
Old 02-03-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
My hitch total cost was $50 for the hidden front hitch, $10 for welding(when mine ran out of gas), and $5 for Blitz Black = $75
