which fog lights should i get?

im going to be putting some fogs on my truck and i dont really know what fogs would be on the cheap side but also good. i was on someones cardomain and they used pro comp explorer 55 lights. i like those but are those really even fogs? i need some thing that will fit in that valance hole for the fogs that looks good and is cheap and disperses the light out to the sides. id also like to convert them to hids later on too. so give me some ideas on what to get. thanks.

heres that guys page:
http://www.cardomain.com/ride/556618...rlestown-in-us
Reply With Quote
  #2
Old 08-25-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
have you given OE fogs any thought
Reply With Quote
  #3
Old 08-26-2010
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
OE is the wisest choice.
Reply With Quote
  #4
Old 08-31-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
original ones?
Reply With Quote
  #5
Old 08-31-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
factory ones...from ford
Reply With Quote
  #6
Old 09-03-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
I'm in the exact same position.

OEM are expensive, and I don't know if they're really comparable to a good aftermarket light like KC or Hella (if htey made a 5" light).

Also important to me is a fog beam pattern, something close up and wide that will fill the gap below my headlights when offroading or driving through a blizzard, or whatever.

I measured my valance and the opening is 5" exactly, so I'm looking for a light just under 5", or maybe exactly 5".

Here are a couple options I've found so far:

Rampage 4.75" fog light:
Amazon.com: Rampage Products Offroad Vehicle Lighting Complete Kit - Round H3 55w Clear Fog Lights, Black Polymer Housing, Glass Lens (4.75"x5"x2.5")Kit - Complete Light System: Automotive

Bosch fog light, about 4.2" round:
Amazon.com: Bosch 0305055901 Compact 100 Clear Lens Fog Light Kit: Automotive

I've also been looking at the KC 50 series. They make a $35 (per light) version that you can find in most online stores, but I need to review the overall dimensions to make sure it will fit. KC is probably the most expensive though, but also the one I'm confident would be the best light output (they are 100w too).

I'm still looking though. I wish people had some good input on how good each of these brands are in terms of light output and beam pattern, but thats hard to find
Reply With Quote
  #7
Old 09-04-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
I've sent an email to procomp to get more details on their "driving/utility" pattern... if its like a fog pattern then I'll be ordering some of those since I know they work.

I'm a little worried that Rampage is out of business. All their phone lines are disconnected....
Reply With Quote
  #8
Old 09-04-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
u sent procomp an email about the ones i was looking at?
Reply With Quote
  #9
Old 09-04-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by Machine090767 View Post
OE is the wisest choice.
For this application, I would agree.
Reply With Quote
  #10
Old 10-03-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106

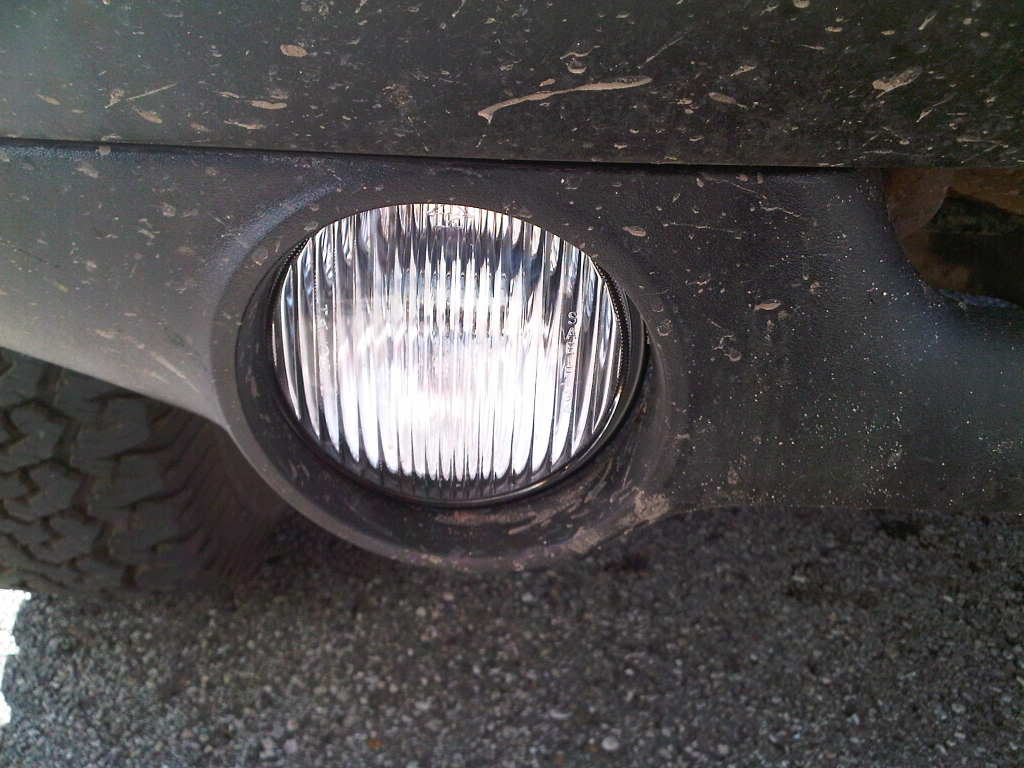

I just installed a set of Pro Comp Explorer 55's, black, fluted driving/utility pattern. Here are some pics:

Name:  IMG00017-20101003-1215.jpg
Views: 11
Size:  97.4 KB

Name:  IMG00015-20101003-1215.jpg
Views: 6
Size:  81.8 KB

Name:  IMG00014-20101003-1214.jpg
Views: 7
Size:  32.8 KB

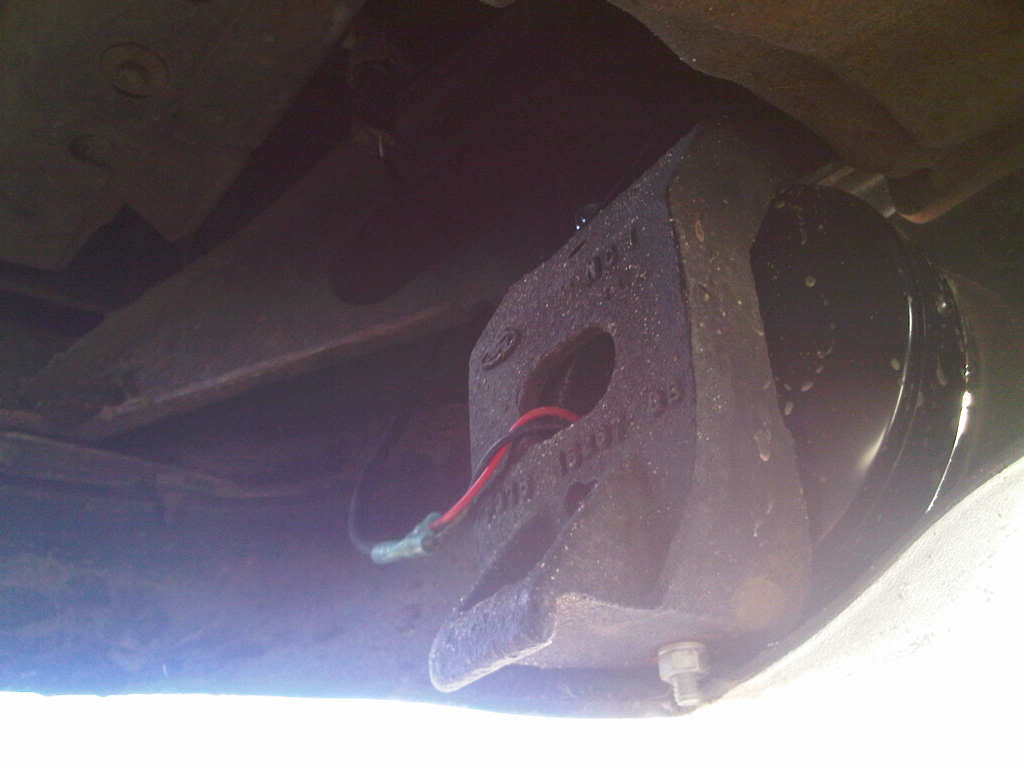

I had to modify the mounting brackets on the Pro Comp lights to get them to mount in the stock locations.

Night time pics:

Headlights only:
Name:  IMG00020-20101003-2129.jpg
Views: 6
Size:  12.2 KB

Headlights and Pro Comp 55w fog lights:
Name:  IMG00021-20101003-2129.jpg
Views: 6
Size:  26.3 KB

I'm very happy with how these turned out all around. The beam pattern is very flat and wide and fills in below the headlight pattern perfectly, and again, is very nice and wide
Reply With Quote
  #11
Old 10-03-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
wow thanks man. now i know what im going to get. thats what i wanted was something to put the light in that area and out to the sides. are u able to change out the bulb on it, cuz im wanting to put hids in them.
Reply With Quote
  #12
Old 10-04-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
The pictures make it look like there are some very bright spots immediately in front of the truck, but to the naked eye what I notice most is how much light spreads out to the sides.

I don't think you'll be able to get HID's in these. The housings are only about 1.75" deep... I think if you were going for a whiter color you could get some aftermarket H3 halogen bulbs (I think thats what these use) and swap them in.

A deeper housing would not work with the stock mounting brackets, these were as deep as you could possibly fit in there with the stock valance. I even had to slightly trim the valance a bit for these to fit as it was (basically made the valance fog light holes about 1/2" shallower at the top, bottom of the holes was ok)
Reply With Quote
  #13
Old 10-04-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
ddmtuning makes h3 hid bulbs. i dont see why they wouldnt fit.
Reply With Quote
  #14
Old 10-05-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
Shoot, they probably will then
Reply With Quote
  #15
Old 10-05-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
ill try it when i get around to it. i like your headlights where did you get them? did they make a difference in the light?
Reply With Quote
  #16
Old 10-05-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
ebay specials :) Can't really compare to stock, my old headlights were so yellowed and hazed. I don't think it was a huge performance improvement though because they just aren't super bright, but definitely an aesthetic improvement. And these pro comp fog lights dont help my perception any, they make the headlights look as dim as candlelight :)
Reply With Quote
  #17
Old 10-05-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
oh, i was thinking that since they were clear that the light would penetrate better and be brighter. idk.
Reply With Quote
  #18
Old 10-06-2010
rkneeshaw's Avatar
Member
iTrader: (4)

Join Date: Aug 2010
Location: Petoskey, MI
Posts: 106
Well that's what I was hoping when I bought them too :) I guess without going with something like projectors I just don't think you can get more out of a reflector housing and the stock 55w 9007 bulbs... but then again these ebay specials were cheap too, I think like $35 shipped or something like that
Reply With Quote
  #19
Old 10-06-2010
97blueranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Aug 2009
Location: Bossier City,La
Posts: 172
i was considering projectors but i just dont know how much better they are. but they look cool.
Reply With Quote
