Hood Scoop

I was thinking about picking up one of the Thunderbolt hood scoops. I am really tired of my boring hood and I think that it might be a good change. What are your opinions on these hood scoops.


BTW does anyone have one on there truck (PICS are great), or for sale?
Reply With Quote
  #2
Old 10-10-2007
bpolly_2004's Avatar
Member

Join Date: Mar 2007
Location: Huntsville mo
Posts: 559
i thought about doin this before only bondoing it to the hood to make it look like its sopposed to be there.
Reply With Quote
  #3
Old 10-10-2007
Brando5105's Avatar
Member
Thread Starter

Join Date: May 2007
Location: El Cajon, CA
Posts: 231
thats what I was planning on doing
Reply With Quote
  #4
Old 10-10-2007
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Name:  PICT4099.jpg
Views: 86
Size:  120.3 KB

i made that with a pair of the lund scoops. i'll never do it again. it took too long to get them molded in, and i still have to go back and fix where it's starting to crack. i believe there is a mustang scoop that you can bolt on.
Reply With Quote
  #5
Old 10-10-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
got mine from the local junk yard for $30.....color matched when i had paint work done....took about half a day to put on because i took my time...

Name:  Dsc01932.jpg
Views: 29
Size:  96.8 KB
Name:  Dsc01916.jpg
Views: 22
Size:  58.1 KB
Name:  Dsc01915.jpg
Views: 21
Size:  27.2 KB
Name:  Dsc01908.jpg
Views: 23
Size:  48.7 KB
Name:  Dsc01901.jpg
Views: 25
Size:  105.0 KB


here is the underside if you have never seen it


underside
Name:  Dsc00905.jpg
Views: 15
Size:  72.3 KB
Name:  Dsc00904.jpg
Views: 18
Size:  51.7 KB

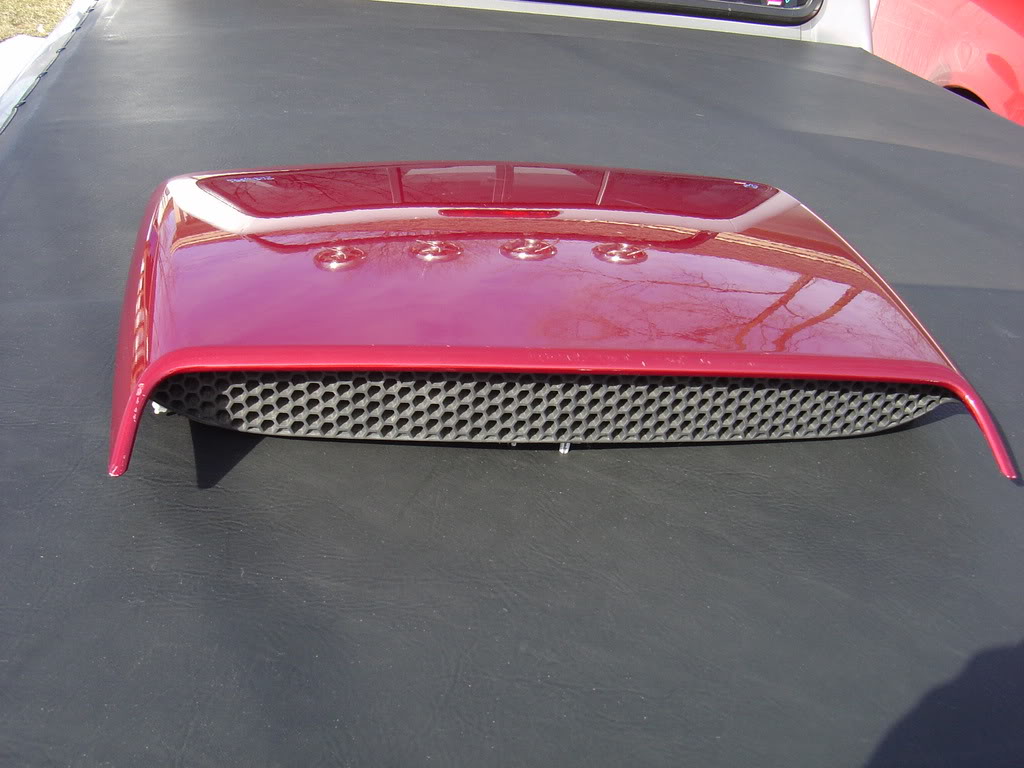

scoop itself
Name:  Dsc00860.jpg
Views: 22
Size:  108.9 KB
Name:  Dsc00860.jpg
Views: 22
Size:  108.9 KB




the stock honeycomb grill is big enough to shape it to your hood. takes a little while to do. here is a write up i did on it a long time ago...


Quote:
Ok here is my truck this is a 1999-2004 mustang hood scoop. they fit the contour of the hood fine EVEN the newer powerdome ranger hoods. you DRILL AND BOLT the scoop onto the hood. DO NOT just use 3M tape BECAUSE there isnt enought material on the underside to stick it too. and YES it will fly off on the freeway if its just taped had a buddy that had one on his 91 ranger and it fly's off about 3 times now lol...

ok you take your time and put 4" masking tape all over the hood so you can write all over it and measure on the hood. find all your holes. check and drill. use touch up paint to touch up the holes. now put the Grille back on the scoop you put it back on the hood, lay the scoop in the holes the best you can. put masking tap on the grille itself then using a protractor scrabe the hood profile onto the grille. use a cutting device and start triming, this will take MANY times to get perfect. then using a sharp utility blade clean up all the edges on the plastic grille. and bolt on. there is a few other minor steps i left out if people want to do this contact me about it. here is the before and after. didnt take pics for the during i was to busy and forgot
Attached Images
File Type: jpg Dsc00860.jpg (108.9 KB, 10 views)
Reply With Quote
  #6
Old 10-10-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon14 Pic on 94>>>>>>>>

Here's my 01 Mustang GT scoop & it is FUNCTIONABLE!
Name:  Bath5-20-07750pix2.jpg
Views: 26
Size:  126.4 KB
Light inside scoop:
Name:  Scoopfrontshot750pix2.jpg
Views: 20
Size:  28.6 KB
Hole in hood:
Name:  Scoopholeinhoodinsulation750pix.jpg
Views: 17
Size:  55.0 KB

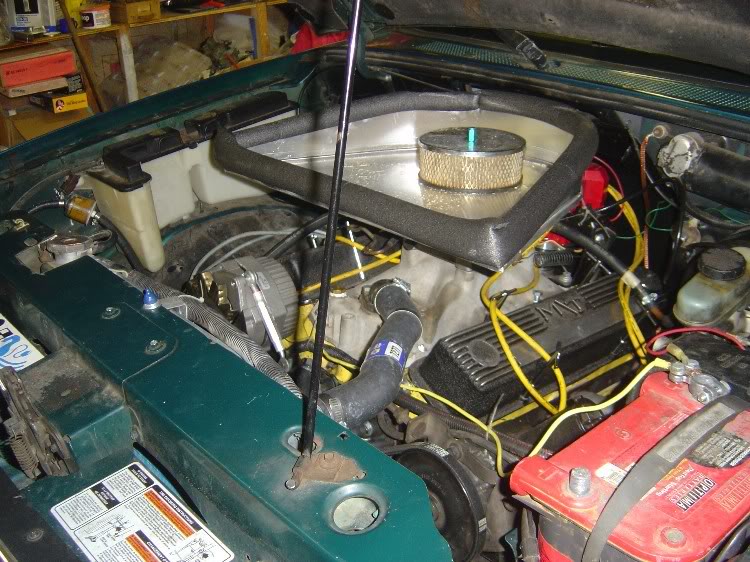

Airbox:
Name:  Scoopairintake.jpg
Views: 26
Size:  113.0 KB
Reply With Quote
  #7
Old 10-10-2007
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
go with a mustang one instead of the thunderbolt one, thunderbolt one seems a little to big... redneckstone has the mustang and it fits the hood size much better
Reply With Quote
  #8
Old 10-10-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
if i remember correctly, the thunderbolt one is lower profile compared to the mustang one. Might be wider, don't know


If the wife actually liked them, I'd rock on in an instance
Reply With Quote
  #9
Old 10-10-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
thunder is longer and wider i think.... definably longer...
Reply With Quote
  #10
Old 10-10-2007
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
thunderbolt one...
Name:  twinoaksshow028.jpg
Views: 181
Size:  108.6 KB
Reply With Quote
  #11
Old 10-10-2007
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
eh.. idk just to long for my taste...
Reply With Quote
  #12
Old 10-10-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Reply With Quote
  #13
Old 10-10-2007
Brando5105's Avatar
Member
Thread Starter

Join Date: May 2007
Location: El Cajon, CA
Posts: 231
Very nice guys, what dont you have on our truck Wayne? Did you mold it to the hood or just double back'd it?

Last edited by Brando5105; 10-10-2007 at 10:41 PM.
Reply With Quote
  #14
Old 10-11-2007
htjunkie's Avatar
Member

Join Date: Apr 2007
Location: The Lone Star State
Posts: 1,286
Quote:
Originally Posted by graniteguy
Wayne...whats the off of?
Reply With Quote
  #15
Old 10-11-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
its the roush. I added billet to the front. It needs to be painted which is why you didn't see it.
Reply With Quote
  #16
Old 10-11-2007
htjunkie's Avatar
Member

Join Date: Apr 2007
Location: The Lone Star State
Posts: 1,286
Thing looks good Wayne...Might have to go to the salvage yard... Where did you get that one?
Reply With Quote
  #17
Old 10-11-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by graniteguy
its the roush. I added billet to the front. It needs to be painted which is why you didn't see it.


as in slp thunderbolt?
Reply With Quote
  #18
Old 10-11-2007
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I have a thunder bolt one....but not installed. It IS wider and shorter than the Mustang GT one. It's also has alignment pins to be drilled, along with the 3M tape. It's perfect for your hood, Brandon...because you have the 2wd hood. It won't fit right on my 4x4(powerdome hood). The grille sits flush weith your hood w/o modifying it. It might be up for sale if the little brother want to keep his "nostrile" scoops. PM me.
Reply With Quote
  #19
Old 10-11-2007
Brando5105's Avatar
Member
Thread Starter

Join Date: May 2007
Location: El Cajon, CA
Posts: 231
pm sent
Reply With Quote
  #20
Old 10-11-2007
htjunkie's Avatar
Member

Join Date: Apr 2007
Location: The Lone Star State
Posts: 1,286
Quote:
Originally Posted by Fx4wannabe01
I have a thunder bolt one....but not installed. It IS wider and shorter than the Mustang GT one. It's also has alignment pins to be drilled, along with the 3M tape. It's perfect for your hood, Brandon...because you have the 2wd hood. It won't fit right on my 4x4(powerdome hood). The grille sits flush weith your hood w/o modifying it. It might be up for sale if the little brother want to keep his "nostrile" scoops. PM me.
If Brandon doesn't want it...I have 2nd dibs...
Reply With Quote
  #21
Old 10-11-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Quote:
Originally Posted by ScottG
as in slp thunderbolt?
yes
Reply With Quote
  #22
Old 10-11-2007
htjunkie's Avatar
Member

Join Date: Apr 2007
Location: The Lone Star State
Posts: 1,286
How much was it Wayne?
Reply With Quote
  #23
Old 10-11-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
not much. $40? Hillbanks had bought out all the roush inventory and was selling it cheap. Not sure if they sell them or if they ran out.
Reply With Quote
  #24
Old 10-11-2007
Brando5105's Avatar
Member
Thread Starter

Join Date: May 2007
Location: El Cajon, CA
Posts: 231
I talked to the guys who bought the inventory today and they said that they have quite a few more. PM me if you would like there number


BTW I think that they run about 60ish shipped
