LED Tailgate lightbar

I was thinking of getting a line of fire LED light bar for my ranger and since i have a stepside, i have to get a 36" one, well i found one, but i still have a problem, if i put it on under the tailgate, it will fit but it will cover up my spare lower hole, i was wondering if there was anywhere else i could put it, i was thinking on the actual tailgate, but on the underside of it, so its still hidden but the light will still show. what do u think. here is the one im thinking of getting.
thanks
Anthony

PlasmaGlow Fire and Ice LED Tailgate Light, Plasma Glow Fire & Ice Tailgate LED Light Bar
[IMG][/IMG]
Reply With Quote
  #2
Old 06-25-2009
FordTough2007's Avatar
Member

Join Date: Dec 2008
Location: Auburn,ME/Selinsgrove,PA
Posts: 1,062
i just put mine right over the hole.. i thought about it and decided i didnt care.. if i need the spare tire i just have to take out 4 screws to get to the hole.. i dont think its that big of a deal..im not sure what your saying about the underside of it. but if it were me. id just put it over the hole... form over function. haha
Reply With Quote
  #3
Old 06-25-2009
Member

Join Date: Apr 2008
Location: Streetsboro, Ohio
Posts: 202
Quote:
Originally Posted by FordTough2007 View Post
i just put mine right over the hole.. i thought about it and decided i didnt care.. if i need the spare tire i just have to take out 4 screws to get to the hole.. i dont think its that big of a deal..im not sure what your saying about the underside of it. but if it were me. id just put it over the hole... form over function. haha
X2
Reply With Quote
  #4
Old 06-25-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58
its kinda hard to explain, well u know when the tailgate is down, well the flat part of the tailgate that facing the bed, so ?when the tailgate is up, the light bar would be facing down, and all u would see is the light, idk how that would look. do you know what i mean?
lol i would just put it over the hole, but i would have the luck that i would get a flat and not have a screw driver to get it out. hmmm idk lol
Reply With Quote
  #5
Old 06-25-2009
FordTough2007's Avatar
Member

Join Date: Dec 2008
Location: Auburn,ME/Selinsgrove,PA
Posts: 1,062
Quote:
Originally Posted by ranger98 View Post
its kinda hard to explain, well u know when the tailgate is down, well the flat part of the tailgate that facing the bed, so ?when the tailgate is up, the light bar would be facing down, and all u would see is the light, idk how that would look. do you know what i mean?
lol i would just put it over the hole, but i would have the luck that i would get a flat and not have a screw driver to get it out. hmmm idk lol
hmm. im not really sure how that would look.. have to see it to decide. but i keep tools in my truck at all times so i dont have to worry about not having a screw driver.
Reply With Quote
  #6
Old 06-25-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by ranger98 View Post
its kinda hard to explain, well u know when the tailgate is down, well the flat part of the tailgate that facing the bed, so ?when the tailgate is up, the light bar would be facing down, and all u would see is the light, idk how that would look. do you know what i mean?
lol i would just put it over the hole, but i would have the luck that i would get a flat and not have a screw driver to get it out. hmmm idk lol
i was thinking this too but your not really going to be able to see it well and it will be pretty much pointless to have
Reply With Quote
  #7
Old 06-26-2009
Ngabr1's Avatar
Member

Join Date: Oct 2008
Location: CT
Posts: 483
i mounted mine right to the tailgate...ill get some pics in a bit

EDIT: PICS

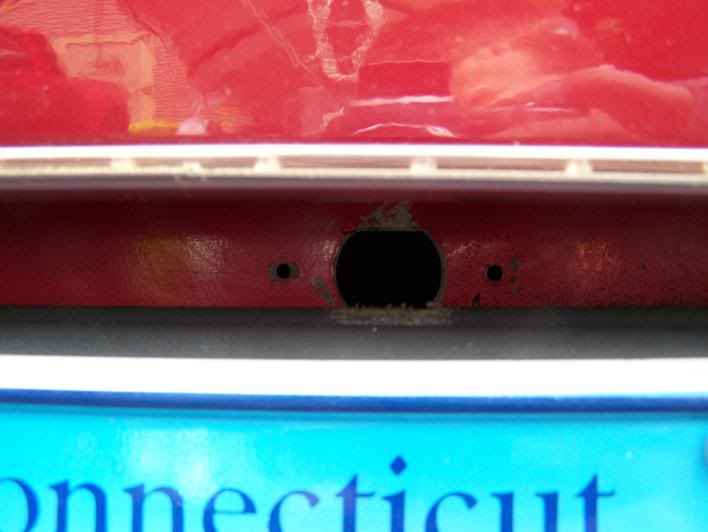

bed on the left, tailgate on right, light bar in middle
Name:  102_4800.jpg
Views: 38
Size:  109.3 KB

Name:  102_4799.jpg
Views: 39
Size:  42.1 KB

Name:  102_4798.jpg
Views: 38
Size:  52.3 KB

Last edited by Ngabr1; 06-26-2009 at 11:51 AM.
Reply With Quote
  #8
Old 06-26-2009
Yellow_edge_4x4's Avatar
Member

Join Date: Oct 2008
Location: Bryan, OH
Posts: 723

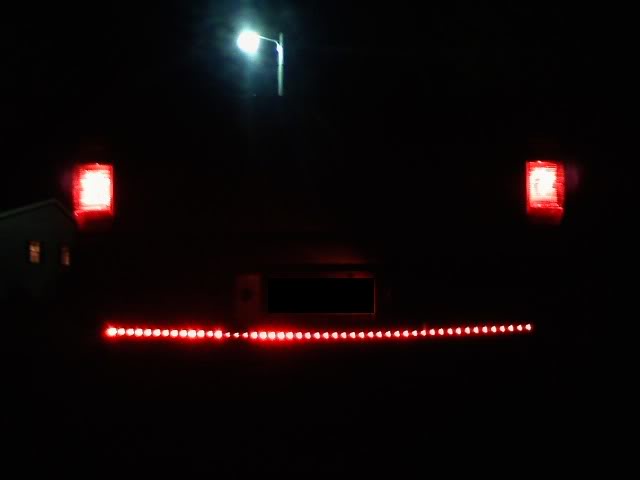

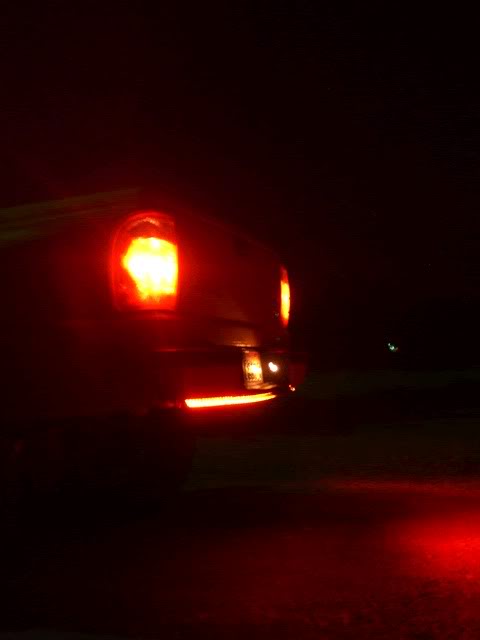

I mounted mine the the bottom of the bumber. Only spend 20 bucks on it, their is a little curve to it but I dont really care for the price I got it at.
Pics

Name:  0509092318a.jpg
Views: 39
Size:  12.1 KB
Name:  0509092317a.jpg
Views: 34
Size:  11.3 KB
Name:  Untitled-3-5.jpg
Views: 34
Size:  13.2 KB
Reply With Quote
  #9
Old 06-26-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58
Quote:
Originally Posted by Ngabr1 View Post
i mounted mine right to the tailgate...ill get some pics in a bit

EDIT: PICS
bed on the left, tailgate on right, light bar in middle




hey thats a good idea, did u use the tape it came with or did u screw it on?
Reply With Quote
  #10
Old 06-26-2009
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
I think those packaged Line of Fire lights suck major monkey *****. You can easily make your own much better with oznium flex strips. Remember this is coming from someone with about 1000 LEDs on his truck.
Reply With Quote
  #11
Old 06-26-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197

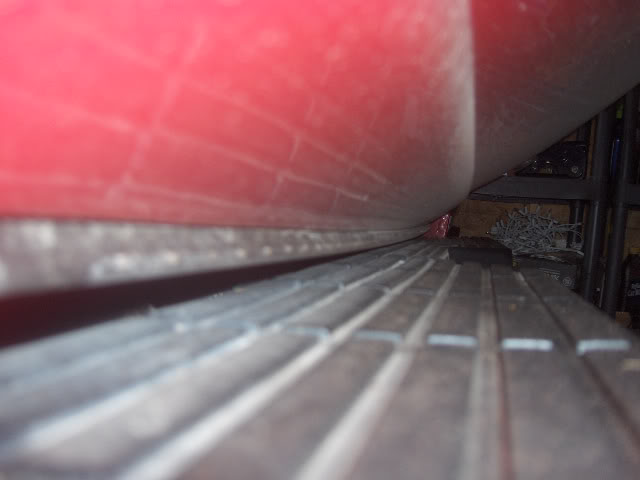

I did as some others posted in the thread. I didn't wanna cover the spare tire hole

Still plenty of room to clear the bumper. I got some 3M double sided tape from autozone comes like 1" wide I applied it then cut the over hang off

Defiantly spend the extra money for the 3M stuff instead of the cheap tape. The 3M is just like what OEM tape is

Name:  lineoffire1-1.jpg
Views: 35
Size:  38.7 KB

Name:  lineoffire2.jpg
Views: 35
Size:  29.3 KB

Name:  lineoffire4-1.jpg
Views: 36
Size:  34.0 KB
Reply With Quote
  #12
Old 06-27-2009
Ngabr1's Avatar
Member

Join Date: Oct 2008
Location: CT
Posts: 483
I used the tape that came with it and laid a bead of silicon on the backside as you can see in my first pic
Reply With Quote
  #13
Old 06-27-2009
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
Or if you bought the "good" Line Of Fire, not the el cheapo, it comes with 4 screws that lets you unscrew the light bar from the 4 plastic pieces that are 3M'd to the sheetmetal. That way you CAN get to the spare tire key hole. All this other stuff looks and sounds half-***, except for Ngabr1 and STL which works just fine.
Reply With Quote
  #14
Old 06-27-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58
hey thanks guys, i think i made my decision to put it on like Ngabr1 and STL did, but my mind might change when i get it.l u guys were a lot of help!! thanks!!
Reply With Quote
  #15
Old 06-27-2009
Smackhammer's Avatar
Member

Join Date: Apr 2009
Location: NJ
Posts: 9
When I was getting ready to install mine I also was concernd about the spare tire access. The line of fire that I purchased mounts with 4 tabs. I drilled and screwed the lights into the body section in your picture. I used stainless steel screws and then coated them with anti seizing compund. Should I ever need to get to the spare tire, grab a screw driver from the tool box and your ready to rock.
Reply With Quote
  #16
Old 06-27-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58
Quote:
Originally Posted by 99MazdaB4000 View Post
Or if you bought the "good" Line Of Fire, not the el cheapo, it comes with 4 screws that lets you unscrew the light bar from the 4 plastic pieces that are 3M'd to the sheetmetal. That way you CAN get to the spare tire key hole. All this other stuff looks and sounds half-***, except for Ngabr1 and STL which works just fine.
i tried to find the "good" line of fire and i couldn't find one that they make for stepside trucks (36"). but i think the one i found is good, do u think so? i love the reverse lights on it! they will come in handy at night when hooking up to my trailer!
Reply With Quote
  #17
Old 06-27-2009
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980

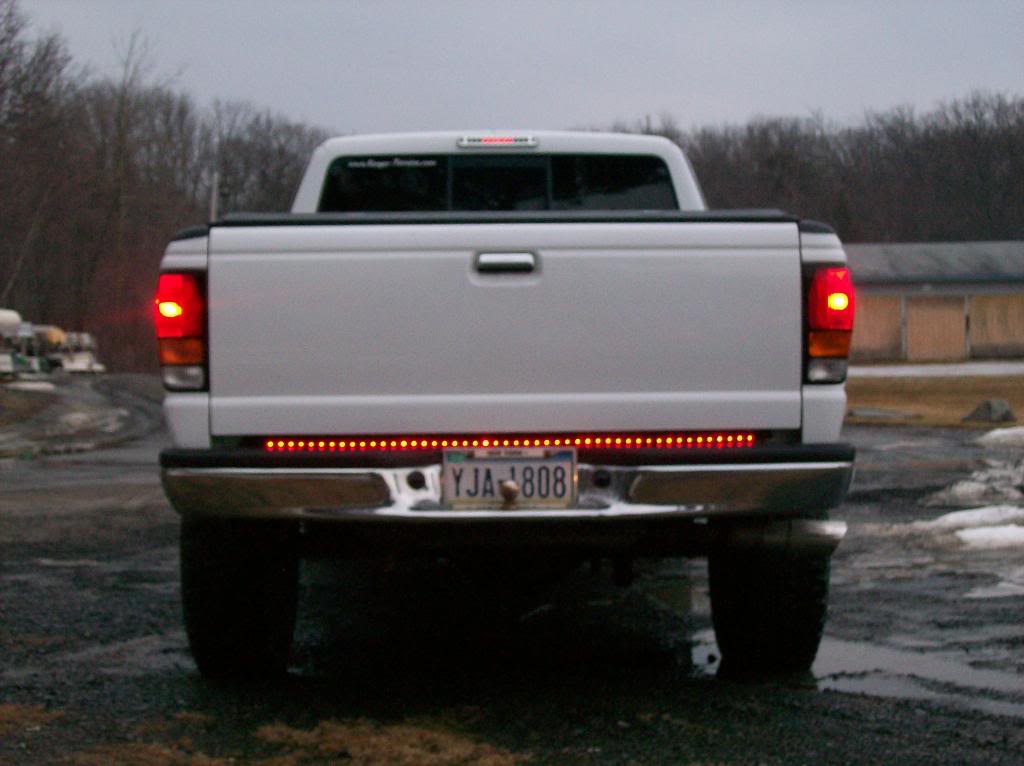

If you have reverse lights, then yes, and I'm assuming here, you have a good one. I don't know of any cheapo's that make one with the reverse. Good luck with the install and post pics!

I love mine!

Name:  SpringCleaning-Mazda035.jpg
Views: 35
Size:  65.4 KB

Last edited by 99MazdaB4000; 06-27-2009 at 10:01 PM. Reason: Forgot pic, duh.
Reply With Quote
  #18
Old 06-27-2009
filmont's Avatar
Member

Join Date: Dec 2008
Location: Bellbrook, OH
Posts: 205
I think it looks good. Kinda looks like his rear end is smiling at us!
Reply With Quote
  #19
Old 06-27-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
not only did I do it like I did cause it covered the spare tire hole

I was afraid I wouldn't have a screw driver in the truck to remove it if I needed to
Reply With Quote
  #20
Old 06-27-2009
Smackhammer's Avatar
Member

Join Date: Apr 2009
Location: NJ
Posts: 9
My truck has a small get you out of trouble tool box for the road. I also carry jumper cables and a disposable white paper jump suit. It's just like your mother told you, " Never leave the house without clean underwear on ", you'll never know when your going to need them.
Reply With Quote
  #21
Old 06-27-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58
Quote:
Originally Posted by STL View Post
not only did I do it like I did cause it covered the spare tire hole

I was afraid I wouldn't have a screw driver in the truck to remove it if I needed to
yea i want to do it like u for the same reason!, it would be my luck to not have a screw driver to get it off. lol
Reply With Quote
  #22
Old 12-27-2009
ranger98's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: port richey fl
Posts: 58

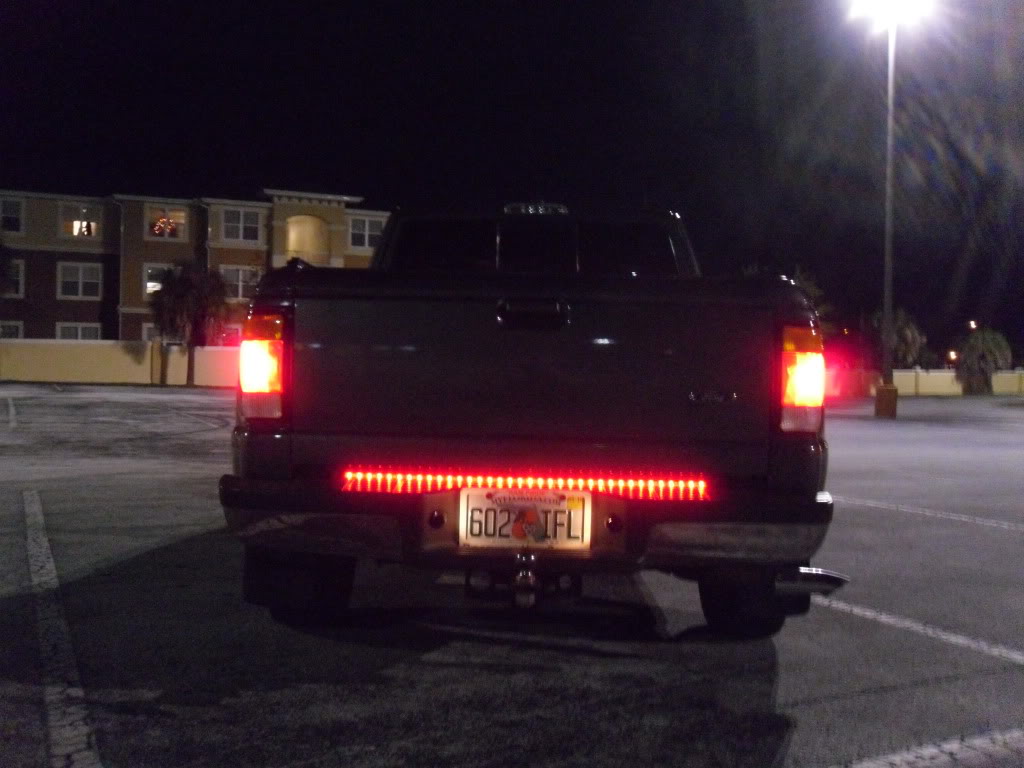

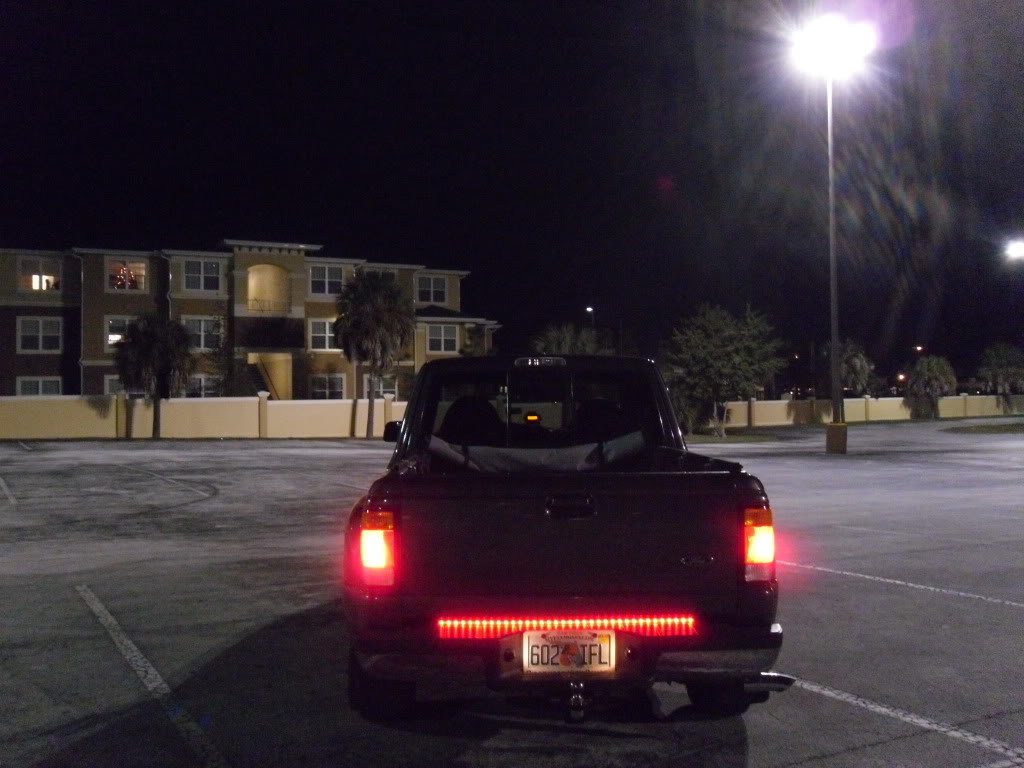

Well i finally got one! and i love it, i decided to just put it over the spare tire hole and just keep a screw driver in my truck, i also got a new LED 3rd brake light which i will post pics of soon!

Name:  SAM_0091.jpg
Views: 36
Size:  103.4 KB

Name:  SAM_0092.jpg
Views: 34
Size:  97.3 KB

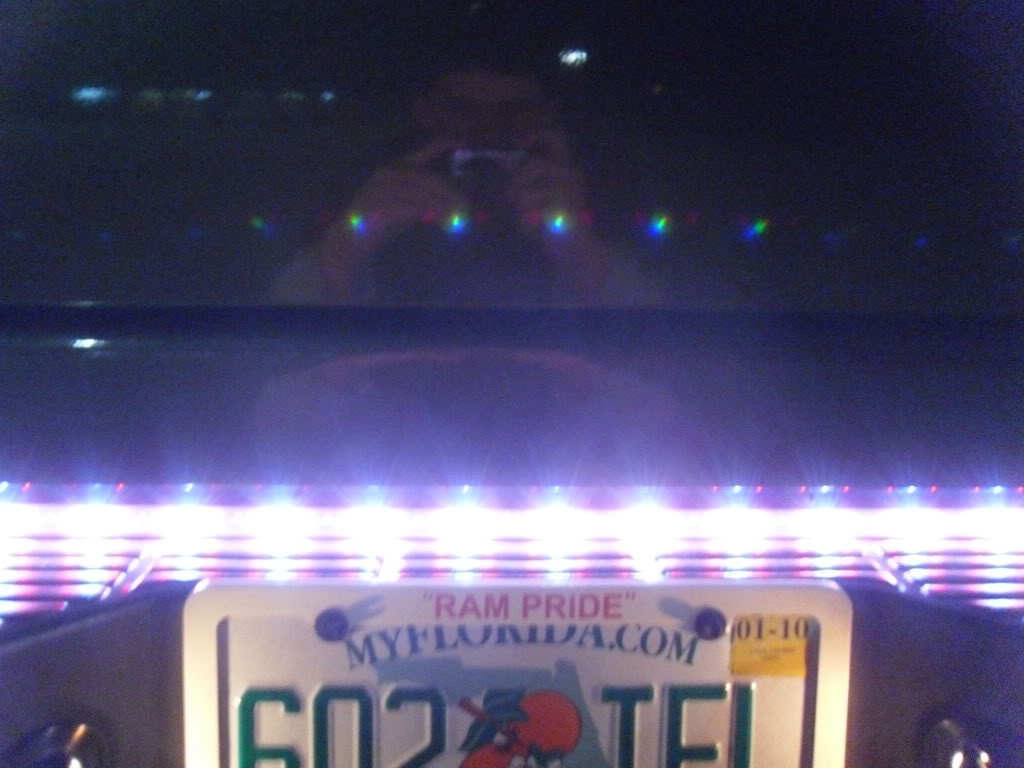

Reverse lights


Name:  SAM_0096.jpg
Views: 34
Size:  98.5 KB
Reply With Quote
  #23
Old 12-27-2009
WillInThe04Ranger's Avatar
Member

Join Date: Oct 2009
Location: Rocky Mount, NC
Posts: 666
Quote:
Originally Posted by filmont View Post
I think it looks good. Kinda looks like his rear end is smiling at us!
If that isnt sig worthy idk what is
Reply With Quote
  #24
Old 05-13-2013
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
That looks sharp! Did you go with the plasma glow bar and I'm guessing you had to cut it? Looks awesome man! Please let me know cause I want one!
Reply With Quote
  #25
Old 05-13-2013
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
That looks good man, nice work!
