LVL II Valance

I need pictures of an 01-03 FX4 LVL II valance. I need to see how it's cut to fit around the hooks. Also pictures of how other people have cut their valance to put their LVL II hooks on. I need to know how I'm going to cut my valance to make my new hooks fit.
Reply With Quote
  #2
Old 01-23-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
Reply With Quote
  #3
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Dustin any pictures of how it was before the body lift?
Reply With Quote
  #4
Old 01-23-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
they are just like any other tow hook, I mean what are you looking for exactly. They mount just like any other tow hook
Reply With Quote
  #5
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I've got them mounted. They've been mounted since last night. I just need to see how the contour on the valance that goes around the hooks.
Reply With Quote
  #6
Old 01-23-2010
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Quote:
Originally Posted by ranger_1999 View Post
they are just like any other tow hook, I mean what are you looking for exactly. They mount just like any other tow hook
No. The level II's have cut outs in the valance. Hang on, i will find a pic.
Reply With Quote
  #7
Old 01-23-2010
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Bingo
Reply With Quote
  #8
Old 01-23-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
Oh I see, my bad....Yeah thats it
Reply With Quote
  #9
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Bingo! Thanks man. Im glad I brought the valance in the house earlier today. I can't cut that thing in the cold LOL I guess now it's time to break out the cutting and sanding wheels on the ole' dremel.
Reply With Quote
  #10
Old 01-23-2010
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Good luck Tyler!
Reply With Quote
  #11
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
LOL Thanks. Looks like I might need it.
Reply With Quote
  #12
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187

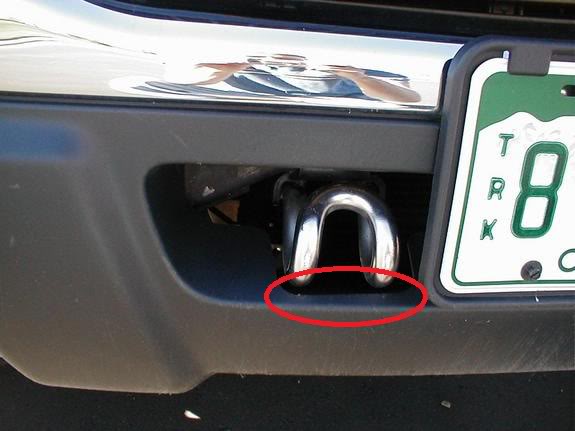

Anybody know the width of the "lip" left over in the front of the hook? The area I'm talking about is cirlced in red below:
Name:  4174650068_large.jpg
Views: 3
Size:  33.7 KB
Reply With Quote
  #13
Old 01-23-2010
Thefigus's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Oak View, CA
Posts: 107
I was feeling nice so I ran out to the truck and measured for you. It's exactly 1/2 inch
Reply With Quote
  #14
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Thanks Josh! Yea I just went ahead and cut it and kind of just eye-balled it. Just measured it and mine is 3/4". Once I get the other side cut I'll hold it up and see if it fits. If not I'll take it back off and trim it down to 1/2" instead.
Reply With Quote
  #15
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Fail

Last edited by rangerboy101; 01-24-2010 at 07:14 AM.
Reply With Quote
  #16
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Fail

Last edited by rangerboy101; 01-24-2010 at 07:14 AM.
Reply With Quote
  #17
Old 01-23-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Reply With Quote
  #18
Old 01-23-2010
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by rangerboy101 View Post
Bingo! Thanks man. Im glad I brought the valance in the house earlier today. I can't cut that thing in the cold LOL I guess now it's time to break out the cutting and sanding wheels on the ole' dremel.
If your not BL'd you dont have to cut the valence. I never cut mine when I had them on with no BL
Reply With Quote
  #19
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I tried it about 10 times before I cut it and it wouldn't work. And the way it is now it looks pretty stock. It looks pretty good I think. I'll post some pictures up in the morning.
Reply With Quote
  #20
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Oh and thanks for uploading that picture Trent. I was going to do it but I was in a rush because my laptop was about to die and I needed to hurry up and finish the bumper.
Reply With Quote
  #21
Old 01-23-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
take a propane or map gas torch, and heat up a box cutter, and it'll cut that plastic easily. Just be careful and take your time.
Reply With Quote
  #22
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I've already got it cut. I'm done fooling with it for now though. To cut it I just used a cutting wheel on the dremel then smoothed out the big stuff with the sanding wheel and used sand paper and a razor blade to get all the small stuff.
Reply With Quote
  #23
Old 01-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187

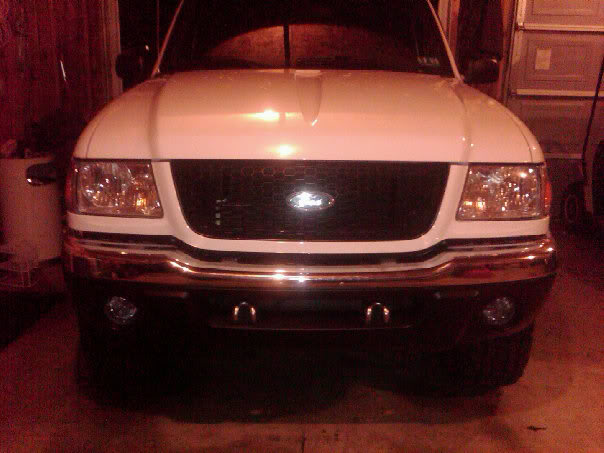

Finished:
Name:  17573_1350919498104_1384887892_3101.jpg
Views: 2
Size:  44.7 KB
Reply With Quote
  #24
Old 01-23-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
sweet! So you have to notch it even if you're not bodylifted? or can you bend the valance in at that area?
Reply With Quote
  #25
Old 01-23-2010
FordTough2007's Avatar
Member

Join Date: Dec 2008
Location: Auburn,ME/Selinsgrove,PA
Posts: 1,062
looks great man.
Reply With Quote
