Icon10 My New Hellas. Hell YA!!

Name:  81af8c7c.jpg
Views: 2
Size:  104.1 KB
Name:  463f20b3.jpg
Views: 2
Size:  112.0 KB
Name:  4738235c.jpg
Views: 2
Size:  91.5 KB
Name:  6d69d1dd.jpg
Views: 2
Size:  81.6 KB
Name:  1321b7cf.jpg
Views: 3
Size:  109.1 KB
Name:  5cc25653.jpg
Views: 2
Size:  80.8 KB
Name:  cb842f49.jpg
Views: 2
Size:  79.2 KB

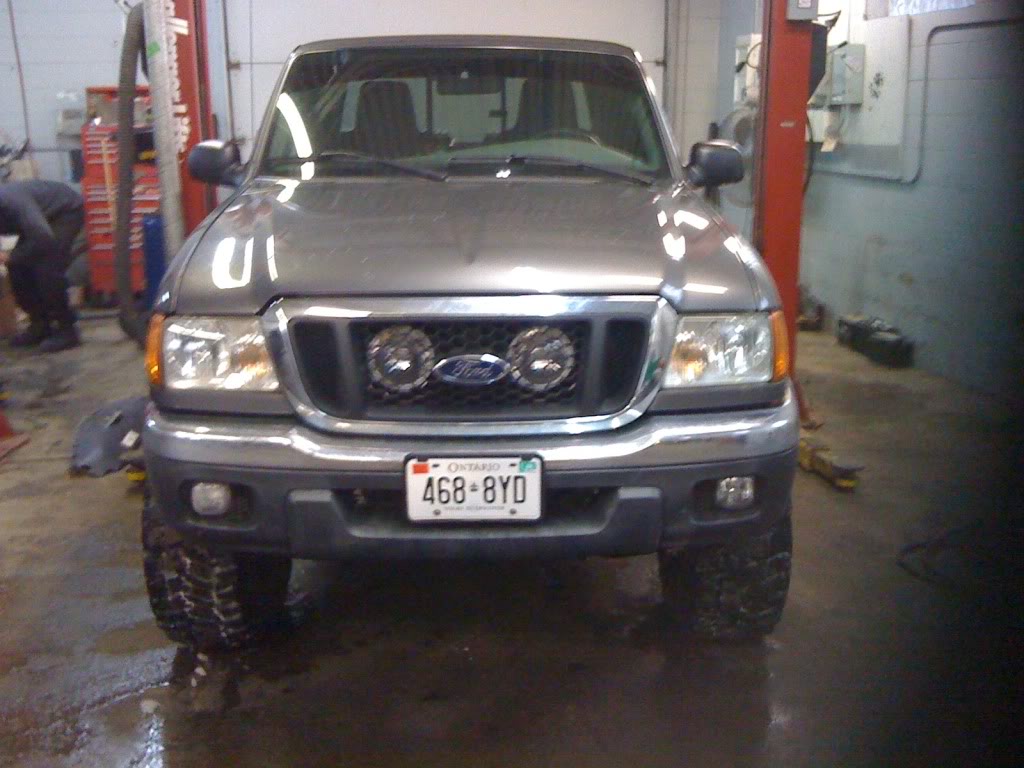

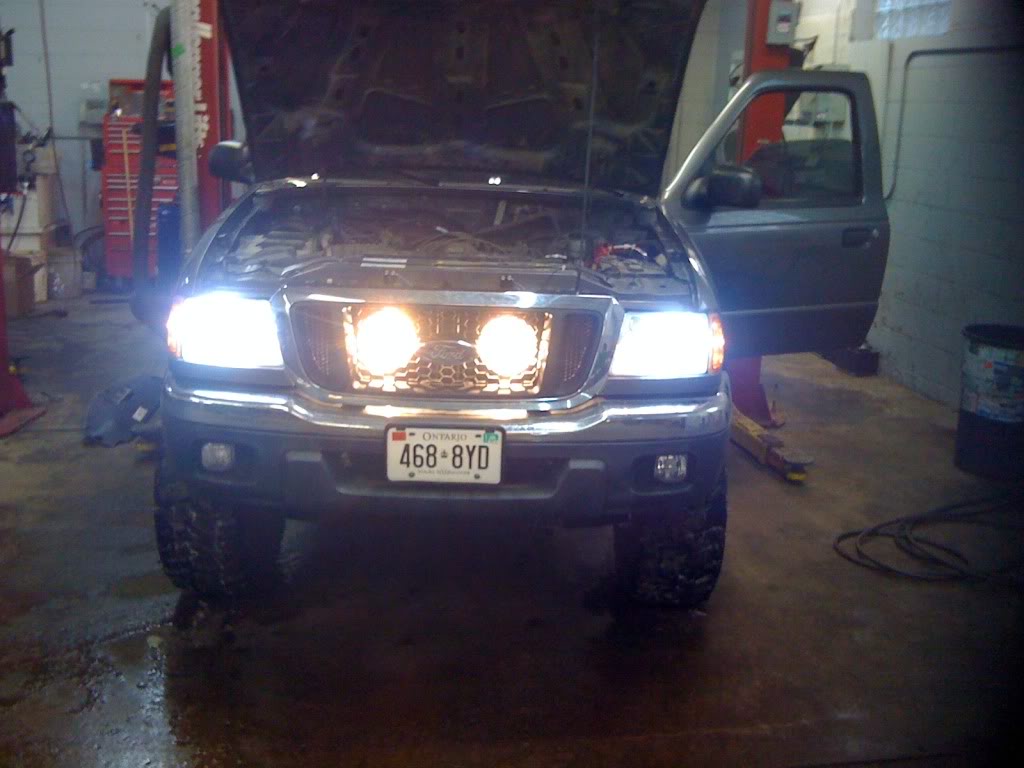

i love these lights! takes a little fine tuning to really get good light output but i got a great deal and it was well worth my time
Reply With Quote
  #2
Old 02-05-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good!
Reply With Quote
  #3
Old 02-05-2011
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Nice!
Reply With Quote
  #4
Old 02-05-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922

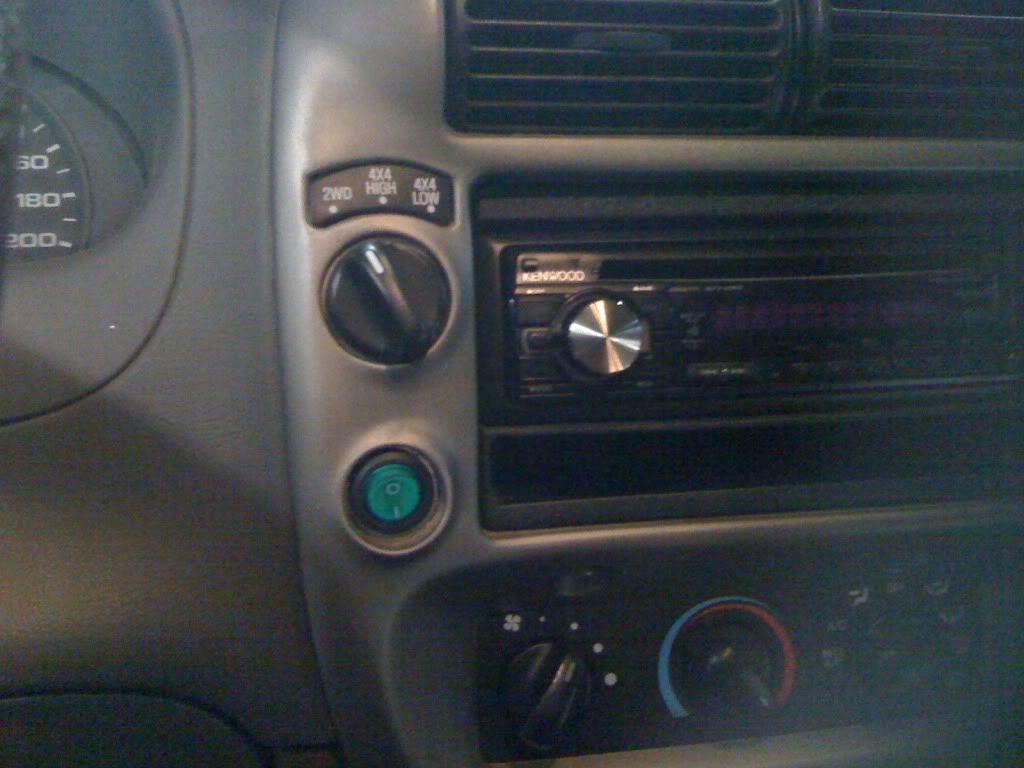

the old cigarette lighter tat i had never even taken out just so happens to be the perfect size for the switch to fit into. i also put a set on my buddies 1500 sierra tonight but i never got any pics. we mounted the lights behind the grill like mine but we are going to order another set and mount 4 lights behind his grill.
Reply With Quote
  #5
Old 02-05-2011
WillInThe04Ranger's Avatar
Member

Join Date: Oct 2009
Location: Rocky Mount, NC
Posts: 666
Nice!
Reply With Quote
  #6
Old 02-05-2011
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
great idea on switch location!! i want some hellas
Reply With Quote
  #7
Old 02-05-2011
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks great
Reply With Quote
  #8
Old 02-05-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
sweet. Did u make that bracket? where did u mount the other end of it? thats a good idea
Reply With Quote
  #9
Old 02-05-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922

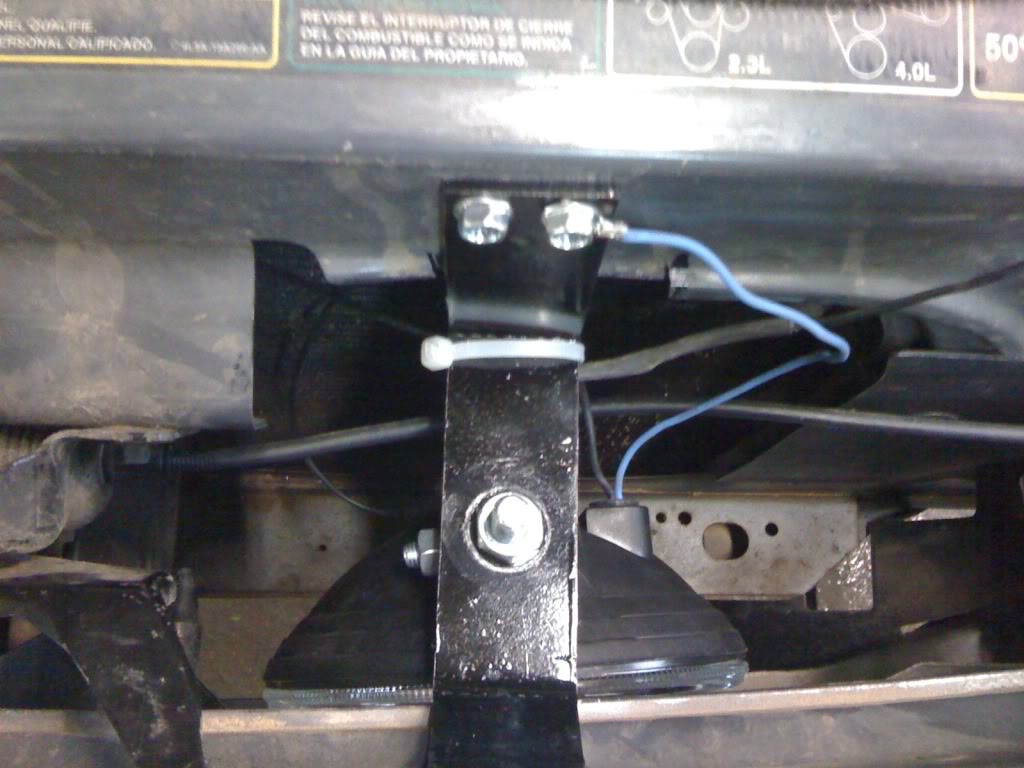

ya i used flat bar about 3/16" think, 1.5" wide and cut it to fit. i had to noth the rad support so the bracket would fit flat and just bent angles with a hammer in a vice until i made something that i felt would fit and be strong enough. you cannot move those lights at all now...


laz its your turn next
Reply With Quote
  #10
Old 02-05-2011
PAShooter's Avatar
Member

Join Date: Jul 2010
Location: Altoona, PA
Posts: 908
How did you get through the firewall? Well where not really how? I have some hella's that I attempted putting in but gave up since it was cold and couldnt get through the firewall.
Reply With Quote
  #11
Old 02-05-2011
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Quote:
Originally Posted by PAShooter View Post
How did you get through the firewall? Well where not really how? I have some hella's that I attempted putting in but gave up since it was cold and couldnt get through the firewall.
There's a little hole thats behind the brake pedal to the left a little. You'll see wires going in and out of it. And to the OP. The Hellas look great man! Love the switch location!
Reply With Quote
  #12
Old 02-05-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nice. Now get some 100W bulbs. Best upgrade for those lights
Reply With Quote
  #13
Old 02-05-2011
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
looks great!!
Reply With Quote
  #14
Old 02-05-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
Quote:
Originally Posted by 01RangerEdge View Post
Nice. Now get some 100W bulbs. Best upgrade for those lights
thanks for the tip! i think these are only 45w?? i would really like them brighter thats for sure.

the switch location was pure luck... i had honestly never even pulled out the cigarette lighter in the truck before and it kinda just fell out when i pulled the radio section. turns out it was one hell of a good mistake!!!

as for the wiring i found a large rubber boot in the firewall under the fuse block (need to release the clips and pull the fuse block up out of the way to see it). i had previously ran my wiring for my subs through there so i already knew about it. easiest way to get through it is to use a coat hanger and tape your wires on it and punch it through.

as for the wiring diagrams that come with the kit i really hated how it was designed to power the switch and relay off the highbeam circuit so i tapped into my side marker lights so i can turn the hellas on any time the markers are on. (i doubt i will need the hellas on unless my regular lights are on too)
Reply With Quote
  #15
Old 02-05-2011
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
x2 on 100w bulbs. just did that in mine the other day. i love it.
Reply With Quote
  #16
Old 02-06-2011
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
My buddy had wired up driving lights before, so he knew how to get around the high beam 12V source.

I don't know why you'd want them wired to the headlights anyway
Reply With Quote
  #17
Old 02-06-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
they do it as a safety feature because these lights are not ment to be on when cruising down city streets. their goal is to not blind people so they get wired to highbeam... that way they cannot be turned on unless high beams are engaged
Reply With Quote
  #18
Old 02-06-2011
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by ranger4.0 View Post
thanks for the tip! i think these are only 45w?? i would really like them brighter thats for sure.

the switch location was pure luck... i had honestly never even pulled out the cigarette lighter in the truck before and it kinda just fell out when i pulled the radio section. turns out it was one hell of a good mistake!!!

as for the wiring i found a large rubber boot in the firewall under the fuse block (need to release the clips and pull the fuse block up out of the way to see it). i had previously ran my wiring for my subs through there so i already knew about it. easiest way to get through it is to use a coat hanger and tape your wires on it and punch it through.

as for the wiring diagrams that come with the kit i really hated how it was designed to power the switch and relay off the highbeam circuit so i tapped into my side marker lights so i can turn the hellas on any time the markers are on. (i doubt i will need the hellas on unless my regular lights are on too)
Actually there is an even easier way if you have subs. I left enough wire for this purpose. Pull the power cable back about a foot or so and tape the wires on and pull through. Way easier then a hanger since it's already been done once.
Reply With Quote
  #19
Old 02-06-2011
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
Pics look great, I also love the switch location!!!
Reply With Quote
  #20
Old 02-06-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

That looks really good. I wanna do something like this. My 07 front is kinda preventing the behind the grill look.
Reply With Quote
  #21
Old 02-06-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
what is different about the 07 front?
Reply With Quote
  #22
Old 02-06-2011
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Lights look nice!

Name:  4738235c.jpg
Views: 2
Size:  91.5 KB

I opened up my set of Hella's before I wired them up & found that the blue wire is actually the Hot wire & black is Ground. Even the instructions say blue is ground, never heard of a colored wire being ground before, so I investigated.
Not that it makes much difference, as long as they're both wired the same way.

I think I used 1/8" flat bar 1 1/4" wide to fab up my brackets... I had to go in front of the grille (stupid 96 grille!)

My 500FF's came with 55w bulbs.
Reply With Quote
  #23
Old 02-06-2011
ranger4.0's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
color of the wire doesnt matter. black in this case is power to the lights. i just used the black on the lights to match the harness
Reply With Quote
  #24
Old 02-06-2011
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
just keep an eye on your engine coolant temperature on hot days

you are seriously cutting down critical air flow to the radiator
Reply With Quote
  #25
Old 02-06-2011
05blackranger's Avatar
Member
iTrader: (3)

Join Date: Jun 2009
Location: Mequon, WI
Posts: 406
This makes me wanna go buy some Hellas!
