Pic Request: Rear FX4 tow hooks

I want to see pictures of rear FX4 tow hooks. I know i've seen some on here, but i *think* they look like these but on the back (only good picture i could find):

Name:  0908090117a.jpg
Views: 159
Size:  94.2 KB


I don't want to put a rear hitch on, but want a recovery point. so don't flame me.
Reply With Quote
  #2
Old 10-14-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah they look like those just black.
Reply With Quote
  #3
Old 10-14-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Howells had some on his truck
Reply With Quote
  #4
Old 10-14-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
but do we have pictures of them? i can't find any anywhere
Reply With Quote
  #5
Old 10-14-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
look in his FS threads.
Reply With Quote
  #6
Old 10-14-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
G-Rant you taking my idea of a rear hook? lol
Reply With Quote
  #7
Old 10-14-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Courtesy of howells:

Reply With Quote
  #8
Old 10-14-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Quote:
Originally Posted by KLC View Post
Courtesy of howells:

My 98 had one like that as well, but I had to take it off when I installed the hitch.
Reply With Quote
  #9
Old 10-14-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115

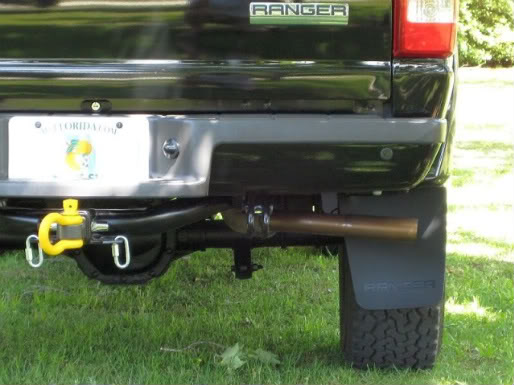

Here is another version:

Name:  FX4RearTowHook-1.jpg
Views: 22
Size:  43.9 KB
Reply With Quote
  #10
Old 10-14-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
the 2nd one is the one he was looking for
Reply With Quote
  #11
Old 10-14-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Yes, the second one. That is FX4 right? anyone know what years and models??
Reply With Quote
  #12
Old 10-15-2009
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
Quote:
Originally Posted by Dangerranger01 View Post
Yes, the second one. That is FX4 right? anyone know what years and models??
The second pic is my Ranger and the part is from an 01-03 FX4. ...yes, it's bolted in properly even w/ the hitch...

Last edited by Zs02Edge; 10-15-2009 at 06:39 AM.
Reply With Quote
  #13
Old 10-15-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by Zs02Edge View Post
The second pic is my Ranger and the part is from an 01-03 FX4. ...yes, it's bolted in properly even w/ the hitch...
So its bolted onto the hitch? Or better yet, and you please get me some pictures of it beneath and from the side? thanks mang!
Reply With Quote
  #14
Old 10-15-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831


The factory LII installation has three bolts through the tow hook bracket into the pass side frame rail plus an angle brace that bolts from the hook to the spare tire crossmember (at the red arrow in the photo above).

With the factory trailer hitch option on a LII, the rear hook was deleted because the angle brace wouldn't fit with the hitch in place.

I reinstalled the tow hook with my aftermarket DrawTite hitch by using the hitch itself as a massively strong side brace. You can just see the bolt and spacer in the photo below. Hitch makers warn against drilling or welding anywhere on their hitches, so this is a "proceed at your own risk" type of mod.






It is also possible to run a modified RH hook on the left side but that requires cutting and welding the hook bracket to get the alignment right. Installation is similar to the passenger side with the hook bolted to the frame and the hitch for strength.

Reply With Quote
  #15
Old 10-15-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
i still wanna do that love it Bob!
Reply With Quote
  #16
Old 10-15-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
that looks sweet bob
