  #26
Old 03-30-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i missed the part where you put his name lol
Reply With Quote
  #27
Old 04-07-2010
meatheaded nucklebuster's Avatar
Member

Join Date: Apr 2010
Location: Elk River/Duluth MN
Posts: 12
hey guys I just saw this thread and thought i would throw up some pictures of the rack i built for my jeep this winter to get my spare on the roof so i could fit all my ice fishin gear. Its kinda thrown together but not bad for a one night project. Heres all the pictures I got of when i was building it.

the mounting pads of 3/16' x 3' strap welded to 1" square 11ga tube I had all the material laying around so it was pretty much just time and sleep it cost me.

I mounted it to the stock rails using more strap bent in a U to hook under the lip with a bolt to cinch it down. Im gonna build one for my ex cab ranger soon that mounts to the drip rails.
I cut the long bars to the desired length and tack them then put it on to get everything square.


basically then build the outside hoop and basket if you want one. for the tire carrier i did a cross bar with a nut welded to it and some rebar welded to a bolt with a large fender washer. I used 1" emt conduit for the rest of it and it held up fine. I could stand on it without bending. I used a regular hand conduit bender for the bends.




Reply With Quote
  #28
Old 04-09-2010
tjtheman007's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kankakee, IL
Posts: 270
Ok, so I know this looks rediculous, but i drew this up and this is my dream setup on a 2004 ranger fx4 (optional level II ) For now all I have is my 95 xlt, which will do for now. I can always make stuff for it that will/should be able to adapt to any ext cab ranger (hopefully a 2004 though)

On this picture there is the rack that I am hopping to fab when I get home in a month along with a pretty sweet bumper; I must give credit to PUNKROCKPILOT for that cause its basically his, with a few modifications.

Also, there is a sunroof on this truck, which the rack will go around, along with a visor; I love the look on Fx4wannabe01's truck so I want it on mine.

Anyway, Im wondering off the topic of this thread, so without further ado, here is the drawing of my roof rack:

Reply With Quote
  #29
Old 04-09-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^ i like it lol
Reply With Quote
  #30
Old 04-09-2010
meatheaded nucklebuster's Avatar
Member

Join Date: Apr 2010
Location: Elk River/Duluth MN
Posts: 12
not rediculous at all. thats similar to what im planning. I want to be able to put two spares on the topper and other quick grab items on the cab basket for camping and road tripping and still be able to put a canoe up there if i want. heres a sketch....
Reply With Quote
  #31
Old 04-09-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
That last one looks pretty cool
Reply With Quote
  #32
Old 04-09-2010
tjtheman007's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kankakee, IL
Posts: 270
Very nice! That's very very similar to wat I want to do, I just don't want to mount the rack to the roof of the truck or cap, I want to b ableto take it off and use it as a. Ladder\storage rack without the topper\cap. I was wanting toput 2 tires on the rack as well! I just didn't draw them.

Very good work!
Reply With Quote
  #33
Old 04-09-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
I want a roof basket
Reply With Quote
  #34
Old 04-09-2010
tjtheman007's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kankakee, IL
Posts: 270
Quote:
Originally Posted by btm757 View Post
I want a roof basket

Quality post, lol
Reply With Quote
  #35
Old 05-20-2010
Trevelyn1015's Avatar
Still El Presidente...

Join Date: May 2004
Location: Texas
Posts: 4,900
Quote:
Originally Posted by 05BLKEDGE View Post
Does anyone have pictures of the roof rack the Christian had on his Ranger, I've always wanted to find one like that I just can't find the pictures I had of it.
https://www.ranger-forums.com/f19/whos-truck-104923/
Reply With Quote
  #36
Old 05-24-2010
Member

Join Date: Mar 2010
Location: SoCal
Posts: 16
Man, I always wish we could get a crew cab ranger here too! Also, nice e60!
Reply With Quote
  #37
Old 05-24-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
You could craigslist something like this, but one that fits around a cap, then use that as a base to do your custom fab work. That way you know what your starting with is straight. just weld your crossmembers between the rails.

ladder rack
Reply With Quote
  #38
Old 05-24-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
heres a few more ideas



LOL @ Taco! (but it has what you seem to be looking for)



Hope that helps!
Reply With Quote
  #39
Old 05-24-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
that would work perfect for hauling the kayaks around a long with a lot of other ****
Reply With Quote
  #40
Old 05-25-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by Fx4wannabe01 View Post
Here's my buddy Timmy's....

Believe his name on RF is MotoRanger63? MotoRanger something. Or is it PowerRanger? He's got two diff screennames on two different RBV forums. lol. Anywho...from what I remember, he installed Sport Trac or Explorer roof rails, then the Yakima mounted to those.













dang that looks really good

i wanna do something like that, but only to just have the explorer roof rack itself. any modification needed to make them fit?
Reply With Quote
  #41
Old 05-25-2010
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139

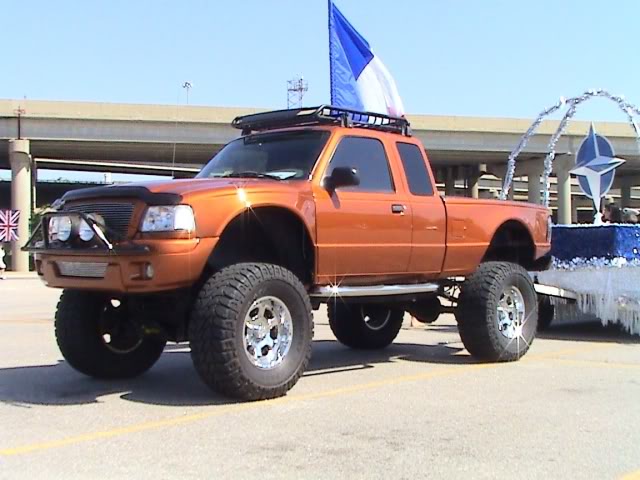

One more. Yakima rack attached to the door frames (comes right off) and Rola basket.

Name:  DSC02199.jpg
Views: 786
Size:  62.9 KB
Reply With Quote
  #42
Old 05-27-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Reply With Quote
  #43
Old 06-01-2010
tjtheman007's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Kankakee, IL
Posts: 270
Very nice! Thanks guys!
Reply With Quote
  #44
Old 06-02-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by 12r View Post
One more. Yakima rack attached to the door frames (comes right off) and Rola basket.

how much was that rack? is there only certain years this will fit on?
Reply With Quote
  #45
Old 06-02-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by morris View Post
how much was that rack? is there only certain years this will fit on?
x2 curious as to where you got this......with all the camping i wanna do...more room to store stuff is to be desired lol
Reply With Quote
  #46
Old 06-02-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
i looked at the yakima site, but i don't think this specific one came up. it didn't mention anything about mounting to the door frames.
Reply With Quote
  #47
Old 06-02-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
ya i found on rps that the mounts to the door frames were from a ford contour and that the baskets are a universal fit........its just the mounts that your specifically trying to get.

makes me curious now cuz theres a honda civic on craigslist with a yakima basket for sale....
Reply With Quote
  #48
Old 06-02-2010
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139
Quote:
i looked at the yakima site, but i don't think this specific one came up. it didn't mention anything about mounting to the door frames.
If you run through the fit to your vehicle process on their site it should suggest the Q towers and cross bars for fitting to the cab. The Q towers are universal and come with a specific plate that latches in to fit your make/model. So if you get any used q towers/rack you should be able to go to a yakima dealer and order the plates to fit a ranger. Make sure the cross bars are long enough. My rack was from a buddies contour that I modded for my girlfriends escort, and then for the ranger. Instead of buying new plates I just bent them to fit the ranger cab. The yakima racks are $$$ but deals can be found used sometimes.
Reply With Quote
