Spyder LED tails installed with pics

I got some Spyder LED tails yesterday, these are the red and clear. The wiring harness/connector was wrong, so I had to wire them up myself. So after blowing the blinker/hazard fuse twice. I got everything working. Running lights, brakes, and blinkers/hazards. My buddy said they are real clean and clear on the road. I think the LEDs look better than my old tinted tails.

I took a couple pics.

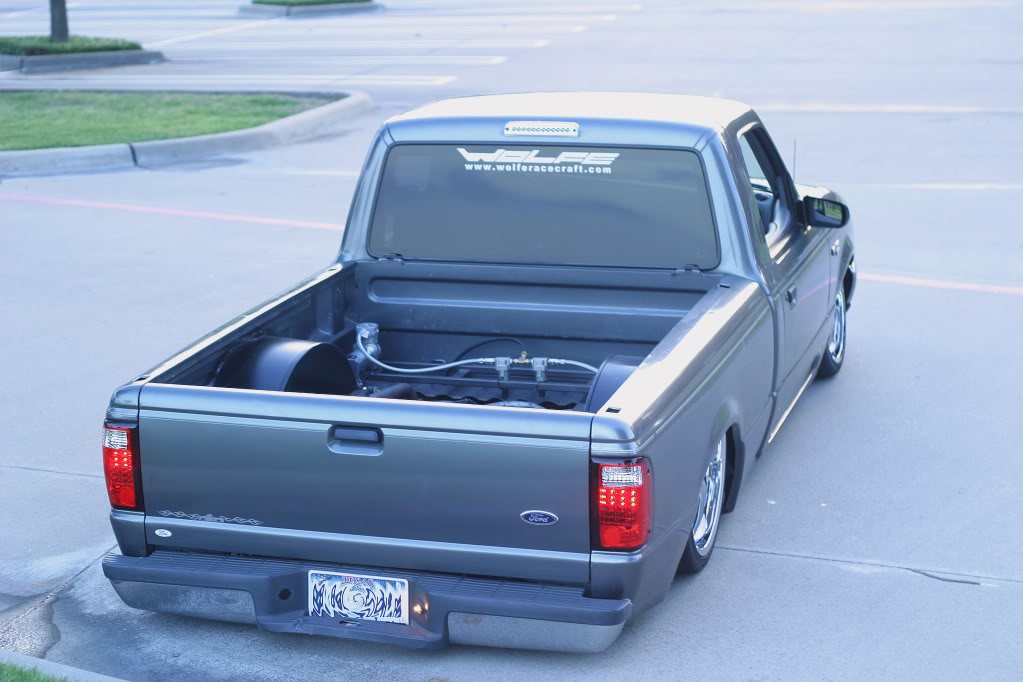

Fogs
Name:  tails.jpg
Views: 4
Size:  89.2 KB

No lights
Name:  tails21.jpg
Views: 4
Size:  125.3 KB

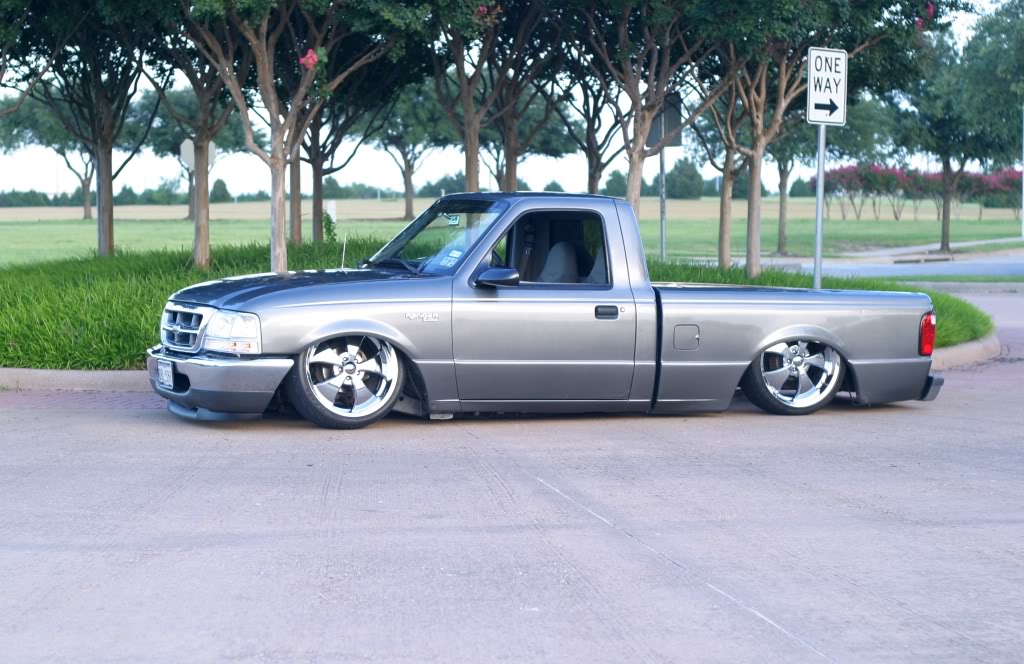

Side with fogs, there is two tiny LEDs on the side.
