Third Brake Light/Cargo Light Question

I found this on ebay its off an 07 Ford Superduty
whats the simplest way to wire the cargo lights up on my 04?
can i just splice the wires into my dome light?

Name:  706e_1.jpg
Views: 21
Size:  9.8 KB

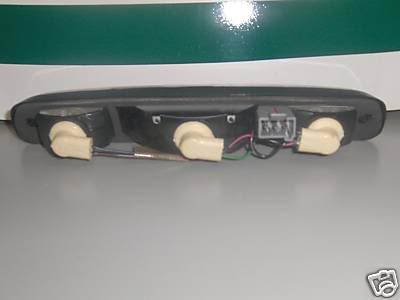

Name:  7283_1.jpg
Views: 20
Size:  8.8 KB

Last edited by edge186; 03-03-2009 at 05:31 AM.
Reply With Quote
  #2
Old 03-03-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
We've got a how-to I do believe for the '04+ trucks. I do believe it's pretty much splicing into your dome light to make the cargo lamps work.
Reply With Quote
  #3
Old 03-03-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
any idea where i might find that how-to?

by this i mean, any way you'd post a link haha
i cant seem to find it in the how-to section
Reply With Quote
  #4
Old 03-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Your correct, all you have to do is splice in the dome light. No how-to needed.
Reply With Quote
  #5
Old 03-03-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
ok thanks man. do you know, will the connector plug thing match up with the one on my ranger? that way i could just plug that in for the brake light then just splice another wire to the cargo light?
Reply With Quote
  #6
Old 03-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
No clue, Shane might know. It might come with the connector and you can just cut the stocker off and use that.
Reply With Quote
  #7
Old 03-03-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
I don't think it will cause it wasn't in the description. but for $20 i figured what the hell. if i have to i'll go steal the one off my neighbors truck lol
Reply With Quote
  #8
Old 03-03-2009
Blackonblackfx4's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
What are the bulb numbers for a 2003? is it
Dome light
912
or
Trunk/Cargo area
906

All 3 bulbs are the same number are they not?
Reply With Quote
  #9
Old 03-03-2009
Member
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Shouldn't be too hard to wire up. I want to find myself one and Mod some LED's into it. Good find on ebay.
Reply With Quote
  #10
Old 03-03-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by edge186 View Post
ok thanks man. do you know, will the connector plug thing match up with the one on my ranger? that way i could just plug that in for the brake light then just splice another wire to the cargo light?
The connectors are the exact same....doesn't matter which third you've got.....it'll plug right in.
Reply With Quote
  #11
Old 03-03-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
Quote:
Originally Posted by Fx4wannabe01 View Post
The connectors are the exact same....doesn't matter which third you've got.....it'll plug right in.
thanks. i have already run the wires from my dome light so as soon as it comes i will just through it in. this is something i have wanted to do since iv'e owned this truck
Reply With Quote
  #12
Old 03-04-2009
Member
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
I just bought my 07 super duty third brake light yesterday from that same seller. And then went to superbrightleds.com and purchased 3 high powered 9 white leds to put in it. I'm going to wire the cargo lights up to the dome light and maybe run it my reverse light's as well.
Reply With Quote
  #13
Old 03-04-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
if my truck had more mods on it like LED tails and the instrument cluster then i'd probably do that too. im kinda plain though and I think it will be ok just regular haha
Reply With Quote
  #14
Old 03-04-2009
AEA's Avatar
AEA AEA is offline
Member

Join Date: Feb 2009
Location: North Texas - Lake Texoma
Posts: 99
I put a 15W 922 long life in mine and it is nice and bright.
I had a LED one but I did not like it.

Now, where could I find and what are they called, the rubber stock lamp holders with 2 wires that I could put in my stock light (that are empty now) with 2 more bulbs to make the whole thing light up when I hit the brakes?

The other advantage I think to this would be that if one or two bulbs burn out, you still have one running.
Reply With Quote
  #15
Old 03-04-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
Quote:
Originally Posted by AEA View Post
I put a 15W 922 long life in mine and it is nice and bright.
I had a LED one but I did not like it.

Now, where could I find and what are they called, the rubber stock lamp holders with 2 wires that I could put in my stock light (that are empty now) with 2 more bulbs to make the whole thing light up when I hit the brakes?

The other advantage I think to this would be that if one or two bulbs burn out, you still have one running.

the whitish lookin rubber socket? i believe napa, autozone, or any other local auto parts store but not totally sure on that.
Reply With Quote
  #16
Old 03-04-2009
AEA's Avatar
AEA AEA is offline
Member

Join Date: Feb 2009
Location: North Texas - Lake Texoma
Posts: 99
thanks
Reply With Quote
  #17
Old 03-05-2009
Danger06Ranger's Avatar
Member
iTrader: (-1)

Join Date: Apr 2008
Location: Lowell, IN
Posts: 620
Quote:
Originally Posted by AEA View Post
I put a 15W 922 long life in mine and it is nice and bright.
I had a LED one but I did not like it.

Now, where could I find and what are they called, the rubber stock lamp holders with 2 wires that I could put in my stock light (that are empty now) with 2 more bulbs to make the whole thing light up when I hit the brakes?

The other advantage I think to this would be that if one or two bulbs burn out, you still have one running.
I did that, I have pics of it to.
Reply With Quote
  #18
Old 03-05-2009
AEA's Avatar
AEA AEA is offline
Member

Join Date: Feb 2009
Location: North Texas - Lake Texoma
Posts: 99
Where did you get the bulb holders (the T15 sockets)?
Reply With Quote
  #19
Old 03-05-2009
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by edge186 View Post
thanks. i have already run the wires from my dome light so as soon as it comes i will just through it in. this is something i have wanted to do since iv'e owned this truck
do you have pics of the jumper? which wire on the dome light is it?
Reply With Quote
  #20
Old 03-09-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
Quote:
Originally Posted by dirtybird819 View Post
do you have pics of the jumper? which wire on the dome light is it?
i don't have any pics but there are two metal contacts on the dome light. one side is grounded to the ceiling of the truck the other connects to a wire. that one is the power wire. i just spliced a wire into that one and fed it back to where the third brake light is.
Reply With Quote
  #21
Old 03-09-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
i just got my new one today but its freaking snowing right now and i've got my shell on right now so i cant go put the light on. i will post a pic when i get it put on though.
Reply With Quote
  #22
Old 03-10-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
took my shell off and put the new light on. works great

i didn't take any pics of the wiring but its pretty straight forward. the power wire off the dome light goes in to the third wire on the tbl. its a black wire with blue stripe i think

Name:  P1010245.jpg
Views: 18
Size:  78.8 KB
Reply With Quote
  #23
Old 03-10-2009
Member
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Sweet looks good. I am still waiting on mine!
Reply With Quote
  #24
Old 03-10-2009
Member

Join Date: Feb 2009
Location: Brampton,Ontario
Posts: 144
[IMG][/IMG][IMG][IMG][/IMG][/IMG]I did mine today
Reply With Quote
  #25
Old 03-10-2009
edge186's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Ogden, UT
Posts: 215
looks good man. i've been wanting to do this since i bought the truck lol
