updating the front clip. 98 to 2001+

as the title states what will need to happen to if i update my 98 front clip to 01+?

im sorry about my original post i time got a little short when i posted. here is the edited version .

im looking to change the look of my truck. i currently have a 3 piece clip and i found a 1 piece that i have interest in. if this works out i would be my entire clip for the 1 piece plus cash. i would also get everything that is mounted under the clip also.

i know that everything would bolt up if i was doing this with stock components but i would have to modify the electrical. i do not know what needs to be don't to make the 98 harness work with 01 components.

what do i have to do to make the 98 harness work with 01+ lights. im really interested and im looking for some education.

my current clip

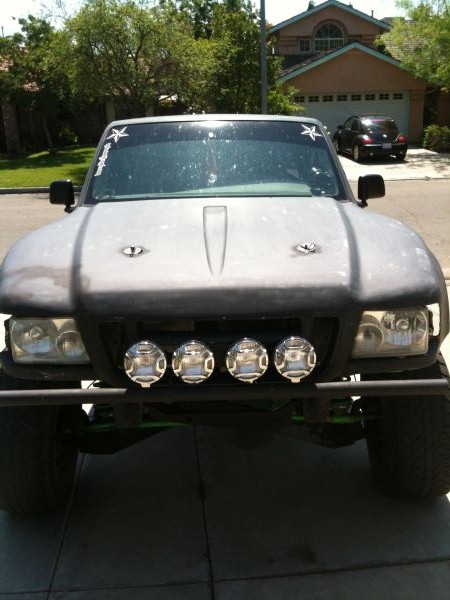

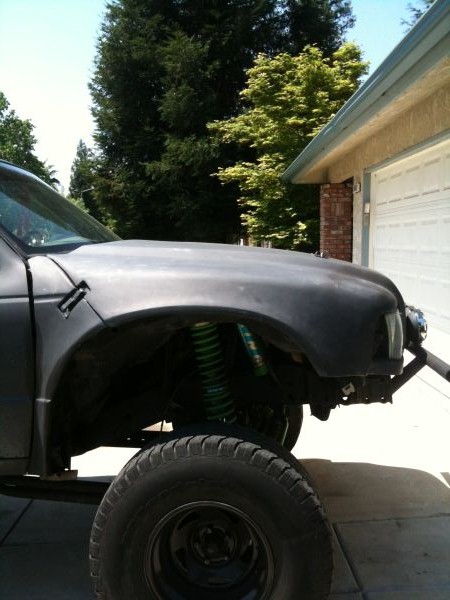

the clip

Attached Thumbnails
updating the front clip. 98 to 2000+-img_20120528_200856.jpg   updating the front clip. 98 to 2000+-1piece-3.jpg   updating the front clip. 98 to 2000+-1piece-1.jpg

Last edited by swickwake; 05-29-2012 at 12:30 AM.
Reply With Quote
  #2
Old 05-28-2012
DangerRanger96's Avatar
Member

Join Date: Aug 2010
Location: Thomasville, NC
Posts: 611
Reply With Quote
  #3
Old 05-28-2012
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
For your truck, you will need:
Header panel
front grille & surround
headlights and corners
Optional:
front bumper & lower valance.

PM member hurley, he recently did the swap and it was a breeze. I also converted my front end from 01 to 06+ front end. Mine was a little more extensive, but yours will be cake!
Reply With Quote
  #4
Old 05-29-2012
swickwake's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
Quote:
Originally Posted by DangerRanger96 View Post
^^^ did give some insight. thank you.

Quote:
Originally Posted by Clinton View Post
For your truck, you will need:
Header panel
front grille & surround
headlights and corners
Optional:
front bumper & lower valance.

PM member hurley, he recently did the swap and it was a breeze. I also converted my front end from 01 to 06+ front end. Mine was a little more extensive, but yours will be cake!
great wright up. i learned that i will have to go 01+ and im worried about the wiring to get the light to work.
Reply With Quote
  #5
Old 05-29-2012
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
You should be fine, PM Hurley and get his take on it. I dont think the wiring was an issue
Reply With Quote
  #6
Old 05-29-2012
swickwake's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
will do thank you.
Reply With Quote
  #7
Old 05-29-2012
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by swickwake View Post
i know that everything would bolt up if i was doing this with stock components but i would have to modify the electrical. i do not know what needs to be don't to make the 98 harness work with 01 components.

what do i have to do to make the 98 harness work with 01+ lights. im really interested and im looking for some education.
There really isn't much modifying needed. Remove a turn-signal bulb holder from the wiring and you're pretty much done.

Ideally, for a very clean result, I'd suggest removing the electrical tape far enough to see where the two bulb wire sets "WYE" or split into two sets, and remove the second from there. Then re-wrap with tape and you're done. It could be possible the pigtail for the small 194 bulb in the corner lamp is different between the 98-00 and 01+ trucks, but I'm a little unsure.



Quote:
my current clip
Do you have more pics posted of your truck? I'm interested in what your bed looks like. Looks like a dually style side! And I kinda really dig!
Reply With Quote
  #8
Old 05-29-2012
swickwake's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
Quote:
Originally Posted by Fx4wannabe01 View Post
There really isn't much modifying needed. Remove a turn-signal bulb holder from the wiring and you're pretty much done.

Ideally, for a very clean result, I'd suggest removing the electrical tape far enough to see where the two bulb wire sets "WYE" or split into two sets, and remove the second from there. Then re-wrap with tape and you're done. It could be possible the pigtail for the small 194 bulb in the corner lamp is different between the 98-00 and 01+ trucks, but I'm a little unsure.

Do you have more pics posted of your truck? I'm interested in what your bed looks like. Looks like a dually style side! And I kinda really dig!
simply cut the pig tail and thats it and worry about the corner bulb till swap. with the owner with the 01+ lights can he take the pig tail that i will be cutting off be able to and splice it in to his one blinker light to have two working blinkers.

this is my build thread. i have my bed sides like that to cover an f 150 axle that is planed to be swapped in in the next couple weeks. i go in to more detail in my build thread why i did this.

https://www.ranger-forums.com/project-logs-82/swicks-runner-109283/
Reply With Quote
  #9
Old 05-29-2012
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by swickwake View Post
simply cut the pig tail and thats it and worry about the corner bulb till swap. with the owner with the 01+ lights can he take the pig tail that i will be cutting off be able to and splice it in to his one blinker light to have two working blinkers.

this is my build thread. i have my bed sides like that to cover an f 150 axle that is planed to be swapped in in the next couple weeks. i go in to more detail in my build thread why i did this.

https://www.ranger-forums.com/showthread.php?t=109283
Pretty much...you've got it. But you don't wanna just cut yours off and leave 'em. There's still juice going to them. No body wants sparks. lol. You'll want to at least cap them off with crimp-on wire caps. Or put out the effort of tracing back the wiring to where it splits and remove from there.

The signal bulb holders may be a little bit different so you might be giving him your four for his two. 01+ are straight back. I believe 98-00 are 90-degree...like your taillight bulb holders. That's one of those deals you find out during the swap.



Thanks for the link! I'll thumb through it.
Reply With Quote
  #10
Old 06-04-2012
Member

Join Date: Mar 2012
Location: Bloomington, IL
Posts: 16
so you just cut off the extra turn signal and put caps on the the open wires?
Reply With Quote
  #11
Old 06-08-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
you need an ep27 relay also to stop hyperflash. it replaces the one under the dash.
