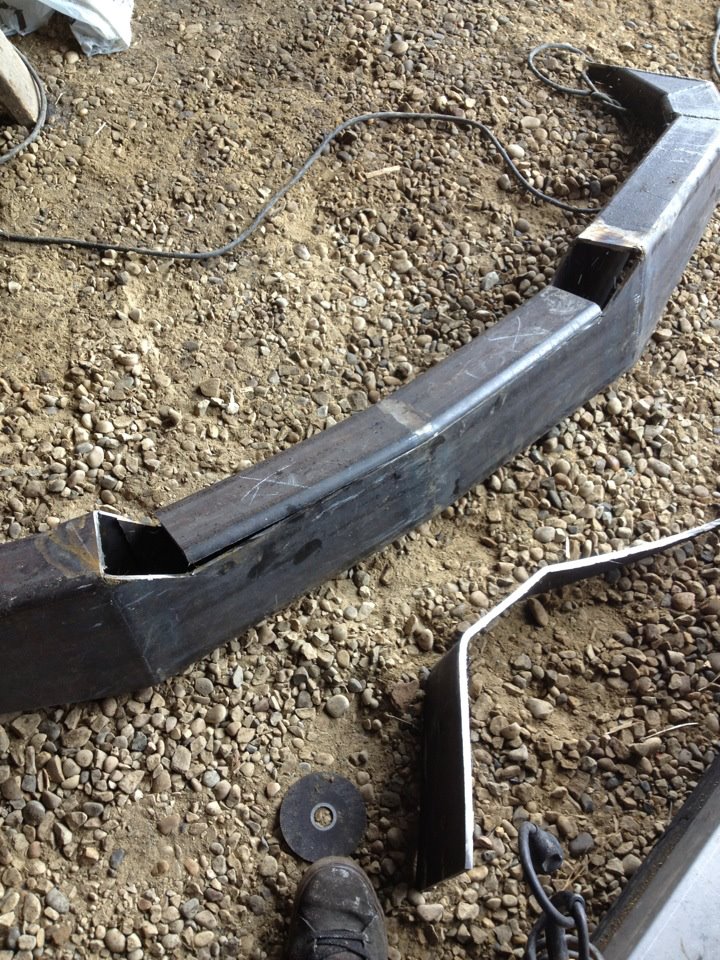

I redesigned the lugs, I have the shape back tacked together, As mentioned before I was going to use the tube radius to put back on, here's a pic to get you an idea. Should be working steady on it this set of days off so i'll keep everyone posted

Attached Thumbnails
2010 FX4 Bumper Build-582605_10150803022844553_501784552_11467035_527158377_n.jpg
Reply With Quote
  #27
Old 04-24-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looking good so far!
Reply With Quote
  #28
Old 04-29-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35
More progress from today, I now have the tube radius welded on the bottoms, I have cut my receiver tube hole, and welded stiffeners inside where i'm going to mount my 3/4'' lugs. I'm not quite sure if i'm going to leave the receiver tube where it is, or push it further back, it does stick out quite a bit there, but I don't have alot a room on the backside of the bumper between the truck to put the pin in my receiver tube (well that's a lie, i haven't really looked at it yet. Only had a propane torch to cut with lol

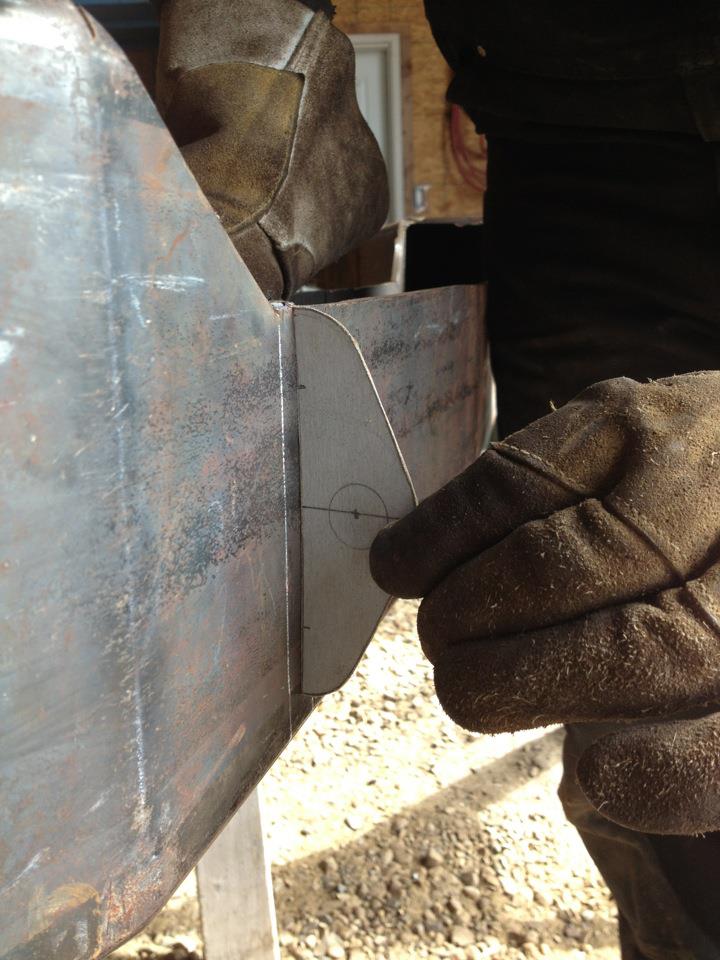

New lug pattern:

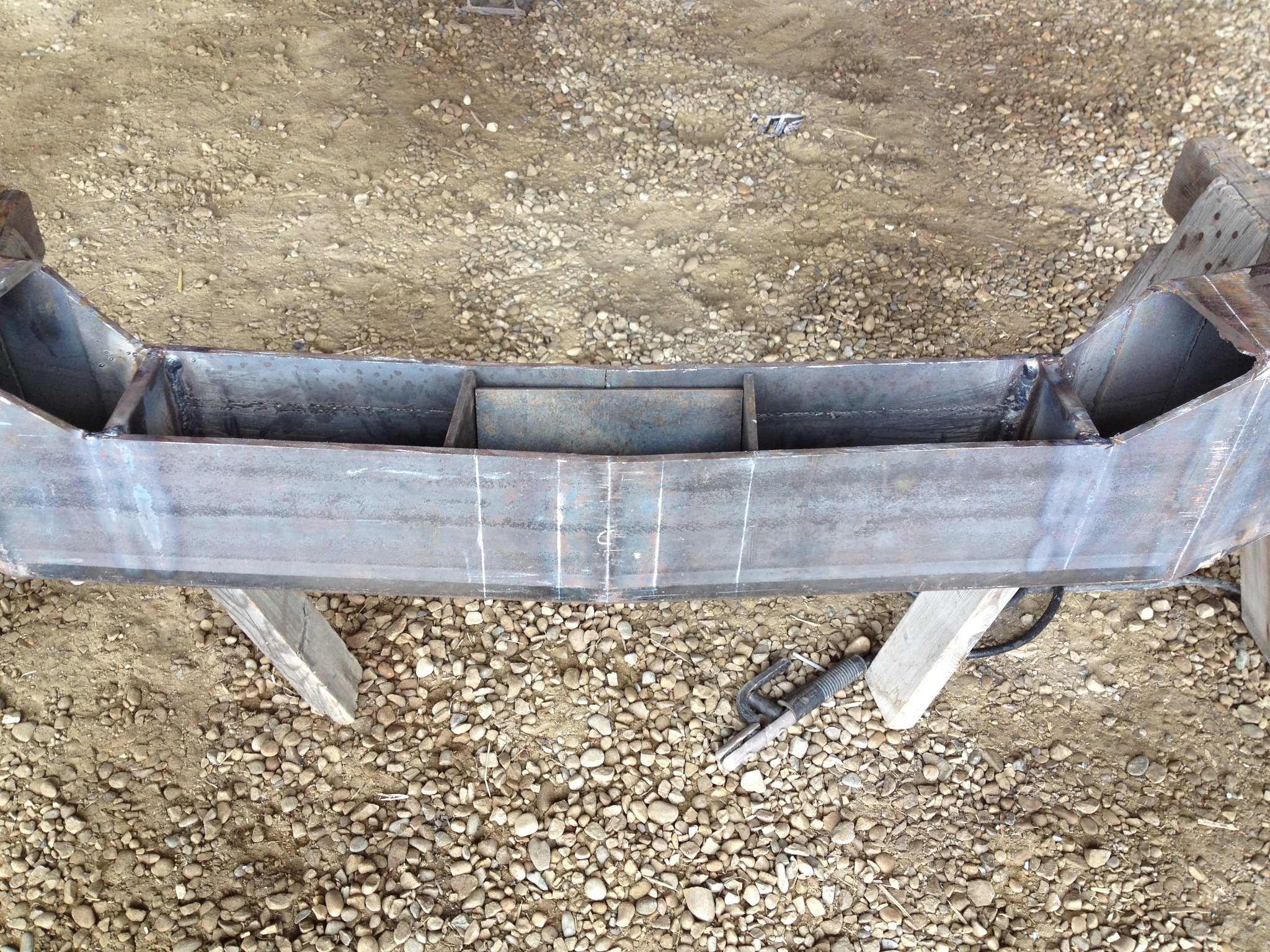

stiffeners for the reciever tube in the centre:

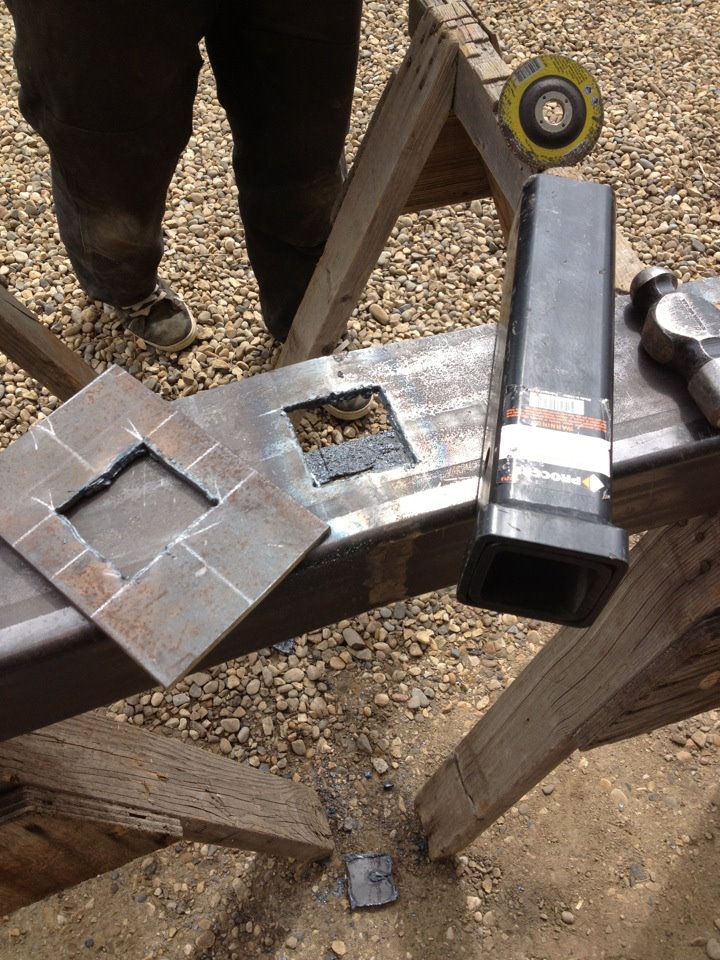

Holes cut with a propane/oxy torch:

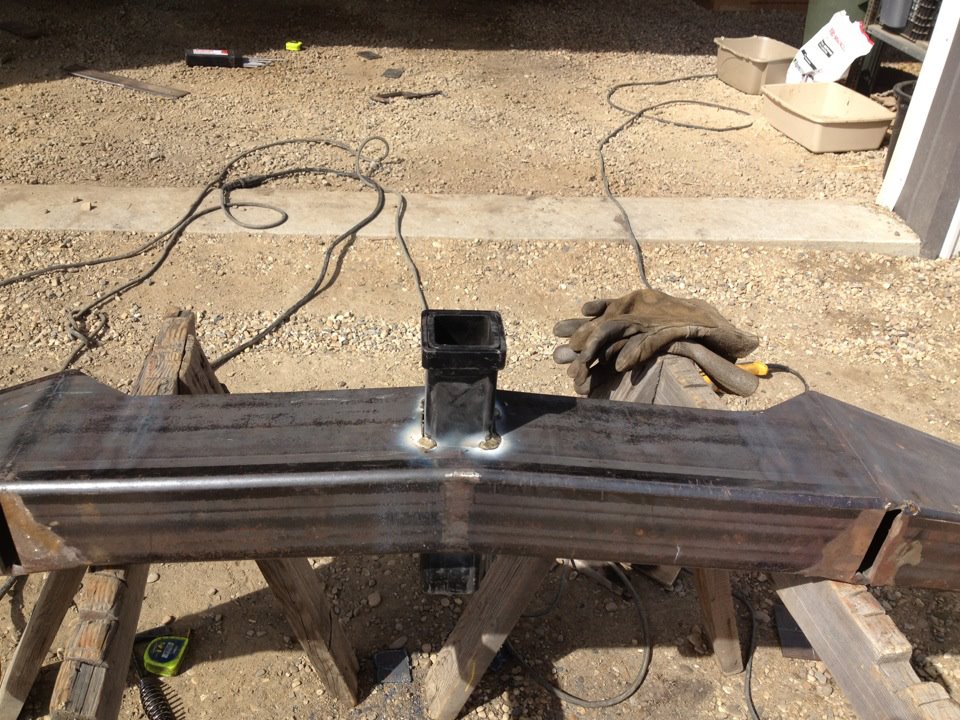

receiver tacked in:



Just a quick MS Paint rendering of how my Stinger's gonna look:

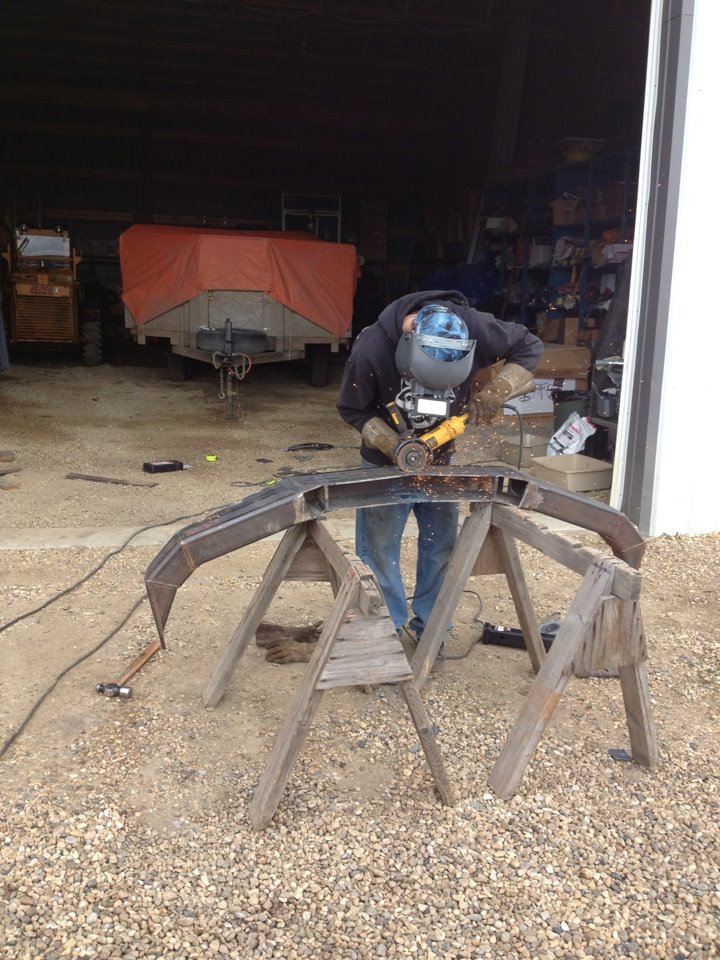

I did alot of this today :(

Attached Thumbnails
2010 FX4 Bumper Build-74755_10150848423639553_501784552_11596451_665834250_n.jpg   2010 FX4 Bumper Build-460001_10150848537589553_501784552_11596986_753230016_o.jpg   2010 FX4 Bumper Build-389247_10150848661109553_501784552_11597489_421793435_n.jpg   2010 FX4 Bumper Build-74773_10150848825779553_501784552_11598401_966328820_n.jpg   2010 FX4 Bumper Build-576286_10150848668184553_501784552_11597505_533527335_n.jpg


Last edited by Danger-Ranger FX4; 04-29-2012 at 08:19 PM.
Reply With Quote
  #29
Old 05-15-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35

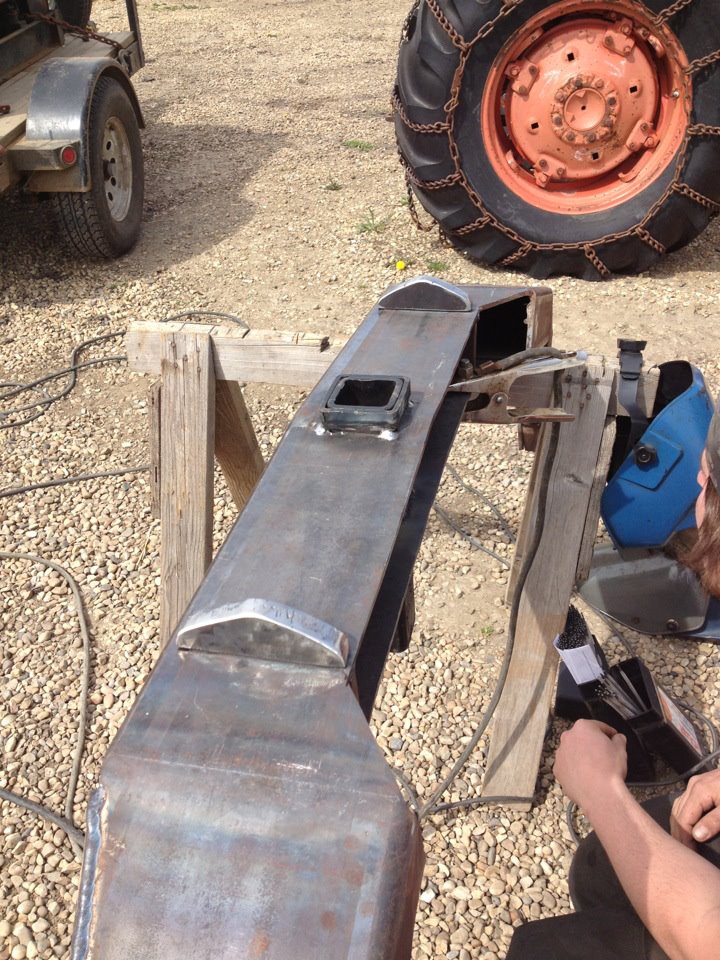

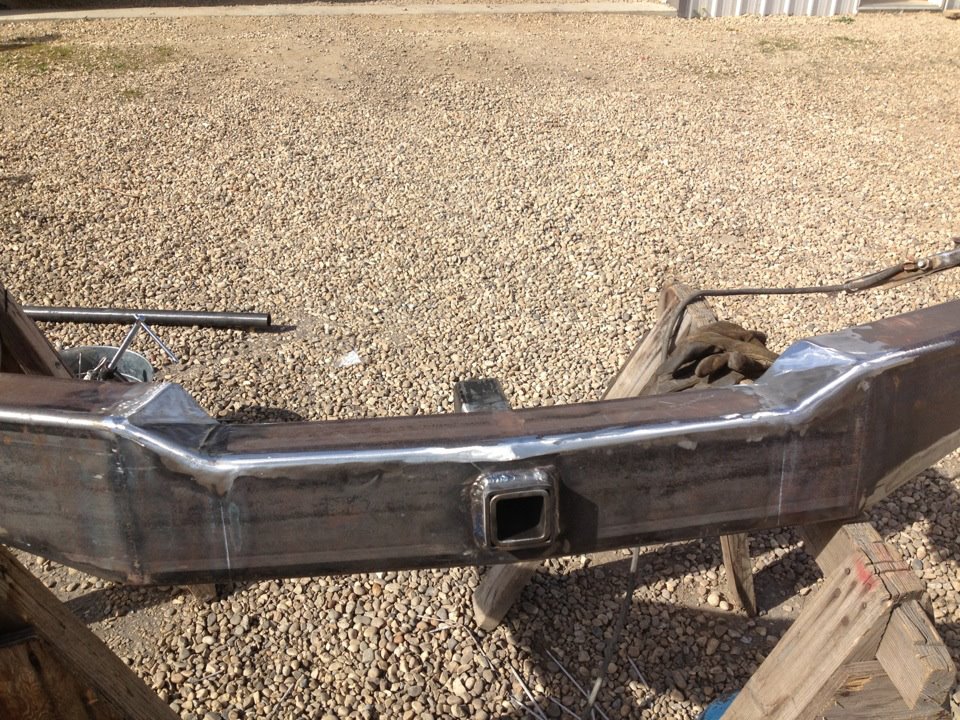

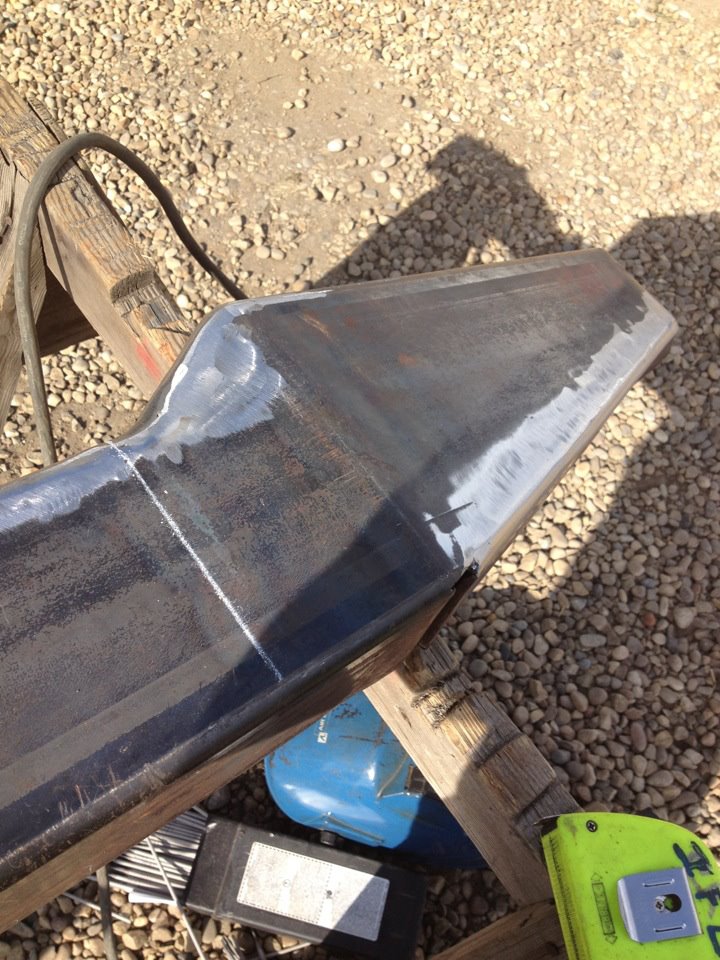

More progress today, I am changing a few things with my design (lugs and stinger) and I finished pretty much all of the welding/cleaning today, was trying to mount it as well but just didn't have a really good idea of how. Probably going to end up chopping my existing ears, and plate it directly to the frame. I dunno here's how she sits until monday.

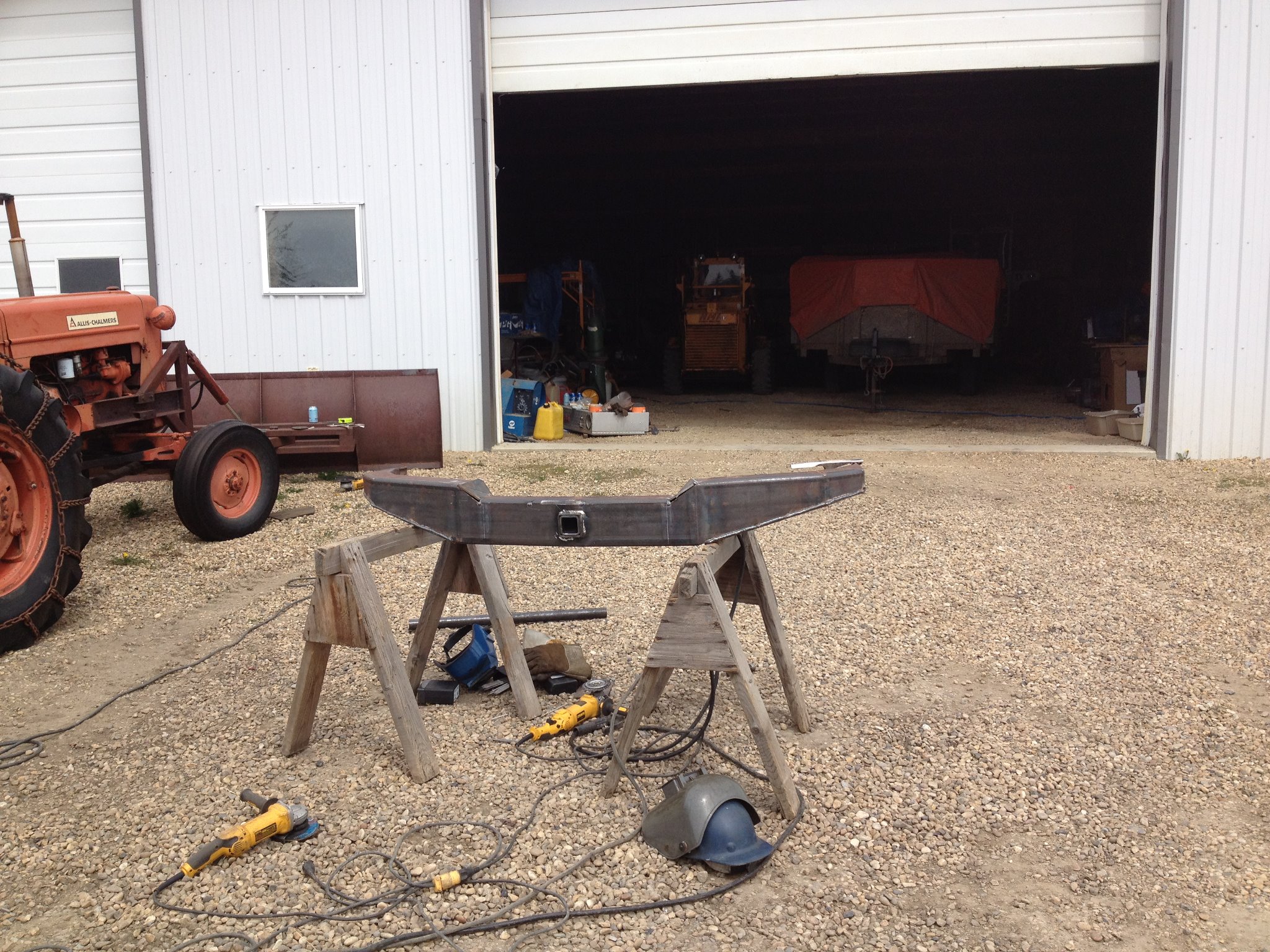

How it started today

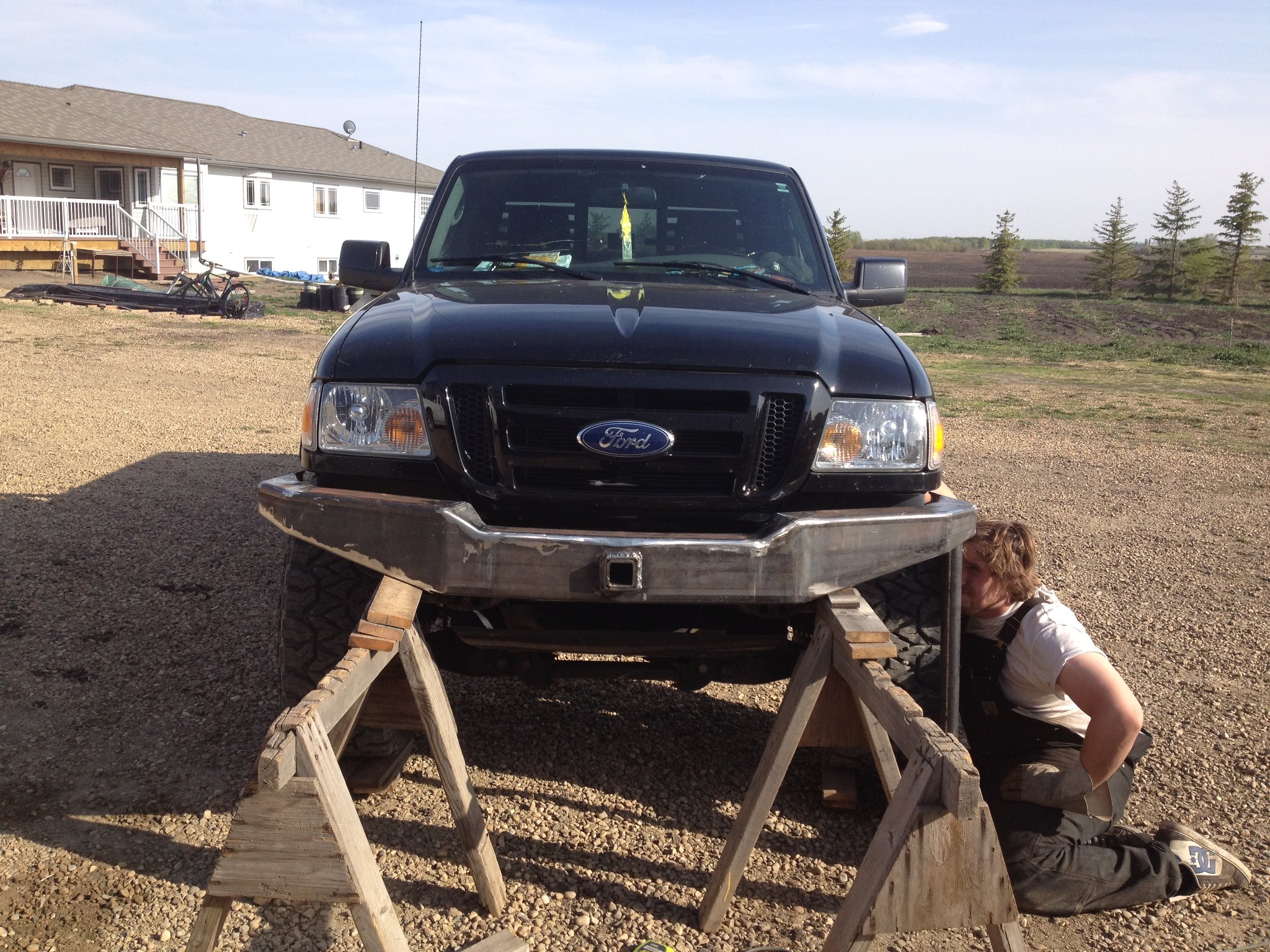

Trying to mount it, needed more steel :P The driver's side needs to come up about a 1/4''

Attached Thumbnails
2010 FX4 Bumper Build-471782_10150956017424553_501784552_11727382_270220400_o.jpg   2010 FX4 Bumper Build-580112_10150955891454553_501784552_11727020_604709098_n.jpg   2010 FX4 Bumper Build-547784_10150956699819553_501784552_11729163_1850231431_n.jpg   2010 FX4 Bumper Build-525767_10150956724264553_501784552_11729233_1732235188_n.jpg   2010 FX4 Bumper Build-462365_10150956891844553_501784552_11729834_154491839_o.jpg

Reply With Quote
  #30
Old 05-15-2012
andrew_deaton's Avatar
Member

Join Date: Jan 2012
Location: Martins Ferry, Oh
Posts: 336
looks great exactly how i want mine to look
Reply With Quote
  #31
Old 05-16-2012
RANGER_620's Avatar
Member

Join Date: Aug 2010
Location: Southpittsburg,Tennessee
Posts: 410
Looks great man..ready to see it painted
Reply With Quote
  #32
Old 05-16-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Pretty sick.
Reply With Quote
  #33
Old 05-16-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35
Quote:
Originally Posted by RANGER_620 View Post
Looks great man..ready to see it painted
Im going to paint it just temporarily (black). I have plans of sending my headache rack, front bumper and rear bumper (when I build it) into Line-X
Reply With Quote
  #34
Old 05-16-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
SWEET
Reply With Quote
  #35
Old 05-26-2012
green99's Avatar
Member

Join Date: Apr 2010
Location: OR
Posts: 199
Lookin good. Anymore progress?
Reply With Quote
  #36
Old 05-31-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35
Not really I cleaned it up a little nicer, trimmed the excess on a radius to finish the look just from the tire, and Tomorrow or saturday I have to build the stinger and mount it, and I already know its going to be a pain in the *** to mount lol
Reply With Quote
  #37
Old 05-31-2012
schooeric's Avatar
Member

Join Date: Sep 2011
Location: Westchester,Illinois
Posts: 113
looking beefy.
Reply With Quote
  #38
Old 06-03-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35

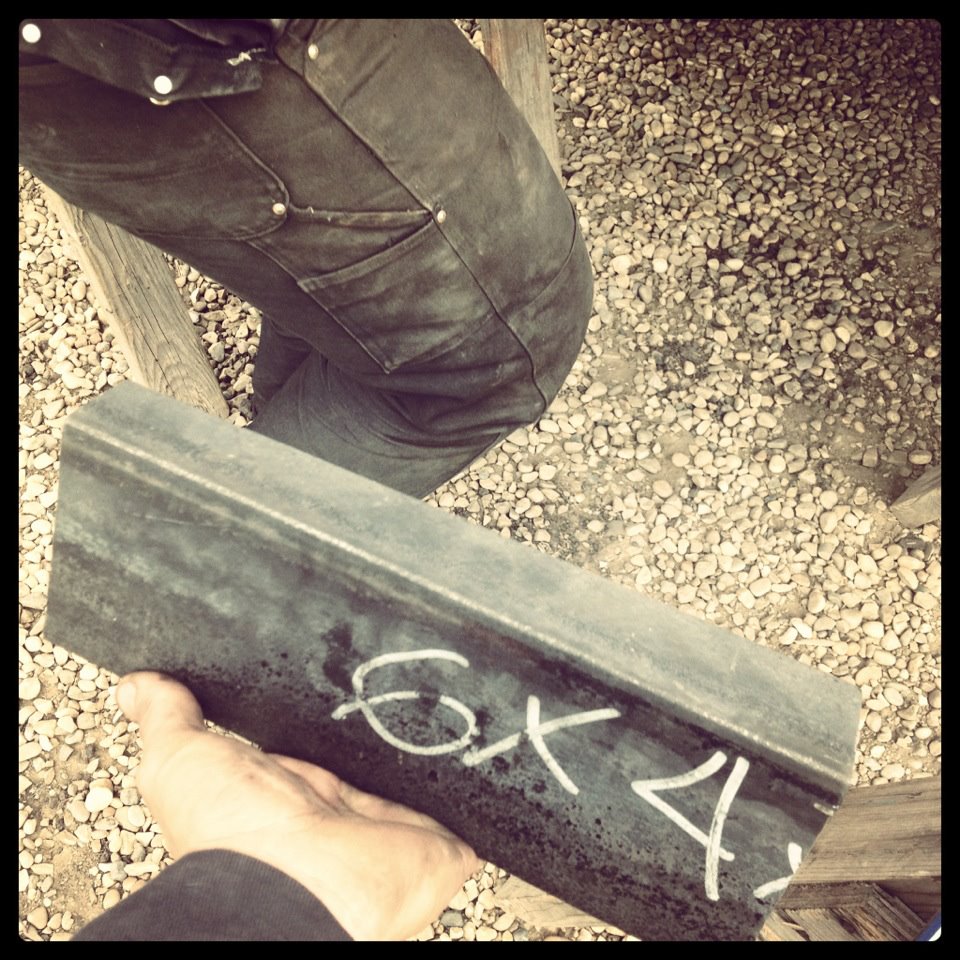

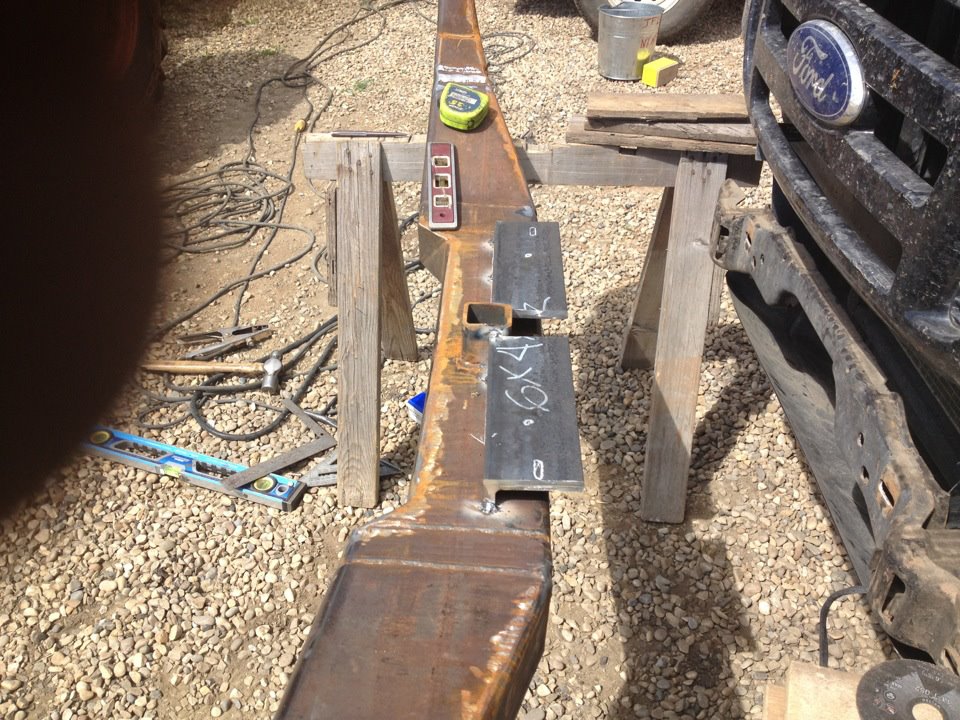

So it's still not quite done yet, (stinger and I have to shim it so it sits level on the truck) it was late last night. I am thinking i'm going to have to get my stinger mandrel bent, as i was unsuccessful on bending it myself (did not have a bender that was assembled...it was in pieces) AND I kinked my first piece of pipe, ---- suckers. Anyways heres how it went about mounting it and what have you, I have to shim it 1/4'' so the outside corners are following the body line and not the crossmember line (where it's attached) It's mounted with 6x4x1/2'' angle that I coped down to 1.5''-2''x 4''.

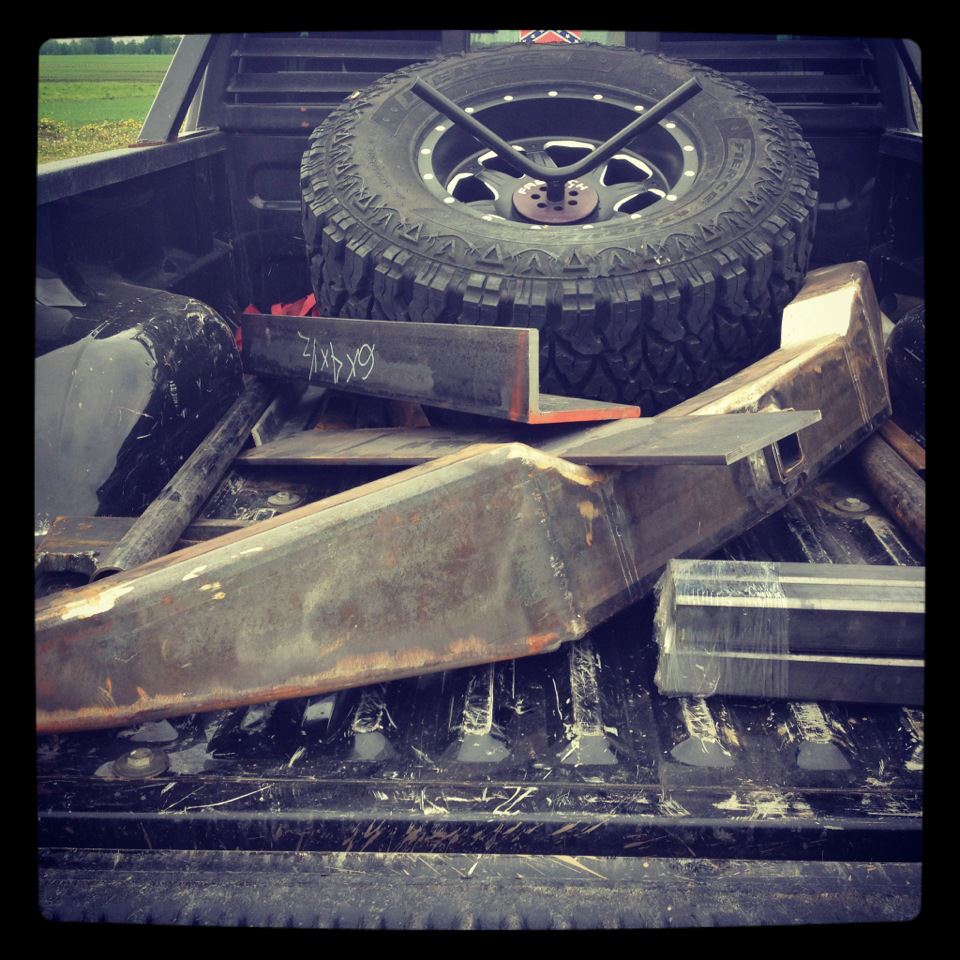

The steel pile:

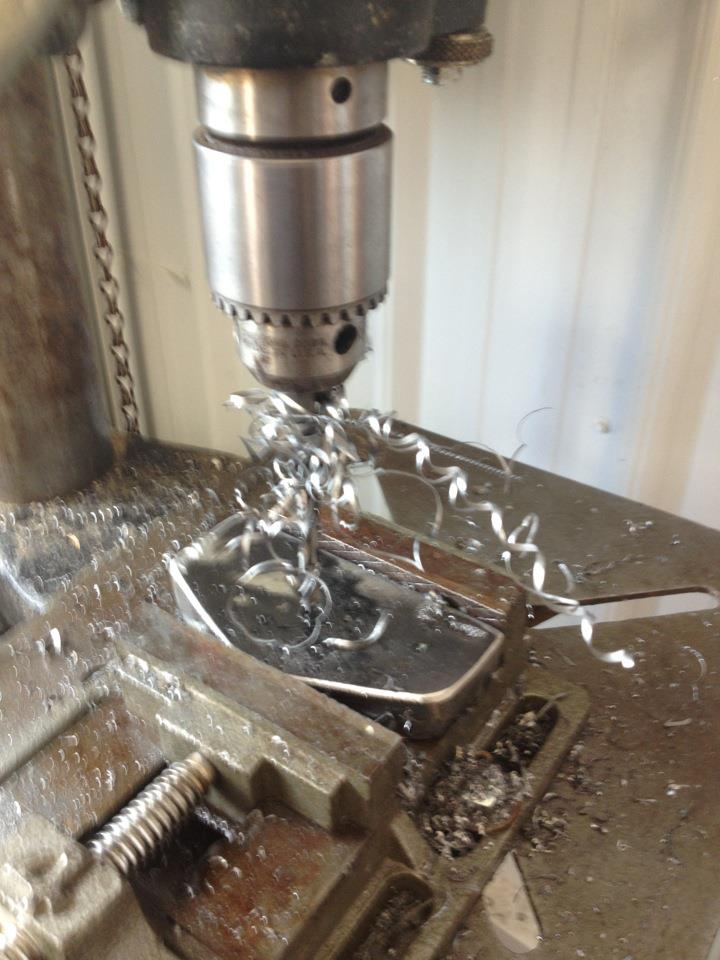

Drilling my lugs :) that was a sharp bit!

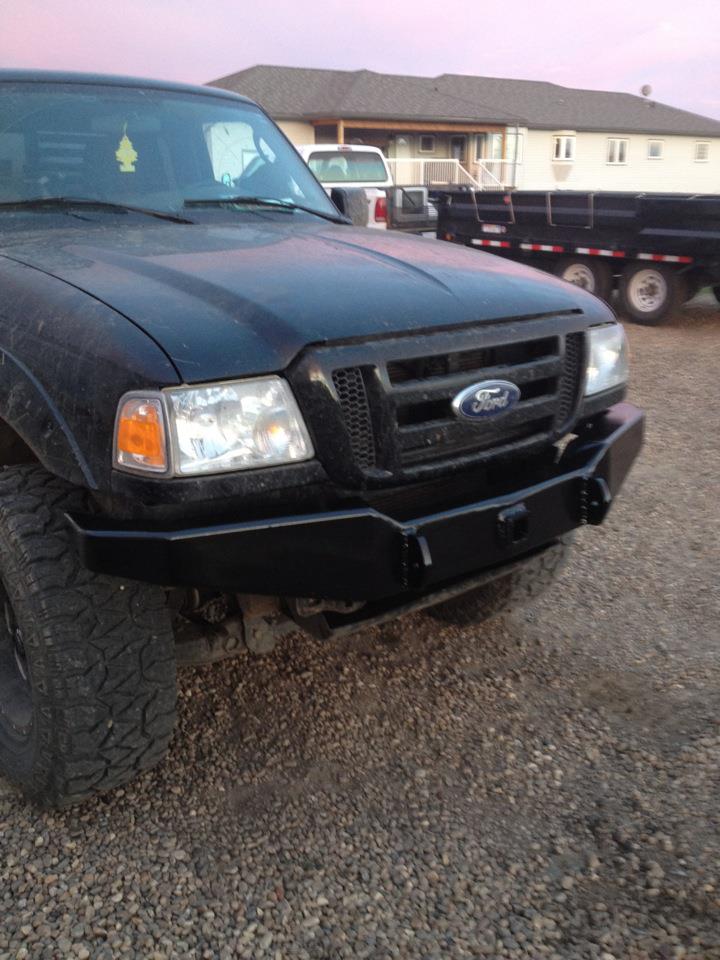

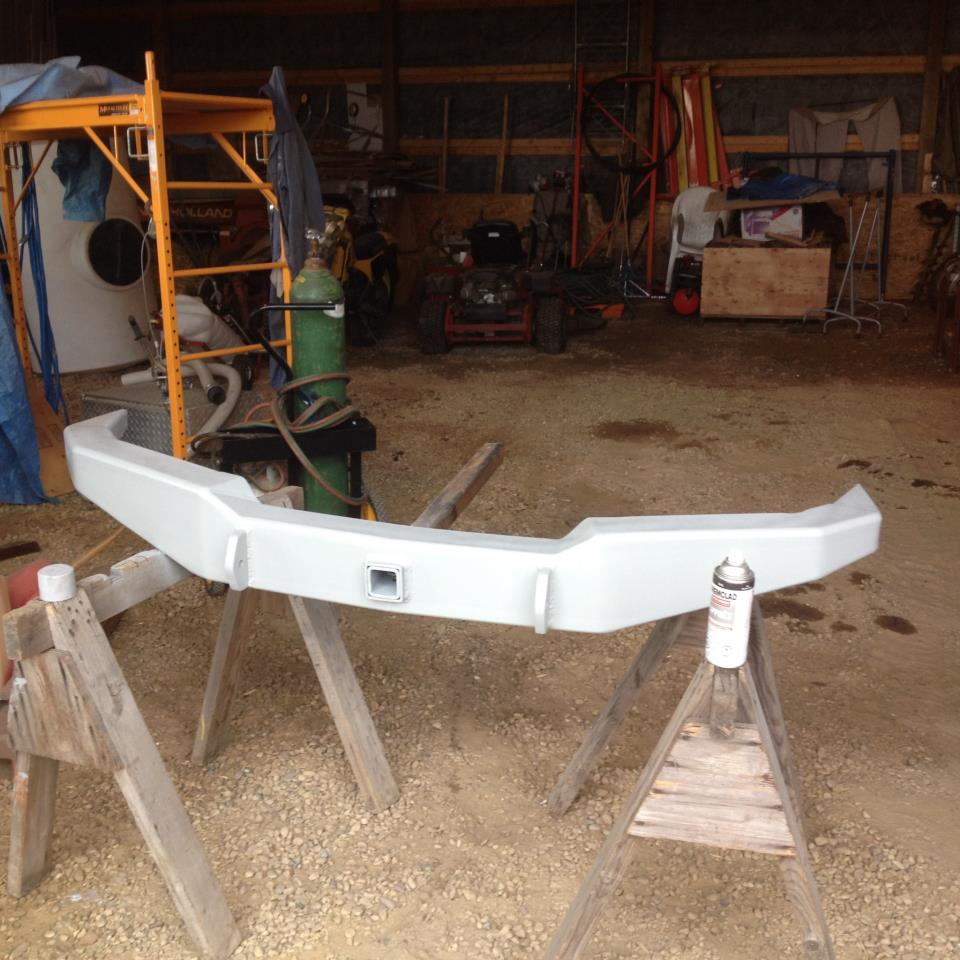

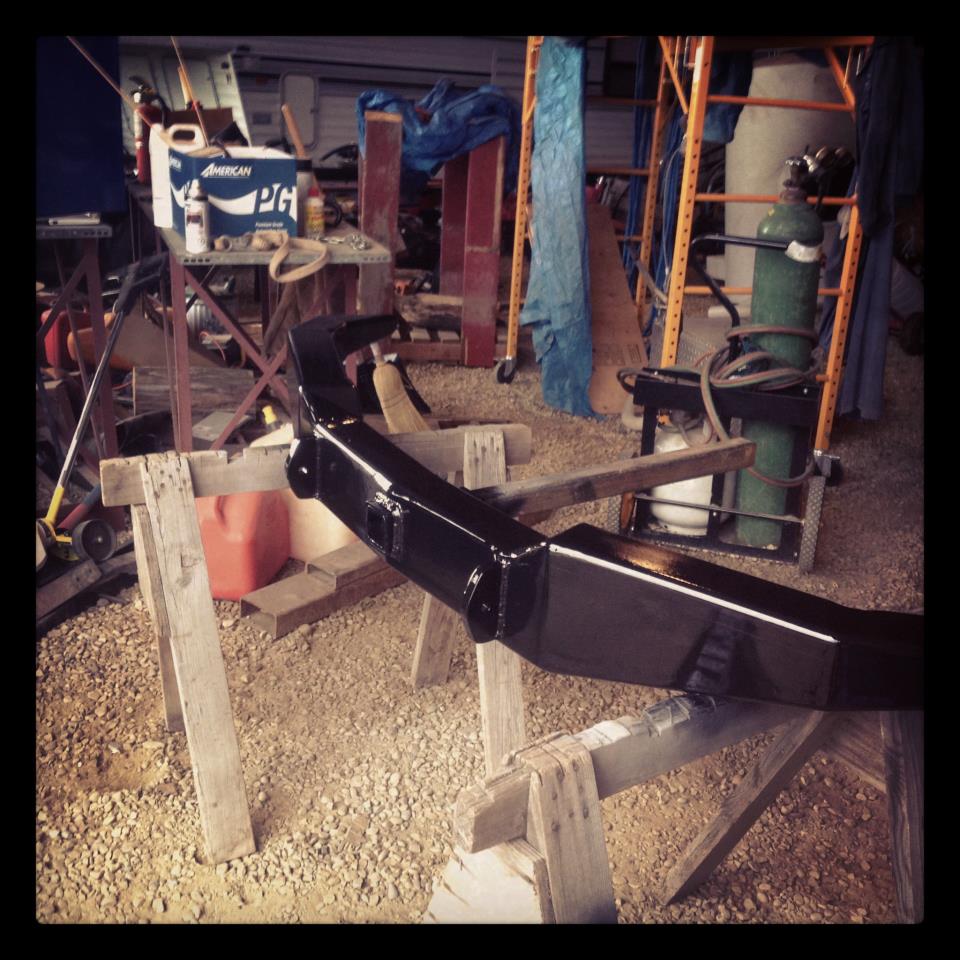

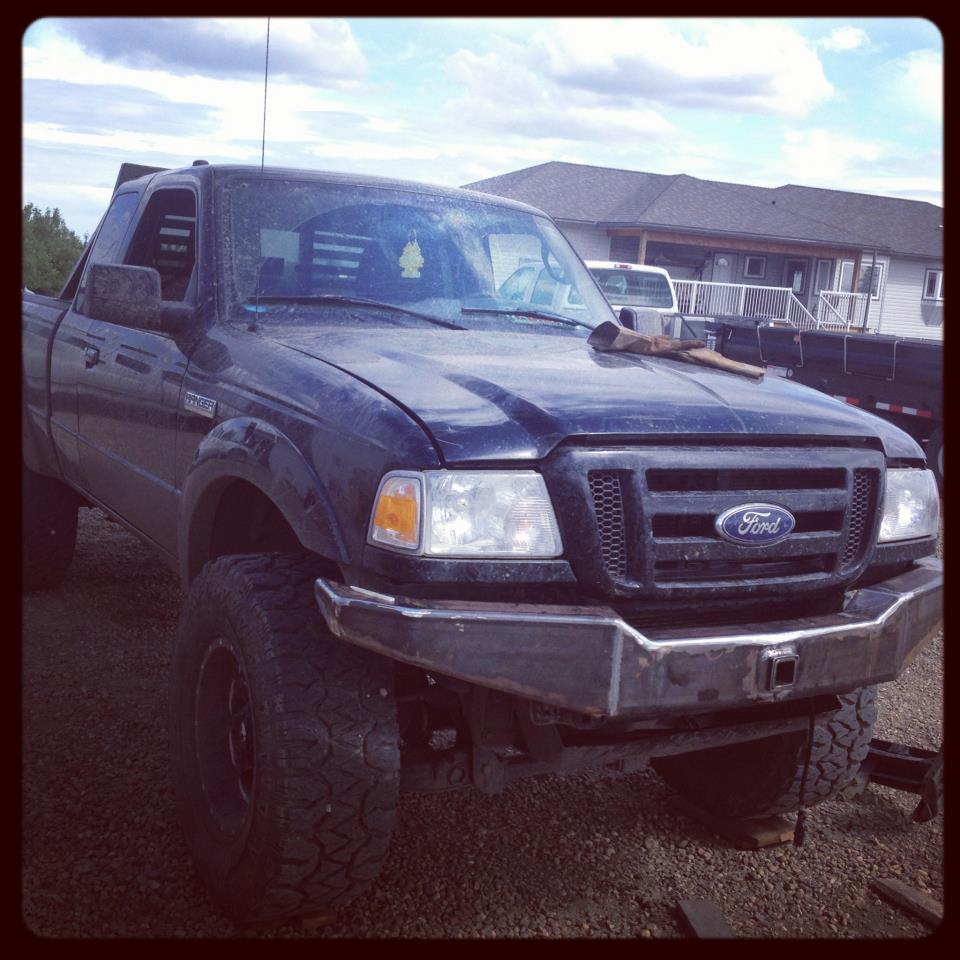

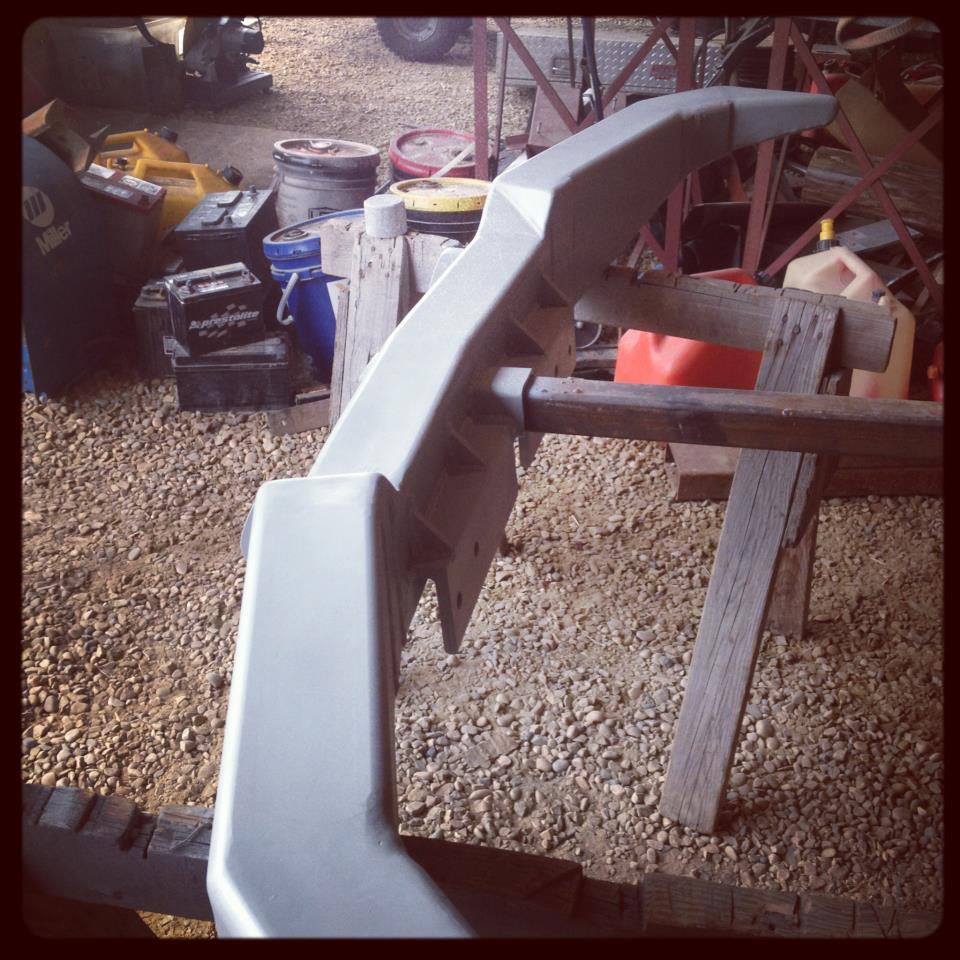

Painted and mounted:

Attached Thumbnails
2010 FX4 Bumper Build-576609_10151002482764553_501784552_11876808_1407517335_n.jpg   2010 FX4 Bumper Build-576996_10151002739259553_1327249294_n.jpg   2010 FX4 Bumper Build-551097_10151002691959553_501784552_11877493_52634929_n.jpg   2010 FX4 Bumper Build-560041_10151002980909553_759983990_n.jpg   2010 FX4 Bumper Build-579502_10151003077979553_368534902_n.jpg

2010 FX4 Bumper Build-317977_10151003250399553_501784552_11879336_1128815503_n.jpg   2010 FX4 Bumper Build-249176_10151003248144553_306211248_n.jpg   2010 FX4 Bumper Build-206046_10151003288944553_1940931905_n.jpg   2010 FX4 Bumper Build-579431_10151003447814553_501784552_11880202_1815013934_n.jpg
Reply With Quote
  #39
Old 06-03-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good! Any plans for skid plates?
Reply With Quote
  #40
Old 06-04-2012
PSIJOE's Avatar
Member

Join Date: Nov 2011
Location: Sacramento, CA
Posts: 1,311
Sick A$$
Reply With Quote
  #41
Old 06-04-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice work!
Reply With Quote
  #42
Old 06-05-2012
Member
Thread Starter

Join Date: Jul 2011
Location: Edmonton
Posts: 35
plan on taking my current skidplate plate off, and forming my own out of 1/8'' with a logo cut into it. it will be removable, so that way i can take the bumper off without taking the skidplate off
Reply With Quote
  #43
Old 06-05-2012
Redneck Ranger's Avatar
Member

Join Date: Feb 2012
Location: Wilkes-Barre, PA
Posts: 249
TThat's really badass dude. Wanna make me one? lol
Reply With Quote
  #44
Old 06-06-2012
biketheozarks's Avatar
biketheozarks

Join Date: Nov 2011
Location: Northwest Arkansas
Posts: 205
Quote:
Originally Posted by Redneck Ranger View Post
TThat's really badass dude. Wanna make me one? lol
Seriously, interested in building another?
Reply With Quote
  #45
Old 06-06-2012
Pikesnogle's Avatar
Member

Join Date: Jun 2012
Location: Ashburn, VA
Posts: 22
Awesome man, that is really great!

Wish I had that set of tools but at last check a grinder doesn't often help a carpenter.. and you can't build a bumper with a nail gun... LOL
