Built a front receiver and got a winch!!!

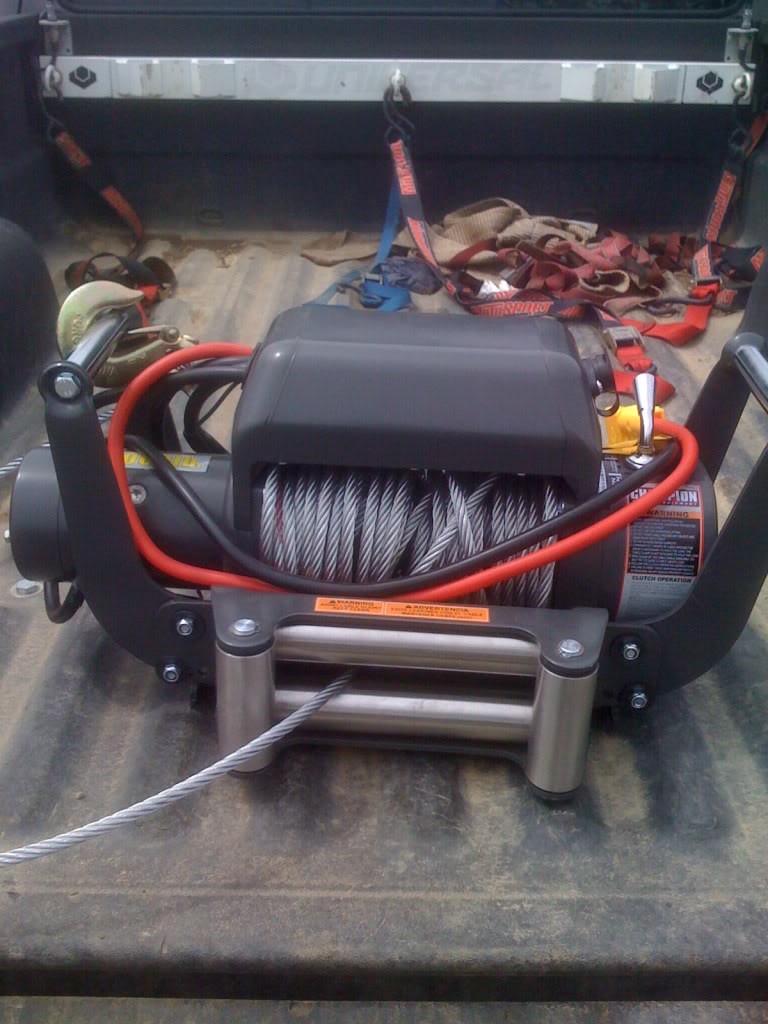

So the other day i was at Sams Club, and on the clearance rack they had a champion 10,000lb winch for $299.00. I hade some birthday money on hand and i couldnt pass it up. It's mounted on a 2" hitch mount plate and came with 85 feet of winch cable, the controler, and front and rear wireing conectors. Hears some pics!!!

Name:  IMG_0278.jpg
Views: 8
Size:  110.0 KB

Name:  IMG_0280.jpg
Views: 7
Size:  68.0 KB
hitch off our old minivan

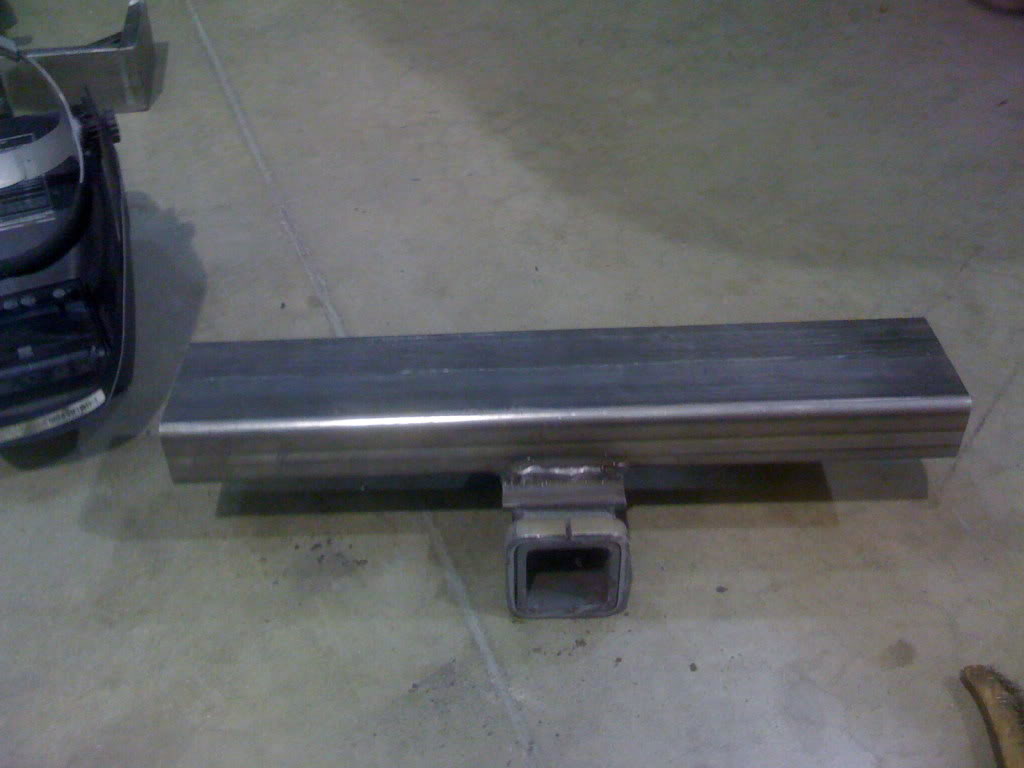

Name:  IMG_0282.jpg
Views: 8
Size:  63.7 KB
cut off receiver and welded it to a 2x6 stainless steel 1/4wall piece of scrap my buddie had in his shop.

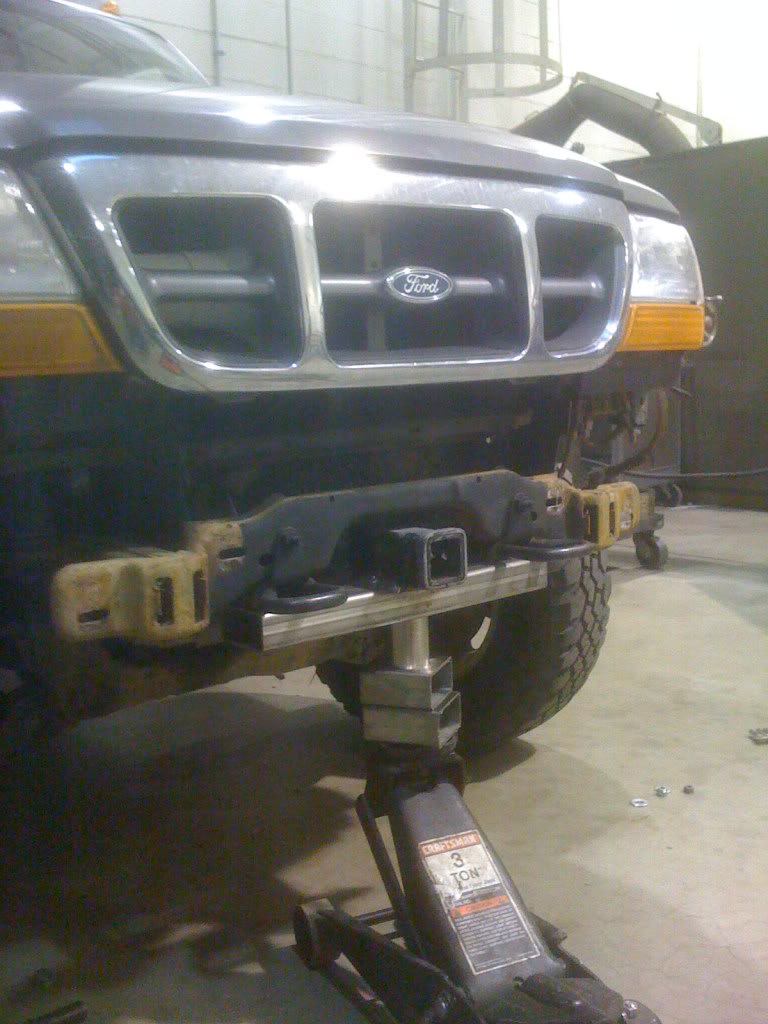

Name:  IMG_0283.jpg
Views: 7
Size:  103.5 KB

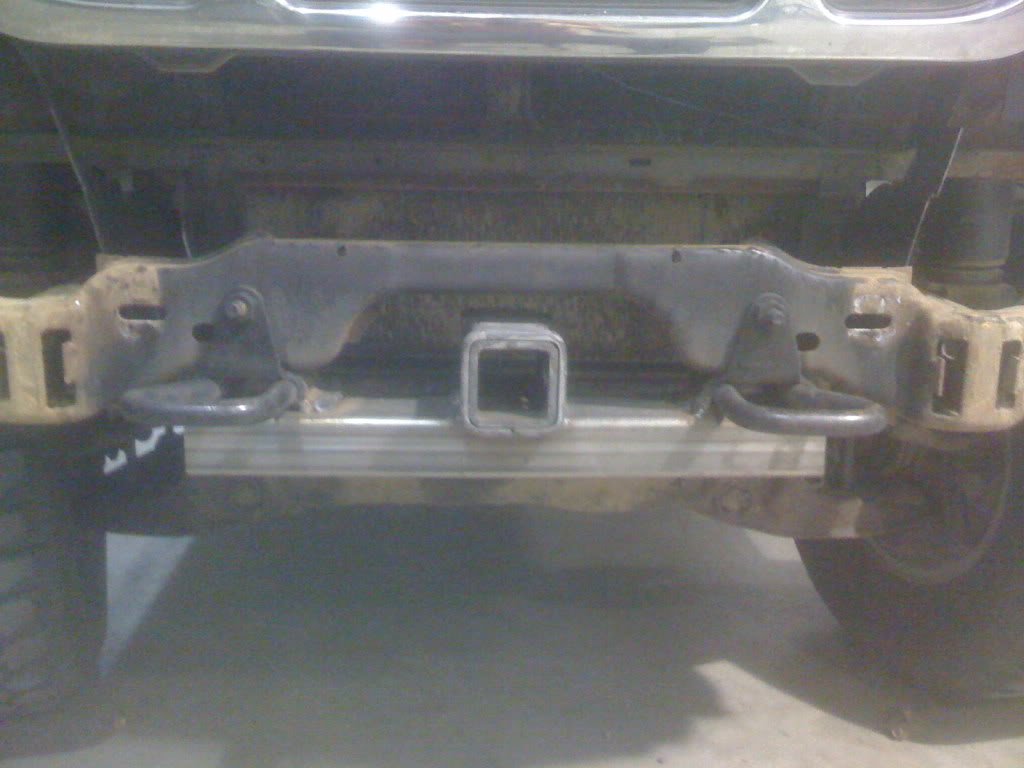

Name:  IMG_0287.jpg
Views: 8
Size:  72.2 KB


painted

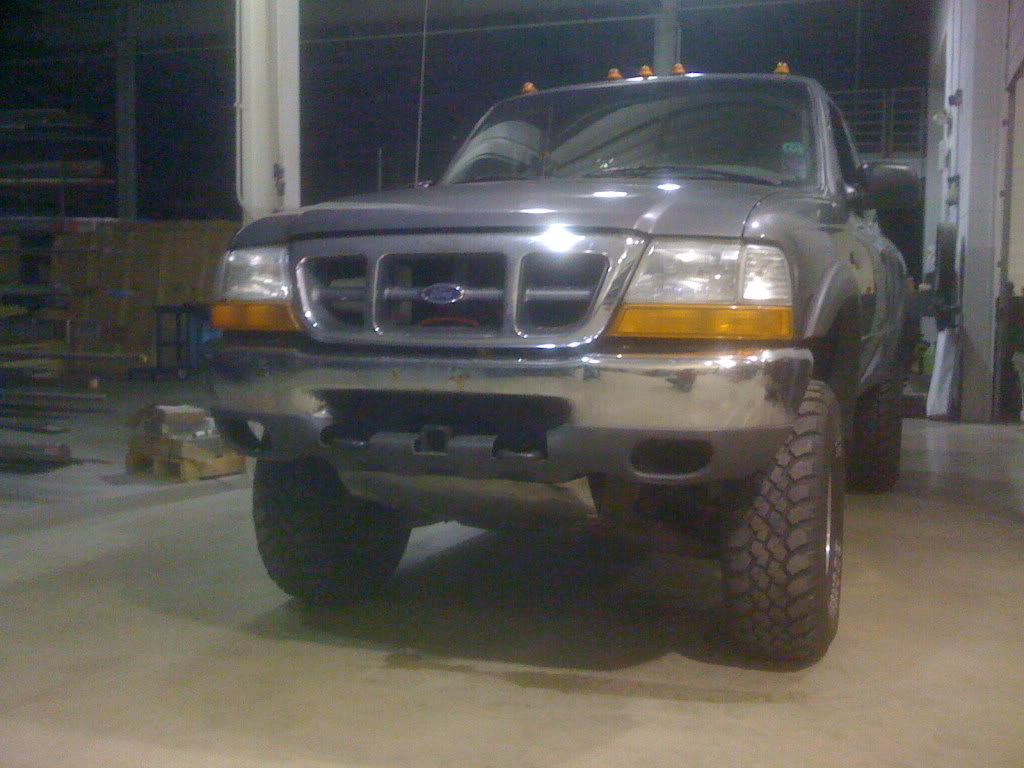

Name:  IMG_0290.jpg
Views: 8
Size:  97.5 KB


I tested it out the night i put it on, held up great winched me out of a deep hole that i was framed in. What do guys think?
Reply With Quote
  #2
Old 05-03-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
wow dude! thats cheaper than a china HF winch... i like the hitch mount really cool!
Reply With Quote
  #3
Old 05-03-2009
ns_red7's Avatar
Member

Join Date: May 2007
Location: Coldbrook, Nova Scotia, C
Posts: 558
Looks nicely done, and sure is a nice thing to have on the trail.
Reply With Quote
  #4
Old 05-03-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Nice man. If I had any money left over I'd probably get a winch lol.
Reply With Quote
  #5
Old 05-03-2009
EricRanger's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
Name:  3312_1099997336965_1137600270_30386.jpg
Views: 4
Size:  30.3 KB
one more.
Reply With Quote
  #6
Old 05-03-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
nice! i need to keep my eyes open for one of those. winch is one of the next things i plan on doing on my truck
Reply With Quote
  #7
Old 05-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Dude, you stole that think @ $300, go back and grab one for me.
Reply With Quote
  #8
Old 05-03-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
That thing is only $300? I'm not so fond of having a winch on a 2wd, but i'd sure rock a hitch mounted one! Since I'm usually the one who needs drug lol
Reply With Quote
  #9
Old 05-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You welded it to the tow hooks?? Good deal
Reply With Quote
  #10
Old 05-03-2009
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
i want a winch :( looks good. i cant wait til i have my front receiver
Reply With Quote
  #11
Old 05-03-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Name:  IMG_0288.jpg
Views: 5
Size:  66.5 KB

I didnt notice that before, i thought it was supported between the frame. Just using that stock tow hook crossmember, if you end up using all the umph that winch will kick out. I bet money you'll twist that stock crossmember like a pretzel!

square crossmember ftw
Reply With Quote
  #12
Old 05-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah I wouldn't trust it much pulling straight on the tow hooks. What I plan on doing is putting a piece of square tubing between the frame rails that butts up to the front crossmember than weld the tube to that.
Reply With Quote
  #13
Old 05-03-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by 04blackedge View Post
Yeah I wouldn't trust it much pulling straight on the tow hooks. What I plan on doing is putting a piece of square tubing between the frame rails that butts up to the front crossmember than weld the tube to that.
Yea. I could pull a house down with the current way my hooks are. (well i have pulled a good tree down lol). But the stock crossmember I cut out, that had stock hooks were tweaked bad. Everytime (3x) i used the front hooks, i had to get the HUGE prybar out and tweak the hook back down. Also with adding that front crossmember to mine, I immediately noticed a stiffer front end while driving.
Reply With Quote
  #14
Old 05-03-2009
EricRanger's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
I'd like to build a custom front bumper for my truck but i cant till im out of school. I was home for the weekend and built that so i could use the winch. so ill run this set up till next year or untill i break it. lol
Reply With Quote
  #15
Old 05-03-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
10k lbs winch for $299! dang, thats a killer deal! Hope it works out for you
Reply With Quote
  #16
Old 05-04-2009
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
marked
Reply With Quote
  #17
Old 05-04-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That looks great! Good deal too.
Reply With Quote
  #18
Old 05-04-2009
Bumpncarstereo's Avatar
Member
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
nice grab. they never had that in any of the sam's around here.
Reply With Quote
  #19
Old 05-04-2009
EricRanger's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
I love having it on my truck, i get tons of looks now. plus with the body lift i just did i sit level with full sized trucks. lol
Reply With Quote
  #20
Old 05-04-2009
GreenGiant's Avatar
Member

Join Date: Mar 2009
Location: Beavercreek, OH
Posts: 376
wow! looks really good!
Reply With Quote
  #21
Old 05-04-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
That was a huge piece of stainless steel. Lots of money right there. It would have been better looking if you bumped the hitch up a few inches so you didn't have to cut your valance. How did you weld the hitch to the SS plate?
Reply With Quote
  #22
Old 05-04-2009
EricRanger's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
Quote:
Originally Posted by Dangerranger01 View Post
That was a huge piece of stainless steel. Lots of money right there. It would have been better looking if you bumped the hitch up a few inches so you didn't have to cut your valance. How did you weld the hitch to the SS plate?

I got the stainless for free cauz it was scrap. I uesed stainless welding wire in a mig welder.
Reply With Quote
  #23
Old 05-04-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Awesome dude. So lucky you can have that.
Reply With Quote
  #24
Old 05-05-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
thats very nice way to mount it.

lol 2 bad i diddnt think of it before i redid my bull bar :(
Reply With Quote
  #25
Old 05-05-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Nice idea.

Doesn't look like stainless filler metal to me. I call BS.
