CO2 Tank Hold Down

heres the CO2 Tank Hold Down i built up to keep my 20lb tank well planted in the truck while in motion on or off road.

the 2 brackets i bought from the local welding supply house. they were about 25 bux each. got some 3"x3/16" steel and some bolts, and done went to town. all i have left to do is pull it off and paint er up.

beats having it bungie corded into the corner rubbing on my tool chest. DOT would love this lol.


ahh much better:







and thanks to SparkYZ for your insite and use of ur tools

Last edited by Old Black Cat; 03-23-2008 at 04:36 PM.
Reply With Quote
  #2
Old 03-22-2008
DrivAPrerunner's Avatar
MrFantastic's alter ego

Join Date: May 2006
Location: San Luis Obispo/Riverside, CA
Posts: 677
Looks great, Justin, I should do something like that with the nitro bottles for the dez.
Reply With Quote
  #3
Old 03-22-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
So what's the CO2 for?
Reply With Quote
  #4
Old 03-22-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
air up tires, run an impact (i need a different regulator, mines not built for lots of flow) , many other uses. i like it cause i can air down and back up w/o waitin for a slow *** 12V pump or building a expensive onboard air system.
Reply With Quote
  #5
Old 03-22-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
True... I got 200 into my air setup with onboard air, 5gal air tank and air horns... I'd only like to run co2 to my intake tube for more dense air thus creating more hp lol
Reply With Quote
  #6
Old 03-23-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
i need to get something like that done with mine


right now im using a fire ext. bracket... It works, but I wont take it offroad like that
Reply With Quote
  #7
Old 03-23-2008
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
you drive around with a regulator on the bottle like that all the time?
Reply With Quote
  #8
Old 03-23-2008
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
Thanks for giving me credit for helping you, and letting you use my tools!!

Let's hope you dont get in an accident, I dont want an 800 PSI sledgehammer flying somewhere....
Reply With Quote
  #9
Old 03-23-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by gumby View Post
you drive around with a regulator on the bottle like that all the time?
i personaly do, most rigs ive seen with there setups do. its safe as long as its straped down. doesent really make a differance, the handle/valve guard is fine for a handel but wont do much to protect the valve.

on the inlet tube coming from the nut that fastens to the valve it has a slight indentation, which will allow the regulator stem to break off before the valve gets broken.

Quote:
Originally Posted by SparkYZ View Post
Thanks for giving me credit for helping you, and letting you use my tools!!

Let's hope you dont get in an accident, I dont want an 800 PSI sledgehammer flying somewhere....
i know i was frogetting something, all better now.

yea no wrecks period, lol. it feels to be a sound system, take alot for that thing to get loose.

and yay the gloss black paint is drying today have it all reinstalled tuesday or wensday.
Reply With Quote
  #10
Old 03-23-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
nice Justin! looks like there are alcoas back on your truck...are those Kevs for testing or did you get some?
Reply With Quote
  #11
Old 03-23-2008
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
That pic is from when we were playing around a few weeks ago
Reply With Quote
  #12
Old 03-23-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
that so doesnt look safe...
Reply With Quote
  #13
Old 03-23-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Redneckstone View Post
that so doesnt look safe...

which parts?
Reply With Quote
  #14
Old 03-23-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
mine is horizontal on the passenger wheel well.
Reply With Quote
  #15
Old 03-23-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by 99ranger4x4 View Post
mine is horizontal on the passenger wheel well.

mines strapped to the front of the bed
Reply With Quote
  #16
Old 03-23-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
if i didnt have a tool box it would be verticle in the front corner...
Reply With Quote
  #17
Old 03-23-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by Redneckstone View Post
that so doesnt look safe...
im listening........

Quote:
Originally Posted by 99ranger4x4 View Post
mine is horizontal on the passenger wheel well.
do you have any issues with drawing liquid CO2? maybe have a pic you can show us?
Reply With Quote
  #18
Old 03-23-2008
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
whats the refill cost of the co2?
Reply With Quote
  #19
Old 03-23-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by graniteguy View Post
whats the refill cost of the co2?
17 bux out the door.
Reply With Quote
  #20
Old 03-24-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by Old Black Cat View Post

do you have any issues with drawing liquid CO2? maybe have a pic you can show us?
when i need to use it i prop it upright, i know its supposed to be atleast like 45
or something like that

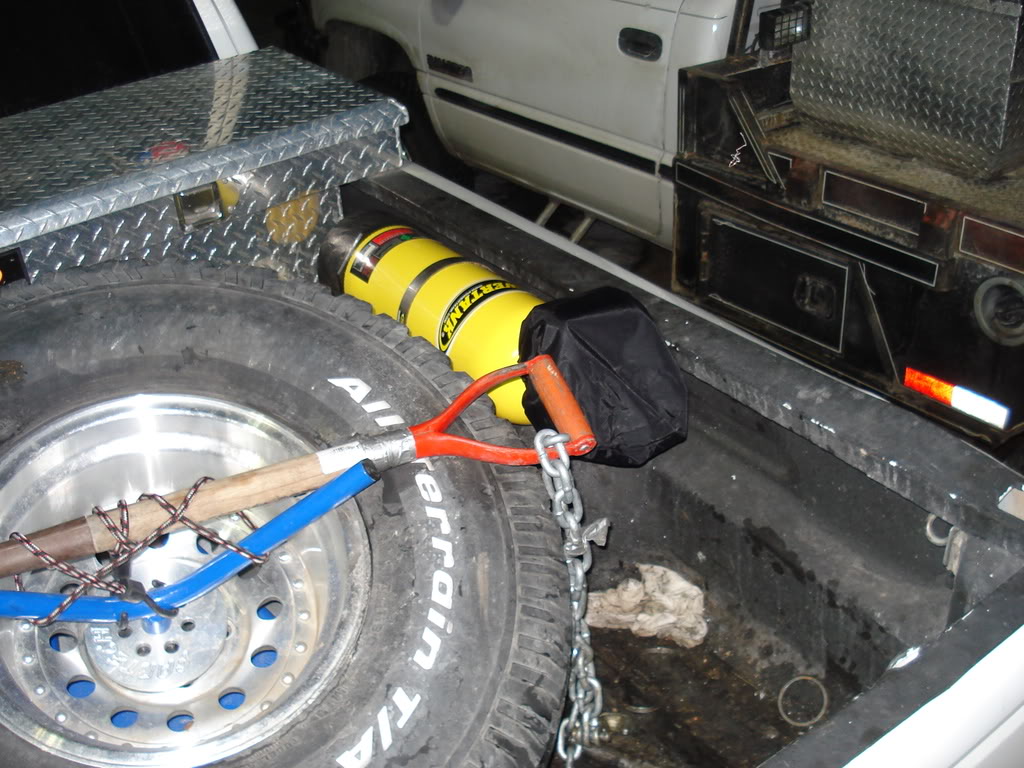

Name:  DSC03770.jpg
Views: 2
Size:  152.6 KB
Name:  DSC03772.jpg
Views: 3
Size:  95.2 KB\
Name:  DSC03769.jpg
Views: 2
Size:  136.6 KB

Quote:
Originally Posted by graniteguy View Post
whats the refill cost of the co2?
up in Laramie for up to a 20lb? bottle at the pepsi plant its $15
Reply With Quote
  #21
Old 03-24-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
thats an awsome mount, powertank make that?


edit: LOL if i want and got off my lazy *** id find my answer.....hahaha.

ok ill change my question how do you like that mount and hows it bolted down.

Last edited by Old Black Cat; 03-24-2008 at 12:21 AM.
Reply With Quote
  #22
Old 03-24-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yep!


lets just say... the night i broke the EVAP canister loose(bent the brackets, popped the hoses off) and bent the axle shaft... the FULL tank weighing in at ~37pounds didn't move... badass bracket!
Reply With Quote
  #23
Old 03-24-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
10 or 15LBer?
Reply With Quote
  #24
Old 03-24-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
15
Reply With Quote
  #25
Old 03-24-2008
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
how does that powertank regulator play with high CFM tools like impacts? the regulator i have ther orfices are not ment for alot of CFM. does tires jus fine tho.
Reply With Quote
