Custom Front crossmember

I have been thinking this out for a while, and now am ready to take this on....

I drive a 2wd xlt, so I don't have a front crossmember. I need a tow/pull point up front. I know a front reciever would be better, but lets forget about that for now....I just don't want to go there.

Here is my plan....get some square stock welded in where a crossmember would normally be on a 4x4 and attach some heavy duty tow hooks to it. I got under my truck, took measurements and all. I see no concerns of it actually fitting in there and serving its purpose.

Just wanted anybody's opinions on this.

Any suggestions on what size of square stock to use for the crossmember?

Any other concerns I should consider?
Reply With Quote
  #2
Old 02-13-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
I took my crossmember out years ago (custom bumper) but needed it back. So...

Hit the JY, got a hitch from an old van, cut it down, and welded between the two frame rails.

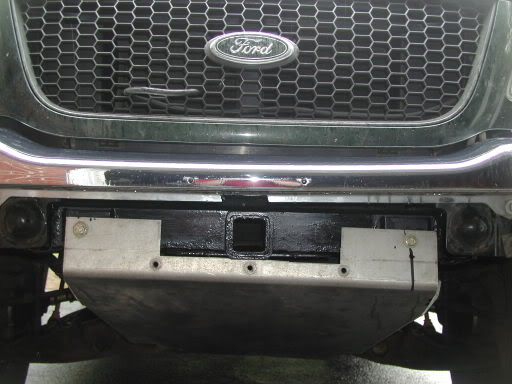

Name:  Hitchfront.jpg
Views: 4
Size:  38.9 KB

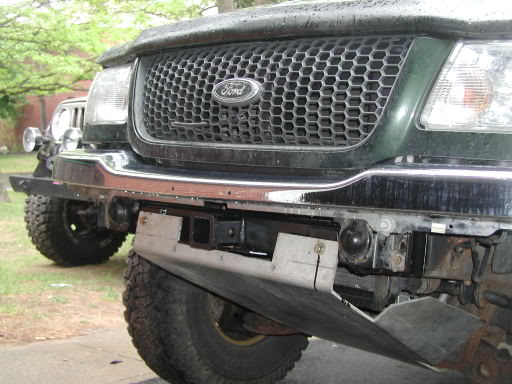

Name:  Hitch.jpg
Views: 4
Size:  44.9 KB
Reply With Quote
  #3
Old 02-13-2008
DaGGer's Avatar
Member

Join Date: Mar 2006
Location: East Windsor, CT
Posts: 919
where did you get that metal? I don't have a clue where to buy it from.
Reply With Quote
  #4
Old 02-13-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I know you said don't go there, but a front receiver costs about $100 and its waaaaaaaayyyyy stronger than tow hooks.
Reply With Quote
  #5
Old 02-13-2008
Crunchy's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Hull, Quebec
Posts: 486
Quote:
I know you said don't go there, but a front receiver costs about $100 and its waaaaaaaayyyyy stronger than tow hooks.
I'm in Canada though. Even JY's sell rusted out hitches for $100+, add welding and cutting the hitch to that cause I don't weld, well, I'm mlooking at $150+.


I got a guy who could do the front crossmember for under $50 with materials. For the amount it would be used, I'll save the $100 and put it towards something else, like a hitch for my rear :)

Just wondering if 2"x4" square stock is enough, or should I go 4"x4"
Reply With Quote
  #6
Old 02-13-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
2x4 shoudl suit you good.. a 4x4 is ****ing huge for a crossmember
Reply With Quote
  #7
Old 02-14-2008
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by Crunchy View Post
I'm in Canada though. Even JY's sell rusted out hitches for $100+, add welding and cutting the hitch to that cause I don't weld, well, I'm mlooking at $150+.


I got a guy who could do the front crossmember for under $50 with materials. For the amount it would be used, I'll save the $100 and put it towards something else, like a hitch for my rear :)

Just wondering if 2"x4" square stock is enough, or should I go 4"x4"
What wall thickness? I would go at least .25". BTW, I got that receiver for 30 bucks, 100 is crazy!
Reply With Quote
  #8
Old 02-14-2008
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Zach (zabeard) has a custom front crossmember, PM him.
Reply With Quote
  #9
Old 04-21-2008
justdareme4's Avatar
Member

Join Date: Mar 2008
Location: Calumet MI
Posts: 44
hey....i might just try that on my truck!
Reply With Quote
  #10
Old 04-21-2008
94greenmachine's Avatar
Member

Join Date: Aug 2006
Location: Virginia Beach, VA
Posts: 553
Look. All you need to do is go to Advance Auto Parts and pay the 20 bucks for 2 10,000 lbs tow hooks, and then tap and drill the holes on the frame rails in the front of the truck, just behind the bumper. This is not a hard task. It took me less than an hour to install both of mine, and that is the STRONGEST tow point you can make!
Reply With Quote
  #11
Old 04-21-2008
94greenmachine's Avatar
Member

Join Date: Aug 2006
Location: Virginia Beach, VA
Posts: 553
Quote:
Originally Posted by RazorsEDGE View Post
I know you said don't go there, but a front receiver costs about $100 and its waaaaaaaayyyyy stronger than tow hooks.

Damn Bro, that truck is lookin tight! Love the Paint Job! J/C, what tires are those, make and size? They don't look like 35x12.50 MTZ's. And how are those 4.88's workin for you? What MPG did you go from (with the 4.10's) when you installed the 4.88's? And what is your twin shifters there?
