hole in my frame :(

found something interesting today :(
its underneith the bed right above/next to the muffler

hole in my frame :(-12-2.jpg

hole in my frame :(-12-1.jpg

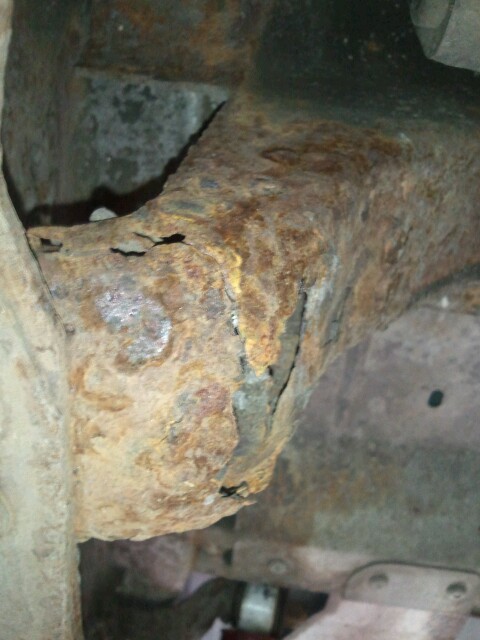

hole in my frame :(-12-4.jpg
Reply With Quote
  #2
Old 01-09-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
That doesn't look too good. I would think about boxing the frame in.
Reply With Quote
  #3
Old 01-09-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
It looks like that paet of the frame can be removed n mayb replaced.it goes over the fuel tank.
Reply With Quote
  #4
Old 01-09-2012
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
That sucks. My frame is pretty rusty but no holes yet. I think the heat of the exhaust speeds up rusting in that area.
Reply With Quote
  #5
Old 01-09-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
its Non-load bearing, but i wouldn't run around with it like that for ever. Get it fixed Asap.
Like Adam said, you'll need to have that part boxed in, i don't see much left to re-weld and making a patch panel won't be easy there.
Reply With Quote
  #6
Old 01-09-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Yeah, it doens look like there is much left there to weld to.

I say get it replaced. It might not be too easy, but it will be worth it.
Reply With Quote
  #7
Old 01-09-2012
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
That sucks man
Reply With Quote
  #8
Old 01-10-2012
Member

Join Date: Jul 2008
Location: Temecula, CA
Posts: 115
That sucks. I would try to replace it and do an undercoating on the entire frame to try and prevent anymore problems.
Reply With Quote
  #9
Old 01-10-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
Wirelessly posted

Shes pretty old so i guess its to b expected. Pretty sure that piece unbolts
Reply With Quote
  #10
Old 01-10-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
Wirelessly posted

Shes pretty old so i guess its to b expected. Pretty sure that piece unbolts
Reply With Quote
  #11
Old 01-10-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
I had the same problem with mine. I cut out the bad part and made a new piece that bolted in that wouldnt hold dirt and cause more problems
Reply With Quote
  #12
Old 01-10-2012
Member

Join Date: Jan 2012
Location: schenectady
Posts: 44
Sadly wholes are comon or atleasr for me lucky for you that is and easy fix ^^^^ as he daid make a new piece or have one made.

I was not so lucky years of neglect and improper wasing have lead to a 2 finger size whole just above each front spring hanger :(
Reply With Quote
  #13
Old 01-11-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
Wirelessly posted

Ya looks like this cross member is riveted in and it holds the muffler hanger and a braket that holds the fuel tank.
Reply With Quote
  #14
Old 01-11-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
Reply With Quote
  #15
Old 01-11-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 04RangerDave View Post
from MA too. nice
Reply With Quote
  #16
Old 01-11-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
Quote:
Originally Posted by 04RangerDave View Post
good find!
Reply With Quote
  #17
Old 01-11-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
yea ill be ordering mine-looks like they have a 6 to 7ft bed extension too. idk why i want that but it would be unique
Reply With Quote
  #18
Old 01-11-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
7 foot bed on an extened cab would be cool.
Reply With Quote
  #19
Old 02-13-2012
Member

Join Date: Apr 2011
Location: Milford, CT
Posts: 28
The 7 foot bed conversion looks sketch. I looked into it before and it looks like the bed is 6 inches longer before the wheel, and 6 inches behind the wheel, so just adding a foot to the end of the frame won't work.

For $150 it's prob easiest to just buy the replacement cross member. I fabed up all new rear cross members and some of the frame rails for about $70 worth of cut-off steel from a metal warehouse, but it was a lot of work.

The cross piece is riveted in, just needs to be drilled out. If you have the money and plan on keeping the truck for more than a year or two, I'd get a entire rear frame section from a newer wrecked ranger and swap the whole thing. The front and rear frames are held together with a few rivets. It wouldn't be much more work to replace the whole rear frame over just the cross member. Even if you replace the cross member and coat the rest of the frame, it is still paper thin and weak.
Reply With Quote
  #20
Old 03-24-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
Ok so finally ordered me up a crossmember replacement. Came in yesterday but for some reason the seller decided not to tell me that there out of the exhaust hangers. might not need it but hes going to to send me one next week sometime. Going to prime and paint the frame in some hightemp black. nothing fancy. going to start the project next sunday with my dad. remove the bed and just sand down and repaint everything! going to do the leafsprings, shackles, and hangers as well!

Attached Thumbnails
hole in my frame :(-camerazoom-20120324063256703.jpg
Reply With Quote
  #21
Old 03-24-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
I would recomend doing the shock mounts too if you are already going to replace that much.
Reply With Quote
  #22
Old 03-26-2012
Member

Join Date: Apr 2011
Location: Milford, CT
Posts: 28
I agree on the upper shock mounts. They are only $35 each at advance auto. I didn't change mine when I did my frame, they didn't look great but I decided to let them ride, few months later one broke.

Also for paint - look up POR15.
Reply With Quote
  #23
Old 03-26-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
yea thats a good idea. i suppose while im in there, i should do whatever i can.
Reply With Quote
  #24
Old 04-01-2012
Kris03's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
Did my frame repair today and what a d**m adventure. it took hours to get the crossmember out and another couple of hours to get the new one in to find its the wrong size, wrong location for bolt holes and the bracket for the gas tank doesnt fit. GOT TO BE KIDDIN MEE.

anyways...did the shackles and hangers-those came out pretty good. think i forgot something, or tightened them down to much because there squeeking but i have had enough and spend enough on this truck. giving up now.

here are some pictures.











Attached Thumbnails
hole in my frame :(-camerazoom-20120331173138668.jpg   hole in my frame :(-camerazoom-20120331173151102.jpg   hole in my frame :(-camerazoom-20120331173200036.jpg   hole in my frame :(-camerazoom-20120331173214680.jpg   hole in my frame :(-camerazoom-20120331173228017.jpg

hole in my frame :(-camerazoom-20120401151731259.jpg
Reply With Quote
  #25
Old 04-01-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
That was rough man.
good thing you got that fixed.
