light tab light bar

can anyone give me the dimension for the bar that goes between the light tabs?

thanks

Dan
Reply With Quote
  #2
Old 09-22-2008
hickmanfab's Avatar
Member

Join Date: Jul 2008
Location: Stockton, CA
Posts: 17
I don't the exact dimensions but this is what I Estimated. I haven't had a chance to make the actual setup to get the exact dimensions. The tab should be enough if you take a piece of flat stock that is about 7 in. Bend it at a 90 to have 2" piece and a 5" (where the lights will mount). [IMG][/IMG]
Reply With Quote
  #3
Old 09-22-2008
hickmanfab's Avatar
Member

Join Date: Jul 2008
Location: Stockton, CA
Posts: 17
Oh as a note someone will probably have the exact dimensions again I repeat these are just way rough numbers (it will probably not fit 2 8" and 2 5" lights)
Reply With Quote
  #4
Old 09-22-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Mines 24" outside to outside of the tabs I believe. I fabbed my tabs out of .250 x 1.500 flat bar.

imo...it's sorta variable. Put on your tabs, then measure, and cut your crossmember.
Reply With Quote
  #5
Old 09-22-2008
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
You'll need it longer than the tabs. To space 4 lights 9" would mean 27" from outside light hole to outside light hole.

x 9" x 9" x 9" x

You need another 1-1/2" on each end past the last hole. 30" would be the minimum length.

Install the light tabs then set the bar over it. Center it, then mark the holes to bolt them together.

use the formula above and the light tab won't interfere with the physical lights.
Reply With Quote
  #6
Old 09-22-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

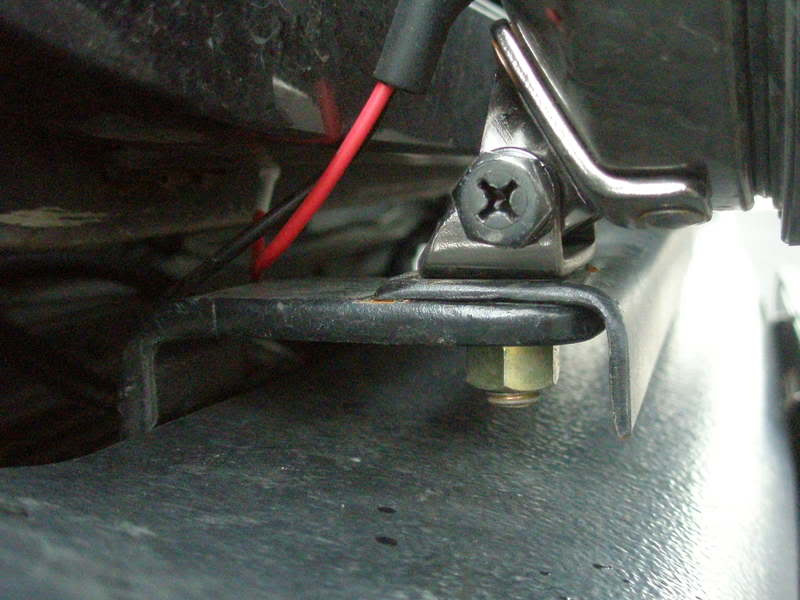

Not necessarily....I have my crossmember/bar mounted using the outside lamp mounting bolts....so same width at the outside width of the tabs. Just putting that out there.

Name:  PC150038-1.jpg
Views: 8
Size:  60.2 KB
Reply With Quote
  #7
Old 09-23-2008
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Hey Shane that is a nice light bar, hows it holding up?
Reply With Quote
  #8
Old 09-23-2008
Bumpncarstereo's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
thanks for the replies. I have the tabs made, bit D has them because he welded them together for me and I have lacked the time to go get them. anyways I wanted to get a jump on the cross bar being that I can work on that at work.
Reply With Quote
  #9
Old 09-23-2008
Bumpncarstereo's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
shane that is what I plan on doing as well. also what is the different between flat stock for the cross and angled?
Reply With Quote
  #10
Old 09-23-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by casfz1 View Post
Hey Shane that is a nice light bar, hows it holding up?
Holding up quite well sir, thanks again!! I found exactly what i was looking for a few months ago at the local scrap metal yard..... 0.500 x 2.000 channel. Cut the 'lip' off one side...nice beefy 3/16 crossmember thats sleek! Now...I just got to remember to bring it to work with me and have it make sweet love to the plasma cutter.


Quote:
Originally Posted by Bumpncarstereo View Post
shane that is what I plan on doing as well. also what is the different between flat stock for the cross and angled?
I used flat stock to make the tabs themselves. The crossmember *i believe* was originally flat sheet or 1/8" x 2" flat stock that was bent on a brake. I got it from Chad(posted above). Not exactly sure what/how it was made. lol.
Reply With Quote
  #11
Old 09-23-2008
Bumpncarstereo's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
i ended up cutting and welding mine, well D welded for me cause i suck at it. does anyone think there would be an issue just using flat stock for the cross member?
Reply With Quote
  #12
Old 09-23-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I foresee bouncing happening if flat stock is used.
Reply With Quote
  #13
Old 09-24-2008
Bumpncarstereo's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
alright I guess I can pick up some more metal stock
