My bumper I'm making.

I've got the plans/dimensions for it somewhere, but can't find it to scan it. Anywho, I'm making it out of 3/8 wall rectangular tubing. The ends will be tapered up a bit and closed off. I'm welding with stick and using a 7018 rod. This beyotch is HEAVY. I'm going to be cutting a 2x2" hole in the middle of the bumper to be able to slide a receiver in and out for my trailer. S basically it's a hitch and bumper combined. And I'll prob weld some shackles on there too.

I want to give the credit to Kevin (2002fx4) for his bumper idea.

Here are some of the pics of it now, there won't be any more progress on it until Monday and it'll be finished by Thurs.

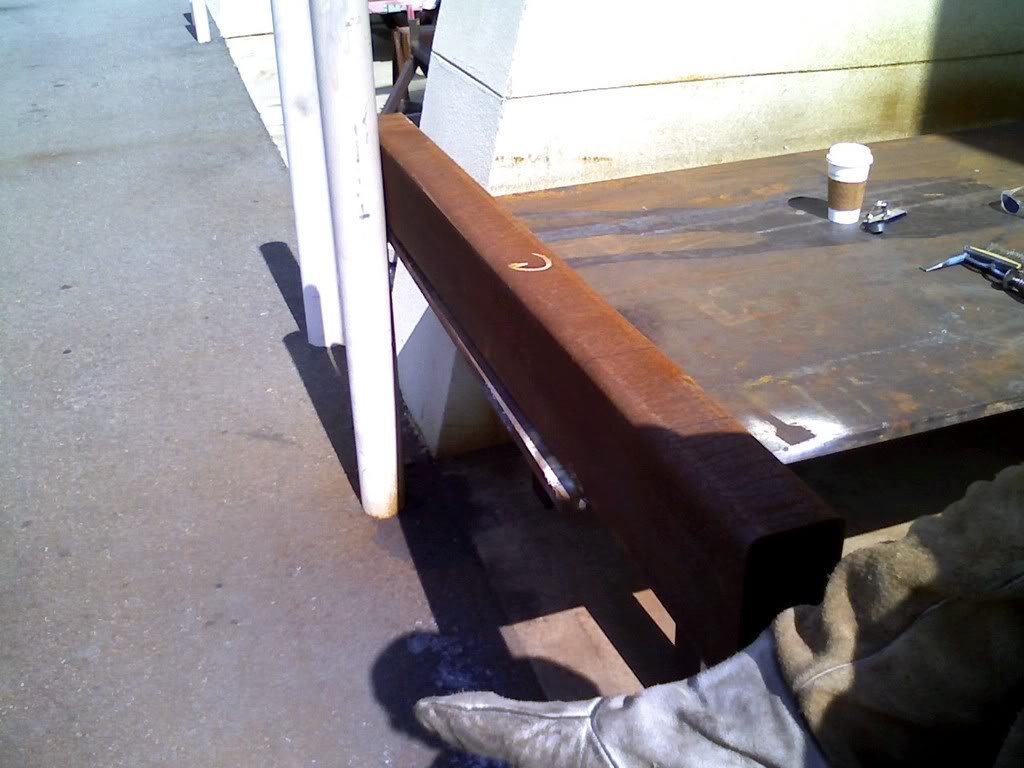

What I started with:
Name:  PIC-0314.jpg
Views: 1
Size:  91.4 KB

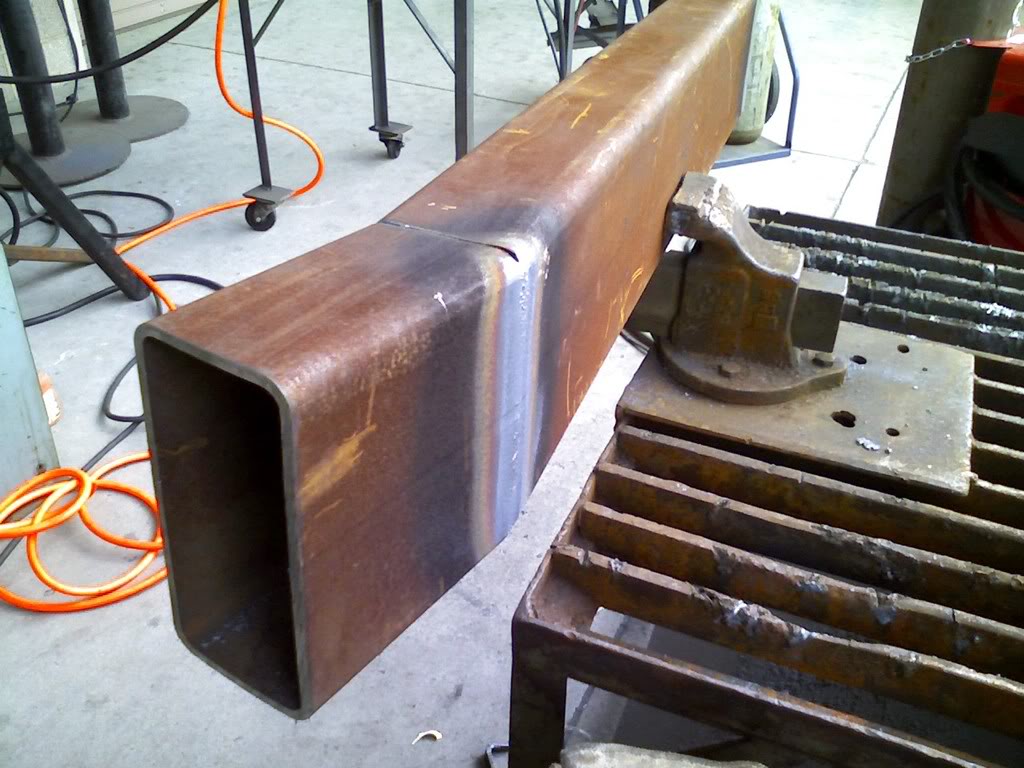

A little plasma, a little rose bud:
Name:  PIC-0322.jpg
Views: 1
Size:  122.7 KB

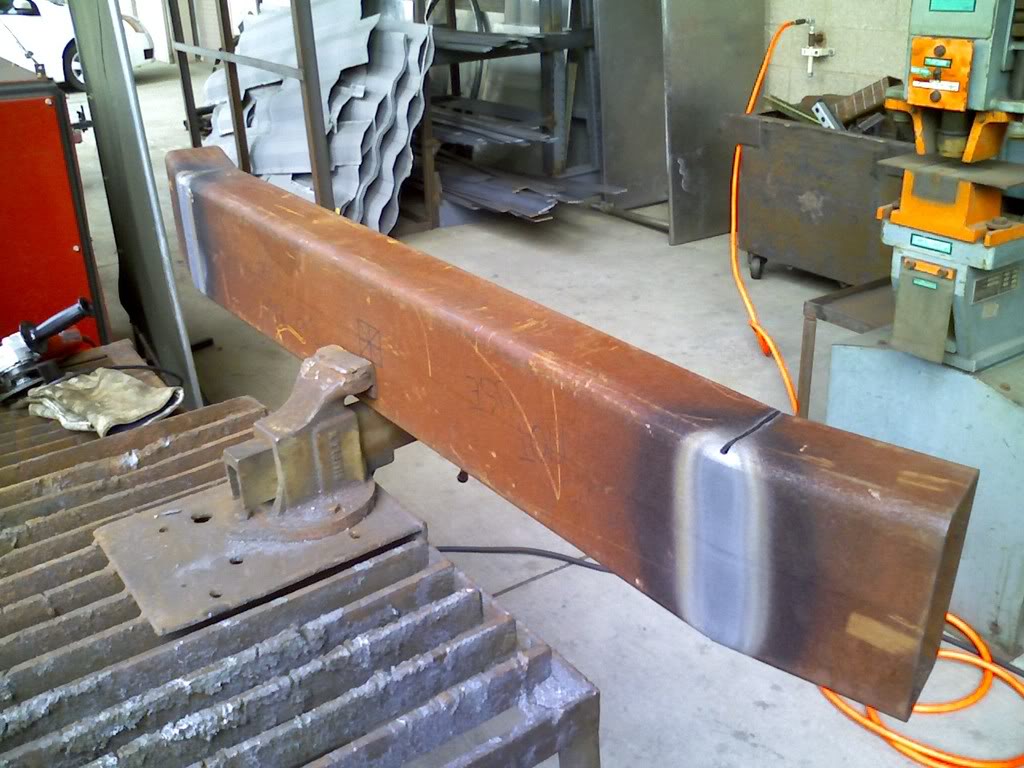

Name:  PIC-0323.jpg
Views: 1
Size:  128.0 KB

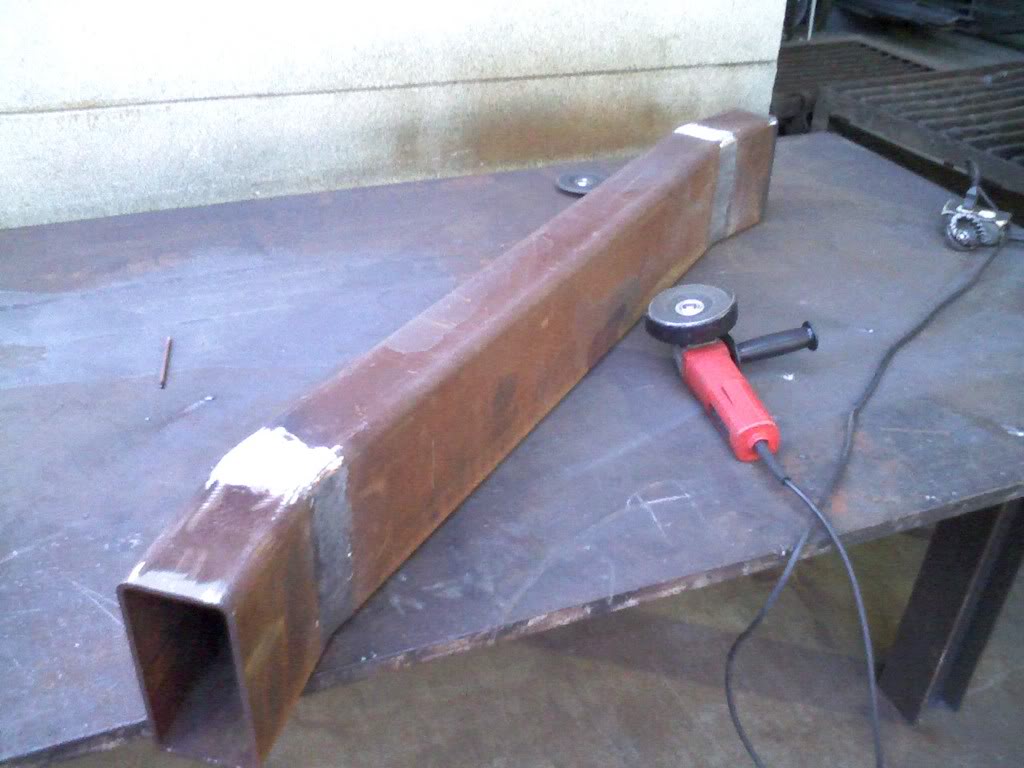

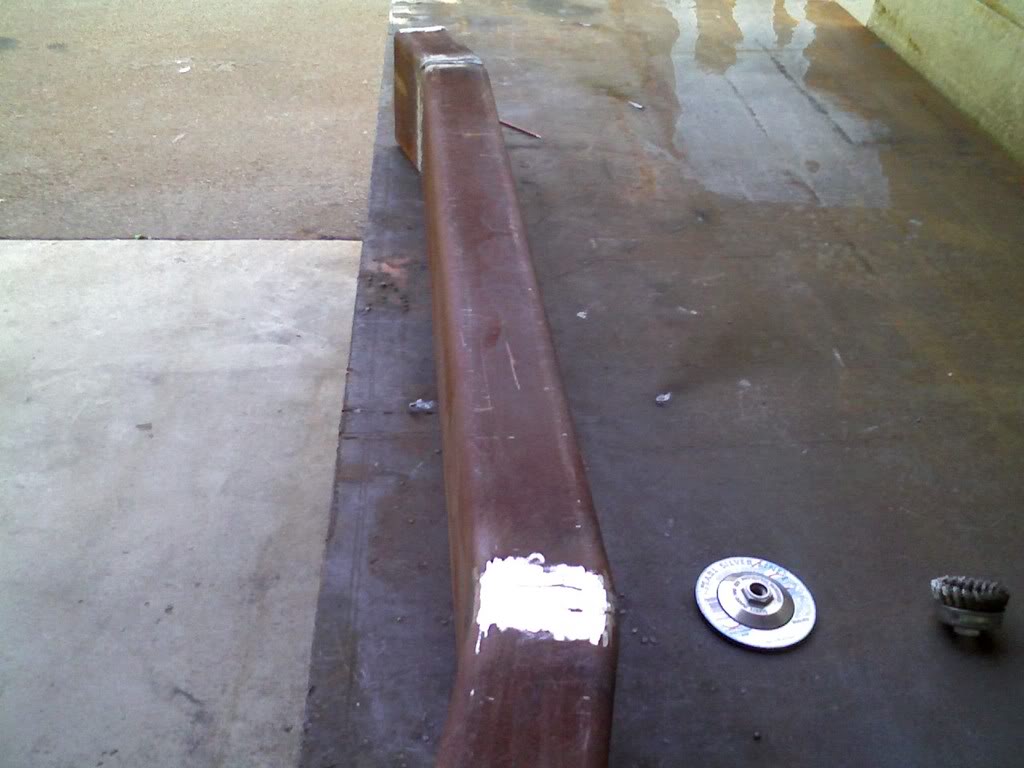

And I grinded for almost an hour, seemed like forever.
Name:  PIC-0326.jpg
Views: 1
Size:  77.9 KB

Name:  PIC-0327.jpg
Views: 1
Size:  88.3 KB

Monday's Progress:

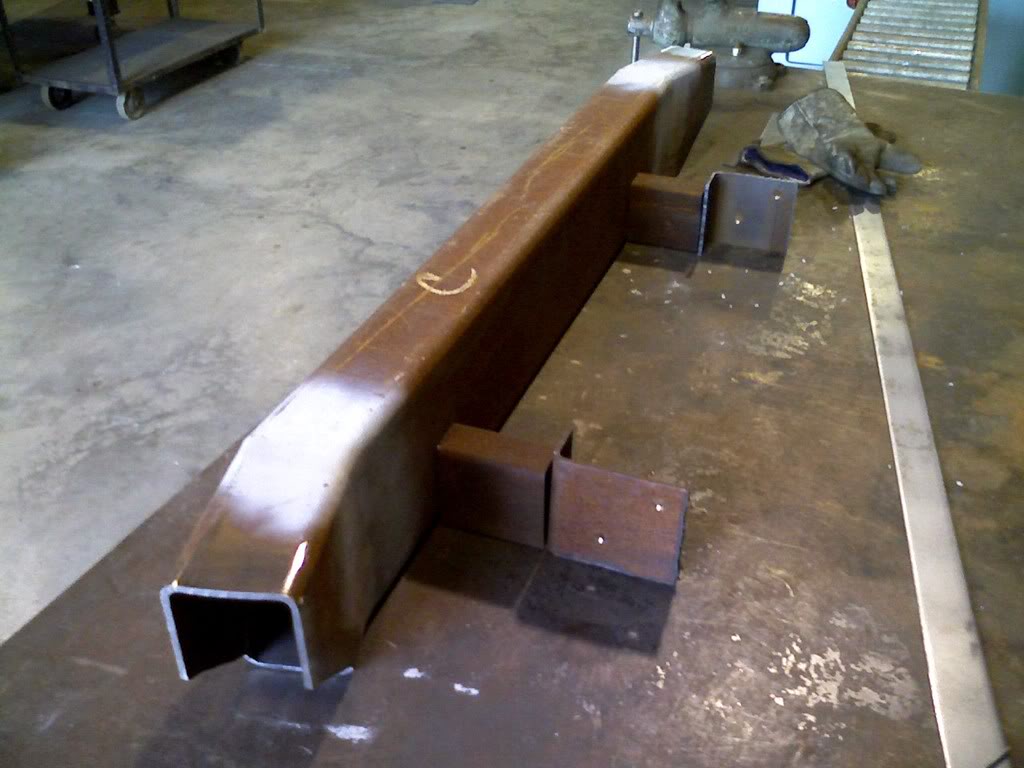

I taperd up the sides, but am still going to box it in. Also made the brackets for it. It "should" be mounted on the truck tomorrow, but we'll see how that goes.

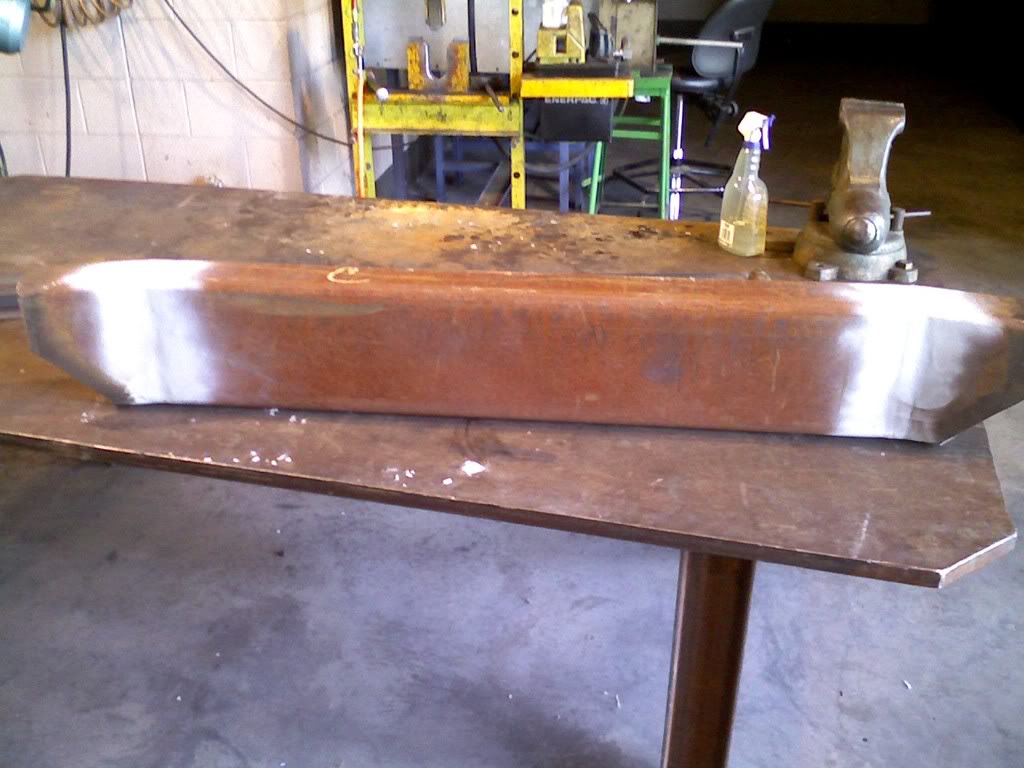

Name:  PIC-0331.jpg
Views: 1
Size:  97.6 KB

Name:  PIC-0332.jpg
Views: 2
Size:  78.7 KB

Name:  PIC-0333.jpg
Views: 1
Size:  86.0 KB

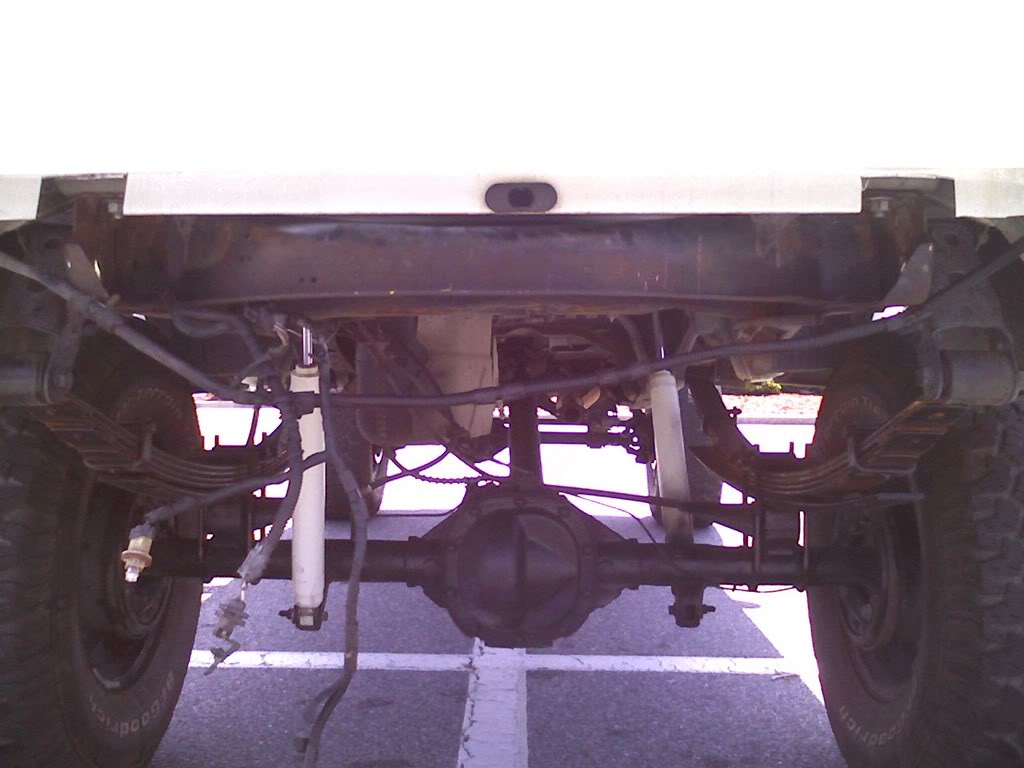

Name:  PIC-0334.jpg
Views: 1
Size:  73.8 KB

Tuesday's Progress:

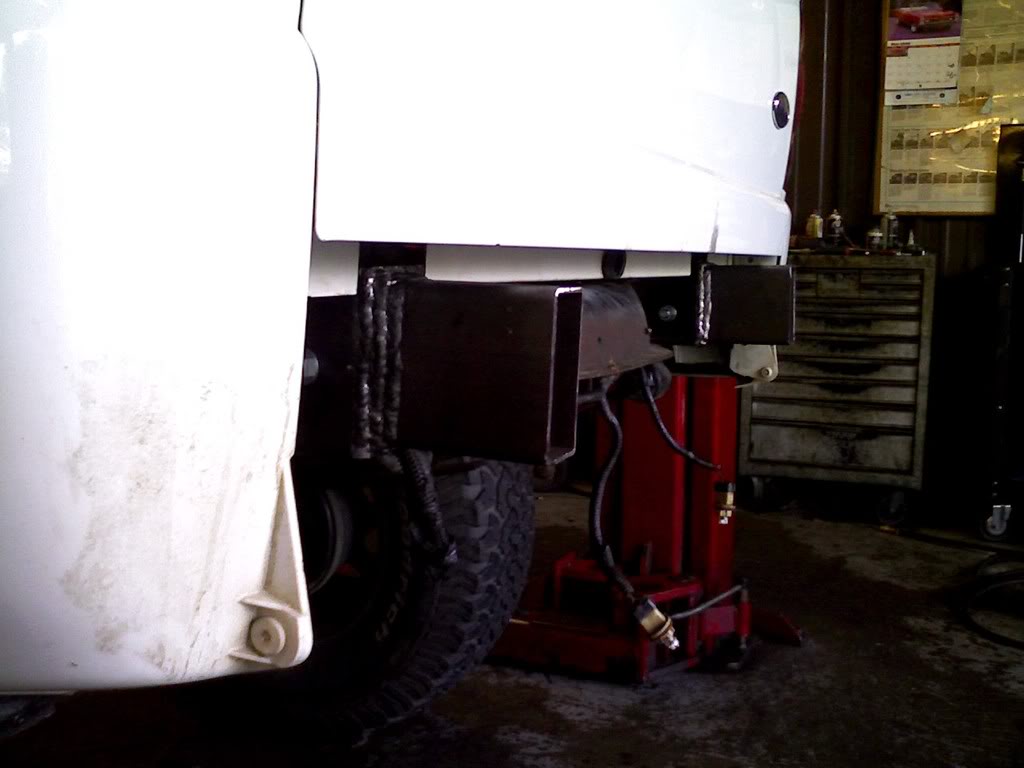

The mounts are welded to the piece on angle that's made out of the same wall as my bumper. I have 2 bolts holding it on, but there is a 3rd hole that I can work with. I also see quite a few things I can do to strengthen it. I've still got to get them level before I set the bumper up there to tack it in place.**New Plans** The bumper will be capped off on the ends, but only welded shut on one end. The other end will be capped, but will be on a hinge. Since the bumper is 4" wide and 8"tall I'm going to take advantage of that space to put tow straps etc in.

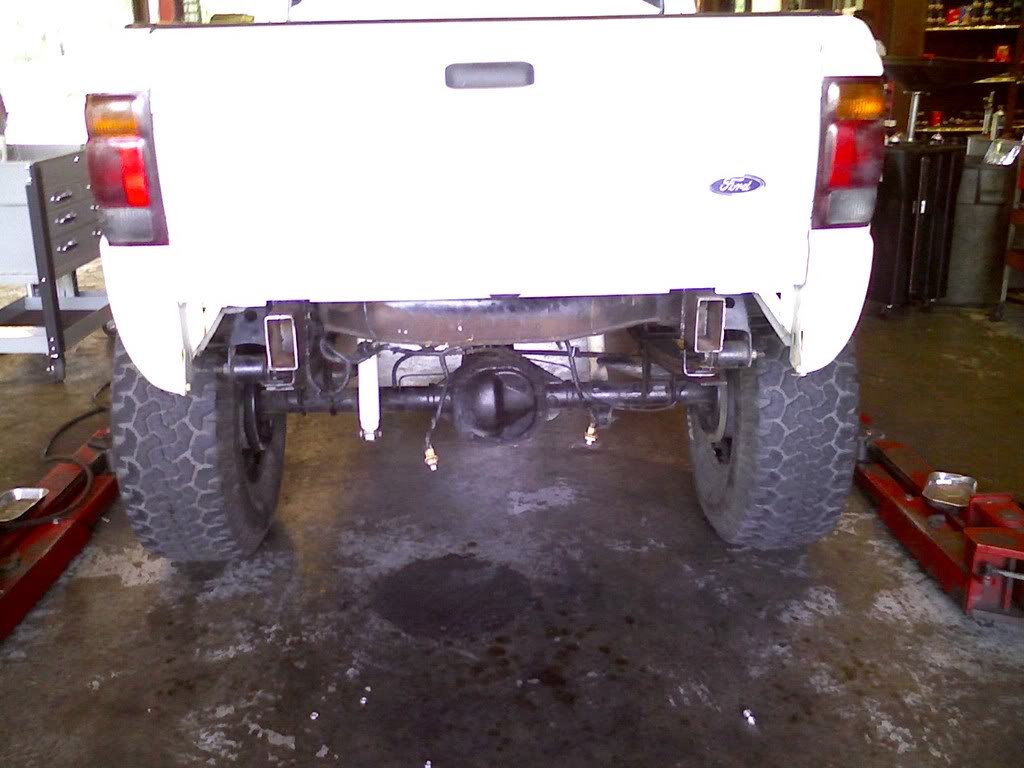

Name:  PIC-0335.jpg
Views: 1
Size:  93.6 KB

Name:  PIC-0336.jpg
Views: 1
Size:  62.9 KB

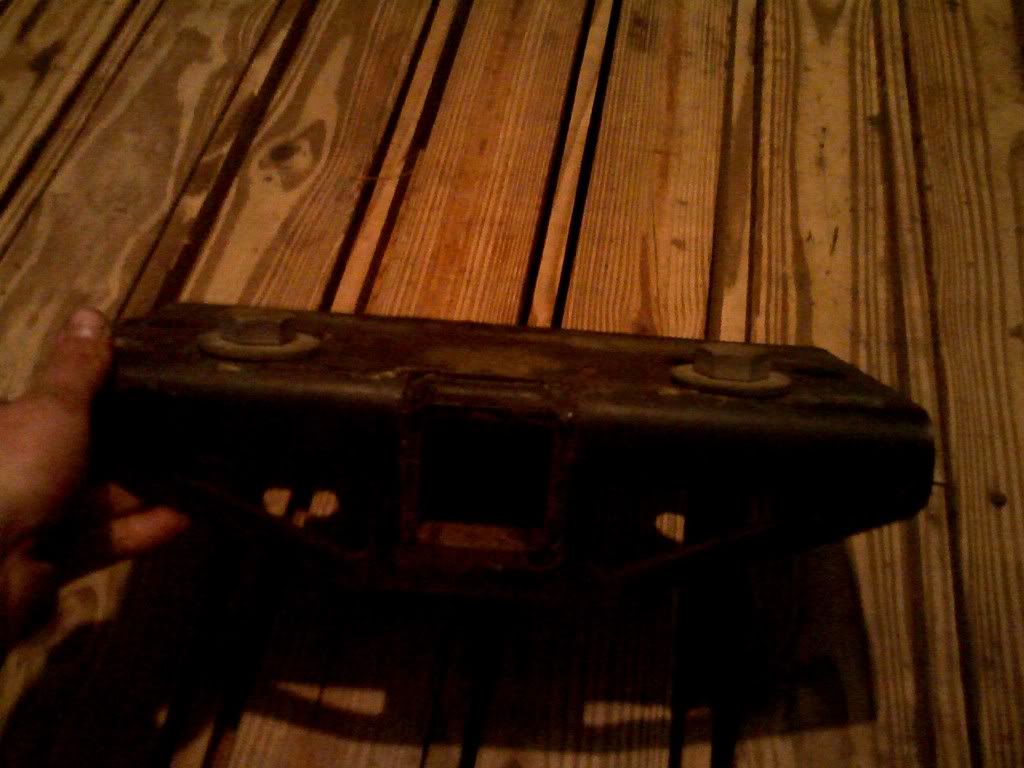

Since I'm going a different route with the bumper, I got this today; FREEBIE!



Name:  PIC-0338.jpg
Views: 1
Size:  84.5 KB

Wednesday:

After working on it 7 hrs today, I was finally able to get it on the truck after class tonight. I'm really impressed on how it turned out and I can't wait for this weekend to see how it does with a trailer behind it for 1-1.5 hrs. I still need to finish up the small stuff like the end caps, but I'll do that next week. I just really needed to get the bumper and hitch on for this weekend. I highly doubt that this thing is going anywhere after 2 200lb ppl jumped on it, and I mean jumped on it.

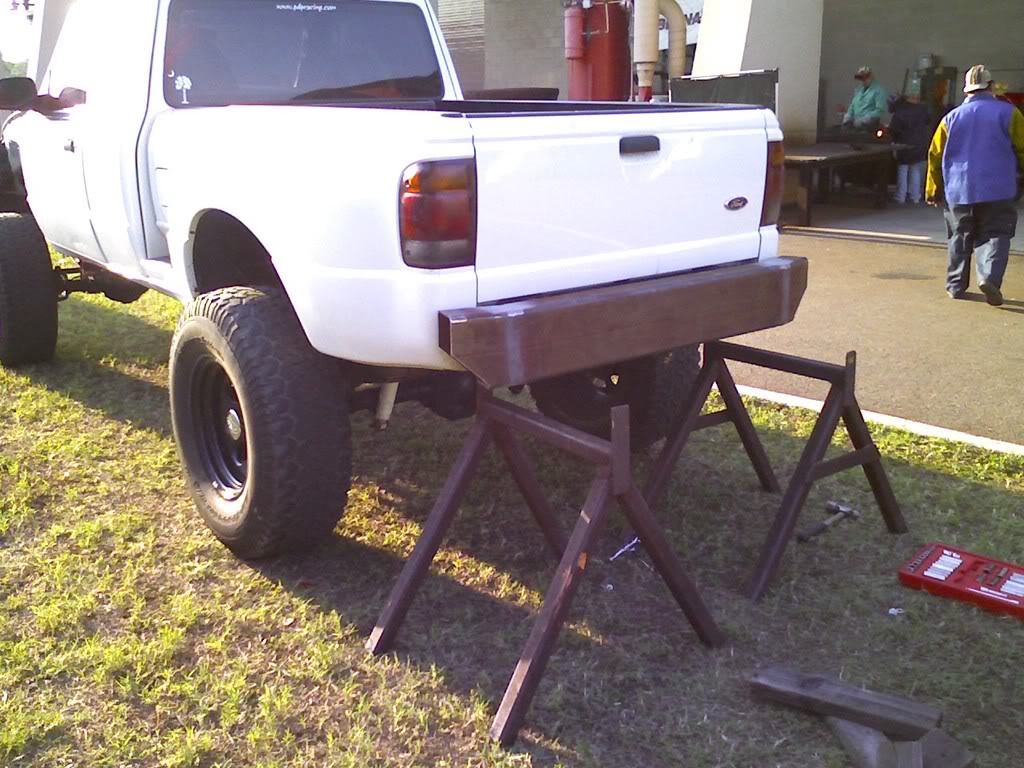

Name:  PIC-0340.jpg
Views: 2
Size:  150.3 KB

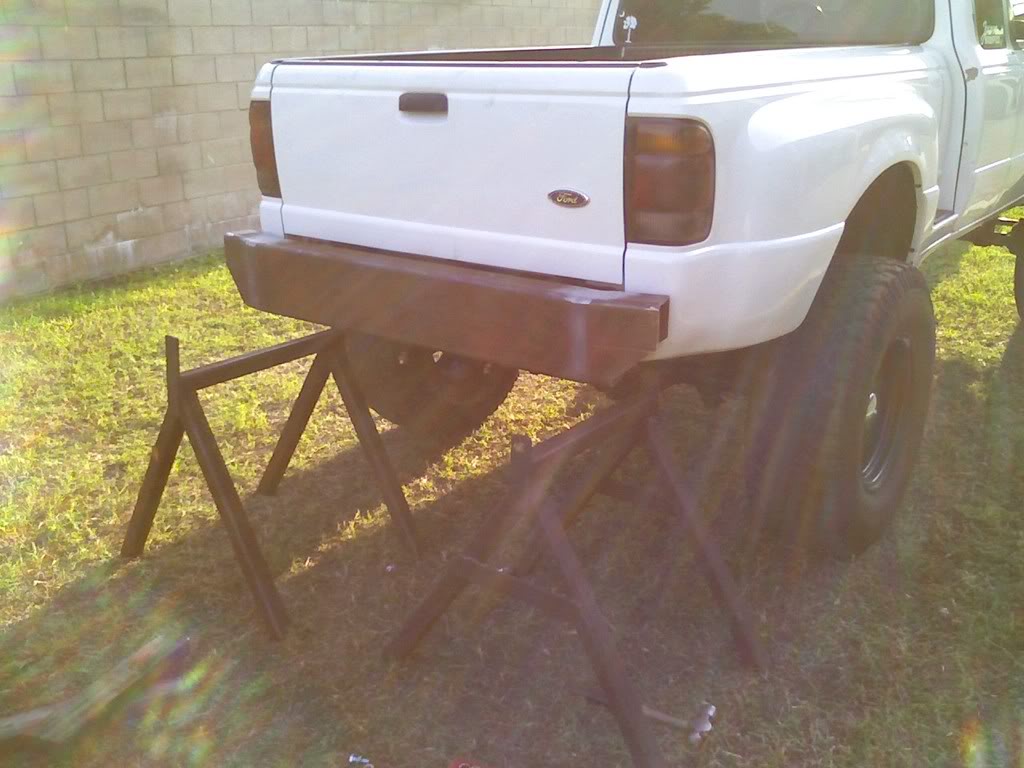

Name:  PIC-0341.jpg
Views: 1
Size:  97.3 KB

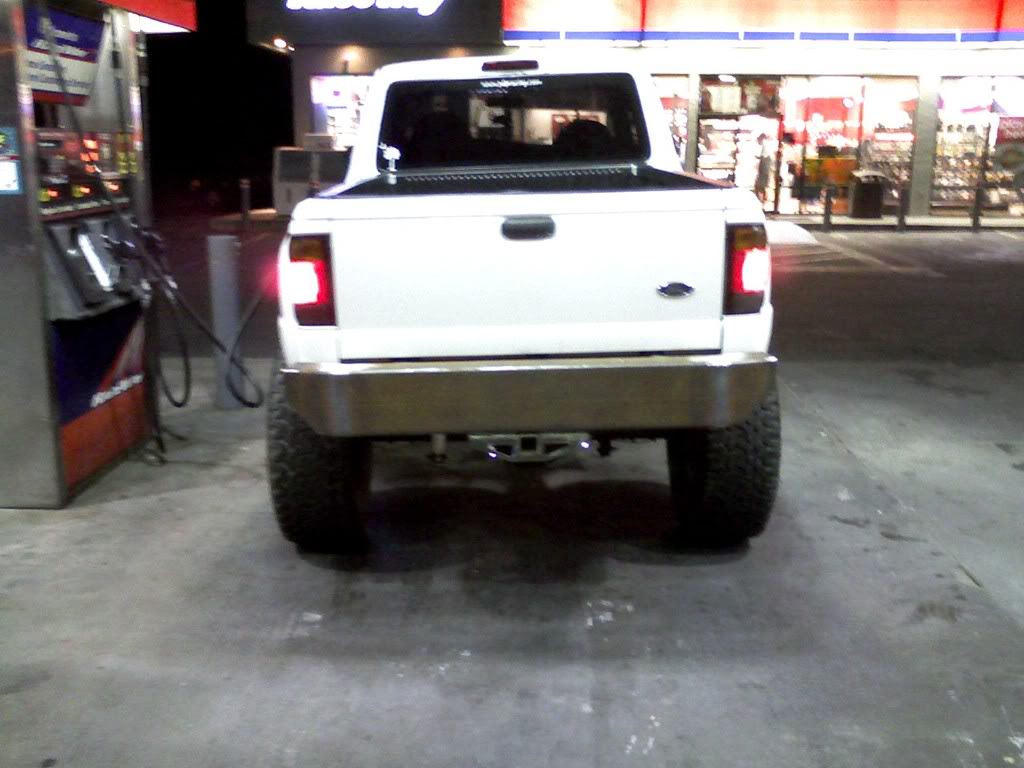

Name:  PIC-0342.jpg
Views: 1
Size:  88.7 KB

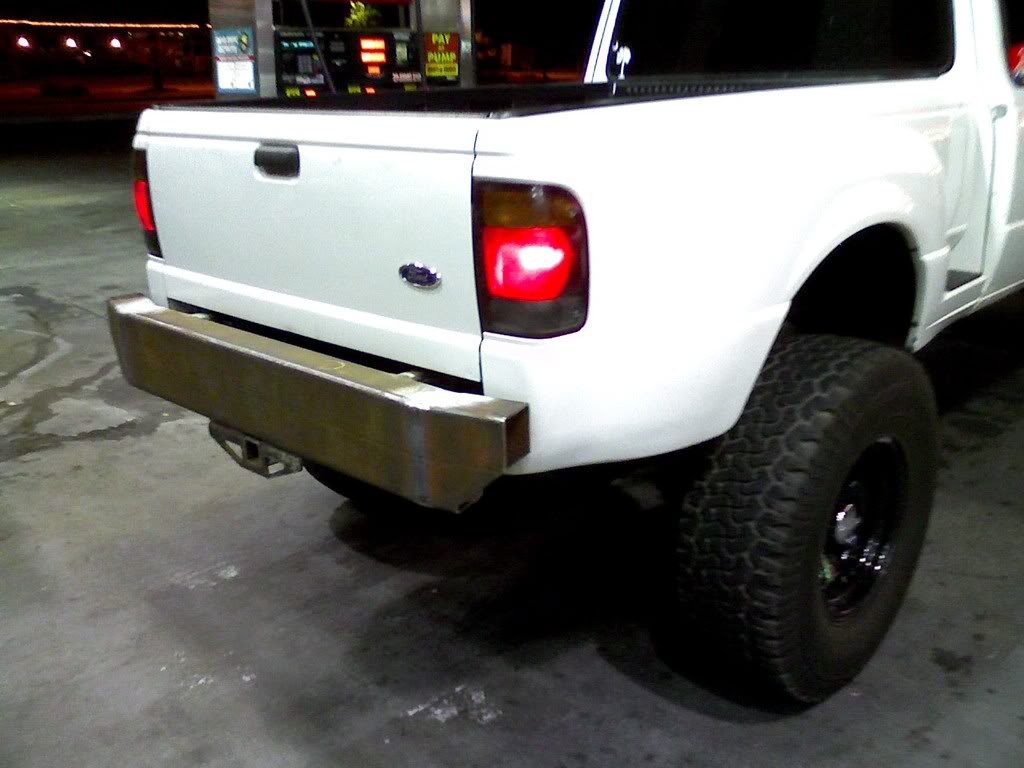

Name:  PIC-0343.jpg
Views: 1
Size:  82.7 KB

Brenton

Last edited by EdGe_wannabe; 05-14-2008 at 09:32 PM.
Reply With Quote
  #2
Old 05-08-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks good man
Reply With Quote
  #3
Old 05-08-2008
blegit's Avatar
Member

Join Date: Jan 2008
Location: Las Vegas, NV
Posts: 219
jeeeez!! how much does that weigh?
Reply With Quote
  #4
Old 05-08-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I like it!
Reply With Quote
  #5
Old 05-08-2008
2002FX4's Avatar
Member

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
Fawk that's HUGE! And I thought mine was overly huge. By the looks I'm gonna guess its about 3"x6".. but it doesn't quite look like 3/8" wall (I could be wrong). I know how heavy my rear bumper is, so I can only imagine the weight of that sucker!

And by the way Brenton, I appreciate the credit given. Mine design isn't actually my design at all, rather a design of my buddy Jason's. I personally think your approach to making the bend is abit more work (even though you are cutting only three sides). But I can certainly feel for you on the grinding, especially with you stick welding. The bead/slag has gotta kill (for grinding purposes).

Keep it up.. I'm curious to see the end result!
Reply With Quote
  #6
Old 05-09-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
damn Brenton, thats BEEF for sure
Reply With Quote
  #7
Old 05-09-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
very nice Brenton, that is some big stuff!
Reply With Quote
  #8
Old 05-09-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Thanks everyone, I think it's 3/8 wall, but I'll check again on Monday.

Brenton
Reply With Quote
  #9
Old 05-09-2008
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Good gosh Brenton that sucker is gonna be heavy duty man haha
Reply With Quote
  #10
Old 05-09-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
good job man,i want to see the finished product,i bet it is going to look awsome
Reply With Quote
  #11
Old 05-09-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Sweet bumper! Now you just need to make a fender! lol j/j
Reply With Quote
  #12
Old 05-10-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047
Look good man anyone u hit or backs into you there car = crunch haha
Reply With Quote
  #13
Old 05-10-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I'd like to knock a few things over with it. haha

Brenton
Reply With Quote
  #14
Old 05-10-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
So.. Brenton, I think you can go successfully say you'll need to upgrade your front suspension a bit to not droop all too much from the weight of the sucker.. the lord help anyone unlucky enough to get a taste of it :-D
Reply With Quote
  #15
Old 05-10-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Quote:
Originally Posted by WowMike2001 View Post
So.. Brenton, I think you can go successfully say you'll need to upgrade your front suspension a bit to not droop all too much from the weight of the sucker.. the lord help anyone unlucky enough to get a taste of it :-D
This bumper is going on the rear. lol

Brenton
Reply With Quote
  #16
Old 05-11-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
Quote:
Originally Posted by EdGe_wannabe View Post
This bumper is going on the rear. lol

Brenton
even better
Reply With Quote
  #17
Old 05-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Edited 1st post.

Brenton
Reply With Quote
  #18
Old 05-13-2008
chads02's Avatar
Member

Join Date: Mar 2006
Location: Kennewick, Wa.
Posts: 282
do you work for jcb? I just saw a tool box or something with jcb stickers on it.
I work for a dealership that sells jcb.
Reply With Quote
  #19
Old 05-13-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by EdGe_wannabe View Post
I hope there arent the only mounting points. If this is doubling as a hitch, you should take ALL the necessray precautions to overbuild the mounting system...
Reply With Quote
  #20
Old 05-13-2008
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
golly, that thing is overkill 4 a bumper ain't it
Reply With Quote
  #21
Old 05-13-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by t3ob View Post
golly, that thing is overkill 4 a bumper ain't it
not the mounts.
Reply With Quote
  #22
Old 05-13-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
I welded up the mounts today (not to the bumper yet) and I'll can say that this bumper isn't going anywhere (as long as I do the same when I weld the mounts to the bumper).

I might put a 3rd mount in, but those 2 will be guesseted. (s/p?)

Brenton
Reply With Quote
  #23
Old 05-13-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
where does the third mount go? gussets dont seem like they would make up for the chincy mounts IMHO.
Reply With Quote
  #24
Old 05-13-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Quote:
Originally Posted by chads02 View Post
do you work for jcb? I just saw a tool box or something with jcb stickers on it.
I work for a dealership that sells jcb.
No, but the JCB factory is about 10 min from my school. They give us metal and stuff, so in return we show their name all over.

Brenton
Reply With Quote
  #25
Old 05-13-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Quote:
Originally Posted by [email protected] View Post
where does the third mount go? gussets dont seem like they would make up for the chincy mounts IMHO.
The 3rd one would more than likely go to the top of the spare tire thing. But I can assure you, even with just those 2 mounts it's going to be a very strong set-up.

Brenton
Reply With Quote
