pics of my bodylift blocks as requested

i built some blocks for a 1" bodylift. here they are

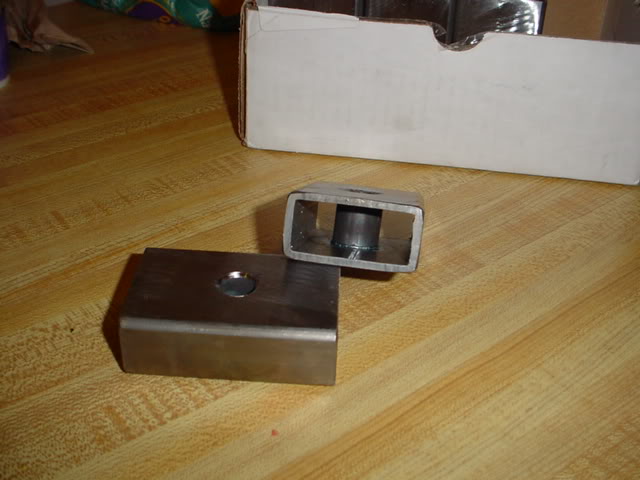

Name:  DSC00021.jpg
Views: 3
Size:  40.7 KB

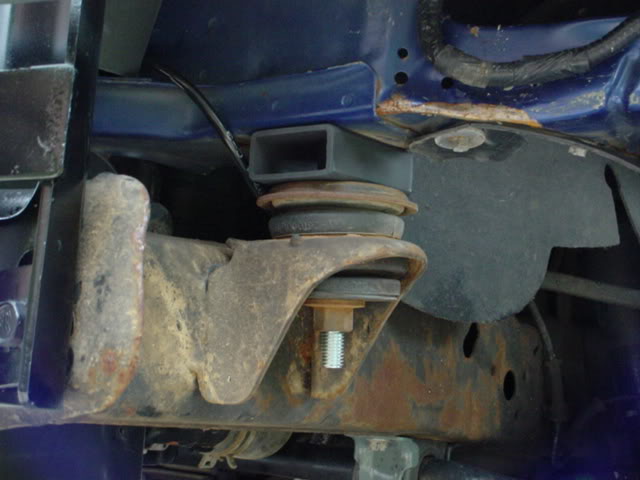

Name:  DSC00019.jpg
Views: 4
Size:  40.7 KB

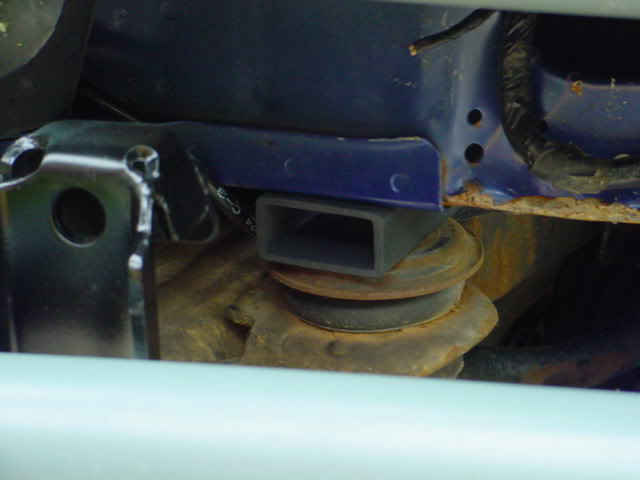

Name:  DSC00018.jpg
Views: 5
Size:  27.3 KB

Last edited by ScottG; 06-18-2006 at 07:23 PM.
Reply With Quote
  #2
Old 04-29-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good..

you made em..as in cut em and weld in that piece of pipe for the bolt to side in..great fab work..great job...


IMO-should of capped the ends off to make it look soild
Reply With Quote
  #3
Old 04-29-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
I was wondering where the hell you got 1" BL
Reply With Quote
  #4
Old 04-29-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
yup, cut em, drilled em, and welded in the tubing to keep them from collapsing when tightened down.

cappin the ends would be alot of extra work for parts not many will see
Reply With Quote
  #5
Old 04-29-2006
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
hey thats pretty cool... nice work!
Reply With Quote
  #6
Old 04-29-2006
BOB BOB is offline
Member

Join Date: Nov 2005
Location: Haltom City , Texas
Posts: 208
Did you have to extend anything? I'd like to know. bob
Reply With Quote
  #7
Old 04-29-2006
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
sweet gumby!

i just wanted to see them mounted
Reply With Quote
  #8
Old 04-29-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks good. Nice job
Reply With Quote
  #9
Old 04-29-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I'm thinking of doing the same thing, lol -- only using solid 1" thick plate steel. I work in a steel mill, so the materials and cutting are available. I want to do round ones, but I can see really that's not necessary. It would be easier to just cut squares since they're pretty much out of sight.

Thanks for sharing that.
Reply With Quote
  #10
Old 04-29-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
wow, drillin thru 1" solid should be fun......NOT! not to mention the weight, dang!
mine are from 1x2x.120 rect HREW. cut 3" long. i measured the blocks from gay-briels PA BL and they were 3" round. thats why i cut mine 3"

no, you dont hafta extend anything. thats another good reason to only go with 1"
no shifter extension, no steering shaft extension, no grounds to extend, no brake lines to re-shape, no fuel neck to extend. hell, i didnt even hafta mess with the fan shroud
Reply With Quote
  #11
Old 04-29-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Bah. Cut down far enough, they won't make enough weight to matter, lol. Drilling 1"? How about drilling 3" or 5" -- we make and fabricate steel from 1/4" to 5". That part is trivial where I am.
Reply With Quote
  #12
Old 04-29-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
looks pretty good.
nice fabricating job
Reply With Quote
  #13
Old 04-29-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by n3elz
How about drilling 3" or 5" -- we make and fabricate steel from 1/4" to 5". That part is trivial where I am.
wow, my mill and bits would laugh at me
Reply With Quote
  #14
Old 04-29-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Listen, I couldn't afford to have the junk at home I have access to at work! It's a good place to work if you fab stuff.
Reply With Quote
  #15
Old 04-29-2006
nated0g's Avatar
Member

Join Date: Nov 2005
Location: Millington, TN
Posts: 467
did you have to use a longer bolt?
Reply With Quote
  #16
Old 04-29-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by n3elz
Listen, I couldn't afford to have the junk at home I have access to at work! It's a good place to work if you fab stuff.

i hear that. i have no machines at home. i do all my fab projects in the shop at work. we build sprint cars and midgets all day long

yes i had to buy longer bolts
Reply With Quote
  #17
Old 04-29-2006
BOB BOB is offline
Member

Join Date: Nov 2005
Location: Haltom City , Texas
Posts: 208
Thanks, Chris. Great mod. bob
Reply With Quote
  #18
Old 04-29-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Nice work. They look beefy
Reply With Quote
  #19
Old 04-30-2006
Premierranger99's Avatar
Member

Join Date: Jan 2006
Location: Mentor, Oh
Posts: 119
good work gumby! always top notch, and no i still haven't talked to eric..... lol since i know you would ask
Reply With Quote
  #20
Old 04-30-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
I got to talking about my plans so much I forgot to say: very clean fab job. Definitely superior work and well designed.
Reply With Quote
  #21
Old 04-30-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
thanks guys! i appreciate the good words
Reply With Quote
  #22
Old 04-30-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
are those grade 8 or grade 5 bolts??? I work at Lowes, so I see them all day long, but those aren't zinc plated (or at least don't look to be, may be the camera).
Reply With Quote
  #23
Old 04-30-2006
gumby's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
mine are grade 8.8 metric. the 10.9 metrics are about the same as a grade 8 SAE, and gold zinc'd as well.
these are zinc plated, but clear zinc like a grade 5 SAE

since they are primarily in tension, not shear, regualr grade bolts are fine for body mountings.
Reply With Quote
  #24
Old 04-30-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
How many are there under the whole body? Oh, yeah, how much for a set??
Reply With Quote
  #25
Old 05-01-2006
05rangeredge's Avatar
Member

Join Date: Feb 2006
Location: Fresno, CA
Posts: 311
Quote:
Originally Posted by rolla_guy72
How many are there under the whole body? Oh, yeah, how much for a set??
^^ Thats what i was going to ask!
