Pipe Bumper

i know a lot of you aren't really into the pipe bumper thing, but oh well i like it. it is 6" OD 1/4 wall well casing capped with 1/4" bullet resistant steel (no purpose it was just what i had laying around). the brackets are 1/4" plate welded to the Reese hitch. the bumper is also my air tank for my long tube air horns. the horns are mounted horizontally and opposed inside the toolbox. we cut out the sides of the box to stick them through. the bumper still needs to be painted(i'll probably bedline it), my tag needs to be mounted, and my pump needs to be wired and plumbed. where do you think i should put the tag?

Name:  IMG_1765.jpg
Views: 10
Size:  143.3 KB

Name:  IMG_1766.jpg
Views: 143
Size:  115.6 KB

Name:  IMG_1767.jpg
Views: 11
Size:  109.4 KB

Name:  IMG_1768.jpg
Views: 14
Size:  86.2 KB

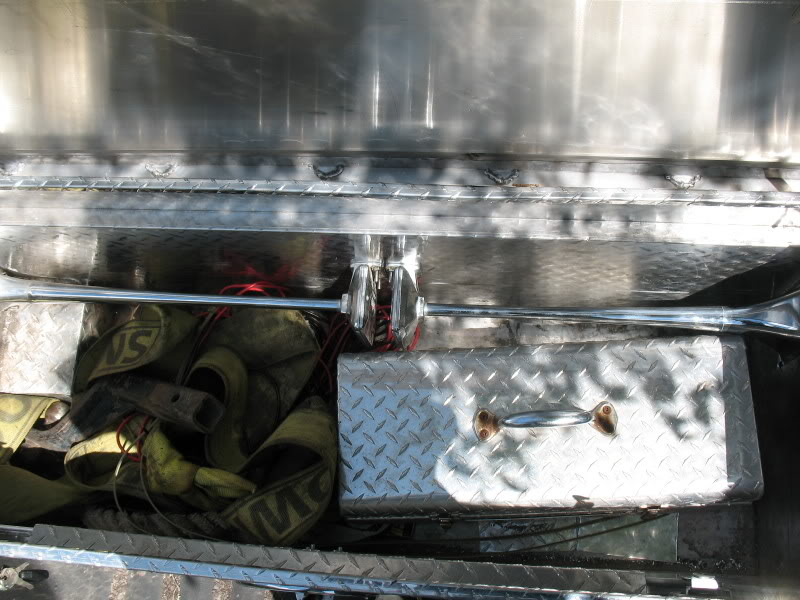

horns
Name:  IMG_1769.jpg
Views: 10
Size:  94.8 KB

Name:  IMG_1770.jpg
Views: 12
Size:  106.9 KB

Name:  IMG_1771.jpg
Views: 14
Size:  109.6 KB
the room between the toolbox and the bed.
Name:  IMG_1772.jpg
Views: 13
Size:  81.2 KB
Reply With Quote
  #2
Old 05-28-2008
KELLY88's Avatar
Member

Join Date: May 2008
Location: Lake Mary, FL
Posts: 205
Pipe bumper looks good. Nothing like something home built. As for the plate you could either leave it as it sits in the picture or put in the back window.
Reply With Quote
  #3
Old 05-28-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
sweet, bullet resistant!
Reply With Quote
  #4
Old 05-28-2008
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
thanks, my windows are tinted so i don't think it would be very visible.
Reply With Quote
  #5
Old 05-28-2008
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by [email protected] View Post
sweet, bullet resistant!

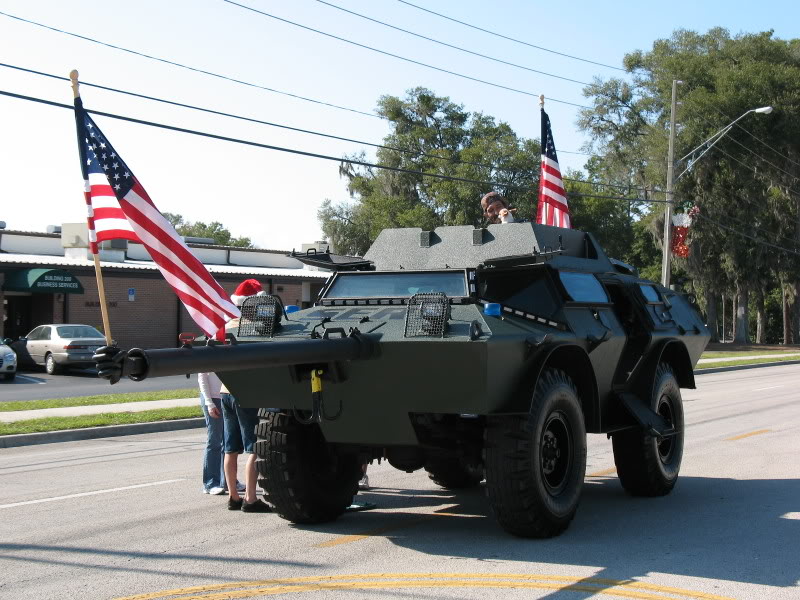

yeah, they are the gun hole covers off of this:
Name:  IMG_1043.jpg
Views: 10
Size:  117.2 KB
my dad did a LOT of fab work and such on it for the sheriffs office here.
Reply With Quote
  #6
Old 05-28-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Nice bumper.......I shall call you "Matt_wannabe". lol. He's got about the same rear bumper.
Reply With Quote
  #7
Old 05-29-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
beefy!
Reply With Quote
  #8
Old 05-30-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Not my favorite style, but looks good. You should mold the plate to the round form of the bumper, but you'd need to weld studs on there so it could be removed and then just put nuts and washers over the studs to hold the plate on.
