transfer case skid build

well i broke my factory beer can skid on a log (bent the **** out of it) so i decited to make a new one. i started out with a cardboard template and once i got it how i wanted it i went out and bought a 10 inch by 4 ft (only needed 3 but wanted to be safe) by 1/4 inch. that piece was about $30. then i marked the lines where i needed the bends at and took an angle grinder and cut the inside of the bend out almost all the way through the metal. then i bent the metal in and the gaps folded in on them selves and it came out *****en. here it is just need to paint and drill the mount holes.

Name:  PICT3845.jpg
Views: 8
Size:  158.8 KB

Name:  PICT3846.jpg
Views: 10
Size:  132.7 KB

Name:  PICT3847.jpg
Views: 7
Size:  171.9 KB

Name:  PICT3848.jpg
Views: 7
Size:  197.7 KB

Name:  PICT3841.jpg
Views: 5
Size:  188.5 KB

Name:  PICT3842.jpg
Views: 7
Size:  169.4 KB

Name:  PICT3843.jpg
Views: 9
Size:  160.8 KB

Name:  PICT3844.jpg
Views: 7
Size:  171.3 KB

Name:  PICT3849.jpg
Views: 6
Size:  106.3 KB

Name:  PICT3850.jpg
Views: 8
Size:  92.4 KB

Name:  PICT3851.jpg
Views: 8
Size:  132.5 KB
Reply With Quote
  #2
Old 04-07-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
looks good dude send it to me
Reply With Quote
  #3
Old 04-07-2009
Andrew_2006's Avatar
Member

Join Date: Sep 2006
Location: Windsor Ontario
Posts: 352
Could you soom in lil more on the welds? lol j/p Looks good, nice welding too it looks like you got that figured out pretty much.

Andrew
Reply With Quote
  #4
Old 04-07-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
what I did on mine was just use the stock holes already in the frame but drilled them out bigger than those mini holes in there.

watch your fuel filter
Reply With Quote
  #5
Old 04-07-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
it almost looks like you could have welded it a little hotter, but it should be fine..

Nice bronco! I want to see more pics of it!

anddd the skid, good idea, maybe roll the front up a little, or make a little 'ramp' like the stock one to keep it from getting hung up as easily.

I'm still rockin' the stock one, every time i take it off I have to run it over a few times to flatten it out enough to get the holes to line up, but it works every time
Reply With Quote
  #6
Old 04-07-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
ya im plannin on putting 45 degree "ramps" on either end and for pix of the bronco go here.

also on the welds we just have a little century wire feed and i had the heat all the way up but w/e....it should hold

https://www.ranger-forums.com/forum2...ad.php?t=78303
Reply With Quote
  #7
Old 04-08-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
looks good... i need to build one for my truck. surprised i havent grenaded my tcase yet on a rock
Reply With Quote
  #8
Old 04-08-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice work. Looks beefy!
Reply With Quote
  #9
Old 04-08-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by t5cents View Post
ya im plannin on putting 45 degree "ramps" on either end and for pix of the bronco go here.

also on the welds we just have a little century wire feed and i had the heat all the way up but w/e....it should hold

https://www.ranger-forums.com/forum2...ad.php?t=78303
yea their not bad, its tied in much better than some fab jobs I've seen..

Quote:
Originally Posted by shadow905 View Post
looks good... i need to build one for my truck. surprised i havent grenaded my tcase yet on a rock
haha, or ripped it out all together.
Reply With Quote
  #10
Old 04-08-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521

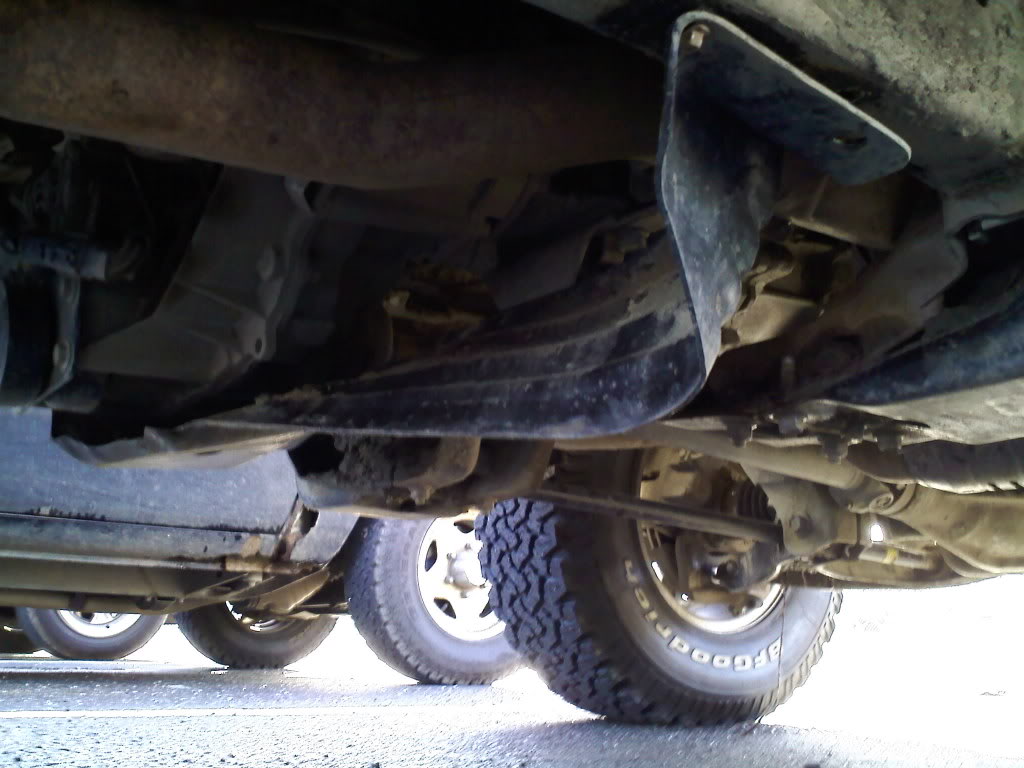

ya my stock one got all twisted up on a log

Name:  PICT3587-1.jpg
Views: 8
Size:  186.6 KB

Name:  0209090910.jpg
Views: 8
Size:  209.2 KB

Name:  0209090909a.jpg
Views: 9
Size:  95.4 KB
Reply With Quote
  #11
Old 04-08-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
holy crap! thats nuts. didnt mess anything else up did it?
Reply With Quote
  #12
Old 04-08-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
no luckily not...if it had been on the other side it prolly woud of
Reply With Quote
  #13
Old 04-08-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Damn, you put a hurtin on that stock one.
Reply With Quote
  #14
Old 04-08-2009
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Best fix I ever came up with for the stock tcase skid was to replace it with a short wheelbase Jeep.....HA!HA!, sorry had to!
Reply With Quote
  #15
Old 04-08-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
you win..
Reply With Quote
  #16
Old 04-08-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by buckgnarly View Post
Best fix I ever came up with for the stock tcase skid was to replace it with a short wheelbase Jeep.....HA!HA!, sorry had to!
short wb for the loss
Reply With Quote
  #17
Old 04-08-2009
TurdFX4's Avatar
Member

Join Date: Dec 2008
Location: My house
Posts: 933
Quote:
Originally Posted by t5cents View Post
Honestly thats why its there though... it did its job
Reply With Quote
  #18
Old 04-08-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
that new one is beef!

nice work.

did you bend the ends?
Reply With Quote
  #19
Old 04-08-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
ya i cut through like 3/4 of the way on the inside of the bends and widened out the gaps and then bended them until the gaps closed and if it wasnt enough i regrinded it and bent it some more. worked out pretty good. and ya thats what the skids are for so they take the damage instead of somthing important but in that case if it wasnt there i probably would have just backed over it and maby snagged a little on the torsion bars but i dont no. just hope the new one is strong enough. ...lol
Reply With Quote
  #20
Old 04-10-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521

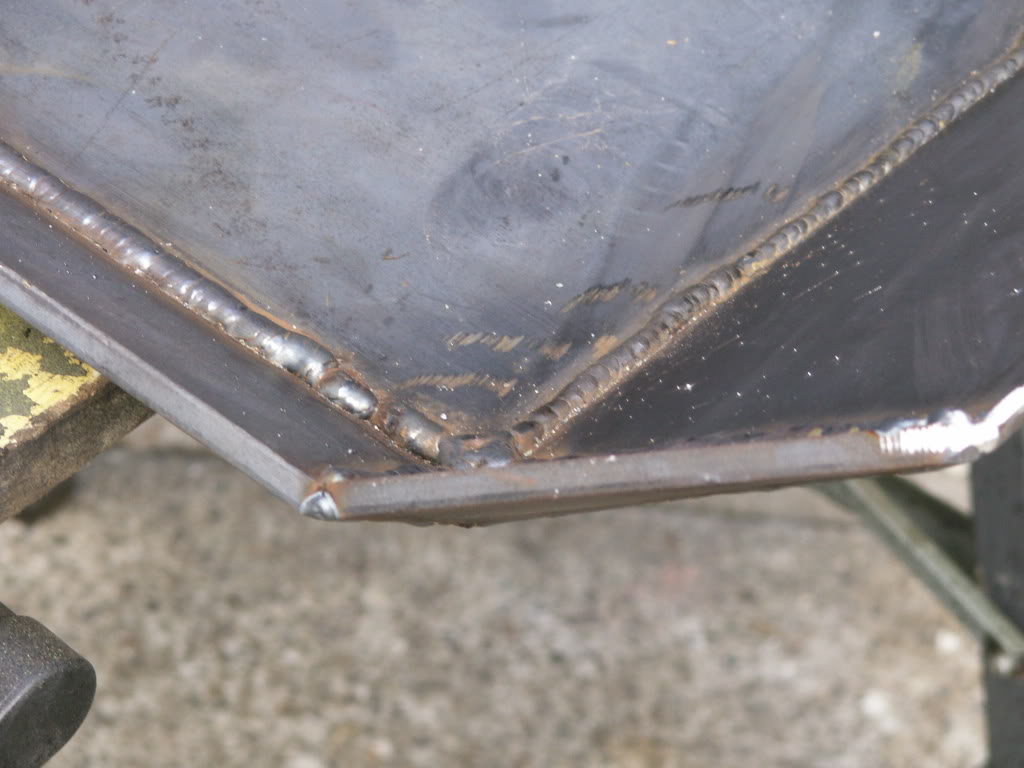

well i finished my ramp.....not sure if im going to do the front cause the t-bar skids are right there and this doesn't hang as low as them but i don't know. any way..pix

Name:  PICT3853.jpg
Views: 7
Size:  207.2 KB

Name:  PICT3854.jpg
Views: 8
Size:  171.0 KB

Name:  PICT3855.jpg
Views: 9
Size:  195.9 KB

Name:  PICT3856.jpg
Views: 5
Size:  184.2 KB

Name:  PICT3857.jpg
Views: 6
Size:  103.7 KB

Name:  PICT3858.jpg
Views: 6
Size:  102.9 KB

Name:  PICT3859.jpg
Views: 5
Size:  111.5 KB
Reply With Quote
  #21
Old 04-10-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
im thinking about weather or not i should ramp the other side....any one ever been caught on that side..(towards front of truck) its pretty protected by the tbars but i dont no. also i just picked up some "rust tough" paint and primer for it....should have it completely done by tomorrow unless i decide to ramp the other side.
Reply With Quote
  #22
Old 04-10-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
nice! i need skids bad :(
Reply With Quote
  #23
Old 04-10-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
I don't think you need to ramp the other side, then your making kind of a bowl for dirt and such to get trapped in there

what I did was make a lip for extra strength.

Name:  DSC01275.jpg
Views: 6
Size:  39.6 KB

but then later cut holes out to stop the dirt and grass build up. Works great now

Name:  1235861599.jpg
Views: 4
Size:  59.5 KB

Last edited by camodown; 04-10-2009 at 10:44 PM.
Reply With Quote
  #24
Old 04-10-2009
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
you dont ever get hung up on the holes?
Reply With Quote
  #25
Old 04-11-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
but if he does ramp the front it doesn't have the flat lip to invite the dirt in..
