winch mount done. pics

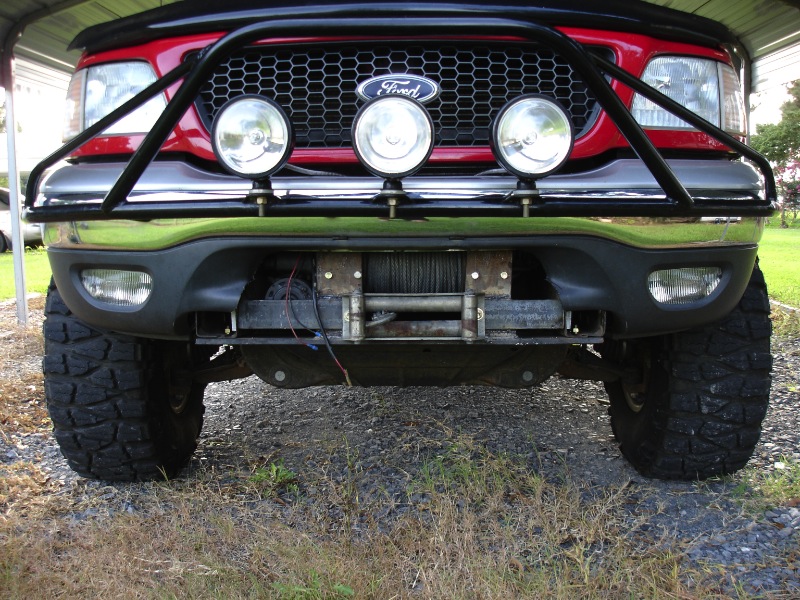

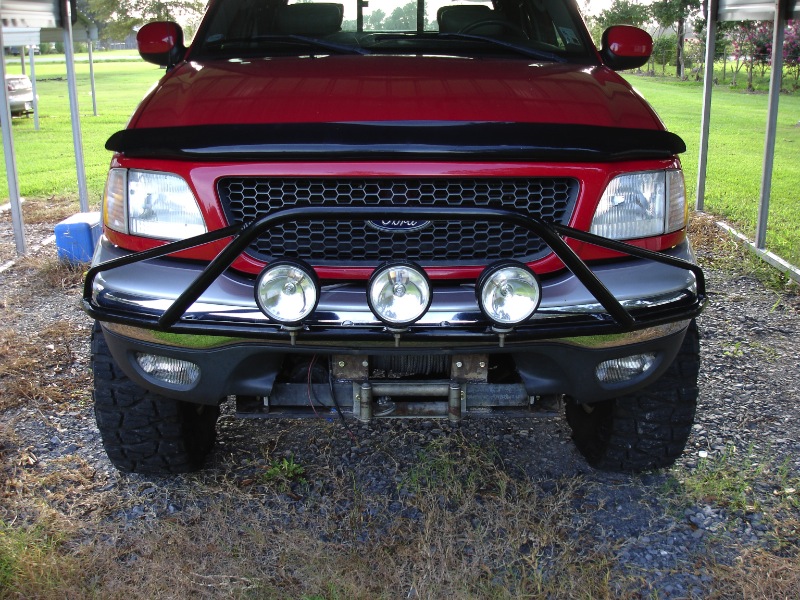

well after roughly 10 hard hours of working on it today, i now have a winch on my truck. its not the prettiest, but it's not gonna break. tomorrow i'm gonna mask off the bumper and stuff and shoot it flat black. the wires hanging in the front are for my 3 KC's. gonna hook them back up tomorrow. also, i think i'm gonna order the "winch saver" for it. i decided to lose the tow hooks for now because not having them on there cleaned up the front of the truck a lot.
Attached Thumbnails
winch mount done.  pics-1.jpg   winch mount done.  pics-2.jpg
Reply With Quote
  #2
Old 08-01-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
another.
Attached Thumbnails
winch mount done.  pics-3.jpg
Reply With Quote
  #3
Old 08-01-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
thats cool! i like the innovation and creativity! also good that your not afraid to chop up your truck a little... what winch is that??
Reply With Quote
  #4
Old 08-01-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
is it bolted to the frame or welded??
Reply With Quote
  #5
Old 08-01-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
the winch is an 8000 lb ramsey from the late 70's or early 80's. used to be on a tow truck that was barely used. the mount is bolted to the frame with three 1/2" grade 8 bolts. tomorrow i'm going to try it out on something. what made it hard to mount is the winch mounting holes are in the front and back instead of on the bottom.
Reply With Quote
  #6
Old 08-01-2009
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
looks sweet!! go test it out like i did mine, drive streight into a mud pit you know you wont make. lol
Reply With Quote
  #7
Old 08-01-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
lol yea, i'll have to go find something. btw: total money in the winch right now is only $280 including all the 1/2 metal for the mount.
Reply With Quote
  #8
Old 08-01-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Not bad man. If you cleaned it up and put even some thin sheet metal (or painted diamond plate) over the front it would look 10x better.
Reply With Quote
  #9
Old 08-01-2009
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
^x2 on the dimond plate painted black would look phucking **** man!
Reply With Quote
  #10
Old 08-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
all that 1/2" plate and a paper thin frame.. haha gotta love crush zones.

i would recommend putting tow hooks back on incase the winch fails or you gotta be yanked..


otherwise it looks good!
Reply With Quote
  #11
Old 08-02-2009
Member

Join Date: Jul 2009
Location: Madisonville, KY
Posts: 159
what he said ^^^^

plus if ya get a ****** block you can let your winch work easier

still, a good job

l8r, John
Reply With Quote
  #12
Old 08-02-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by brianjwilson View Post
Not bad man. If you cleaned it up and put even some thin sheet metal (or painted diamond plate) over the front it would look 10x better.
x3

Reply With Quote
  #13
Old 08-02-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
thanks for the compliments, and i might do some thin diamond plate one day. it would have to be from the front support down though, because i have to get my hands in there to plug the remote, and put it in freespool. i did paint it black today, and it looks 1000% better. i also moved my trailer plugs up so they don't hang down like a sore thumb, and painted my hitch black too.
Reply With Quote
  #14
Old 08-02-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Love the function, but I don't like the way it look in there. If nothing else paint all the metal black.
Reply With Quote
  #15
Old 08-02-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
i painted it black today. i agree it's not as clean looking as the factory bumper, but now that it's black it looks way better. ill get some pics of it if it stops raining
Reply With Quote
  #16
Old 08-02-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Look forward to seeing them.
Reply With Quote
  #17
Old 08-02-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
here's the painted pics.
Attached Thumbnails
winch mount done.  pics-1.jpg   winch mount done.  pics-2.jpg
Reply With Quote
  #18
Old 08-02-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Still not beautiful, but that looks so much better!
Reply With Quote
  #19
Old 08-02-2009
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
Nice, I like the idea and how it doesn't kill your approach angle.
Reply With Quote
  #20
Old 08-02-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
well it looks ok but i dont really like how you just cut the valance i think you could of done it cleaner but i guess function over form


as long as it works
Reply With Quote
  #21
Old 08-02-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
Quote:
Originally Posted by Downey View Post
well it looks ok but i dont really like how you just cut the valance i think you could of done it cleaner but i guess function over form


as long as it works
well when i started cutting, i tried to trim as little as i could, but there was no way it was fitting without cutting what i did. and i couldn't move the winch back anymore. like i said, it's not the prettiest, but it will work.

but i tell you what, this is the last winch i mess with that mounts on the front and back instead of the bottom.
Reply With Quote
  #22
Old 08-02-2009
02rangermayhem's Avatar
Member

Join Date: Jan 2008
Location: C.Springs
Posts: 573
i like the location and but im not feelin the hacked up valance....
Reply With Quote
  #23
Old 08-02-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
that's cool. it's not for everyone. i like it, just gotta find something to try it on.
Reply With Quote
  #24
Old 08-04-2009
FordX4Ranger's Avatar
Member
iTrader: (1)

Join Date: Aug 2007
Location: Golden, CO
Posts: 487
i think it looks good. i always think its funny how the people that dont have winches always critisize the way the mounts looks. my winch mount isnt anything special but i know it will hold to get me out of a jam. looks like it serves its purpose. i would put the tow hooks back on so oyu can run a ****** block though. plus its always nice to have a front tow/anker point
Reply With Quote
  #25
Old 08-05-2009
quicksilver2001's Avatar
Member
Thread Starter

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
well finally tried it out. my buddy had some (big) bushes and a couple trees he wanted to pull out. no pics, but first two came out no problem, just grunted the winch a little. the next two, which i had a feeling wouldn't come out with the winch, didn't. it just pulled the truck lol. its a beast. so i got in my truck and tried pulling in reverse in 4LO. popped the 3/8 chain. so i winched my cable back up and we pulled everything else out with a 1/2 inch chain off my hitch. BUT, i now know my mount isn't going to break and i have full faith in my setup. couldn't be happier with it.
