Yet another Fab project

So since I have the front hitch, I needed to make myself a front receiver shackle for it...

So I found some 1.75" square stock and cut it down to fit inside a 2" sq tube (1.5in square) and rounded the edge so it slid right in...

The tube is 7in long with about 2in of the sq stock sticking out. Sq stock has a 7/8in hole for the d-ring shackles I'm picking up tomorrow from my buddy's 4wd shop. So it's welded on all 4 sides of the sq stock where it touches the sq tube and I drilled 4-1/2in holes in the tubing and plug welded the stock to the tube to reinforce the front welds. Then ground the excess plug weld down flush and it's going to get a coat of bedliner tomorrow and then the receiver goes in! Pics of that to come when I get the d-rings.

I'll also take orders on these if people like them. I currently have 1 made for myself and 04blackedge ordered one from me. If you order one you'll get what you see in the pic (except it'll be bed lined and come with the d-ring).

What do you guys think?

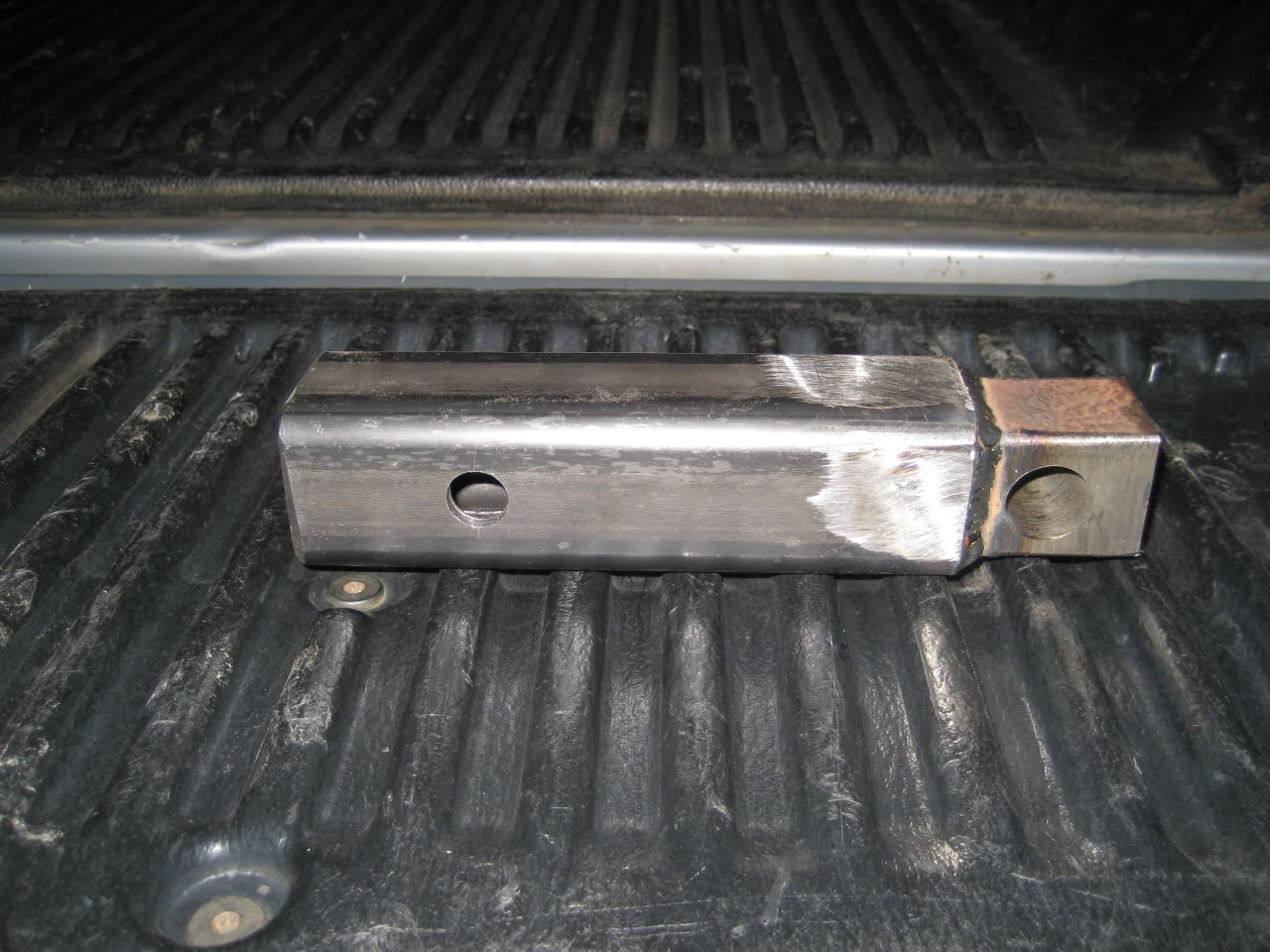

Name:  IMG_0403.jpg
Views: 2
Size:  201.3 KB

Name:  IMG_0404.jpg
Views: 1
Size:  216.5 KB

Thanks guys!
Reply With Quote
  #2
Old 05-22-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
dang i want one...
Reply With Quote
  #3
Old 05-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
looks good!

how much $$$ for no bed liner or dring?
and how thick of a wall does the 2" tubing have? looks like 1/4?
Reply With Quote
  #4
Old 05-22-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good man.
Reply With Quote
  #5
Old 05-22-2009
BCobe's Avatar
Member

Join Date: Jul 2008
Location: Fairfeild,California
Posts: 1,055
That looks awesome man!
Reply With Quote
  #6
Old 05-22-2009
yetti96's Avatar
Member

Join Date: Mar 2008
Location: Fort Myers, FL
Posts: 371
Very nice. I feel even though home-made these could get costly really quick. Any clue?
Reply With Quote
  #7
Old 05-22-2009
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
looks good tre....
Reply With Quote
  #8
Old 05-22-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I already quoted another member $40 shipped with d-ring and painted up with bed liner... Matt, I could probably do $25 shipped for just the receiver untouched after being assembled.

Yeah, it's roughly 1/4in wall!
Reply With Quote
  #9
Old 05-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
can you get a pic of how far it sticks out when its in the hitch? i want the beginning of the solid part almost flush with the end of the receiver if i get one, you know the less it sticks out.. the better. I'm still cursed with leaf springs in the rear.
i can do $25..
Reply With Quote
  #10
Old 05-22-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
think you could make me one for my BIG D ring?
Reply With Quote
  #11
Old 05-22-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Woohoo! Can't wait to get it. How big is your d-ring evan? I'm going with the 1"
Reply With Quote
  #12
Old 05-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
its..BIG
Reply With Quote
  #13
Old 05-22-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
The hole is 7/8, anymore and I don't trust the sidewalls of the metal. But still... It'll be sick.

Evan, I can do that if you want.. :-)

Matt, I'll go snap some pics of it on my truck, not painted with no d-ring...
Reply With Quote
  #14
Old 05-22-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
lol i can almost fit my head through my d ring lol -- i already have a mount but now since my truck doesnt have a hitch i need to find another place to mount it dunno if i wanna do it upfront or in the rear..

but nice product your taking your skills and putting then to use! I like that!
Reply With Quote
  #15
Old 05-22-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369

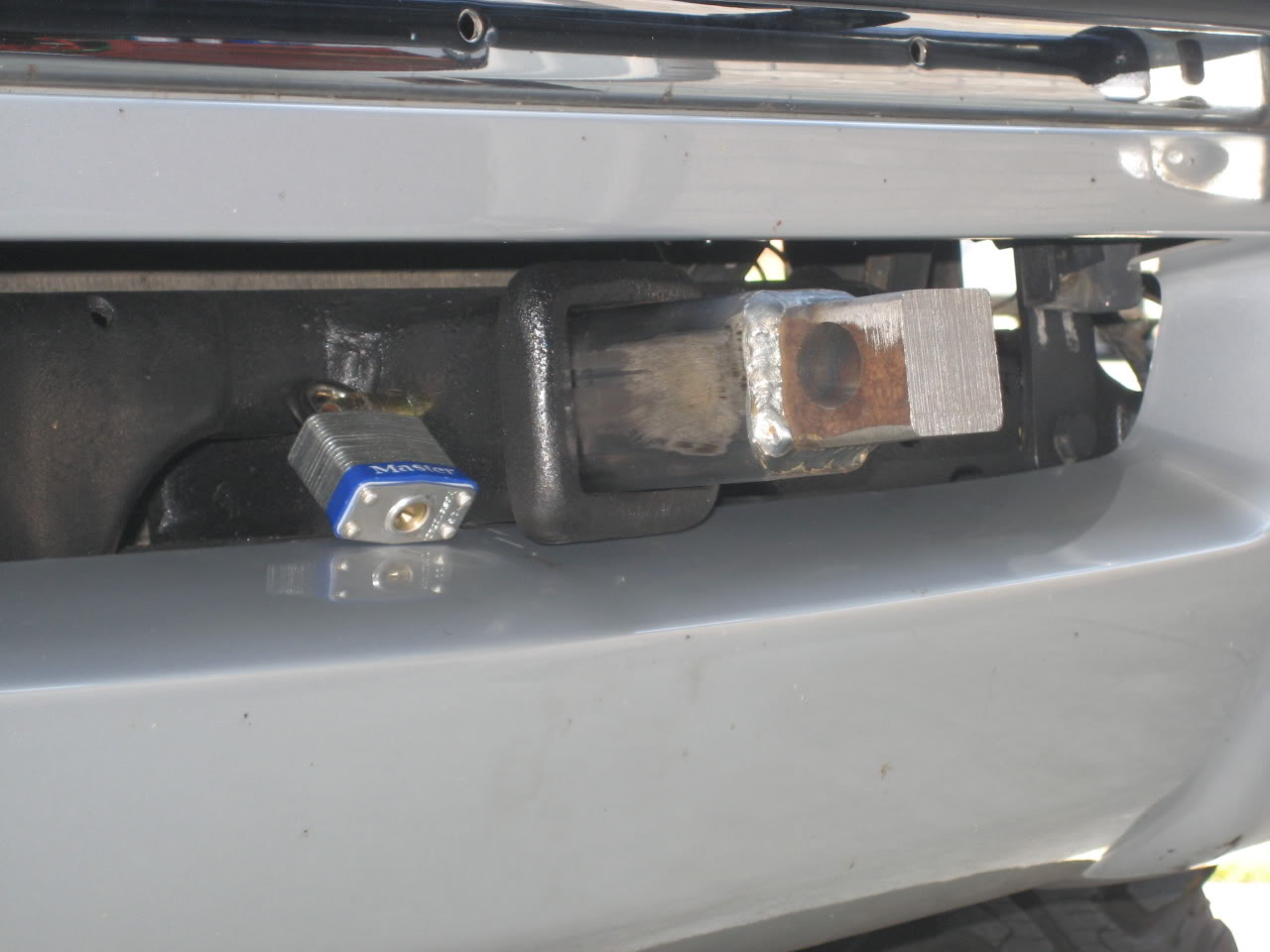

Front view:

Name:  IMG_0407.jpg
Views: 2
Size:  103.9 KB

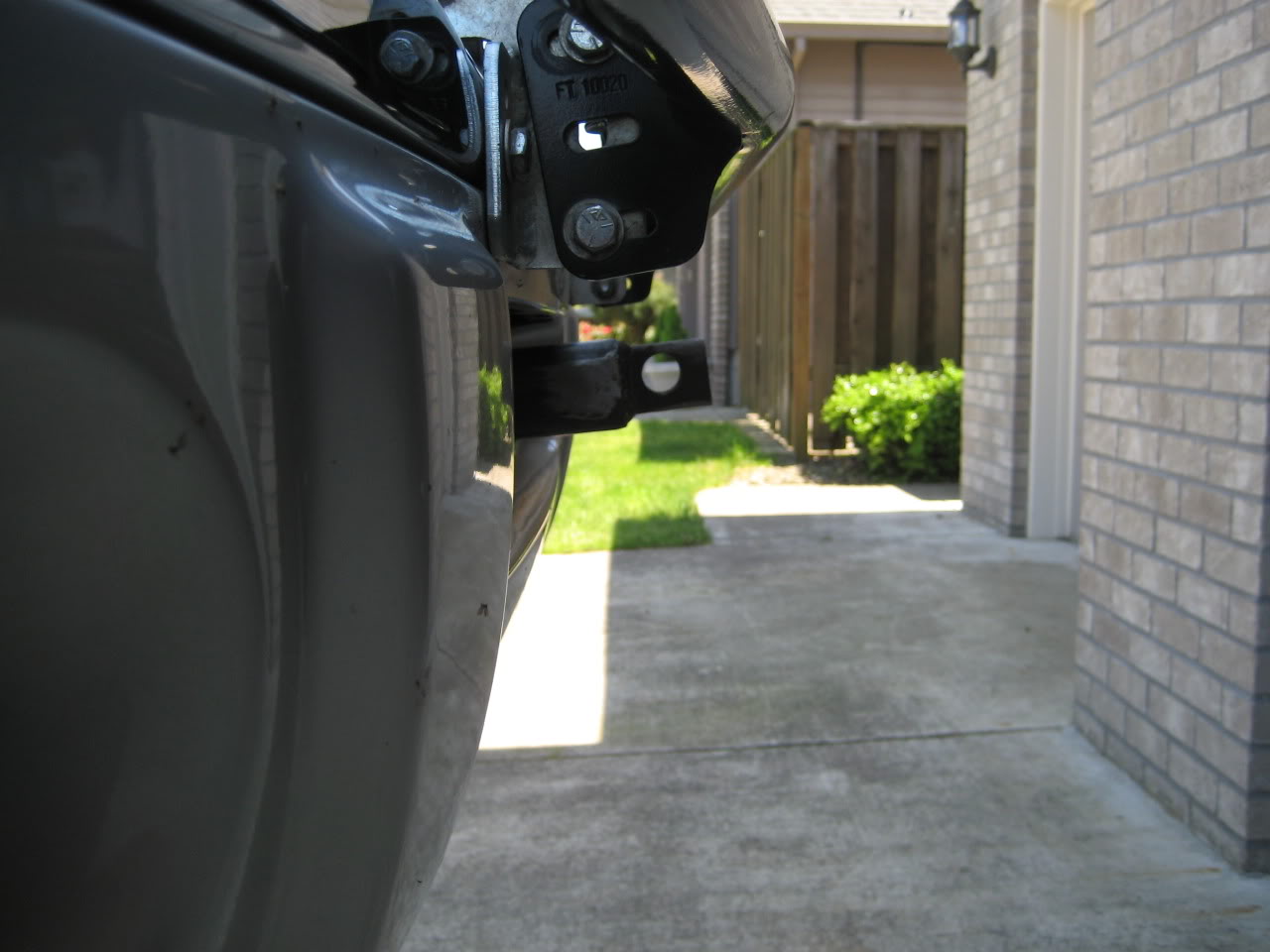

Side profile:

Name:  IMG_0408.jpg
Views: 1
Size:  102.9 KB
Reply With Quote
  #16
Old 05-22-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369

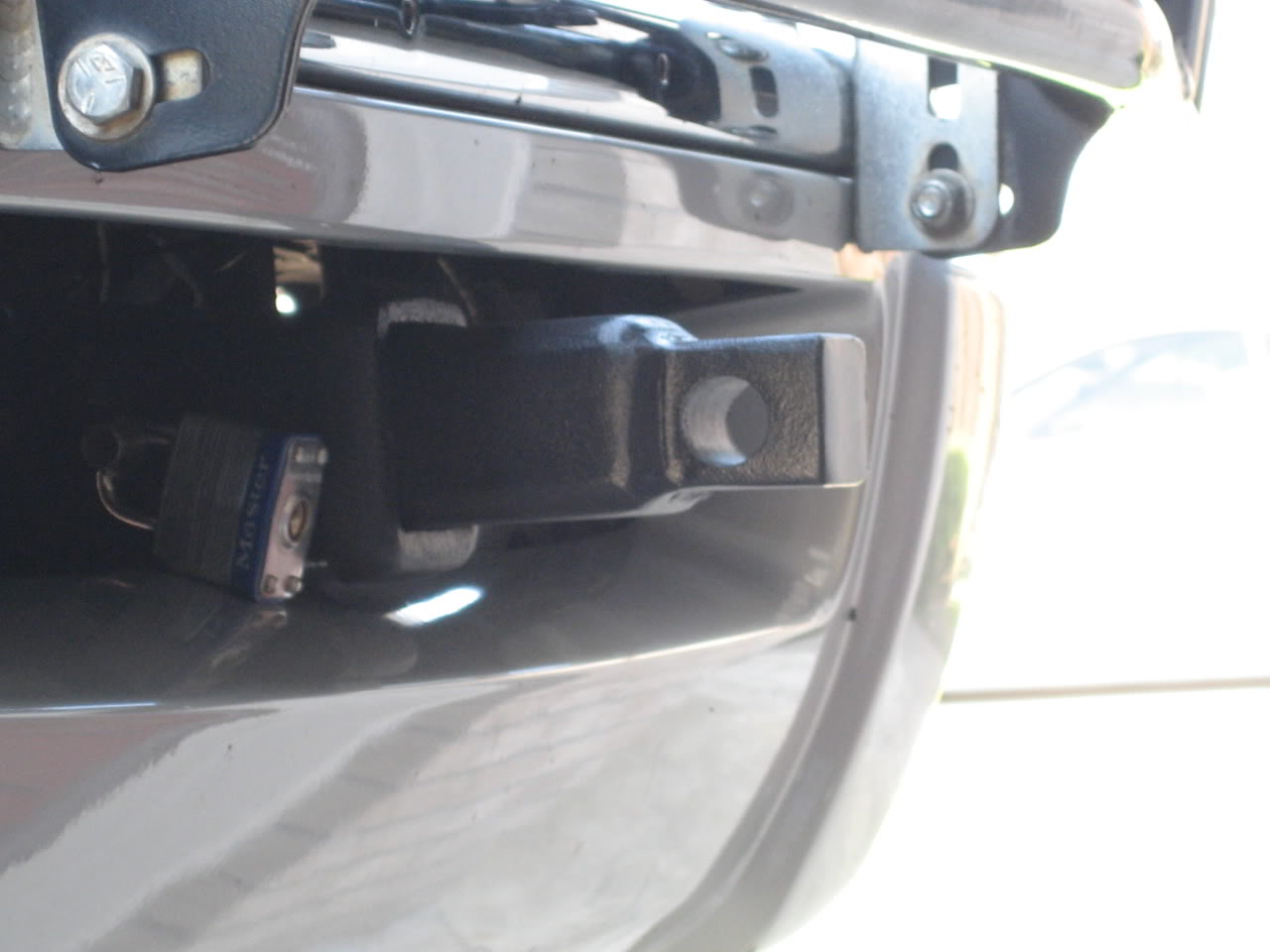

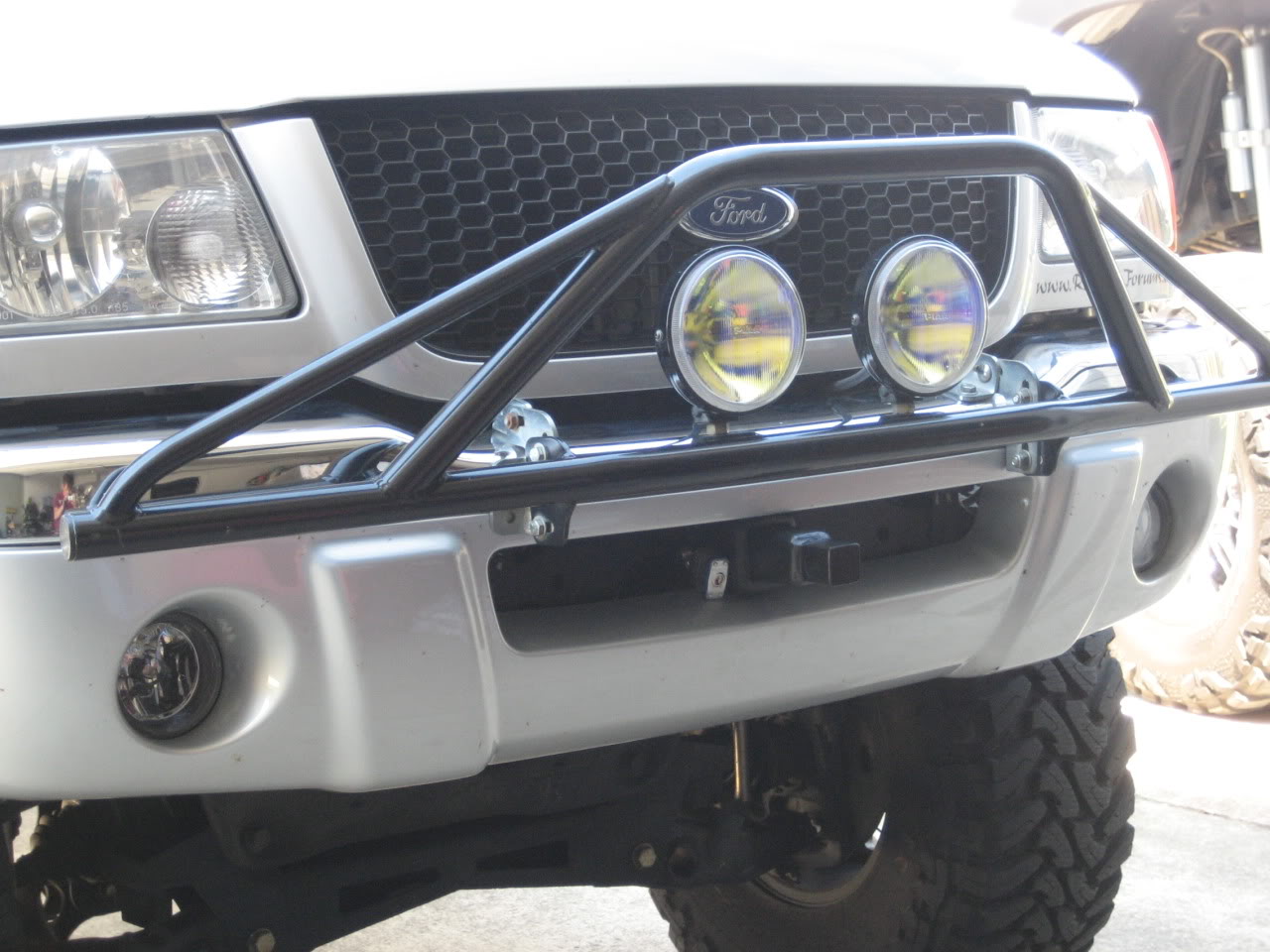

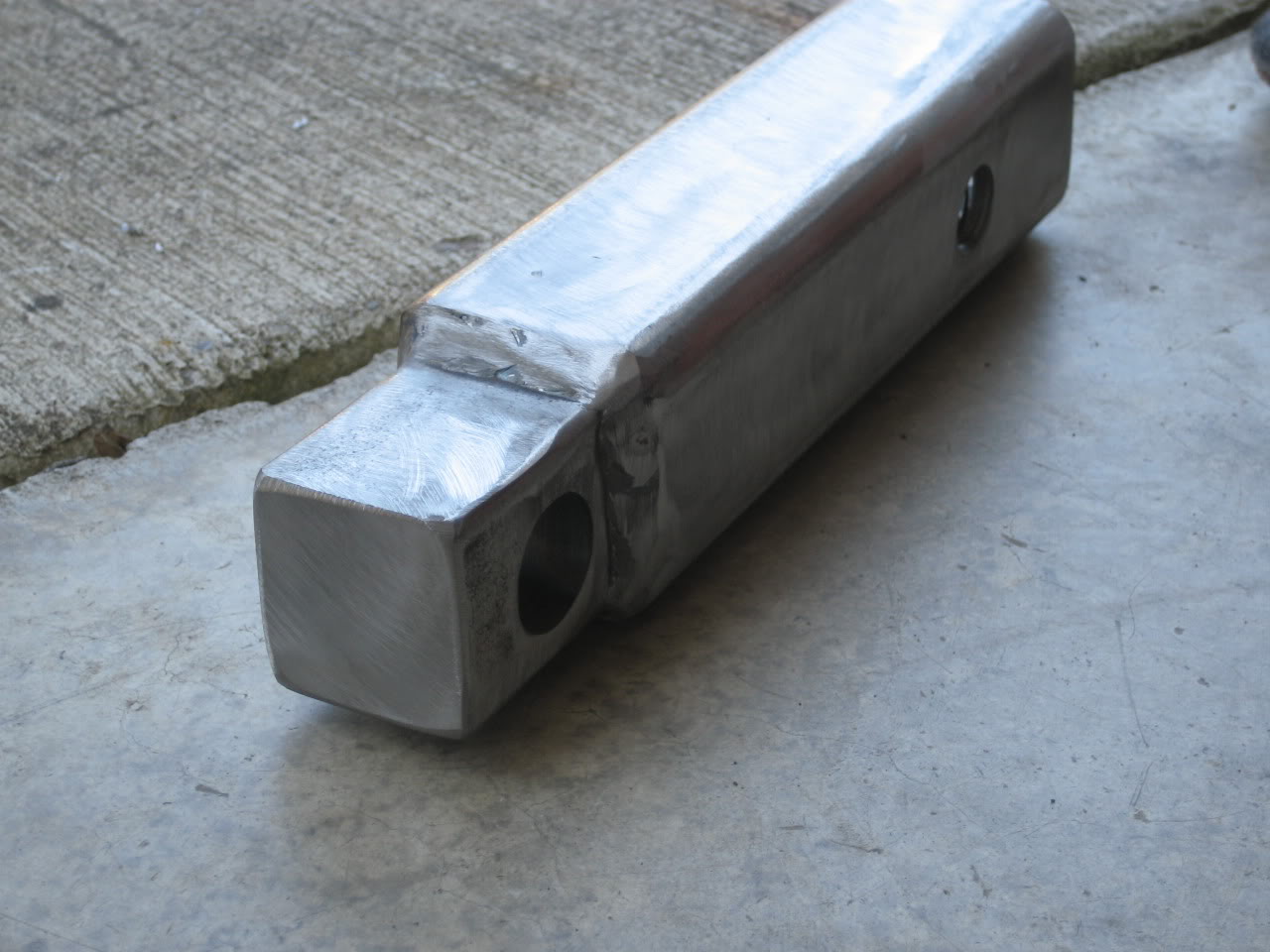

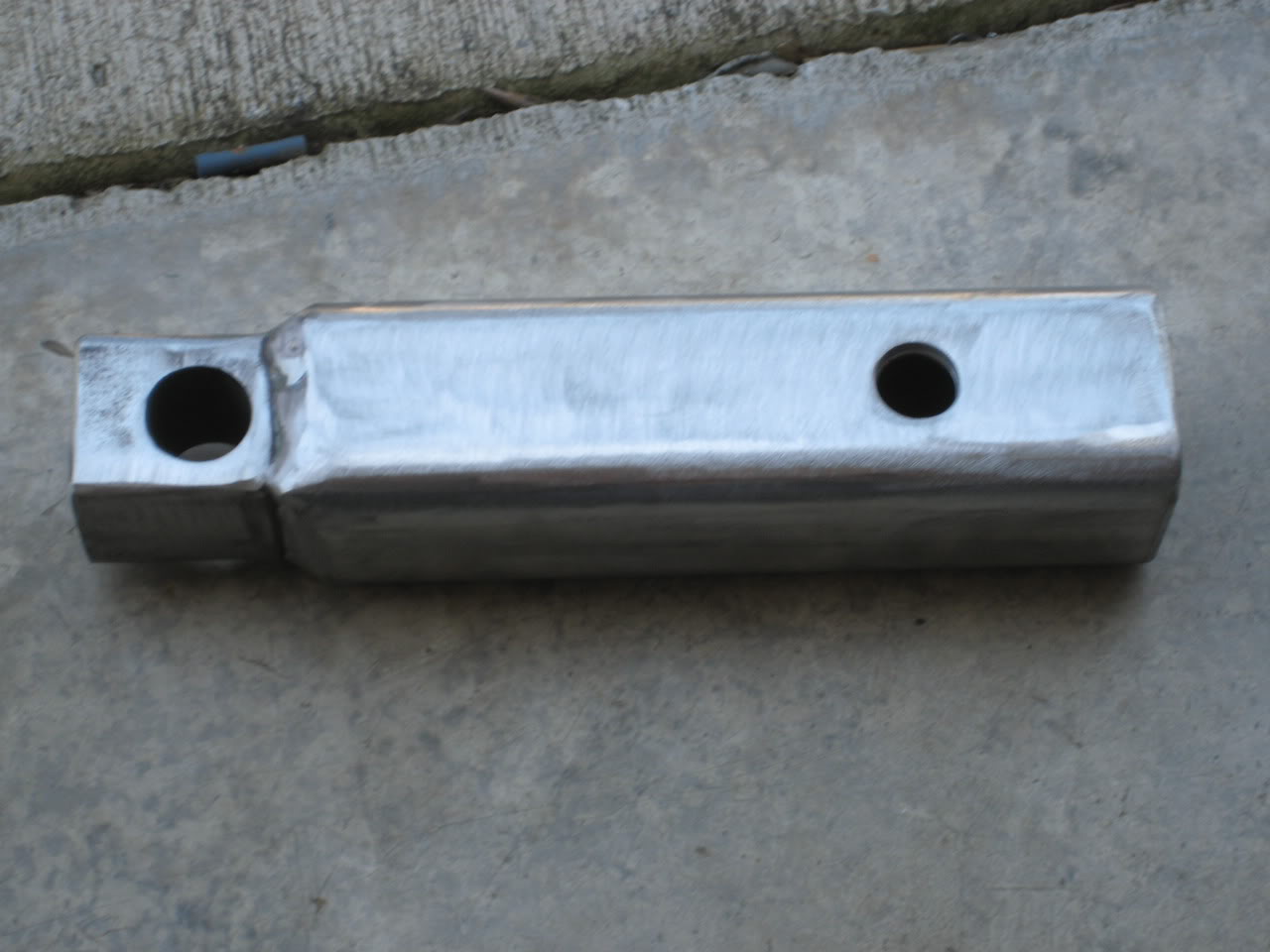

Here's the receivers all sanded then bedlined with a clear coat on the truck:

Name:  IMG_0409.jpg
Views: 1
Size:  102.8 KB

Name:  IMG_0410.jpg
Views: 1
Size:  131.8 KB

Name:  IMG_0420.jpg
Views: 1
Size:  159.3 KB

Name:  IMG_0421.jpg
Views: 2
Size:  88.2 KB
Reply With Quote
  #17
Old 05-22-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
that looks sick. won't that lock eventually begin to kill the paint on the valence if it moves around? not like it really matters
Reply With Quote
  #18
Old 05-22-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks good man
Reply With Quote
  #19
Old 05-22-2009
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
would be handy but shipping would probably be killer, how much does it weigh?
Reply With Quote
  #20
Old 05-22-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
Looks good Tre, It appears as though Aaron, Rob and I have started a cartoonish d-ring shackle trend!
Reply With Quote
  #21
Old 05-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
good job not drilling the hole in the middle n00b how much do you pay for shackles? TSC was kinda pricy

that sticks way the hell out there.. but i guess you need it to in order to clear the bumper junk haha

Last edited by 99ranger4x4; 05-22-2009 at 06:43 PM.
Reply With Quote
  #22
Old 05-22-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Looks good Trev, you are forever making crap lol. But you need a real locking pin lol, that one is so ghetto.
Reply With Quote
  #23
Old 05-22-2009
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Can't do any other style pin, nothing else clears. That doesn't bother me either. It does what it's told! lol

I realized that after I drilled the holes too lol... Oh well... I'm actually gonna modify it here this next week.. to fit a 1in pin shackle hook... I think it's about 4in long... Trent this box is gonna be heavy with your stuff in it... So I might need some helping shipping it lol.

1in pin shackles, bout 4in long was $20...
Reply With Quote
  #24
Old 05-22-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i don't need an inch, so I assume 5/8 or 3/4 was in the range of $15?

I'm gonna weld up a front receiver from a hitch i cut off a truck at work a few months ago.. just need some plate for bracing and a skid.
Reply With Quote
  #25
Old 05-23-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by TrePaul86 View Post
Can't do any other style pin, nothing else clears. That doesn't bother me either. It does what it's told! lol

I realized that after I drilled the holes too lol... Oh well... I'm actually gonna modify it here this next week.. to fit a 1in pin shackle hook... I think it's about 4in long... Trent this box is gonna be heavy with your stuff in it... So I might need some helping shipping it lol.

1in pin shackles, bout 4in long was $20...
No prob, just let me know. It might be cheaper to just ship the receiver and shackle separately in a flat rate box.
