Tail Lights...Again
#1
Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Likes: 0
Received 0 Likes
on
0 Posts
#4
#10
Member
iTrader: (2)
Join Date: Aug 2004
Location: Grayson, Kentucky
Posts: 617
Likes: 0
Received 0 Likes
on
0 Posts

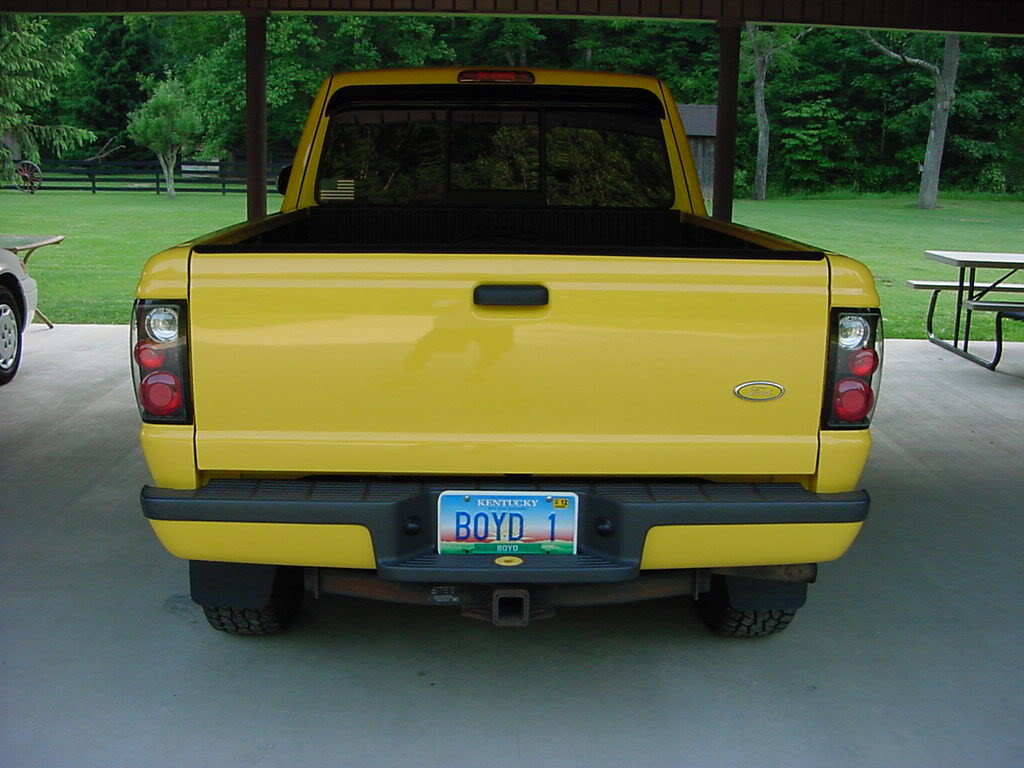

Dude, I just got those same exact tails in pic #1. They do not fit!!!!! I could not get them to line up properly at all on my '03 Ranger Edge. I emailed the company, that I got them from, yesterday to get a refund.....Still waiting on my reply. The lights look great, but they do not fit!!!
#13
Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Likes: 0
Received 0 Likes
on
0 Posts
#18
Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Likes: 0
Received 0 Likes
on
0 Posts
#21
yeah the first ones don't fit at all...don't even bother to get 'em unless there's an easy way to make them fit. i'll be lookin forward to a refund and i'm gonna get the ICPW Bermuda Black ones that i wanted first off... just for giggle's, how did you make them fit?
http://www.stylinconcepts.com/part.a.../CategoryID/26
http://www.stylinconcepts.com/part.a.../CategoryID/26
#22
Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Likes: 0
Received 0 Likes
on
0 Posts
i will try again this weekend, and get some pics up by sunday hopefully, also got some new badges to make my emblems black instead of blue...
Dave (edg3 of cha0s) showed me i have to saw part of a bolt that holds up the tailgate cable and then it should fit with some bigger screws for the inside...hopefully all goes well, and once again thanks for all the info Dave...hope it works for me...
Dave (edg3 of cha0s) showed me i have to saw part of a bolt that holds up the tailgate cable and then it should fit with some bigger screws for the inside...hopefully all goes well, and once again thanks for all the info Dave...hope it works for me...
#24
#25
Member
iTrader: (2)
Join Date: Aug 2004
Location: Grayson, Kentucky
Posts: 617
Likes: 0
Received 0 Likes
on
0 Posts
O.K. guyz....I'm gonna attempt to show and tell ya how I got my lights to fit......In this pic you will see a tab with a hole in it, (circled in red), you need to push on this tab and bend it back a little. After you have pushed the tab back a little, you will then need to cut the end of the bolt that holds the tail gate cable, (shown with red arrow), DO NOT CUT INTO THE THREADS OF THE BOLT! You just need to cut a small portion of the smooth part off at the end of the bolt. You do not need to remove the bolt to cut it unless you want to. I left it in and cut it with a hacksaw. Just be careful when it gets ready to cut through so you won't ram the teeth of the saw into your truck. Also when cutting with the saw be careful and take your time or you will jump the saw off the bolt and maybe chip some paint off your truck somewhere. After you cut a small portion of the end of the bolt off you can use the long screws from the factory lights on the outside of your new light to put it back in. How you want to wire the lights up is up to you. The short factory screws on the inside next to the tailgate you will not be able to use......They are too short and not wide enough. You can see the ones that I used in the pic laying in the bed of my truck. I used some plastic washers at the top of mine....After you do this the lights should fit just fine!
