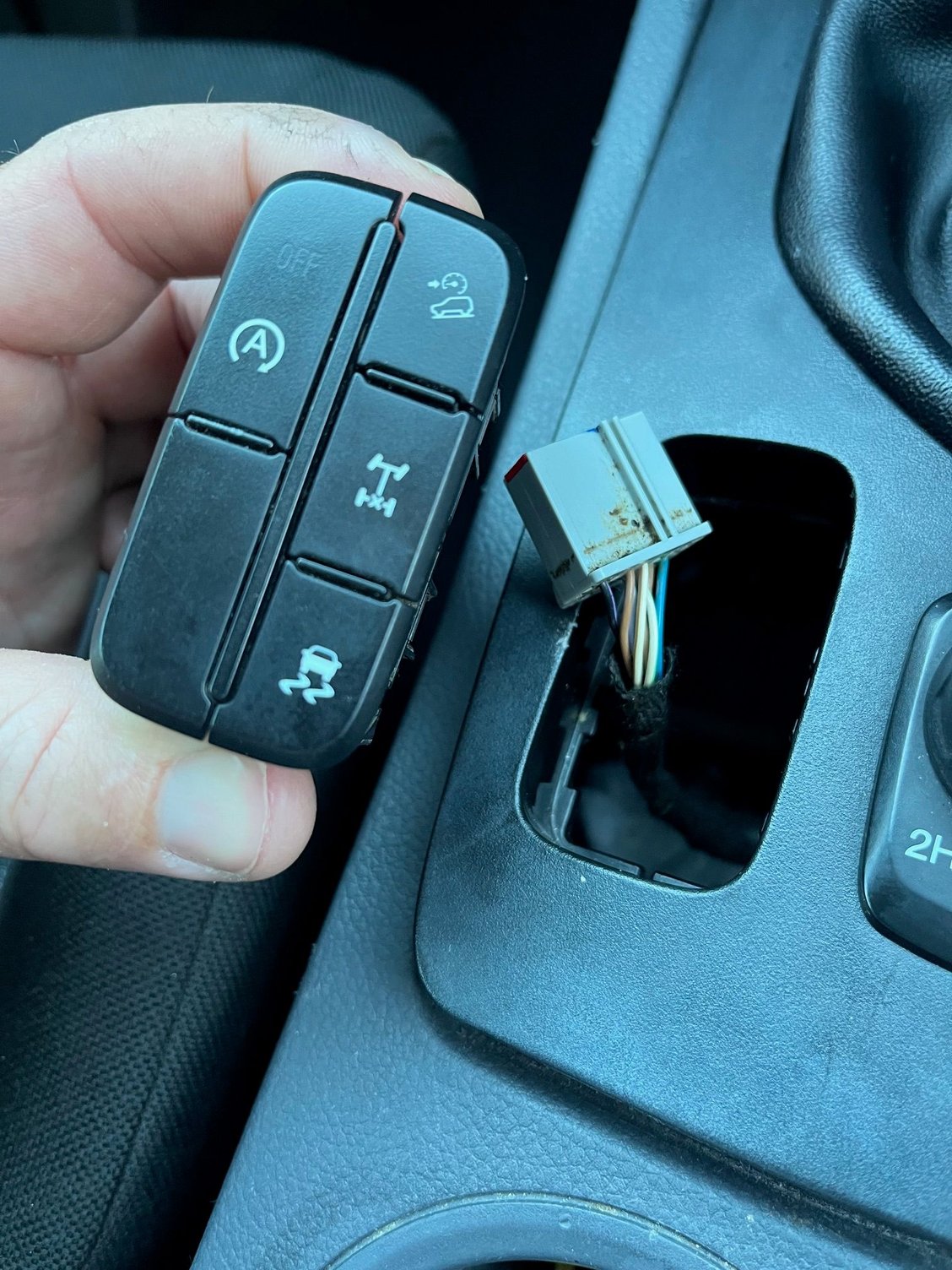

I want to reverse the auto start stop button. So it is off by default. Then when I push the button on the centre console switch it turns the feature back on. So the switch will have an orange off light by default when the vehicle is first turned on.

There are no start stop eliminators available for the PX2 2017 Ford Rangers. And I don’t want to pull the plug from the battery. I still want the switch operational. I just want to reverse the switch. I have figured out how to do this. I just need to know which two wires are for the auto start stop on the switch. Then I simply add a toggle switch spliced into these two wires.

Can somebody please tell me what two colours I need. I thought about process of elimination but somebody may have a wiring diagram for the switch. A pin out with wire colours would be nice. Wires colours are

White/brown

White/green

Blue

Light purple

Purple/black

Brown x2

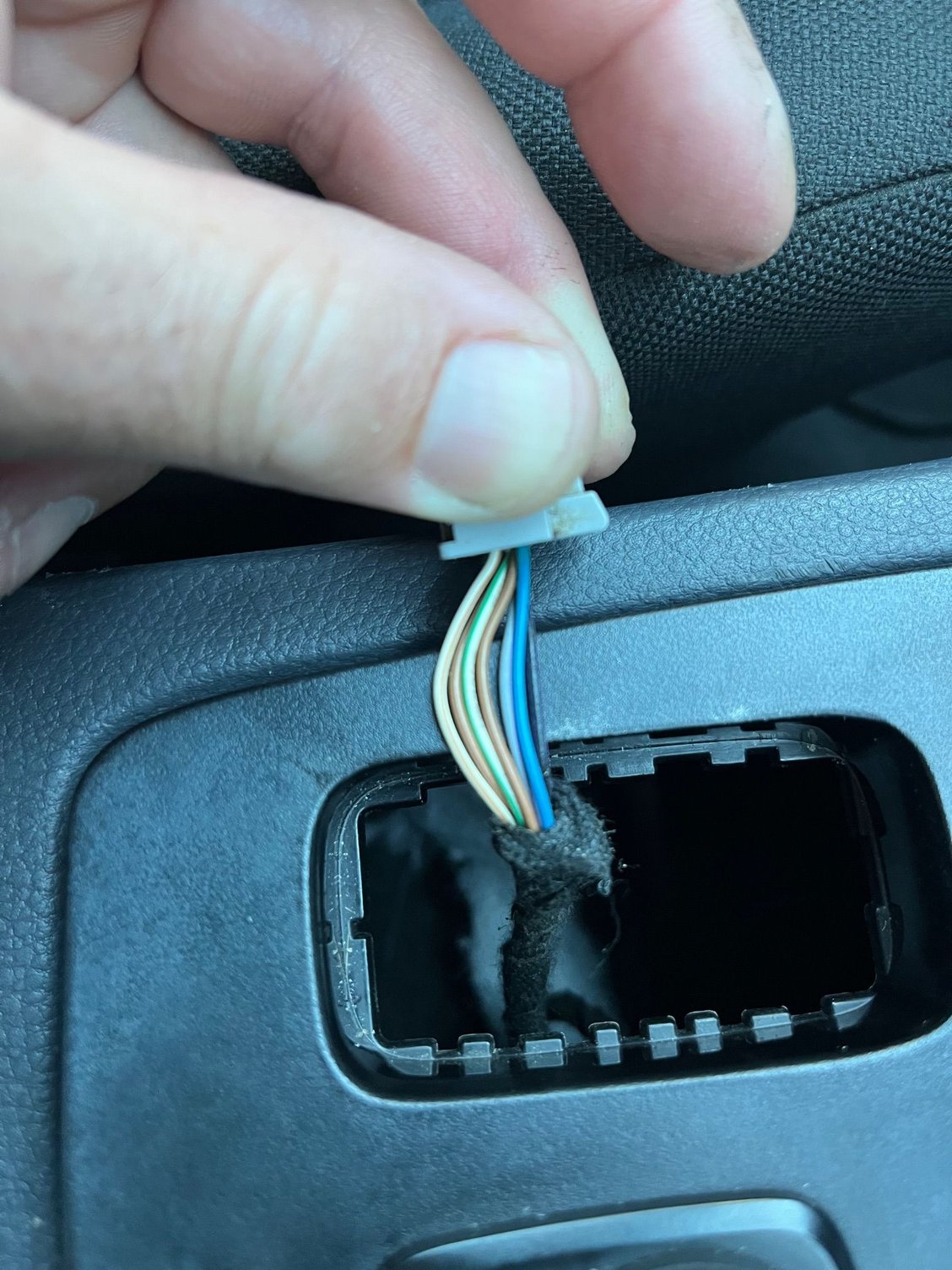

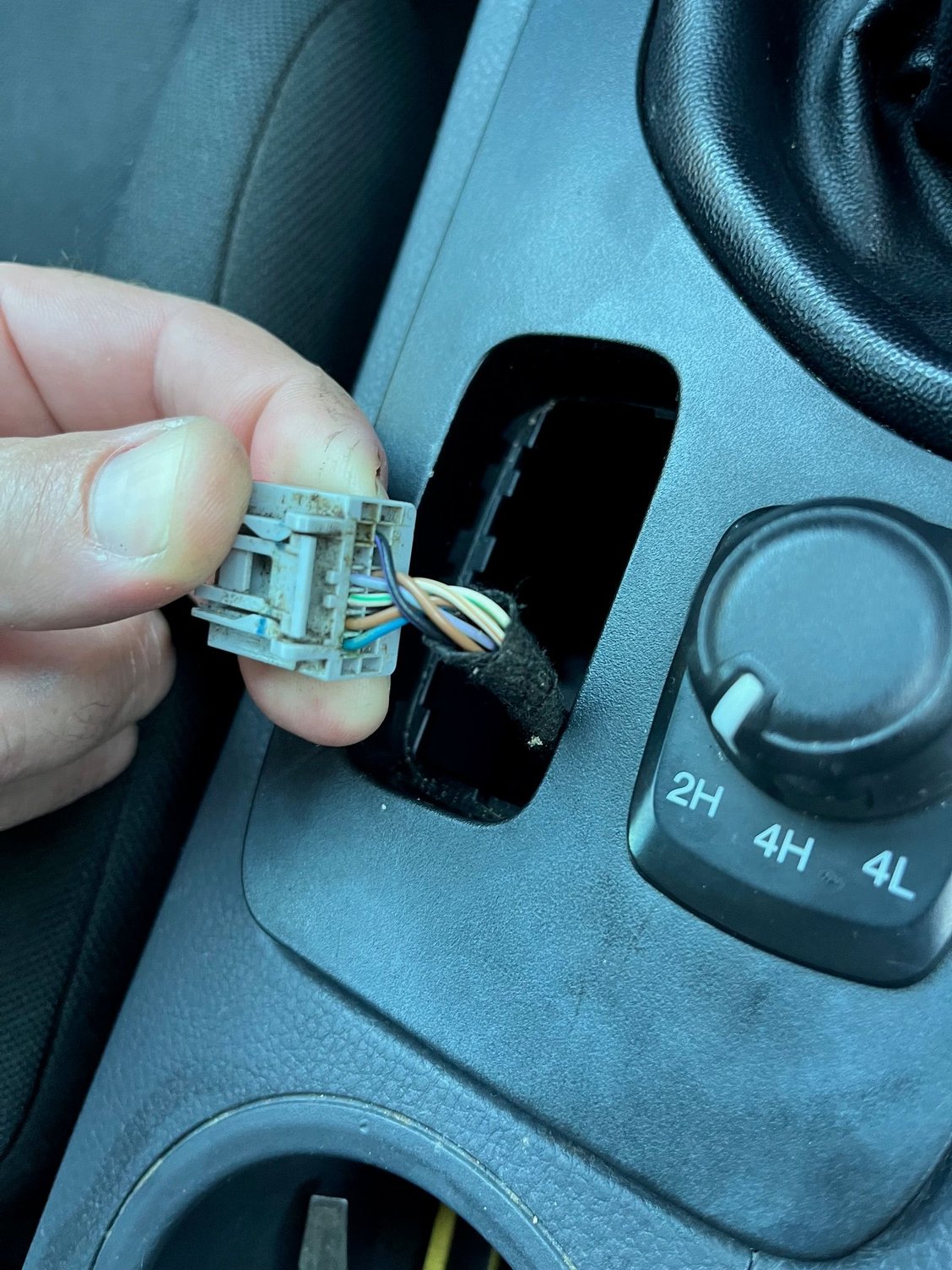

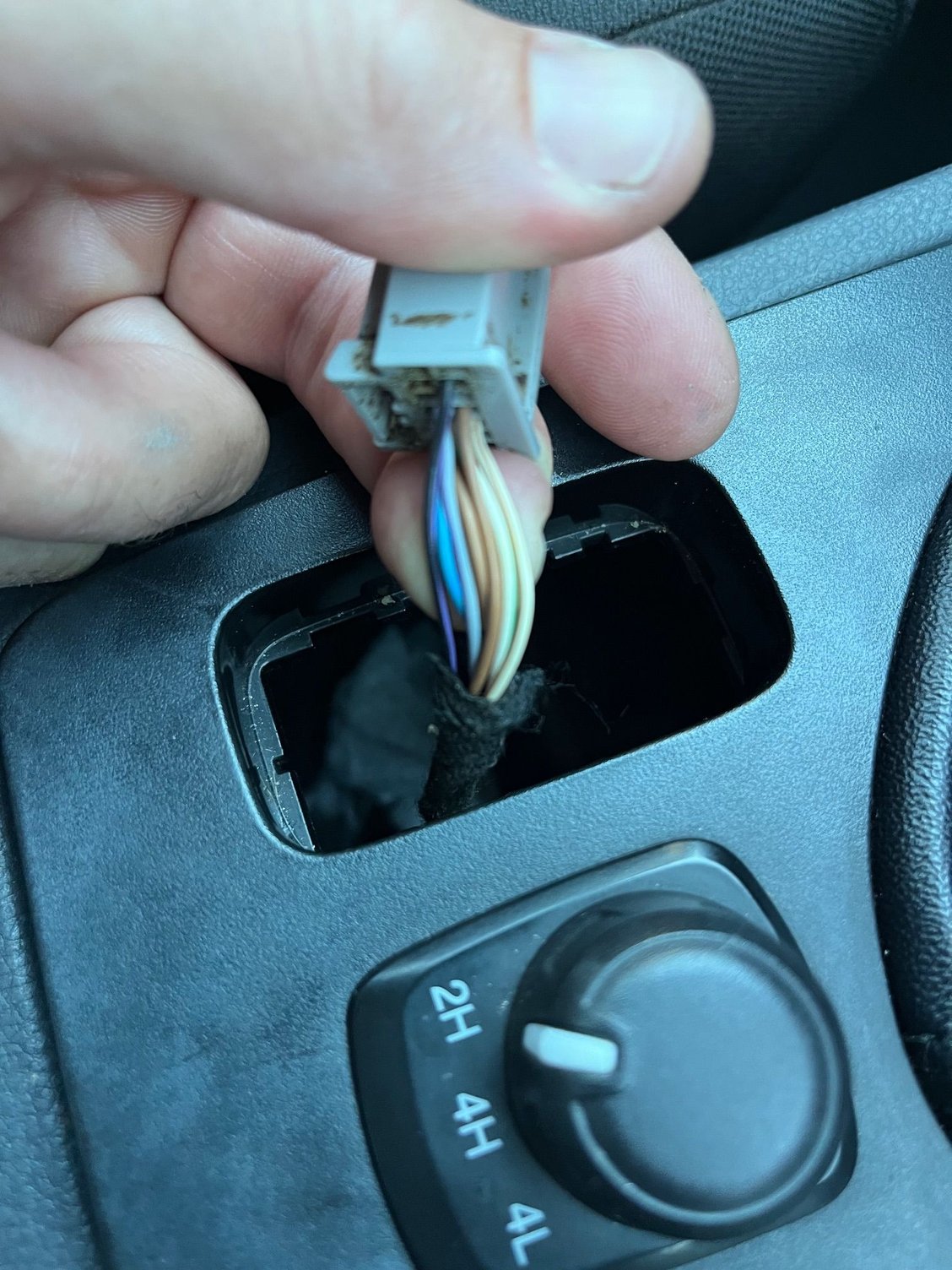

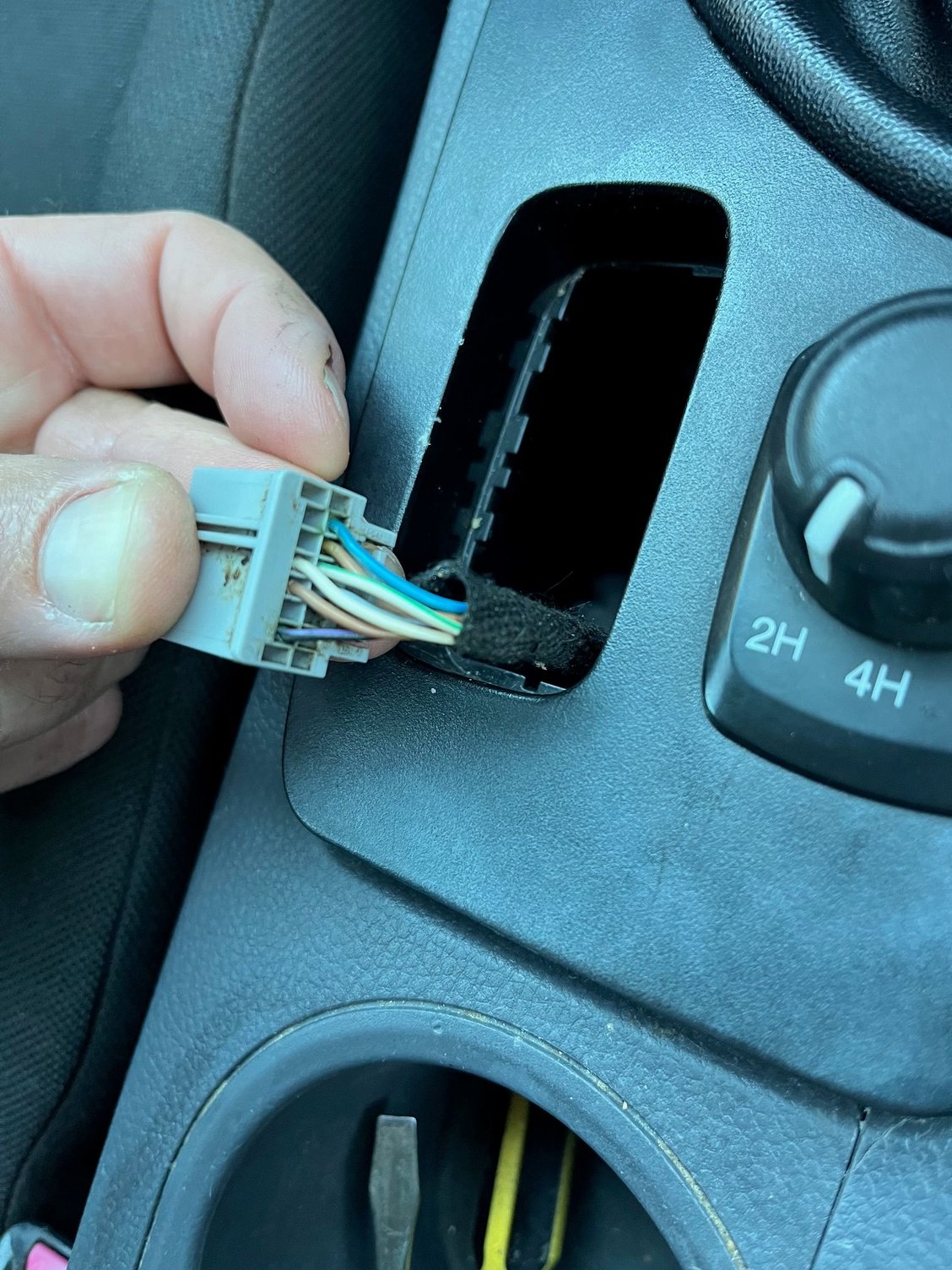

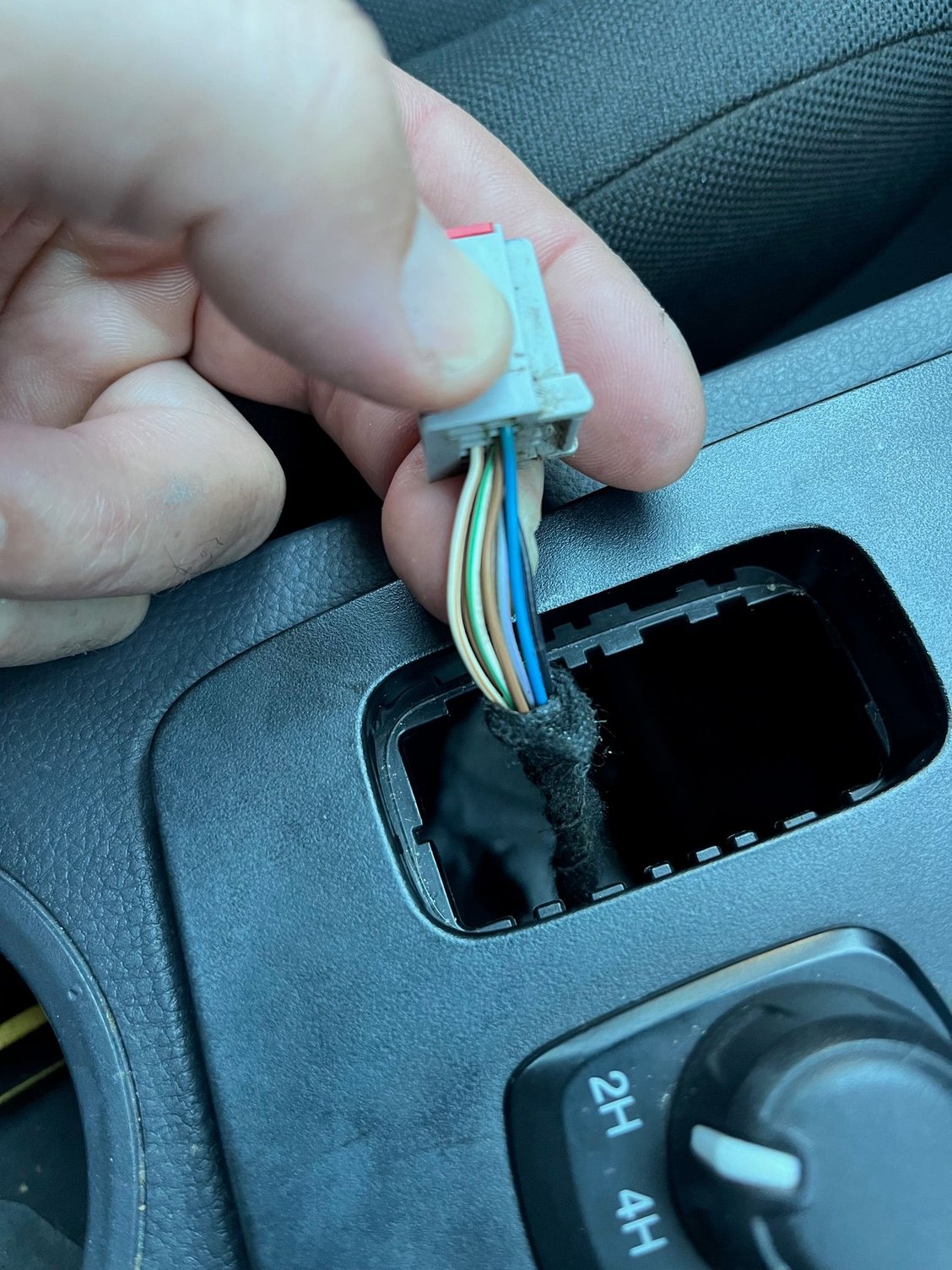

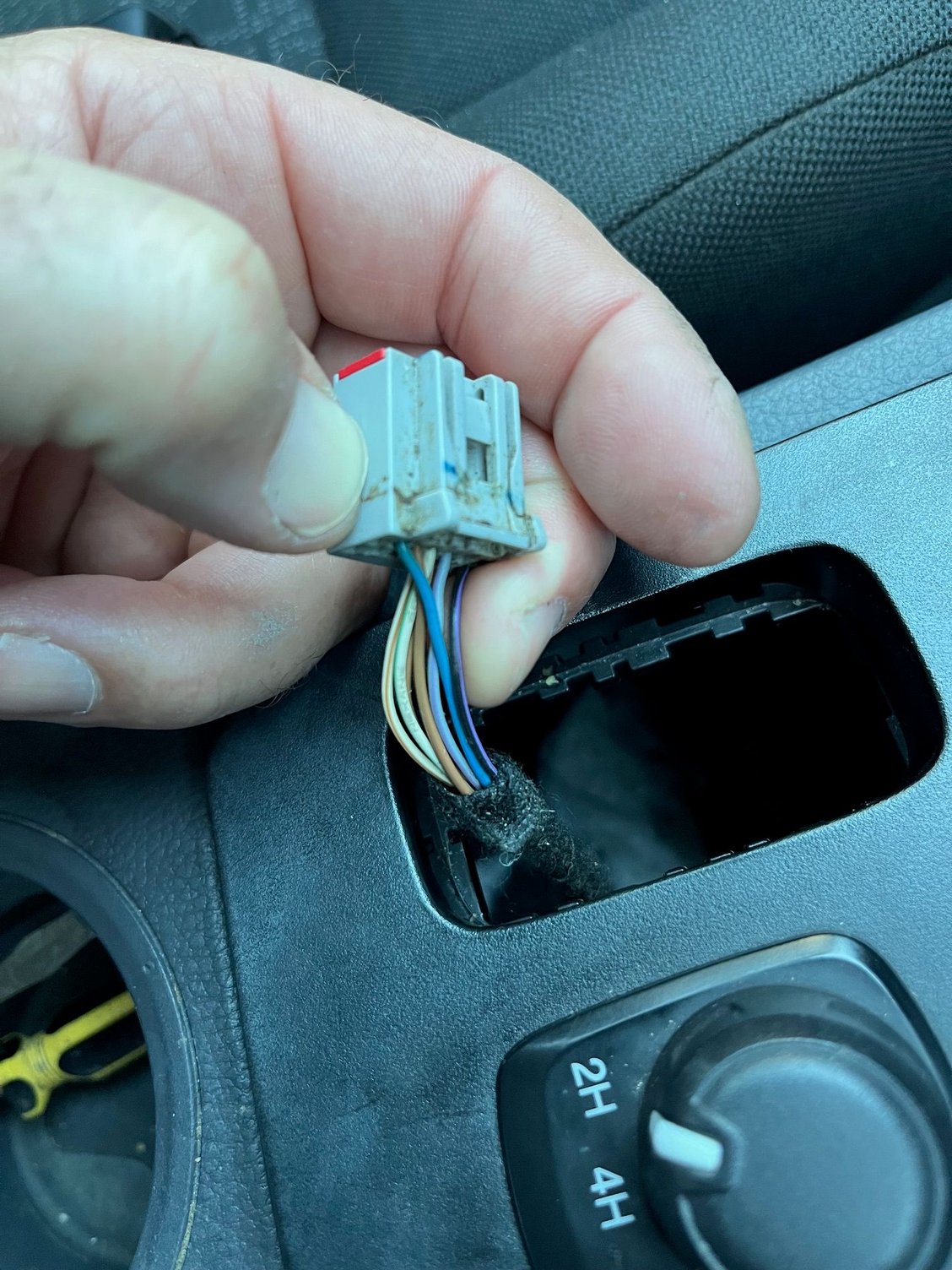

See photos.









Thank you
