8.8 vs. 7.5 - take a looksie

Here is the progress I made today, although it's not much. Dang neighbors kept coming by to see what in the heck I've been doing with all my parts and noise.

Take a look at the front links I was discussing earlier. I'm thinking of drilling holes in the frame to mount those link brackets.

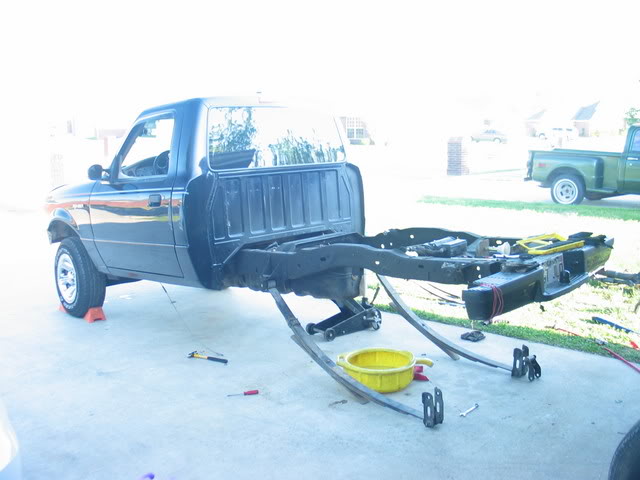

Explorer leaf's bolted up to the frame:
Name:  IMG_4843.jpg
Views: 15
Size:  46.9 KB

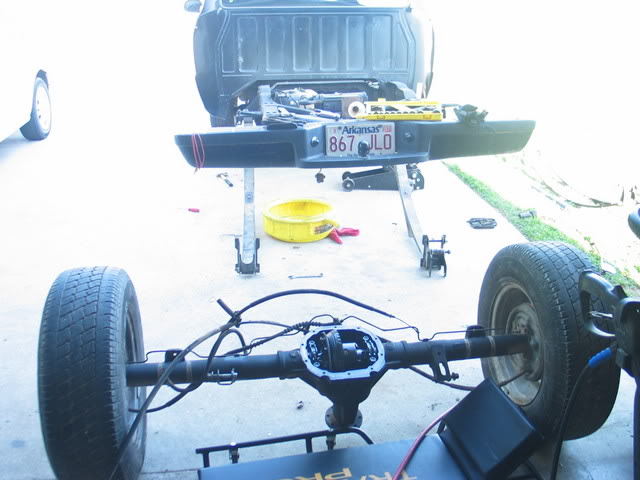

Here's a pretty cool view of both the stock 7.5 axle and the Explorer's 8.8 leafs.
Name:  IMG_4844.jpg
Views: 14
Size:  52.9 KB

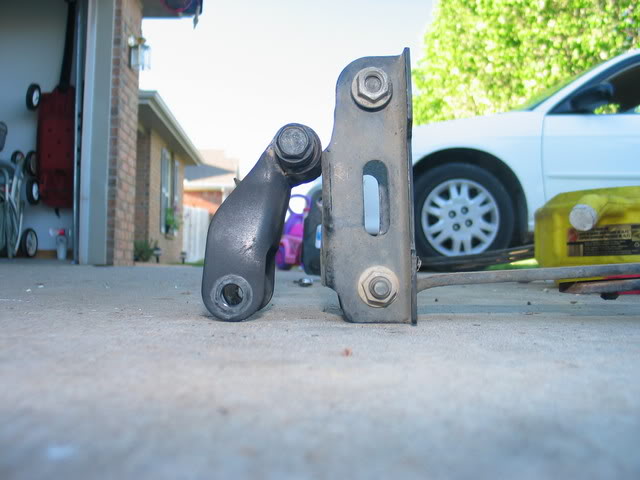

Check out the difference between the Explorer's shackle and the Ranger's. It came out 5-1/4 for the Ranger, and 6-1/4 for the Exploder.
Name:  IMG_4845.jpg
Views: 13
Size:  46.3 KB


Here's the front links and axle shock I was mentioning earlier...
Name:  IMG_4846.jpg
Views: 13
Size:  148.8 KB
Reply With Quote
  #2
Old 04-01-2007
Member

Join Date: Mar 2006
Location: Mesa, Arizona
Posts: 886
are you going rear explorer axle with disk brakes too? Sorry if i didnt catch on!
Reply With Quote
  #3
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Yes...I'm putting the Explorer's rear under my truck.

It has:
  • 8.8" housing
  • Limited Slip Differential
  • Disc Brakes
Reply With Quote
  #4
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
I also spent a chunk of change today getting the rear brakes replaced. I got new slotted rotors, pads, caliper bolts, shims, and boots, and some black paint for the axle and diff when I get done cleaning it up.
Reply With Quote
  #5
Old 04-01-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice man your coming along. are you keeping it spring under?
Reply With Quote
  #6
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by zabeard
nice man your coming along. are you keeping it spring under?
HECKLE NO! I rolled that axle underneath those springs and started drawing it out. Tomorrow I'll show you what I come up with. It's going to sit the quite a bit higher than stock, even with the Ranger stock hangers. (at 5-1/4 inches long)
Reply With Quote
  #7
Old 04-01-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
you want to get rid of those axle shock brackets (one off the axle and one off the frame) and the bolts to bolt it to the axle? i have a need for them if you do....
Reply With Quote
  #8
Old 04-01-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
BTW: looks like good progress......

since you are a street truck, i would keep it spring under axle...it will give you a little drop...
Reply With Quote
  #9
Old 04-01-2007
Member

Join Date: Jul 2004
Location: Mississippi
Posts: 1,671
Not To HIjack - But is this basically the easiest way to get disc on the rears of our trucks? LOL Probably will not work on a Mazda though
Reply With Quote
  #10
Old 04-01-2007
bryanjints's Avatar
Member
iTrader: (1)

Join Date: Dec 2005
Location: Mount Holly, NJ
Posts: 1,857
Nice. What does the explorer springs do for you?
Reply With Quote
  #11
Old 04-01-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by FORZDA
Not To HIjack - But is this basically the easiest way to get disc on the rears of our trucks? LOL Probably will not work on a Mazda though
yes it is the easiest way to get disc on a Ranger.....yes an Explorer axle will bolt into your truck.....you will ofcourse have to do the same mods someone with a Ranger would have to do...
Reply With Quote
  #12
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
I can't help but get the impression you guys like my rear end?

LOL

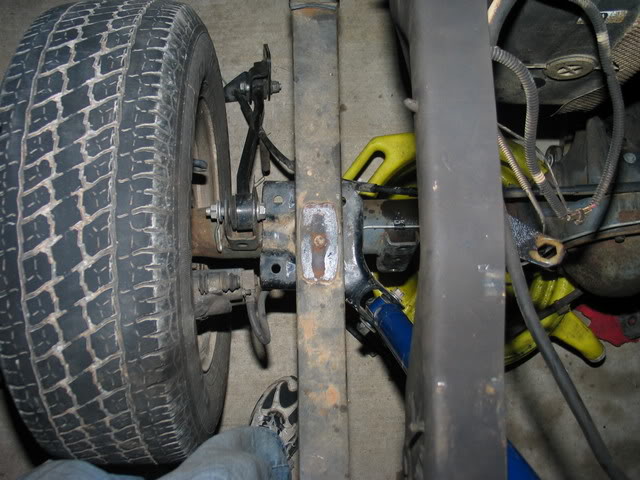

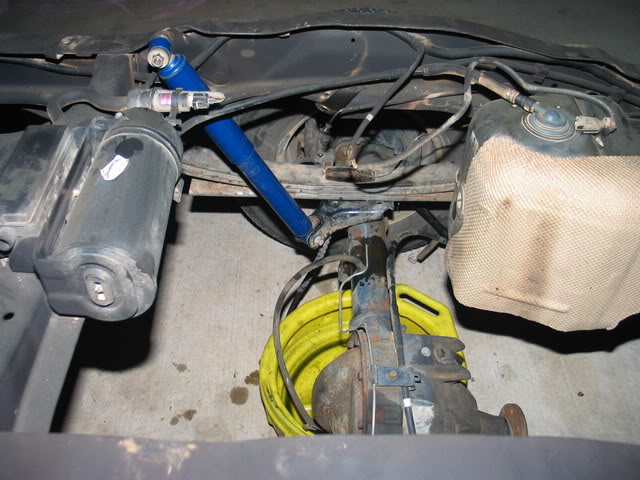

Here's my idea...if I can get some leaf perches for the axle to separate it slightly, it will work.
Name:  IMG_4857.jpg
Views: 12
Size:  68.2 KB

Name:  IMG_4858.jpg
Views: 14
Size:  66.8 KB
Reply With Quote
  #13
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by bryanjints
Nice. What does the explorer springs do for you?
The Explorer springs are quad leafs, while the Ranger's are only tri leafs.

With the addition of the extra shock and the two links, it will be much more stable...along with having better traction due to the LS.
Reply With Quote
  #14
Old 04-01-2007
bryanjints's Avatar
Member
iTrader: (1)

Join Date: Dec 2005
Location: Mount Holly, NJ
Posts: 1,857
Quote:
Originally Posted by Needforspeed3685
The Explorer springs are quad leafs, while the Ranger's are only tri leafs.

With the addition of the extra shock and the two links, it will be much more stable...along with having better traction due to the LS.
Gotcha I figured something to that affect but thought I would ask.
Reply With Quote
  #15
Old 04-01-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
No that's a really good question, and I will take some comparison shots tomorrow of the two different leafs like I did with the shackles....
Reply With Quote
  #16
Old 04-02-2007
mx98ranger's Avatar
Member

Join Date: Apr 2005
Location: GA
Posts: 1,493
definitely coming along.... looks good bro
Reply With Quote
  #17
Old 04-02-2007
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by FORZDA
Not To HIjack - But is this basically the easiest way to get disc on the rears of our trucks? LOL Probably will not work on a Mazda though
No. The easiest way is the SSBC disc conversion. You dont have to pull the axle out, don't have to make axle mounts and don't have to play with ride height or suspension components at all.

I've done 2 or 3 of each method. The SSBC setup takes all of 2 hrs max to do. The hardest part is the parking brake cables.

The exploder axle is cheaper if you can find the axle , thus its popularity.
Reply With Quote
  #18
Old 04-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
The parking brake cable was the biggest pain in the butt I have ever dealt with. I finally got it out after prying and prying and banging.

Does anyone know where I can get a set of leaf spring "stands" to go between the shock mounting plate and axle?
Reply With Quote
  #19
Old 04-02-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i got my spring perches here. im sure someone has them cheaper but these are really nice.

http://www.bluetorchfab.com/shop/pro...roducts_id=423
Reply With Quote
  #20
Old 04-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Thanks a lot man. I gotta confirm those measurements, before I order them.

$40 isn't bad for perches. However, I may search the junkyards first. Most perches are welded to the axle in factory conditions, correct? I'm hoping I can find some that aren't attached.
Reply With Quote
  #21
Old 04-02-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
they are all welded.

your axle tube is 3.25" in diameter and the springs are 2.5" wide. those are the same perches i have to go on my 31 spline.
Reply With Quote
  #22
Old 04-02-2007
SouthernMudSlinger's Avatar
Member

Join Date: Aug 2006
Location: Demorest,Ga
Posts: 1,724
Is that one jack I see holding up the rear of the truck?
Reply With Quote
  #23
Old 04-02-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by SouthernMudSlinger
Is that one jack I see holding up the rear of the truck?

Once you take the bed off the rear of the truck is really light. but still he could use some jack stands.
Reply With Quote
  #24
Old 04-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Yes that was a temporary lift to adjust the jack stands. I wouldn't dare crawl under that thing while it was on that wheel/jack. Especially without the rear bolted up, as it would surely crush me.

And the rear of the truck is very light now. I can lift it up off the jackstands from the bumper.
Reply With Quote
  #25
Old 04-02-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Well I got the axle bolted up in the stock manner, with the spring under the axle. The shocks don't want to hang right, and it sits lower in the rear than in the front.

I can't have that....so I'm gonna have to get some perches.
Reply With Quote
