Icon5 Any Tubular Class III Hitch Assemblies That Fit Flare Sides Out There?

For a while now I've been poking around the net looking for American made Class III hitches for my 2003 Ranger Edge flare side. One issue I am constantly mindboggled over is that a lot of the hitches I do find for Rangers say "excluding flare side or Splash." Basically they are for the regular full sized Ranger beds. Now, I've eyeballed a couple of Edge flare sides in person that I saw with Class III hitches, but they are square tubing which in my opinion are eyesores. Do Curt or Reese make tubular style Class hitch assemblies that will work on my flare side? I've asked this before on another Ranger board, but didn't get much feedback on this. I'm looking for specific part or model numbers, too. Part numbers make shopping for these things much less of a hassle. Thanks in advance.
Reply With Quote
  #2
Old 04-29-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581

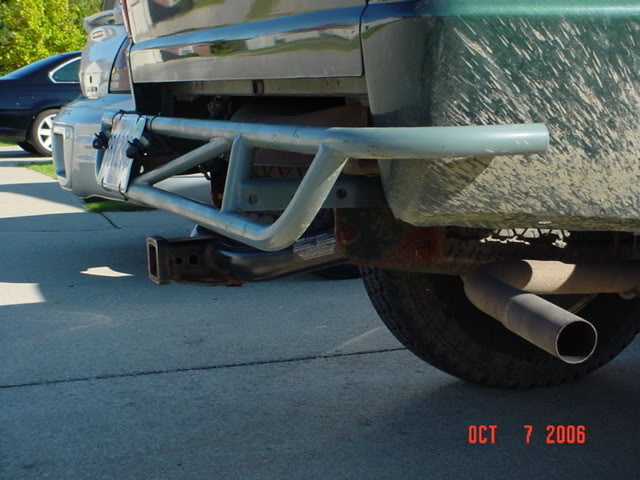

heres mine. not sure where its manufactured, but it is a unit from u-haul i got second or third hand.
Name:  77675c90-1.jpg
Views: 2
Size:  55.9 KB

i have not seen any reason a hitch shouldnt fit both flare and fleetside trucks. the hitch on my old EDGE(flareside) was off a fleetside truck. i pulled it myself.
Reply With Quote
  #3
Old 04-29-2007
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
The oem hitch off of my old flareside fits my styleside
Reply With Quote
  #4
Old 04-29-2007
shadyluke's Avatar
Member

Join Date: Mar 2005
Location: West Grove, PA
Posts: 2,077
Yeah I think the only difference is with the flareside you have to drill a half inch hole in each frame rail.. Least thats how it was when I put a hitch off a fleetside on my old flareside.
Reply With Quote
  #5
Old 04-29-2007
HELMUT RONER's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Tampa
Posts: 98
Thanks, guys. Gumby, would you happen to know if there's a part number anywhere on yours? I've never purchased anything from U-Haul before. I could only assume their prices are pretty outrageous.
Reply With Quote
  #6
Old 05-01-2007
HELMUT RONER's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Tampa
Posts: 98


Did even more poking around since I had more time to do so. I came across a Curt tubular hidden hitch part number 13138 on Ebay. I then started looking around for the best price. I've almost always ordered my stuff in the past from Summit Racing when I had my Mustang. They have it on their site (with a representative image instead of the actual item).
Their part number is CHT-13138.
http://store.summitracing.com/partde...5&autoview=sku

Last edited by HELMUT RONER; 04-15-2008 at 04:58 PM. Reason: prices have changed since this post
Reply With Quote
  #7
Old 04-15-2008
HELMUT RONER's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Tampa
Posts: 98
Icon14 Finally Got It On









Reply With Quote
  #8
Old 04-15-2008
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
looks good, Curt makes some good cheap hitches


and Gumbys hitch was second hand, he got it from me, I got it new
Reply With Quote
  #9
Old 04-16-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Looks very nice man!
Attachment looks the same as my Draw Tite Square tube hitch(Styleside).
Reply With Quote
  #10
Old 04-20-2008
HELMUT RONER's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Tampa
Posts: 98
I like it. Never thought I'd make such a big deal out of a hitch. :)
Reply With Quote
  #11
Old 04-20-2008
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
That looks good. The factory ones are like a freakin second bumper hangin there.
Reply With Quote
  #12
Old 04-20-2008
Naturally Aspirated's Avatar
Member

Join Date: Dec 2006
Location: Roy, Utah
Posts: 484
so did it require to do any drilling?
Reply With Quote
  #13
Old 04-21-2008
HELMUT RONER's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Tampa
Posts: 98
Not on mine. I read once before on here somewhere that 2001 - newer were already drilled. Prior to 2001 ya have to drill. I don't know how solid that info is, though. Mine is a 2003.
