Icon7 Body lifted trucks trailer hitch fix...

Well on Friday I went to my local salvage yard and finally got a hitch for the Ranger. I lucked out, A mid-late 90s ranger had the bed off of it and had a beautifully exposed Ford factory hitch. As everyone knows i have the P.A. 3 inch Body Lift on my truck and hitches that are made for factory set up trucks hang down very low. Well heres what i did...

Step One:
Mount the hitch you purchased or currently have. Measure from the bottom of the hitch to the ground. Make sure your on level ground and tire pressure is equal.

Name:  DSC05583.jpg
Views: 483
Size:  138.5 KB
Name:  DSC05582.jpg
Views: 57
Size:  133.7 KB

Step Two:
Cut the hitch off half way in between the botton bar and frame with a reciprocating saw with a FRESH blade.

Step Three:
Bend tabs out with a large hammer on the bottom piece with the hitch on it. Then make sure the hitch can go around the existing mounts left on the truck with no force. Leave the mounts tight on the truck and make sure bumper is PERFECTLY aligned with the bed..

Step Four:
Using welder's clamps, align hitch with the bumper, measure on level ground from the bottom of the hitch to the ground. Check to make sure you have equal distance on each side. Make sure to get all angles in alignment. Use Clamps to hold the hitch into place. Take your time doing this, try to get it straight as possible. I moved my hitch up exactly 3.5 inches. CLAMP IT TIGHT!

Name:  DSC05598.jpg
Views: 43
Size:  109.1 KB

Step Five:
Using A Welder, tack weld the hitch into place.

Name:  DSC05600.jpg
Views: 45
Size:  72.5 KB
Name:  DSC05599.jpg
Views: 44
Size:  86.0 KB

Step 6:
After you have secured your hitch with small welds, un-bolt it and finish your welds up all the way around the top if necessary and add any other support you feel necessary. Then re-install.

Name:  DSC05602.jpg
Views: 45
Size:  101.2 KB
Name:  DSC05604.jpg
Views: 53
Size:  166.4 KB
Name:  DSC05606.jpg
Views: 43
Size:  217.4 KB

Step 7:

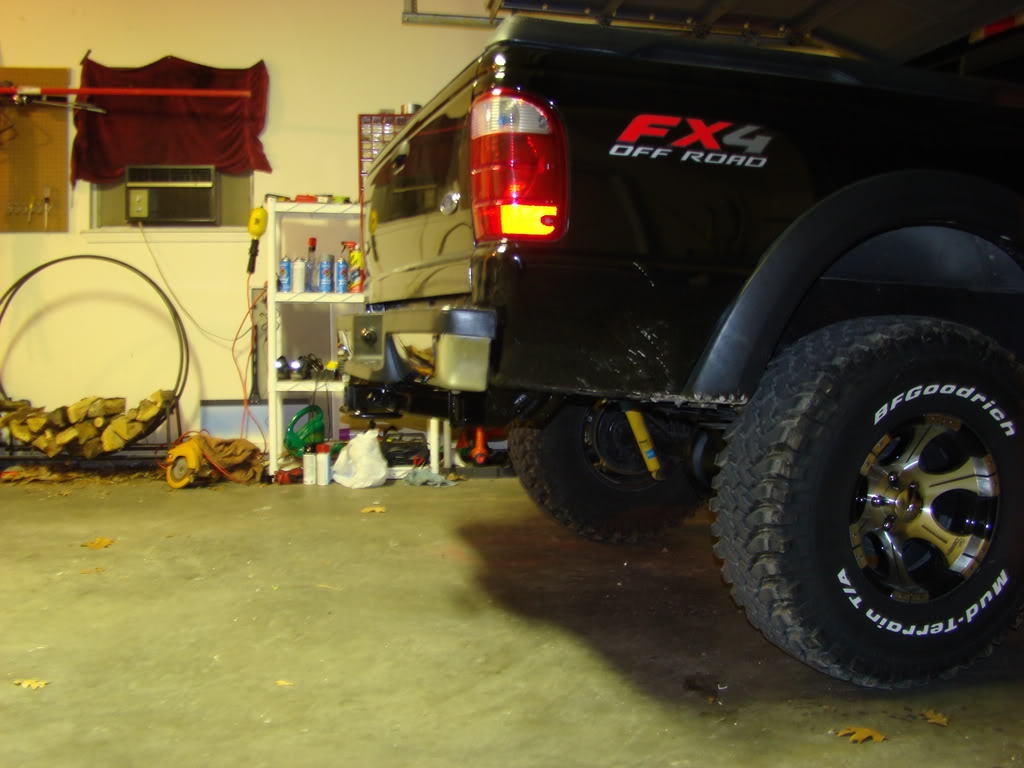

Go back and check all bolts, brackets and welds then give that thing a fresh sanding and painting. Here is the end result:

Name:  DSC05654.jpg
Views: 44
Size:  81.3 KB
Name:  DSC05655.jpg
Views: 46
Size:  116.7 KB
Name:  DSC05656.jpg
Views: 41
Size:  100.6 KB
Reply With Quote
  #2
Old 01-05-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Bueno senor! I need to get that done to mine.
Reply With Quote
  #3
Old 01-05-2009
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
very nice, I have a hidden hitch, it doesn't sit AS high, but it's not terrible :)
Reply With Quote
  #4
Old 01-05-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks good. I'll probably leave mine the way it is though. Makes it easier to wrap a chain around it.
Reply With Quote
  #5
Old 01-05-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
looks great...though i probably wouldn't trust it with a trailer...
Reply With Quote
  #6
Old 01-05-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i would drill some holes and run some bolts though the 2 pieces as well.


other than that it looks good!
Reply With Quote
  #7
Old 01-05-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by cghstrojan08 View Post
Looks good. I'll probably leave mine the way it is though. Makes it easier to wrap a chain around it.
wow ya because a chain is a good idea
Reply With Quote
  #8
Old 01-05-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Quote:
Originally Posted by Redneckstone View Post
wow ya because a chain is a good idea
Sure, works good on the farm. Never had a problem.
Reply With Quote
  #9
Old 01-05-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by 99ranger4x4 View Post
i would drill some holes and run some bolts though the 2 pieces as well.


other than that it looks good!
we tested it with a 24 ft. Camper. Took it about 50 miles. The frame would break before the welds. If done right.
Reply With Quote
  #10
Old 01-05-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
personally i would put bolts for extra security.. but that one's your call
Reply With Quote
  #11
Old 01-05-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by Fx4wannabe01 View Post
looks great...though i probably wouldn't trust it with a trailer...
LOL I pulled a 16 ft. Trailer with 4 quads on it off my Bumper over 400 miles. I'm not at all worried about it holding up. We did this to my dads body lifted 04 gmc and it was like that for 4 years with no issues. And he hauled a 30ft camper with that hitch at least 20 times.
Reply With Quote
  #12
Old 01-05-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by 99ranger4x4 View Post
personally i would put bolts for extra security.. but that one's your call
Would that not create some weak spots in the hitch? Hmmmm I might. Good advice. I might check on doing that.
Reply With Quote
  #13
Old 01-05-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
i like mine where its at but yours looks pretty darn good i really don't pull anything thats just a recovery point and a car stopper for me
Reply With Quote
  #14
Old 01-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by mossyoak03 View Post
i like mine where its at but yours looks pretty darn good i really don't pull anything thats just a recovery point and a car stopper for me
That's about where mine was... I couldn't handle it. I wheel too much, it would drag like crazy. LOL i just went outside and jacked my truck up under the receiver hitch and lifted the truck off the ground. I think the welds will be just fine. the largest thing i pull is a 14ft trailer with 2 quads. and maybe a pop-up camper.
Reply With Quote
  #15
Old 01-06-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
i would think it would be fine if your a good welder
Reply With Quote
  #16
Old 01-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by mossyoak03 View Post
i would think it would be fine if your a good welder
I've done quite a bit... And i couldn't imagine something strong enough to break these welds. I still may do some bolts.
Reply With Quote
  #17
Old 01-06-2009
SteveOh's Avatar
Member

Join Date: Mar 2005
Location: Ft. Campbell Kentucky
Posts: 4,585
that is great man it looks good
Reply With Quote
  #18
Old 01-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by Captain Obvious View Post
that is great man it looks good
Thanks Cap!
Reply With Quote
  #19
Old 01-06-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Easy test, put a strap around a tree, attach strap to truck. Then do a couple pulls to see what happens. Towing a trailer won't be the big strain, getting yanked out will.
Reply With Quote
  #20
Old 01-06-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
looks good man
Reply With Quote
  #21
Old 01-06-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks good but I think I would rather have bolts then welds.
Reply With Quote
  #22
Old 01-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
when i was thinking about doing a front receiver all my instructors suggested putting bolts through the frame as well as welding it on.
Reply With Quote
  #23
Old 01-06-2009
TheBearJeweler's Avatar
Member
Thread Starter
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by 99ranger4x4 View Post
when i was thinking about doing a front receiver all my instructors suggested putting bolts through the frame as well as welding it on.
I am putting bolts in tonight. Thanks for advice. I'll add pics
Reply With Quote
  #24
Old 01-06-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Take some more pics. The ones above are a little hard to see all the welds and stuff.
