Do I have Rear Wheel or All Wheel ABS?

I have a 98 Ford Ranger XLT, 4x4, 2 door supercab that needs brake lines.

The auto supply is telling me that they need to know if the truck has Rear Wheel ABS or All Wheel ABS.

Some of the lines/hoses are different between the two.

Since I don't know what I'm looking for on the hubs, I decided to look at the engine bay; starting from the master cylinder.

From the output on the master cylinder that's labeled R (I'm assuming that's referring to the rear wheels), the line goes to what looks like a proportioning valve (which has an electrical plug on it), then it goes to back to the rear wheels.

From the output on the master cylinder that's labeled F, there is a electrical plug on the top side of and a line going out the left side. That line is going to the front wheels. I'm not seeing any thing else that looks like an electrical connection.

I'm getting the impression that my truck only has Rear Wheel ABS.

Does this sound right? Is there anything else I should be looking for? If you need more information, let me know, and I'd be happy to look for it.
Reply With Quote
  #2
Old 07-21-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
you should have "lines" with a white piece by the hub on both wheels for front ABS

also check by the front body mounts on the frame. you should have a plug thats right there on both sides horizontally which is where the sensor connects.
Reply With Quote
  #3
Old 07-23-2013
Member
Thread Starter

Join Date: Jul 2013
Location: Northern, Wisconsin
Posts: 35
There is only one line coming from the the hub, and that one is the vacuum line for the lockouts.

I didn't see any plugs by the front body mounts, either.
Reply With Quote
  #4
Old 07-23-2013
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Sounds like you have just rear ABS.

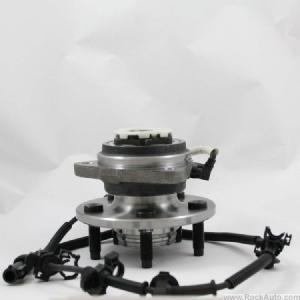

Terrible picture but the front hubs would have a sensor like this if you had ABS on the front too:

Attached Thumbnails
Do I have Rear Wheel or All Wheel ABS?-295-15027_s.jpg
Reply With Quote
  #5
Old 07-23-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by FULLSCALE View Post
Sounds like you have just rear ABS.

Terrible picture but the front hubs would have a sensor like this if you had ABS on the front too:

i spy the white cover on the line on the upper right side of the pic lol
Reply With Quote
