Explorer 8.8 axle mounting...GOT ONE?

I'm curious to see what others have come up with mounting the leaf springs and shock absorbers to the Explorer 8.8 rear axle. I'm currently sitting too low to suit my fancy, and am considering a flip kit. However, I was wondering if lift shackles would be better than flipping the rear...

What do you think? Do you have pictures of this application?

Thanks dudes....show away:

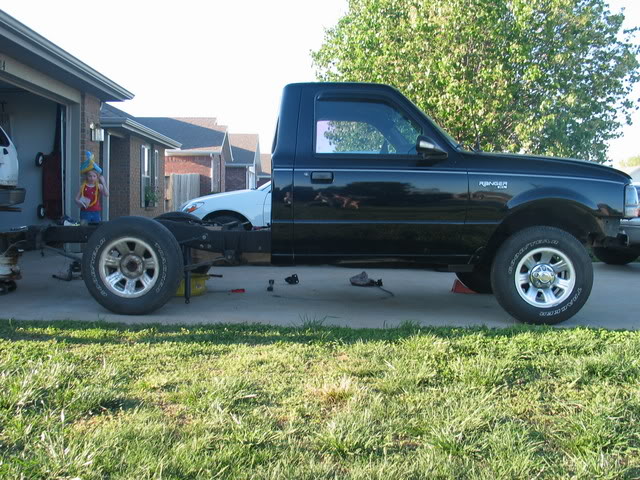

Name:  IMG_4859.jpg
Views: 41
Size:  104.9 KB

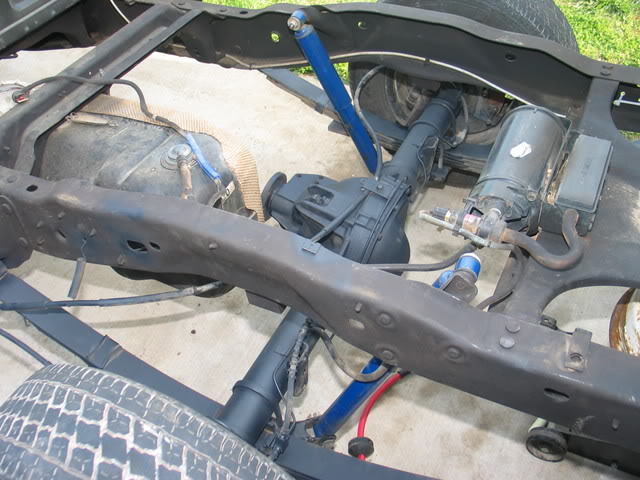

Name:  IMG_4873.jpg
Views: 46
Size:  69.8 KB

Last edited by Needforspeed3685; 05-10-2007 at 11:10 PM.
Reply With Quote
  #2
Old 05-10-2007
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
I dont get what your tryign to aim for? I have heard an explorer axle will put you 4 inches lower than stock height in the rear, so its to low for you why do you need a flipkit? I dont get it that will give you 5 inches of drop?

In all honesty slap some 2 inch DJM coils in there and call it a day it would look nice.
Reply With Quote
  #3
Old 05-10-2007
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
A flip kit puts the leaf springs on top of the axle for the explorer. So he would gain 3-4 inches. I would say go with adjustable shakles because you can still be lower than factory but have a ride height that suits you.
Reply With Quote
  #4
Old 05-11-2007
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
Quote:
Originally Posted by 0RangerEdge2
A flip kit puts the leaf springs on top of the axle for the explorer. So he would gain 3-4 inches. I would say go with adjustable shakles because you can still be lower than factory but have a ride height that suits you.
If you look at the pics it looks as if his is already on top of the leafsprings...
Reply With Quote
  #5
Old 05-11-2007
Cody_288's Avatar
Member

Join Date: Oct 2005
Location: Oil City, PA, Pittsfield, PA
Posts: 511
Quote:
Originally Posted by Mark98xlt
If you look at the pics it looks as if his is already on top of the leafsprings...
It is.
Reply With Quote
  #6
Old 05-11-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Indeed I am. A flip kit would reverse that, putting the leaf springs on top of the axle. This would lower the whole axle an additional 4 inches, which would equate to 4 inches of lift in the rear.
Reply With Quote
  #7
Old 05-11-2007
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
False. The axle stays in the same place. You put the springs effectively 4" higher, making 4" of lift. Same idea, but I wanted to call you out on the technicality, lol.
Reply With Quote
  #8
Old 05-11-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
get some spring perches and weld them on.
Reply With Quote
  #9
Old 05-11-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
if you want to keep the springs under the axle, then get yourself a set of Belltech 6400 Chevy shackles.....that will give you about 1.5" of lift...
Reply With Quote
  #10
Old 05-11-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
did you save the explorer leafs?

use those, those will give you another 1inch or so
Reply With Quote
  #11
Old 05-11-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Those ARE the Explorer leafs. Notice the 4 leafs, instead of just the 3?

Here are the shackles I'm going to get:

Reply With Quote
  #12
Old 05-11-2007
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Needforspeed3685
Those ARE the Explorer leafs. Notice the 4 leafs, instead of just the 3?

Here are the shackles I'm going to get:


yeah, those shackles should help bring the rear up then

personally, id keep it with the Spring Under Axle, its alot better on traction
Reply With Quote
  #13
Old 05-11-2007
SouthernMudSlinger's Avatar
Member

Join Date: Aug 2006
Location: Demorest,Ga
Posts: 1,724
so what direction are you going with this truck? lifted? performance? fast?
Reply With Quote
  #14
Old 05-11-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Performance and fast...no lift or drop. It's going to be "stock looking"...just with some meat on it's bones that'd nobody would expect (until I fire it up, at least!)

Scott...I figured exactly what you're saying - Spring Under Axle is better on traction than Over. That why I made this thread and found those lift shackles.
Reply With Quote
  #15
Old 05-12-2007
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
if you are goin for street/fast i would definatley leave it SUA. i would also jus drop the front 2" with a set of coils to even things out.

doesnt look like you need much to be level, but its hard to tell from the pic w/o the bed. 2" is a good gain in performance w/o being to low. and still looks great with stockish diameter tires.
Reply With Quote
  #16
Old 05-12-2007
01xltranger4x4's Avatar
Member
iTrader: (3)

Join Date: May 2005
Location: MI
Posts: 3,200
Reply With Quote
  #17
Old 05-14-2007
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
^ x2 its doesnt look that low, just looks like any old 2wd ranger. so id say just get some coils and save the work. looks great how it is. it will still have the stock look as long as yer not sitn rocker and have flashy wheels
Reply With Quote
  #18
Old 05-14-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Curious & info>>>>

Quote:
Originally Posted by Needforspeed3685
I'm curious to see what others have come up with mounting the leaf springs and shock absorbers to the Explorer 8.8 rear axle. I'm currently sitting too low to suit my fancy, and am considering a flip kit. However, I was wondering if lift shackles would be better than flipping the rear...
What do you think? Do you have pictures of this application?
Thanks dudes....show away:
========================================
I'm assumin your in the build up stage?

Why did you get an Explorer rearend if you didn't want it lowered?

Just my O2 here:

1. Your pinion angle is too high, you need some pinion angle degree shims, I
believe I used 5* shims on mine to get it to a comfortable angle IMO.

2. When you put the 302 in, it will drop the front down.

Here's a couple pics of mine, 92 Explorer 8.8..............

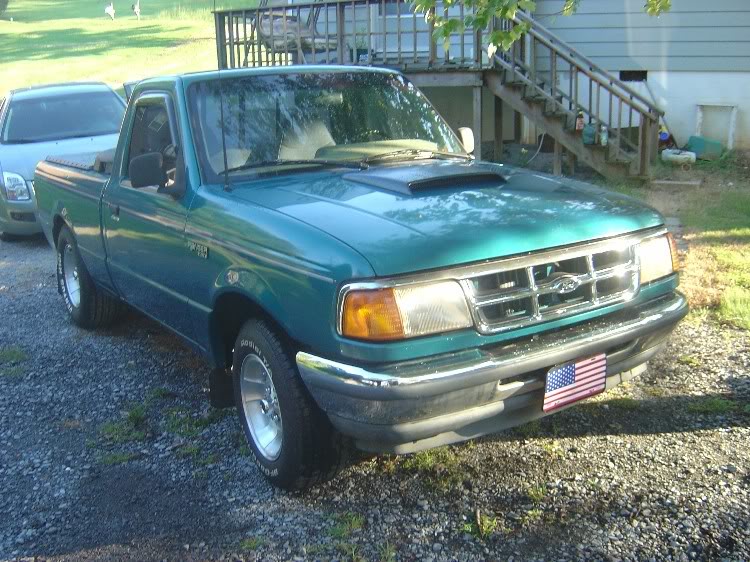

Name:  92106Outforabath1750pix.jpg
Views: 39
Size:  121.8 KB

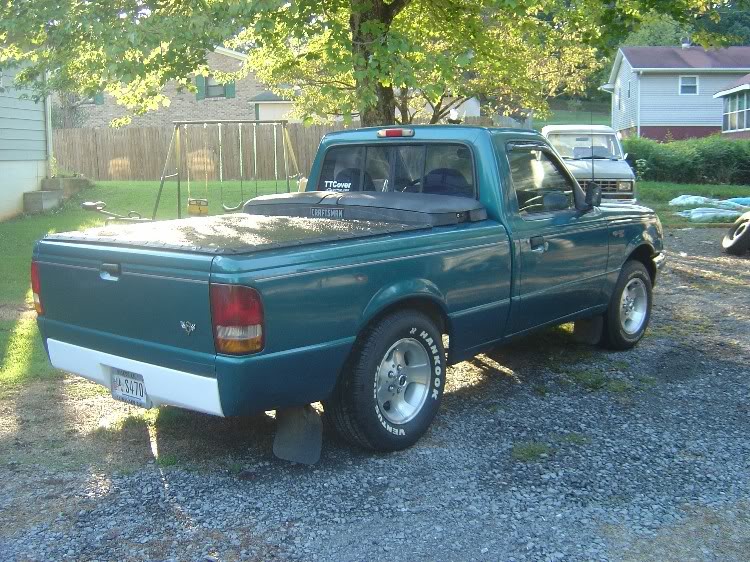

Name:  92106Outforabath2750pix.jpg
Views: 147
Size:  142.4 KB
Reply With Quote
  #19
Old 05-15-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Nice ride you got there! I got an Explorer 8.8 rear because it came with the REST of the Explorer....lol. Also, my open diff 7.5 just didn't seem up to par with so many more ponies pulling it.

Since the shackles I have pictured above are "Adjustable", I'll keep both the stock Ranger shackles and the new "lift" shackles just in case I need to level it out once the motor and tranny is bolted.
Reply With Quote
  #20
Old 05-15-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Much APPRECIATED!

Quote:
Originally Posted by Needforspeed3685
Nice ride you got there! I got an Explorer 8.8 rear because it came with the REST of the Explorer....lol. Also, my open diff 7.5 just didn't seem up to par with so many more ponies pulling it.
Since the shackles I have pictured above are "Adjustable", I'll keep both the stock Ranger shackles and the new "lift" shackles just in case I need to level it out once the motor and tranny is bolted.
=========================================
THANKS for the compliment on my TOY!

FYI: tonight I picked up a 98 Explorer 8.8 w/3.73 posi that has discs for $100...........so I'll be swappin that in after I get it cleaned up & painted and have offered my Son my current 92 Explorer 8.8 to replace his 7.5 posi..............if he doesn't want it, then I'll hang on to it, just incase my 87 Supercab don't sell & I V8 it later on .......

Send me some more pics of your project PLEASE............ [email protected]

THANKS & keep up the good work!!!
Reply With Quote
  #21
Old 05-17-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon14 8.8 disc braked rearend

Here's a couple of pics of my 98 Explorer 8.8 disc braked rearend I picked up Tuesday..................I cleaned it up & painted it all except the rearend cover, as I'm gonna put a 03 Explorer aluminum cover on it............

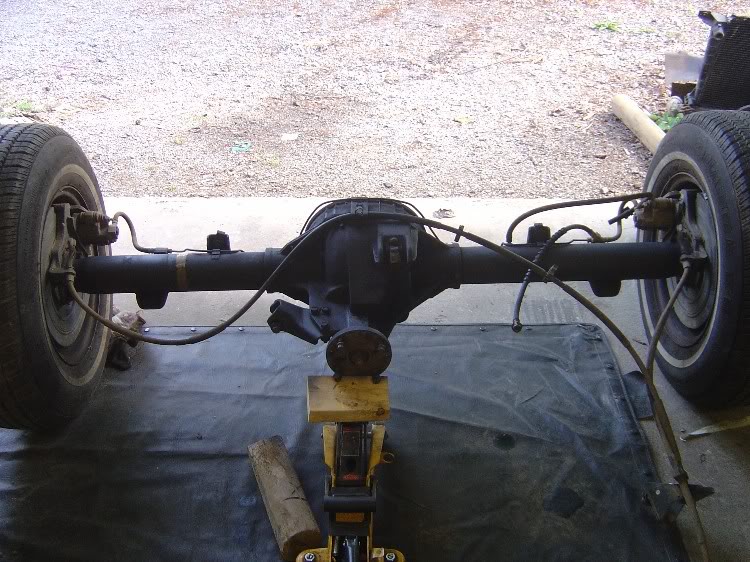

Name:  98Explorer8-1.jpg
Views: 30
Size:  112.0 KB

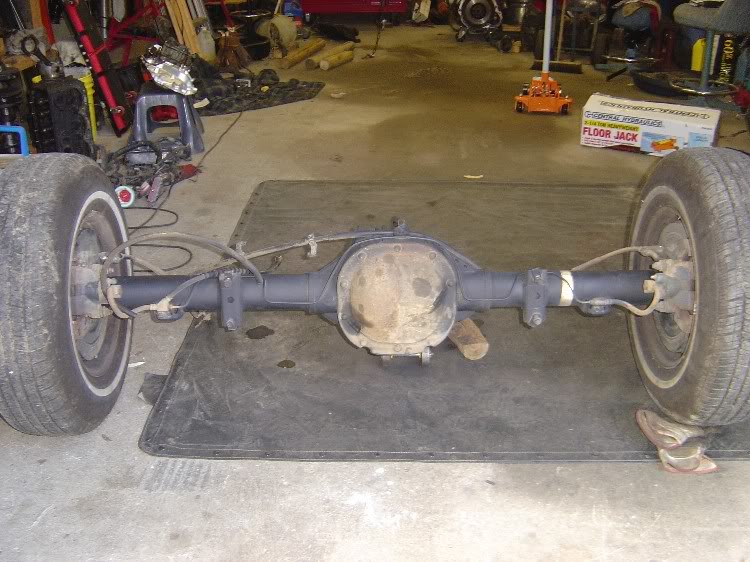

Name:  98Explorer8.jpg
Views: 32
Size:  89.4 KB

Still waitin on pics of your buildup....................
Reply With Quote
  #22
Old 05-21-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616

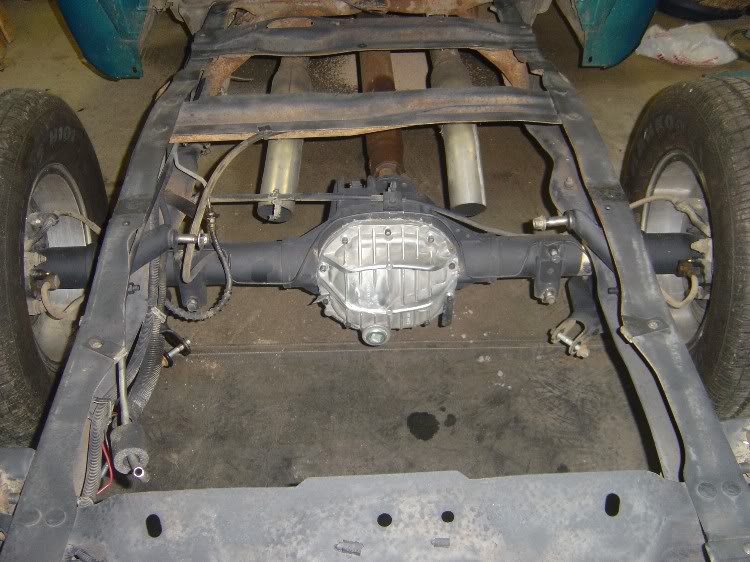

Icon14 98 Explorer 8.8:

INSTALLED ..............
Name:  98Explorer8-2.jpg
Views: 35
Size:  83.4 KB

Just gotta figure out how I'm gonna rig my E-brake cable, install my new shorter shocks, and put my bed back on..................
Reply With Quote
  #23
Old 05-21-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
looks good!
Reply With Quote
  #24
Old 08-16-2007
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by 94Ranger355
Just gotta figure out how I'm gonna rig my E-brake cable, install my new shorter shocks, and put my bed back on..................
How did you rig your e-brake cable? And did you put longer shackles on to raise the rear?
Reply With Quote
  #25
Old 08-16-2007
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon2 Well>>>>>>>>>

Quote:
Originally Posted by Needforspeed3685
How did you rig your e-brake cable? And did you put longer shackles on to raise the rear?
============================================
On my Son's we I used adjustable aftermarket shackle extentions as he didn't like the way his sat, but on mine it PURE STOCK components.........

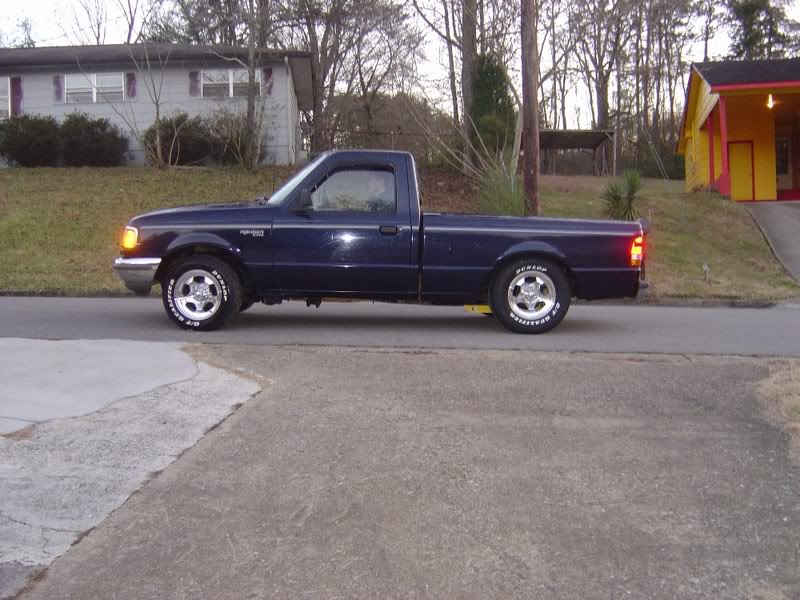

BEFORE:Name:  KevinsToy119061000pix1.jpg
Views: 42
Size:  108.2 KB

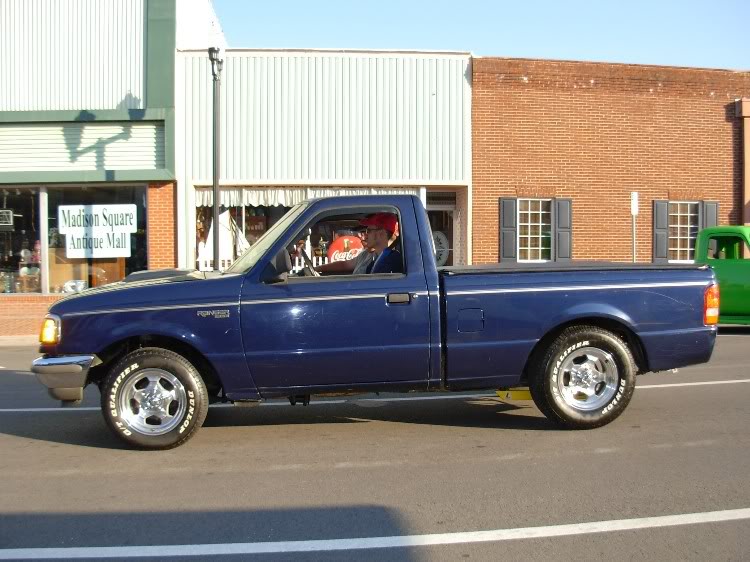

AFTER:Name:  AthensCruise-In7-21-0710750pix.jpg
Views: 76
Size:  85.5 KB

As far as the E-brake, I went to the boneyard & picked up a couple of different cable connector/adjusters from F150's so I could adjust the tension and still had to do some fabbin with some angle iron.........
Reply With Quote
