Frame rust..

  #1
Old 03-06-2012
Ranger4.0XLT's Avatar
Member
Thread Starter
Join Date: Sep 2011
Location: Northford, CT
Posts: 501
Frame rust..

How worried should I be about these pictures of my truck and what do you think I should do about all this rust..? I have a few small holes in the spare tire carrier and i'm worried about where else there might be some. Should I POR15 it or does this call for some serious cutting and welding?

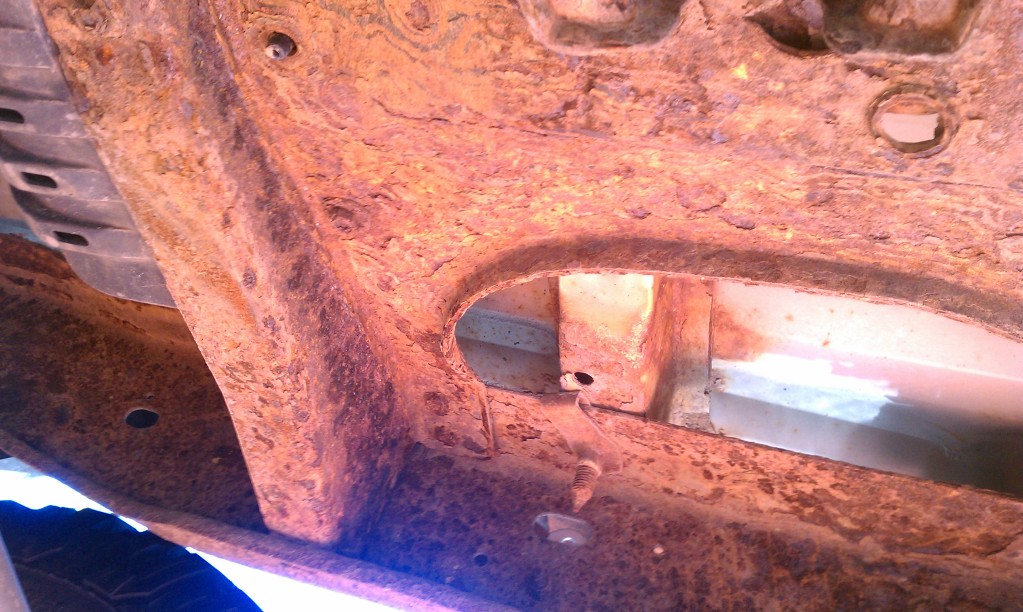

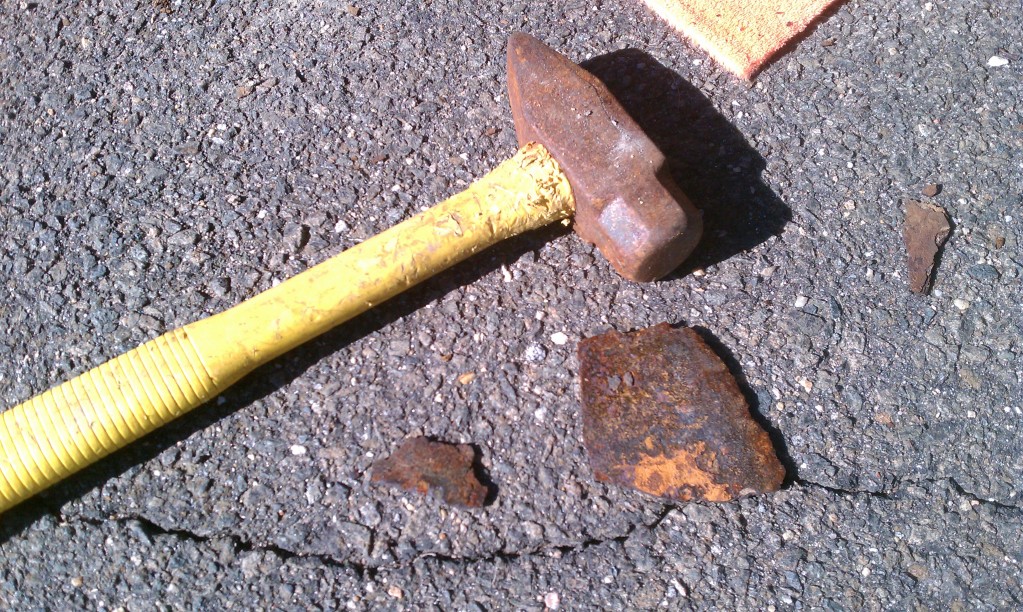

Attached Thumbnails Frame rust..-imag0968.jpg   Frame rust..-imag0967.jpg   Frame rust..-imag0970.jpg   Frame rust..-imag0964.jpg   Frame rust..-imag0972.jpg

  #2
Old 03-06-2012
06RangerXLT's Avatar
Member
iTrader: (2)
Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
dam. id seriously consider finding a frame. otherwise your looking at ALOT of cutting and welding.

  #3
Old 03-06-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)
Join Date: Aug 2008
Location: California
Posts: 12,538
I would wash it and try and spray it with an undercoating. The spare tire carrier isn't a big deal because you can just take it out and box the frame anyway.

  #4
Old 03-06-2012
pcollins's Avatar
Member
Join Date: Apr 2010
Location: Walworth, NY
Posts: 493
I've seen worse still being driven. My '97 I had Was a bit worse than that but the biggest thing is that there are NO cracks/holes in the main framerails and crossmemebers. and yea, the tire carrier means next to nothing.

  #5
Old 03-06-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)
Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Originally Posted by 98liftedranger View Post
I would wash it and try and spray it with an undercoating. The spare tire carrier isn't a big deal because you can just take it out and box the frame anyway.
x2 that stuff is pretty thin there. As long as the main frame looks okay then just clean it up and paint!

  #6
Old 03-06-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)
Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Damn! I'd grind/ sandblast the entire frame and then undercoat it. Looks worse than my pos green truck was. Sandblasting will easily show you what parts are thin, it will either indent it or put a hole in it

Safety glasses and a respirator are a must

  #7
Old 03-06-2012
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)
Join Date: Jul 2010
Location: RI
Posts: 5,030
I was waiting for this thread LOL. I would sand blast like Pedro said too see what you have to work with. Where the F did you truck come from?

  #8
Old 03-06-2012
littlered's Avatar
Member
iTrader: (2)
Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
either sand blast and undercoat or knock off all the loose stuff and powerwash it and put POR-15 on it.

  #9
Old 03-06-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)
Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
I'm with Pedro and Dave, Grind or sandblast first, then decide what to do.

  #10
Old 03-06-2012
cchsbuzz19's Avatar
Member
iTrader: (5)
Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Mine is worse than that but being its the spare tire Carrier It doesn't bother me to much. Like said above just get a wire wheel and grind down the whole frame and give it a good coating of rust preventer. POR15 Would be your best bet.

  #11
Old 03-06-2012
mthomp1's Avatar
Member
Join Date: Nov 2011
Location: North Louisiana
Posts: 330
Originally Posted by 99offroadrngr View Post
Damn! I'd grind/ sandblast the entire frame and then undercoat it. Looks worse than my pos green truck was. Sandblasting will easily show you what parts are thin, it will either indent it or put a hole in it

Safety glasses and a respirator are a must
Same here.

  #12
Old 03-06-2012
02slammedranger's Avatar
Member
iTrader: (8)
Join Date: Jul 2009
Location: Dearborn, MI
Posts: 593
Originally Posted by cchsbuzz19 View Post
Mine is worse than that but being its the spare tire Carrier It doesn't bother me to much. Like said above just get a wire wheel and grind down the whole frame and give it a good coating of rust preventer. POR15 Would be your best bet.
I just POR15 my whole frame and damn did it help and it adheres right to rust
