gap guards

in preparation for my BL, i want to know where i can find gap guards for the best price. summit has them for $84 but i cant find any other website to compare too. no other site has them... at least that i have found. any suggestions?
Reply With Quote
  #2
Old 03-01-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
what do they even do?
Reply With Quote
  #3
Old 03-01-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
go to home depot they sell stuff for cheap that you can get to work
Reply With Quote
  #4
Old 03-01-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
I wAs told stair runner works you can get it at homedepot or where ever
That's what I'm doin when mine is done
Reply With Quote
  #5
Old 03-01-2009
02rangermayhem's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: C.Springs
Posts: 573
Quote:
Originally Posted by monkeysteeler12 View Post
what do they even do?
they cover the gap that can be seen inside the fender-wells. most noticeable in the rear fender-well between the bed and frame.

http://store.summitracing.com/largei...gapguard_w.jpg


Quote:
Originally Posted by mossyoak03 View Post
go to home depot they sell stuff for cheap that you can get to work
like?
Reply With Quote
  #6
Old 03-01-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
80 for that? woooow.
Reply With Quote
  #7
Old 03-01-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Gap guards make or break a BL in my opinon. Cough up the extra money and getting them or something similar.
Reply With Quote
  #8
Old 03-01-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
yeah, i agree that it looks much better with it on.

but whats included with the 80?

sounds like its a little expensive for something to cover a hole.
Reply With Quote
  #9
Old 03-01-2009
02rangermayhem's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: C.Springs
Posts: 573
Quote:
Originally Posted by Lord Of War View Post
Gap guards make or break a BL in my opinon. Cough up the extra money and getting them or something similar.
agreed. i would rather buy them instead of presidential engineering something similar. and NO... NO DIAMOND PLATE!i!i!i!i!

any one know where i could find them cheaper though?
Reply With Quote
  #10
Old 03-01-2009
02rangermayhem's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: C.Springs
Posts: 573
Quote:
Originally Posted by monkeysteeler12 View Post
yeah, i agree that it looks much better with it on.

but whats included with the 80?

sounds like its a little expensive for something to cover a hole.
its a set of 4 gap guards. (one for each fender-well) idk if the hardware is included.
Reply With Quote
  #11
Old 03-01-2009
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
hardware IS included in the kit.. I just bought them!! worth the extra money ImO
Reply With Quote
  #12
Old 03-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
IMO their a ripoff. You can get the little plastic pushpins for 5 dollars at Lowes. I didn't even run the front ones, no need too.
Reply With Quote
  #13
Old 03-02-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
home depot also has them and if you work in an engineering field gasket material works too.
Reply With Quote
  #14
Old 03-02-2009
05RangerXLT's Avatar
Member
iTrader: (1)

Join Date: Dec 2005
Location: Raleigh, NC
Posts: 1,287
For the rear, definitely make your own. When I had my BL'ed Ranger, I made my rear ones. Get some 26-28G sheet metal and have it cut to length. Then take and bend it at and angle so that it goes from the lip on the bed, to the chassis. Then screw it down with some self tappers. Just make sure on the driver's side you drill at the right spot, as the fuel line runs down this side of the chassis. I primed mine and sprayed it with rubberized undercoating, by far the best looking in my opinion. I don't have any close up pictures, but it looked like it was made with the truck.
Reply With Quote
  #15
Old 03-02-2009
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
I got some rubber from a production plant that they just toss in the trsh and made my own.
Reply With Quote
  #16
Old 03-02-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936

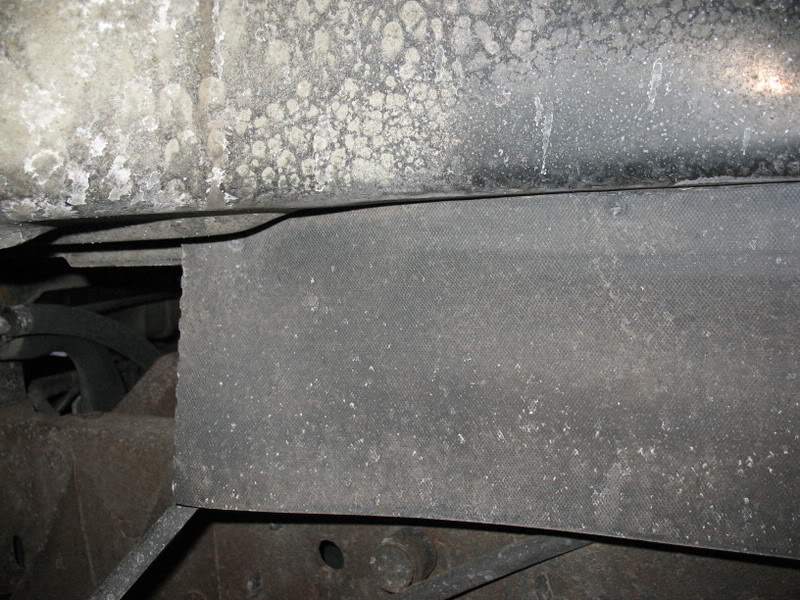

Go to homedepot and get some stair runner material gonna cost you like $20 max..

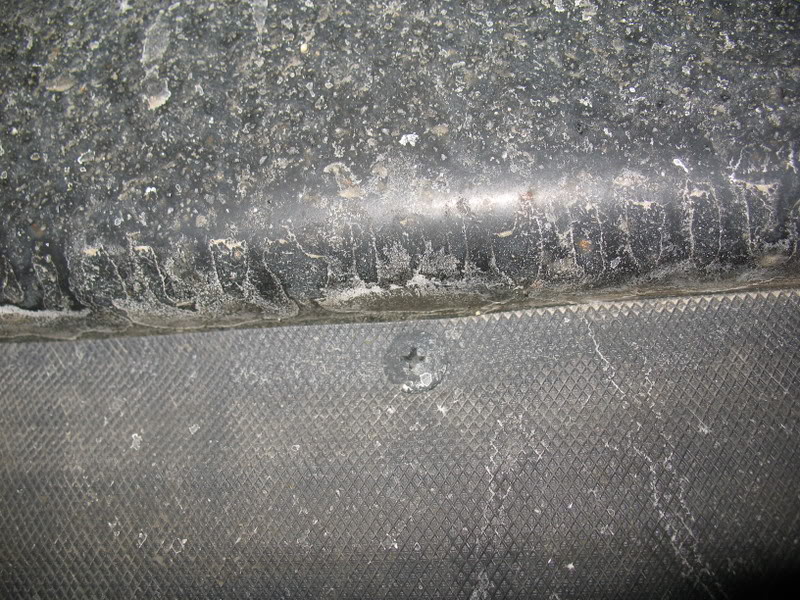

the stuff i got was to wide so i sliced it inhalf and put it on.. using self tapping sheet screws into the pinch weld seam.. just dont put a screw in a spot weld..

use the BACK SIDE of the rubber the not ribbed side...





Name:  RFpics001.jpg
Views: 6
Size:  120.2 KB
Name:  RFpics002.jpg
Views: 8
Size:  121.7 KB
Name:  RFpics003.jpg
Views: 11
Size:  119.9 KB
Name:  RFpics004.jpg
Views: 18
Size:  83.1 KB
Name:  RFpics005.jpg
Views: 8
Size:  166.8 KB

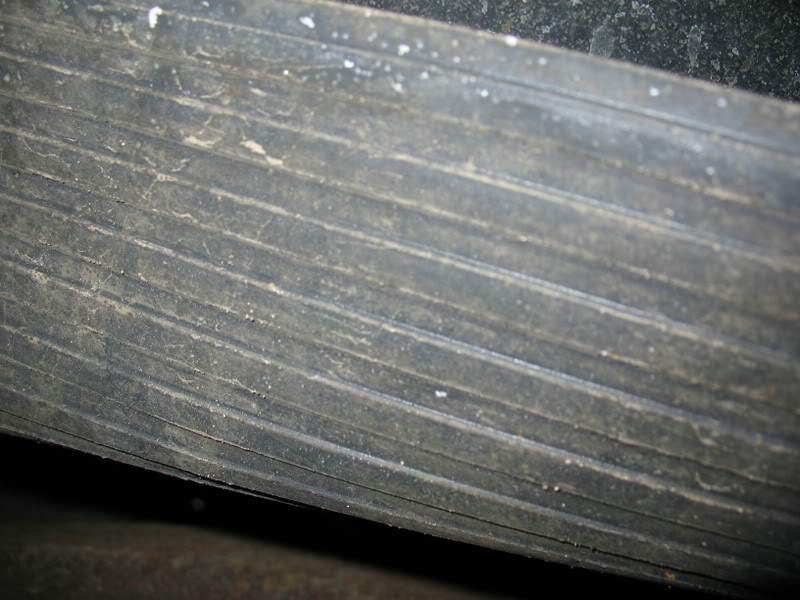

this is what the side you wanna hide looks like



Name:  RFpics006.jpg
Views: 8
Size:  74.1 KB

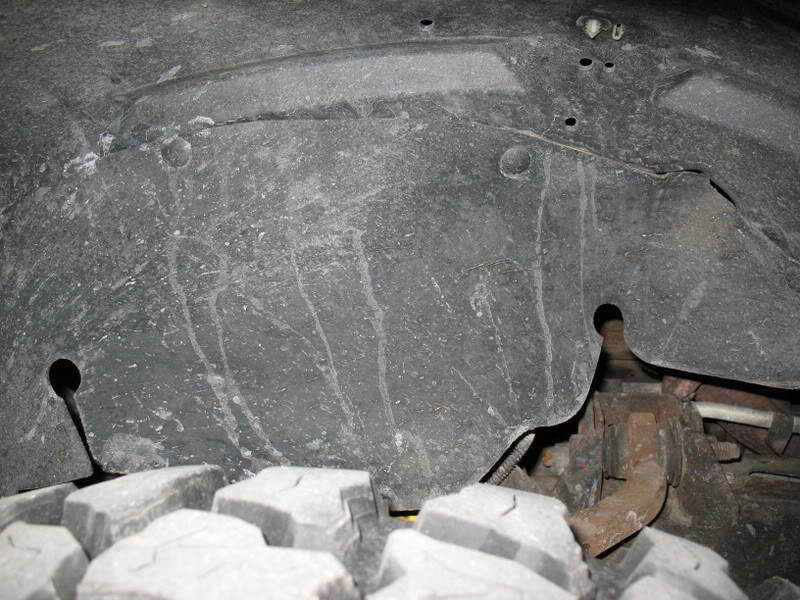

you dont need anything on the front the stockers take care of it...


Name:  RFpics008.jpg
Views: 7
Size:  117.8 KB





here my truck from the side they work great




Name:  Allcleanspring012.jpg
Views: 13
Size:  242.7 KB
Name:  Allcleanspring006.jpg
Views: 17
Size:  238.2 KB
Reply With Quote
  #17
Old 03-02-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
on day ill find that stuff lol

one of the disadvantages of living in bfe
Reply With Quote
  #18
Old 03-02-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
you need some Joey?
Reply With Quote
  #19
Old 03-02-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
yes lol
Reply With Quote
  #20
Old 03-02-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
let me see what i can do for ya
Reply With Quote
  #21
Old 03-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Hey Joey I can get them from Stone and meet up with you one day.
Reply With Quote
  #22
Old 03-02-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
when you heading up there
Reply With Quote
  #23
Old 03-02-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The Tenn. meet is the 21st so anytime after that I'm good.
Reply With Quote
  #24
Old 03-02-2009
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
i missed that thread

probably just as easy to ship them too but heck i been kinda looking for them the last few months what's a few more lol
Reply With Quote
  #25
Old 03-02-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 04blackedge View Post
IMO their a ripoff. You can get the little plastic pushpins for 5 dollars at Lowes. I didn't even run the front ones, no need too.
Rubber deterioriates over time...i wanted something that would last...and the ones PA sells are made of eurothane, not rubber. I got mine brand new from a 4x4 shop for $50.

Front ones...no need? excuse me??....how can you say thats not ugly?...
Name:  P9120428.jpg
Views: 8
Size:  88.3 KB
Reply With Quote
