Here's my version of the Mag Lite mount mod

I started with a piece of flat 16 ga steel and 2.25" pipe that were laying around the shop. Then cut it to the shape I wanted, and bent the angles using a finger brake.
Name:  000_1373.jpg
Views: 4
Size:  78.5 KB

Welded the pipe in place

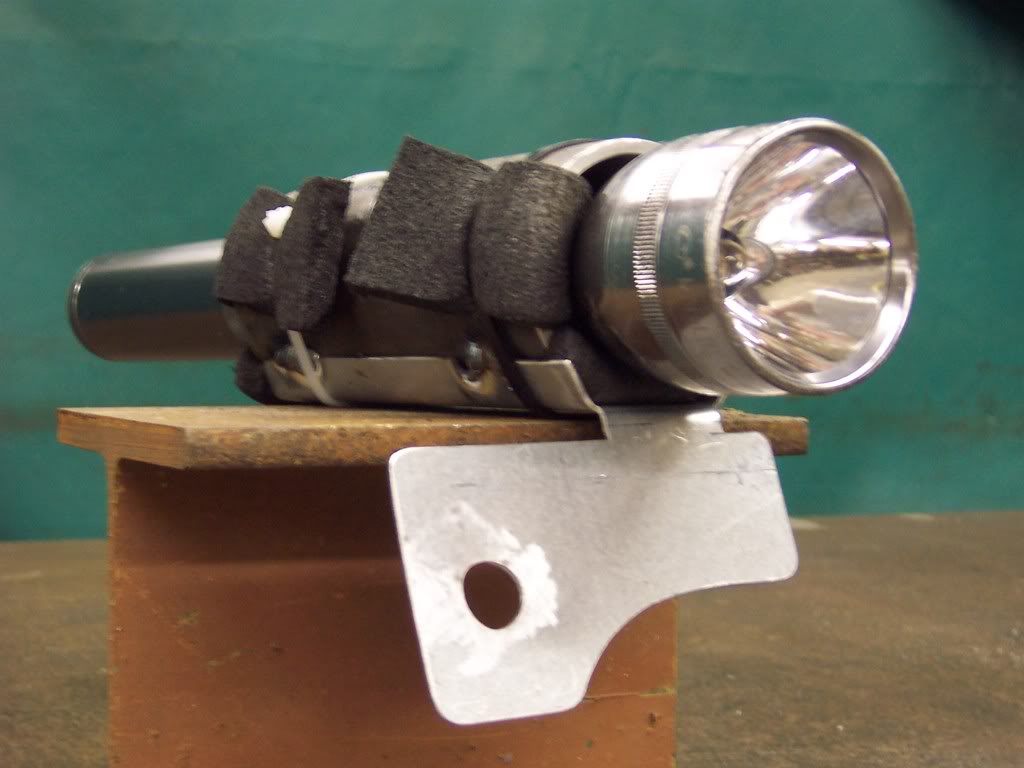

Inserted some foam to keep the Mag Lite from rattling and shooting out when I hit the brakes.
Name:  000_1376.jpg
Views: 4
Size:  63.9 KB

Then mounted it to the floor via the drivers seat mount. Here's the finished project.
Name:  000_1377.jpg
Views: 5
Size:  141.5 KB

What do you think?
Reply With Quote
  #2
Old 04-15-2008
kevinsranger's Avatar
Member

Join Date: Feb 2008
Location: jersey
Posts: 388
should throw some paint on it, but it looks really good.
Reply With Quote
  #3
Old 04-15-2008
sambob117's Avatar
Member

Join Date: Nov 2006
Location: Rochester, NY
Posts: 1,124
not bad at all
Reply With Quote
  #4
Old 04-15-2008
jaysinpa's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: New Brighton, PA
Posts: 648
Quote:
Originally Posted by kevinsranger View Post
should throw some paint on it, but it looks really good.
Yeah. I just wanted to try it out and see if I liked it first.
Reply With Quote
  #5
Old 04-15-2008
JSteele's Avatar
Member

Join Date: Jan 2007
Location: Columbus, Oh
Posts: 287
I like it... good work
Reply With Quote
  #6
Old 04-15-2008
jaysinpa's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: New Brighton, PA
Posts: 648
Quote:
Originally Posted by JSteele View Post
I like it... good work
Thanks.
Reply With Quote
  #7
Old 04-15-2008
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
I like it throw some paint on it and your set up
Reply With Quote
  #8
Old 04-15-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Very Nice! Looks better than my Radiator hose clamp/PVC coupler con-Craption!
Reply With Quote
  #9
Old 04-15-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
nice
Reply With Quote
  #10
Old 04-15-2008
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
nice, i want to do something liek that now because my maglite is rattling in its current location
Reply With Quote
  #11
Old 04-15-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
It definitely needs paint. I don't really like the way the foam is in there, it looks kinda sloppy, but it isn't really that visible. Over all, good job.
Reply With Quote
  #12
Old 04-15-2008
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
you could always drill two small holes at the ends of the pipe for the zipties to go through so u can cut the foam flush.

i like it though!
Reply With Quote
  #13
Old 04-17-2008
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
i stuck mine in the passenger door pocket.
